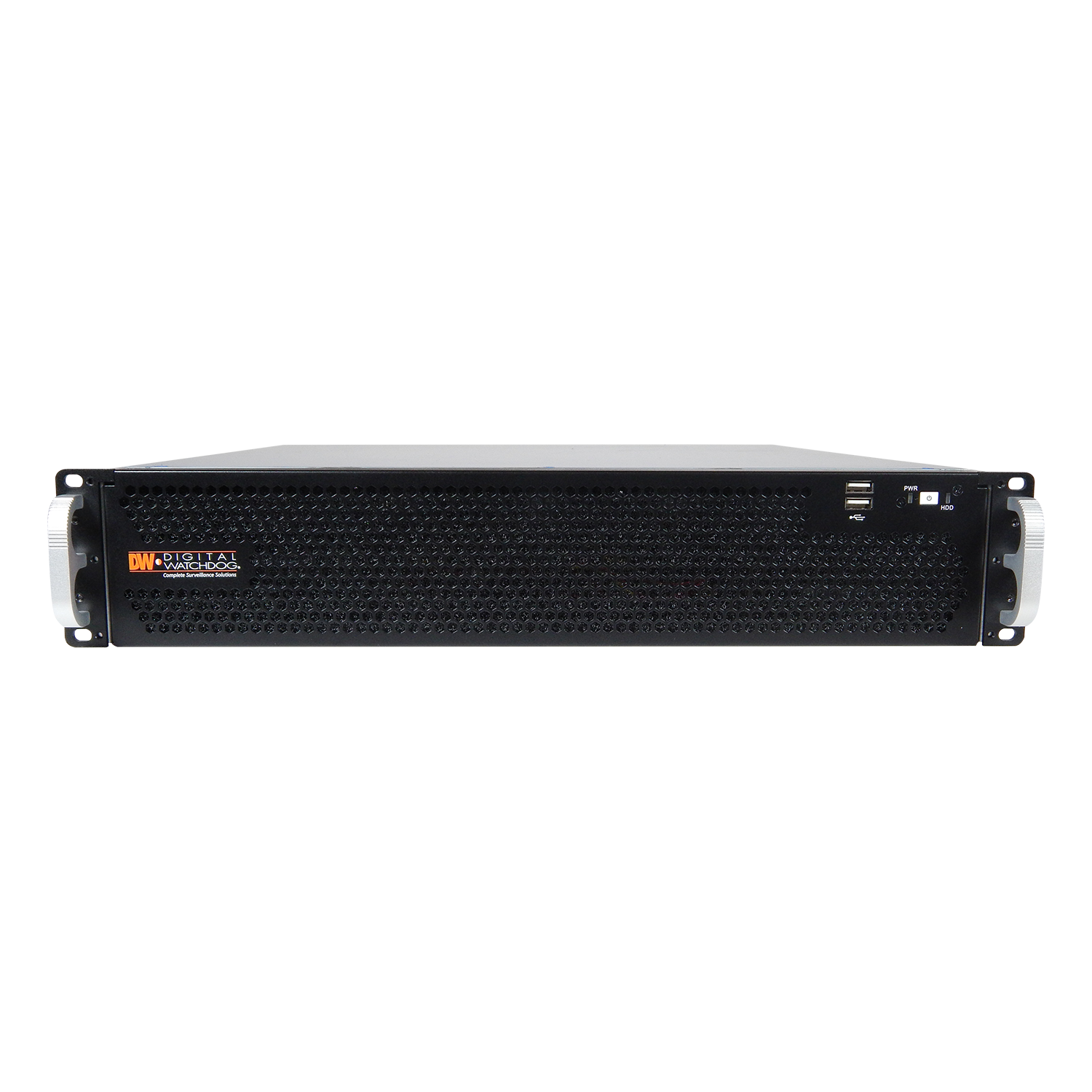

Home Products Blackjack® Ai P-Rack™ 2U rackmount server Powered by DW Spectrum® IPVMS and IVA

Share this Product!
All-in-One NVR and Analytics Appliance, Powered by DW Spectrum and IVA Server
Model: DW-BJAiPxxTR
Find a Reseller | Request a Demo | Contact Us

Blackjack® Ai P-Rack™ Artificial Intelligence Network Video Recorder (Ai NVR) is a purpose-built server, with built-in server-side analytics that unlock advanced Ai capabilities on any connected video stream via our IVA Ai Server software. This cost-effective, plug-and-play appliance combines high-performance recording with video analytics in an easy-to-deploy, turnkey solution. The NDAA and TAA compliant server features up to 600Mbps throughput, 64 analytics streams and comes preloaded with DW Spectrum® IPVMS, with four complimentary recording licenses. Add the power of advanced neural-network-based analytics to your video streams with a Blackjack Ai NVR, backed by our 5 year limited warranty.

NDAA TAA


  • DW-BJAiPxxT

Server-Side Analytics for Non-Analytic Cameras
Bring classified object detection to your existing non-analytic cameras.
All-in-One Device
Achieve lower deployment cost with a single device that performs as an NVR and an analytics server.
High Performance
Achieve high total throughput, while simultaneously running analytics.
Remote Notifications on Mobile
Receive an instant notification to any mobile device.
Max throughput and IP camera support
This Blackjack® server can record and manage single-sensor and multi-sensor IP cameras of any resolution up to of 600Mbps throughput.
Designed and commissioned in the U.S.A
All DW recorders, workstations and NAS devices are designed, assembled and inspected in our California facility. Each product undergoes multiple levels of quality control to guarantee the highest quality and performance.
DW Spectrum® IPVMS
DW Spectrum® IPVMS is an endlessly customizable IP Video Management platform that gives users the ability to create tailored network video solutions for any type of project, from the office or on in the field.
  • Hosting Intelligent Video Analytics (IVA) Ai software deep learning and color filter
  • Server-side analytics for non-analytic cameras
  • Deep learning classifiers and logical rules engine
  • A single device for NVR and Analytics server for lower deployment cost
  • Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput
  • Up to 64 analytic streams
  • Supports all ONVIF conformant IP cameras
  • 64-96TB raw internal storage with RAID5
  • 12th Gen Intel® Core™ i7 processor
  • True HD and Display Port local outputs for system configuration
  • Dual network ports
  • Windows 10® on SSD
  • Hosting DW Spectrum® for setup, configuration, monitoring and recording
  • One-time recording license charge, fully transferable between cameras and encoders
  • One (1) 4-channel recording license included (DW-SPECTRUMLSC004)
  • One (1) 4-channel IVA Ai license included (DW-IVAAiSERVERLSC004)
  • No annual maintenance fees
  • Dual stream recording
  • Rail kit included
  • USB mouse and keyboard included
  • Designed, assembled and tested in the U.S.A.
  • NDAA/TAA compliant
  • 5 Years limited warranty
MODELS
 DW-BJAiPxxTR
Included DW Spectrum IP licenses 4 (DW-SPECTRUMLSC004)
Included IVA Ai licenses 4 (DW-IVAAiSERVERLSC004)
Form factor
2U Rackmount
Operating system
Windows®10 DW-BJAiPxxT
OS on SSD 480GB SSD
CPU
12th Gen Intel® Core™ i7 processor
Memory
 32GB
Ethernet port
 2 x 1Gigabit Ethernet (RJ45)
System
Max video storage rate (Mbps) 600Mbps
Max # of analytic streams (secondary)  Up to 64
Maximum HDD 6 x SATA HDD
Storage options 64TB, 80TB, 96TB (Raw storage size)
RAID RAID5
USB interface Yes
Video-out
Outputs
1xTrue HD, 3x Display Port, for system configuration. Maximum 1 display output at a time.
Graphics card
NVIDIA RTX A2000 12GB
Pre-loaded VMS software DW Spectrum® IPVMS
DW Spectrum client supported OS Cross-platform - Windows®, Linux Ubuntu® and Mac®
Pre-loaded analytic software DW IVA Ai server
IVA Ai configuration tool supported OS Cross-platform - Windows and Linux Ubuntu
Mobile apps
iOS® and Andriod®
DW Site Viewer
DW Spectrum App
Keyboard and mouse
Included
Rail kit Included
Power supply
500W**
Operating temperature (ambient room temperature)
41°F~104°F (5°C~40°C)
Operating humidity
20~90% RH
Dimension (WxDxH)
17.29” x 21.93” x 3.5” (439.3 x 557.1 x 88.9 mm)
Other certifications ONVIF, NDAA/TAA
Warranty
5 year limited

** A UPS is recommended

Model #*

Usable Storage Size**

Open Drive Bays

DW-BJAiP64TR
46TB (RAID5)
 2
DW-BJAiP80TR
64TB (RAID5)
 1
DW-BJAiP96TR
80TB (RAID5)
 --
DW Spectrum IPVMS Licensing Options

Part Number

Description

DW-SPECTRUMLSC001
Single DW Spectrum® IPVMS License, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS004
Four (4) DW Spectrum® IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS010
Ten (10) DW Spectrum® IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS020
Twenty (20)  DW Spectrum® IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS050
Fifty (50)  DW Spectrum® IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS100
One Hundred (100)  DW Spectrum® IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPCP04LSC004
Single DW Spectrum® IPVMS License - allows up to 4-channel or recording when used with DW-CP04 and DW-CP16,  No Annual Renewal, No Upgrade Required.
DW-SPVWALL1X2Single DW Spectrum® IPVMS Video Wall License - 1 Operator, 2 Monitors,  No Annual Renewal, No Upgrade Required.
DW Spectrum® IPVMS
LEARN MORE
MEGApix® IP Cameras
LEARN MORE
DW Spectrum Mobile (for v4.0 and Higher)
DW Spectrum Mobile
DW Site Viewer™
DW Site Viewer™ for Apple TV
DW-BJMT71xxT
Blackjack Tower mid-size servers with Intel® Core™ i7 processor, UL listed
DW-BJMTC5204T
Blackjack Tower workstations, 2 simultaneous monitors
DW-BJC2P
Blackjack® C2P server
Title Type Size Download
Blackjack Ai Brochure pdf 2.57 MB
DW-BJAiPxxTR datasheet pdf 0.62 MB
Title Type Release Notes Version Compatibility Size Download
DW Spectrum IPVMS Client v5.0.0.35271 Linux x64 Bit (DEB file) zip v5.0.0.35271 174.69 MB
DW Spectrum IPVMS Client v5.0.0.35271 Mac ARM x64 Bit (DMG file) zip v5.0.0.35271 124.80 MB
DW Spectrum IPVMS Client v5.0.0.35271 Mac x64 Bit (DMG file) zip v5.0.0.35271 135.98 MB
DW Spectrum IPVMS Client v5.0.0.35271 Windows x64 Bit exe v5.0.0.35271 146.55 MB
DW Spectrum IPVMS Full Software v5.0.0.35271 Windows x64 Bit exe v5.0.0.35271 193.07 MB
DW Spectrum IPVMS Server v5.0.0.35271 Linux x64 Bit (DEB file) zip v5.0.0.35271 84.52 MB
DW Spectrum IPVMS Server v5.0.0.35271 Windows x64 Bit exe v5.0.0.35271 93.99 MB
DW Spectrum IPVSM Paxton Plug-in v5.0.0.35271-Net2v5 exe v5.0.0.35271 1.24 MB
DW Spectrum IPVSM Paxton Plug-in v5.0.0.35271-Net2v6 exe v5.0.0.35271 1.28 MB
DW Witness Plugin for Linux v5.0.0.35271 so v5.0.0.35271 0.21 MB
DW Witness Plugin for Windows v5.0.0.35271 dll v5.0.0.35271 0.09 MB
