Home Products Blackjack® Ai Tower™ full-size servers powered by DW Spectrum® IPVMS and IVA

Share this Product!
All-in-One NVR and Analytics Appliance, Powered by DW Spectrum and IVA Server
Model: DW-BJAiTxxTR
Find a Reseller | Request a Demo | Contact Us

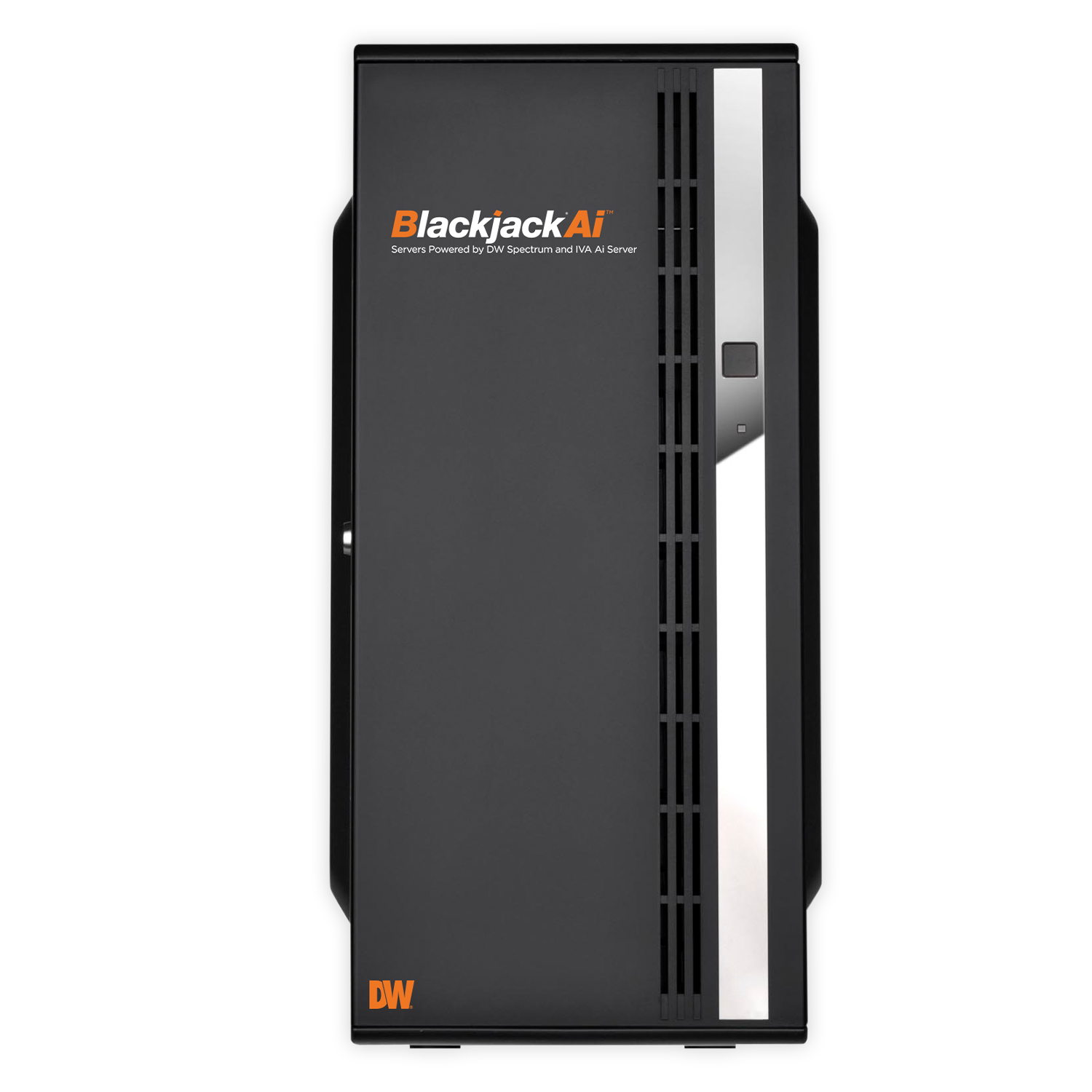

Blackjack® Ai Tower™ Artificial Intelligence Network Video Recorder (Ai NVR) is a purpose-built server, with built-in server-side analytics that unlock advanced Ai capabilities on any connected video stream via our IVA Ai Server software. This cost-effective, plug-and-play appliance combines high-performance recording with video analytics in an easy-to-deploy, turnkey solution. The NDAA and TAA compliant server features up to 600Mbps throughput, 64 analytics streams and comes preloaded with DW Spectrum® IPVMS, with four complimentary recording licenses. Add the power of advanced neural-network-based analytics to your video streams with a Blackjack Ai NVR, backed by our 5 year limited warranty.

NDAA TAA


  • DW-BJAiTxxTR

Server-Side Analytics for Non-Analytic Cameras
Bring classified object detection to your existing non-analytic cameras.
All-in-One Device
Achieve lower deployment cost with a single device that performs as an NVR and an analytics server.
High Performance
Achieve high total throughput, while simultaneously running analytics.
Remote Notifications on Mobile
Receive an instant notification to any mobile device.
Max throughput and IP camera support
This Blackjack® server can record and manage single-sensor and multi-sensor IP cameras of any resolution up to of 600Mbps throughput.
Designed and commissioned in the U.S.A
All DW recorders, workstations and NAS devices are designed, assembled and inspected in our California facility. Each product undergoes multiple levels of quality control to guarantee the highest quality and performance.
DW Spectrum® IPVMS
DW Spectrum® IPVMS is an endlessly customizable IP Video Management platform that gives users the ability to create tailored network video solutions for any type of project, from the office or on in the field.
  • Hosting Intelligent Video Analytics (IVA) Ai software deep learning and color filter
  • Server-side analytics for non-analytic cameras
  • Deep learning classifiers and logical rules engine
  • A single device for NVR and Analytics server for lower deployment cost
  • Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput
  • Up to 64 analytic streams
  • Supports all ONVIF conformant IP cameras
  • 64-96TB raw internal storage with RAID5
  • Hot Swappable HDDs
  • 12th Gen Intel® Core™ i7 processor
  • True HD and Display Port local outputs for system configuration
  • Dual network ports
  • Windows 10® on SSD
  • Hosting DW Spectrum® for setup, configuration, monitoring and recording
  • One-time recording license charge, fully transferable between cameras and encoders
  • One (1) 4-channel recording license included (DW-SPECTRUMLSC004)
  • One (1) 4-channel IVA Ai license included (DW-IVAAiSERVERLSC004)
  • No annual maintenance fees
  • Dual stream recording
  • USB mouse and keyboard included
  • Designed, assembled and tested in the U.S.A.
  • NDAA/TAA compliant
  • 5 Years limited warranty
MODELS
 DW-BJAiTxxTR
Included DW Spectrum IP licenses 4 (DW-SPECTRUMLSC004)
Included IVA Ai Licenses 4 (DW-IVAAiSERVERLSC004)
Form factor
Full-size tower
Operating system
Windows®10 DW-BJAiTxxTR
OS on SSD 480GB SSD
CPU
12th Gen Intel® Core™ i7 processor
Memory
 32GB
Ethernet port
 2 x 1Gigabit Ethernet (RJ45)
System
Max video storage rate (Mbps) 600Mbps
Max # of analytic streams (secondary)  Up to 64
Maximum HDD 6 x 3.5 SATA HDD
Storage options 64TB, 80TB, 96TB (Raw storage size)
RAID RAID5
USB interface Yes
Video-out
Outputs
1xTrue HD, 3x Display Port, for system configuration. Maximum 1 display output at a time.
Graphics card
NVIDIA RTX A2000 12GB
Pre-loaded VMS software DW Spectrum® IPVMS
DW Spectrum client supported OS Cross-platform - Windows®, Linux Ubuntu® and Mac®
Pre-loaded analytic software DW IVA Ai Server
IVA Ai configuration tool supported OS Cross-platform - Windows and Linux Ubuntu
Mobile apps
iOS® and Andriod®
DW Site Viewer
DW Spectrum App
Keyboard and mouse
Included
Rail kit N/A
Power supply
500W**
Operating temperature (ambient room temperature)
41°F~104°F (5°C~40°C)
Operating humidity
20~90% RH
Dimension (WxDxH)
8.6” x 19.12” x 16.83” (218.6 x 485.8 x 427.5 mm)
Other certifications ONVIF, NDAA/TAA
Warranty
5 year limited

** A UPS is recommended

Part Number

Usable Storage Size

Open Drive Bays

DW-BJAiT64TR 50TB (RAID5) 3
DW-BJAiT80TR 64TB (RAID5) 2
DW-BJAiT96TR 80TB (RAID5) 1
DW Spectrum IPVMS Licensing Options

Part Number

Description

DW-SPECTRUMLSC001
Single DW Spectrum® IPVMS License, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS004
Four (4) DW Spectrum® IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS010
Ten (10) DW Spectrum® IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS020
Twenty (20)  DW Spectrum® IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS050
Fifty (50)  DW Spectrum® IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS100
One Hundred (100)  DW Spectrum® IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPCP04LSC004
Single DW Spectrum® IPVMS License - allows up to 4-channel or recording when used with DW-CP04 and DW-CP16,  No Annual Renewal, No Upgrade Required.
DW-SPVWALL1X2Single DW Spectrum® IPVMS Video Wall License - 1 Operator, 2 Monitors,  No Annual Renewal, No Upgrade Required.
