Home Products 2U rackmount 26-bay server with 32GB dual Intel Xeon Silver processor

Share this Product!

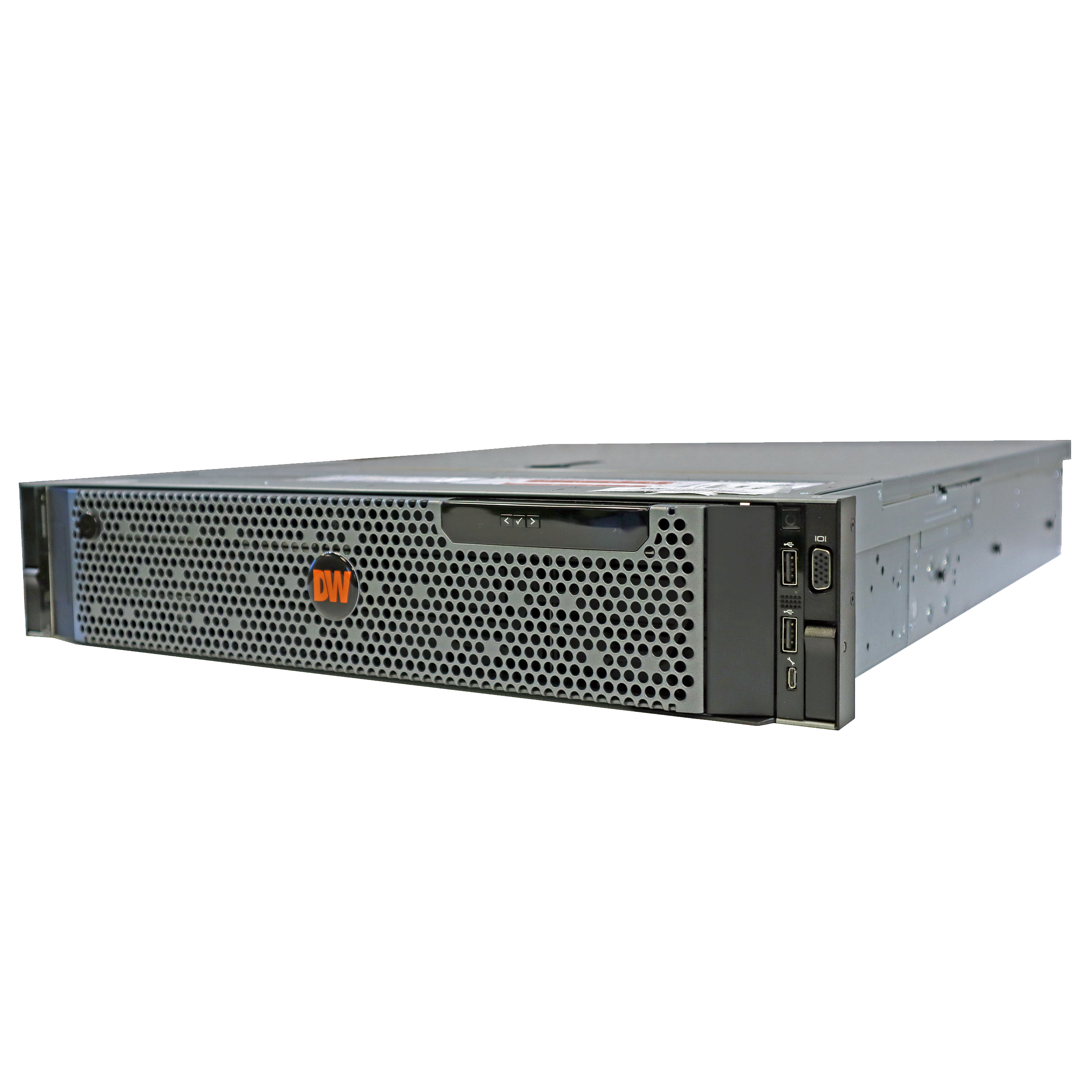

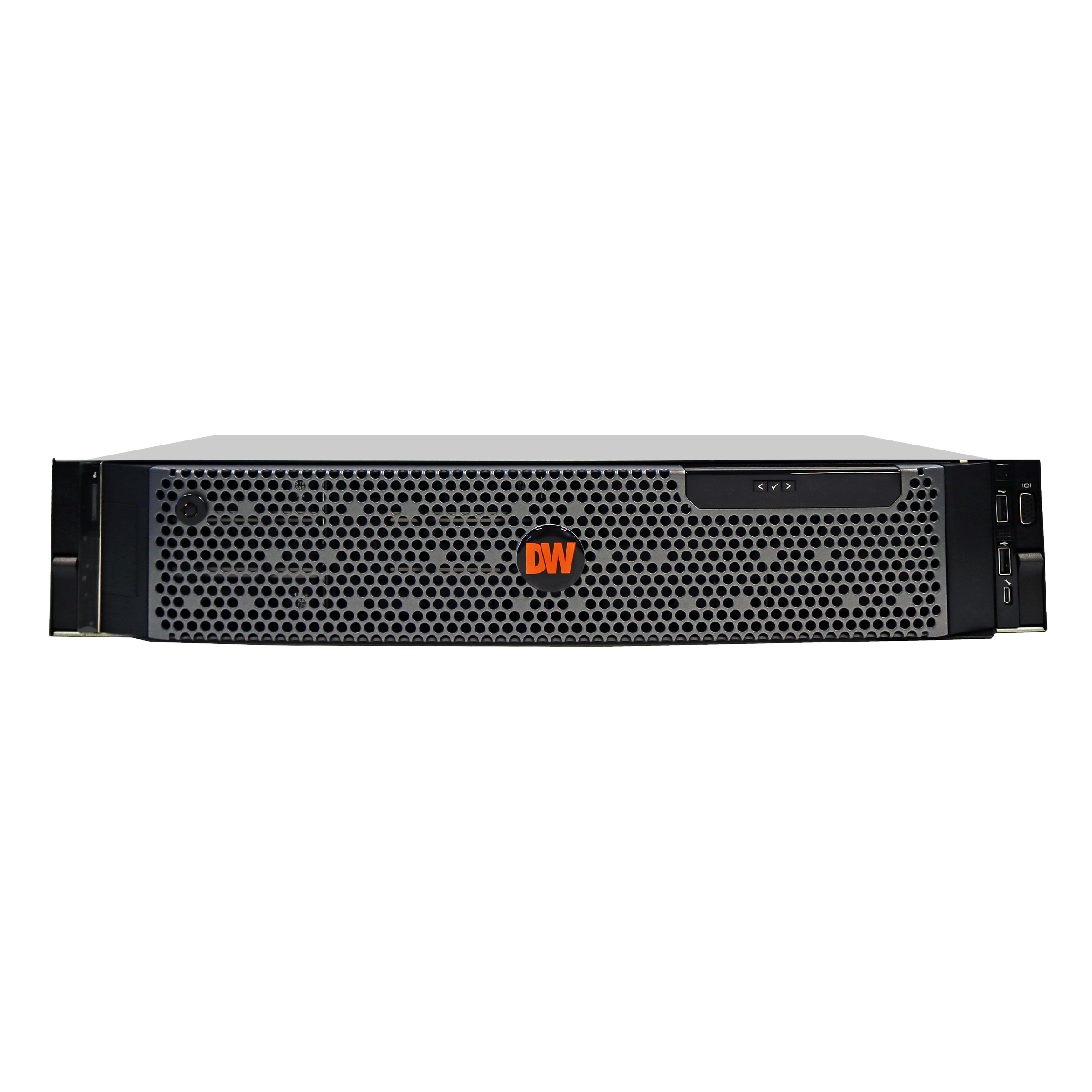

2U rackmount 26-bay server with 32GB dual Intel Xeon Silver processor
Model: DW-BJRR2YxxxT, DW-BJRR2YxxxTS, DW-BJRR2YxxxTLX
Find a Reseller | Request a Demo | Contact Us

This dual processor Blackjack® Rack™ server is the ultimate solution for recording multiple IP cameras of any resolution at up to 600Mbps throughput. The server is NDAA/TAA compliant, UL listed and includes Windows 10® IoT, Windows Server® 2019, or Linux® Ubuntu® OS on a separate mirrored 240GB SSD. The 2U rack-mountable hardware features dual Intel® Xeon® processors, 32GB memory, up to four (4) 1GB and 10GB network cards and a dual power supply. The Blackjack Rack server comes preloaded with DW Spectrum® IPVMS and eight recording licenses, up to 416TB of raw internal storage with RAID5 and RAID6 options and removable hot-swappable drives. The server comes complete with a 5-year, on-site, Next Business Day**, Keep Your Hard Drive warranty to ensure peace of mind.

** After remote diagnosis.

NDAA TAA


  • DW-BJRR2Y

Max throughput and IP camera support
This Blackjack® server can record and manage single-sensor and multi-sensor IP cameras of any resolution up to of 600Mbps throughput.
Next business day onsite hardware repair after remote diagnosis
If an issue occurs with your product that cannot be resolved by phone, DW will dispatch a certified technician to attempt repair of your machine at your place of business, usually the next business day.
Keep your drive after replacement to ensure data security
Our Keep Your Drive Warranty delivers users replacement hard drives, without the need to return the defective drives. Users can keep their drives and protect their data and their customer’s privacy.
DW Spectrum® IPVMS
DW Spectrum® IPVMS is an endlessly customizable IP Video Management platform that gives users the ability to create tailored network video solutions for any type of project, from the office or on in the field.
Designed and commissioned in the U.S.A
All DW recorders, workstations and NAS devices are designed, assembled and inspected in our California facility. Each product undergoes multiple levels of quality control to guarantee the highest quality and performance.
Dual network cards
Optimize network bandwidth by utilizing dual network ports, to build a separate network for the surveillance system and keep that traffic off the main network, reserved for the NVR’s communication.
Dual power supply
Redundancy for reliability.

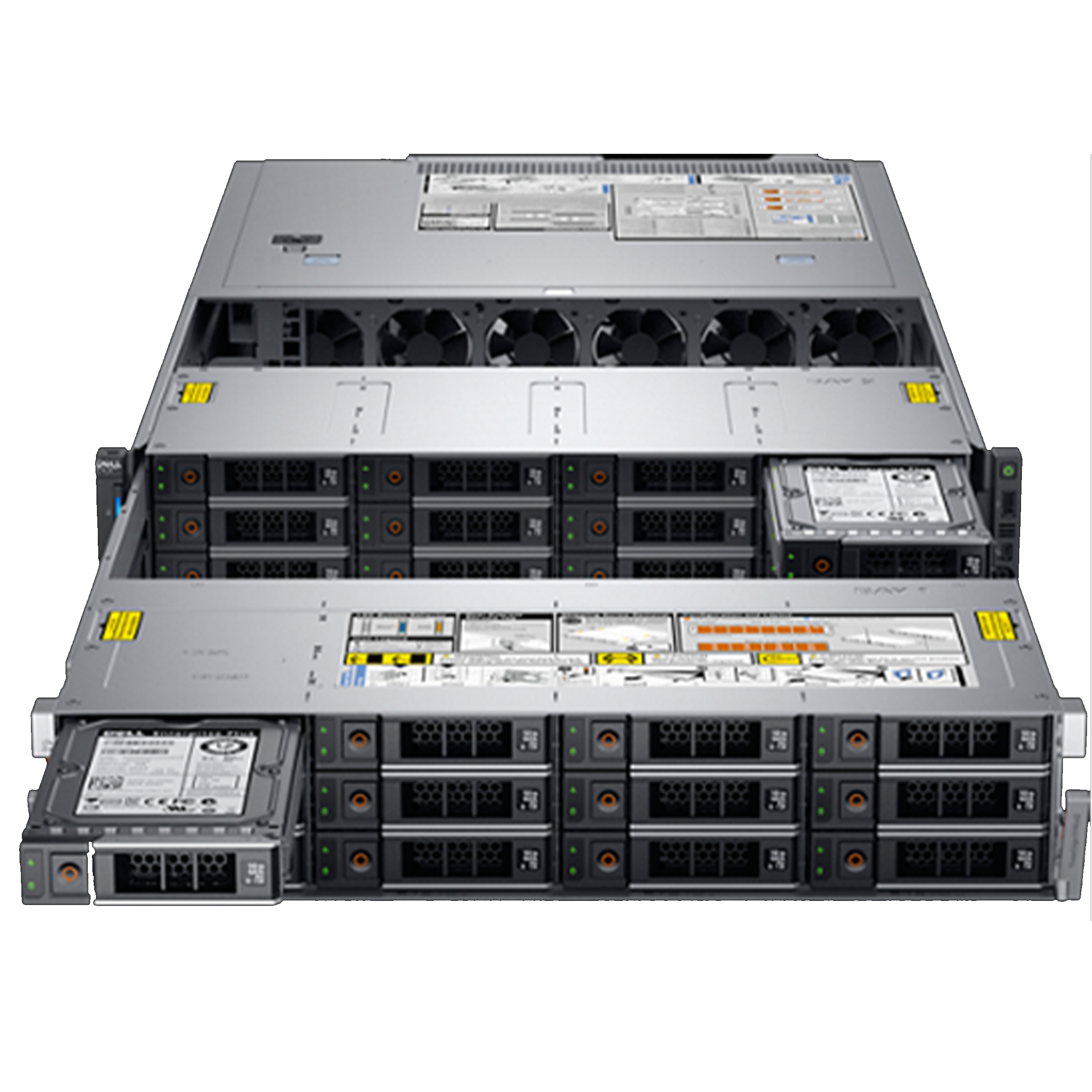

Hot-swappable HDDs
When a drive needs to be replaced, you can easily hot-swap it with a new one, while the system is still running. There is no need to power down and lose important minutes of data to maintain your system’s drives healthy and operating.
  • Supports all ONVIF conformant IP cameras
  • Storage options 304-416TB raw internal storage
  • Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput
  • Hot Swappable HDDs
  • OS RAID 1, Data RAID5, 6 options
  • Redundant power supply
  • 2x 1GB Base-T Etherner Ports, 2x 10GB SFP+ Fiber
  • Windows 10® IoT, Ubuntu® Linux®, Windows Server 2019® OS options on separate SSD
  • Dedicated RAID controller
  • Hosting DW Spectrum® for setup, configuration, monitoring and recording
  • One-time recording license charge, fully transferable between cameras and encoders
  • Two (2) 4-channel licenses included for a total of 8 recording channels (DW-SPECTRUMLSC004).
  • No annual maintenance fees
  • Dual stream recording
  • Rail kit included
  • USB mouse and keyboard included
  • Designed, assembled and tested in the U.S.A.
  • UL Listed
  • NDAA/TAA compliant
  • 5 year warranty, next business day on-site hardware service*, keep your hard drive  - *after remote diagnosis
Included IP licenses
8
Form factor
2U Rackmount
Operating system
Windows® 10 IoT
DW-BJRR2YxxT
Linux Ubuntu® 20.04 LTS DW-BJRR2YxxTLX
Windows Server® 2019 DW-BJRR2YxxTS
OS on NVMe SSD
2 x 240GB NVMe SSD (RAID1)
CPU
Dual Intel® Xeon® Silver processor
Memory
32GB (4x 8GB)
Ethernet port
2x 1GB Base-T Ethernet Ports, 2x 10GB SFP+ Fiber, iDRAC9 Enterprise
System
Maximum video storage rate (Mbps)
600 Mbps
Storage
Maximum HDD
26 x SAS HDDs
  Maximum storage Max raw 416TB, RAID5 and RAID6 options
Video-out
Outputs
3 x mini DisplayPort (1 x mini-DP to true HD adapter included)
Video card
NVIDIA T400 2GB
Pre-loaded VMS software
DW Spectrum® IPVMS
Remote clients
Cross-platform - Windows®, Linux Ubuntu® and Mac®
Mobile apps
iOS® and Andriod®
DW Site Viewer
DW Spectrum App
Keyboard and mouse
Included
Rail kit
Included
Power supply
Dual 1000W Redundant*
Operating temperature (ambient room temperature)
41°F~104°F (5°C~40°C)
Operating humidity
5~85% RH
Dimension (WxDxH)
17.6" x 31.9" x 3.41" (447.04 x 810.26 x 86.61mm)
Certification FCC and CE
Warranty
5 year warranty with next business day on-site  hardware repair**

* A UPS is recommended.
** After remote diagnosis.

Model #*

Open Drive Bays

Available Storage, RAID5**

Available Storage, RAID6**

DW-BJRR2Y304T 16TB drives, 7 open drive bays 288TB 272TB
DW-BJRR2Y320T 16TB drives, 6 open drive bays 304TB 288TB
DW-BJRR2Y336T 16TB drives, 5 open drive bays 320TB 304TB
DW-BJRR2Y352T 16TB drives, 4 open drive bays 336TB 320TB
DW-BJRR2Y368T 16TB drives, 3 open drive bays 352TB 336TB
DW-BJRR2Y384T 16TB drives, 2 open drive bays 368TB 352TB
DW-BJRR2Y400T 16TB drives, 1 open drive bay 384TB 368TB
DW-BJRR2Y416T 16TB drives, no open drive bays 400TB 384TB
* For Linux OS models, add LX at the end of the part number.
* For Windows Server OS models, add S at the end of the part number.

** RAID5 configuration reduces raw storage size by the equivalent of one (1) HDD size.
** RAID6 configuration reduces raw storage size by the equivalent of two (2) HDDs size.
DW Spectrum IPVMS Licensing Options

Part Number

Description

DW-SPECTRUMLSC001
Single DW Spectrum IPVMS License, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS004
Four (4) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS010
Ten (10) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS020
Twenty (20) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS050
Fifty (50) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS100
One Hundred (100) W Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPCP04LSC004
Single DW Spectrum IPVMS License - allows up to 4-channel or recording when used with DW-CP04 and DW-CP16, No Annual Renewal, No Upgrade Required.
DW-SPVWALL1X2Single DW Spectrum IPVMS Video Wall license - 1 Operator, 2 Monitors, No Annual Renewal, No Upgrade Required.
