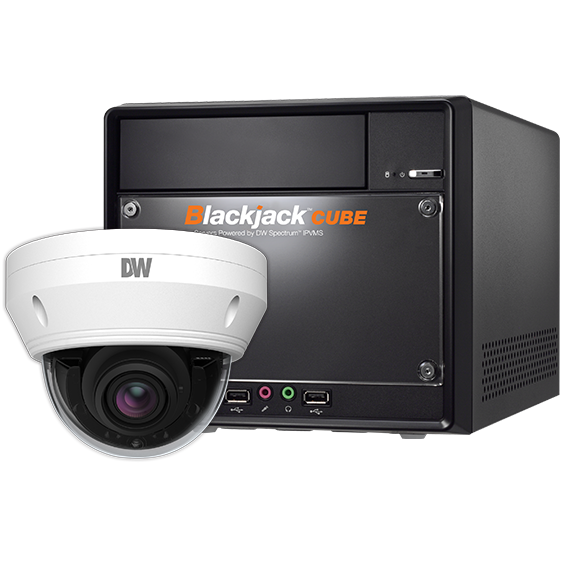

Blackjack Cube with vandal dome IP cameras kits
Model: DW-CUVDKIT, DW-BJCUBE, DWC-MV94WiAT
Find a Reseller | Request a Demo | Contact Us

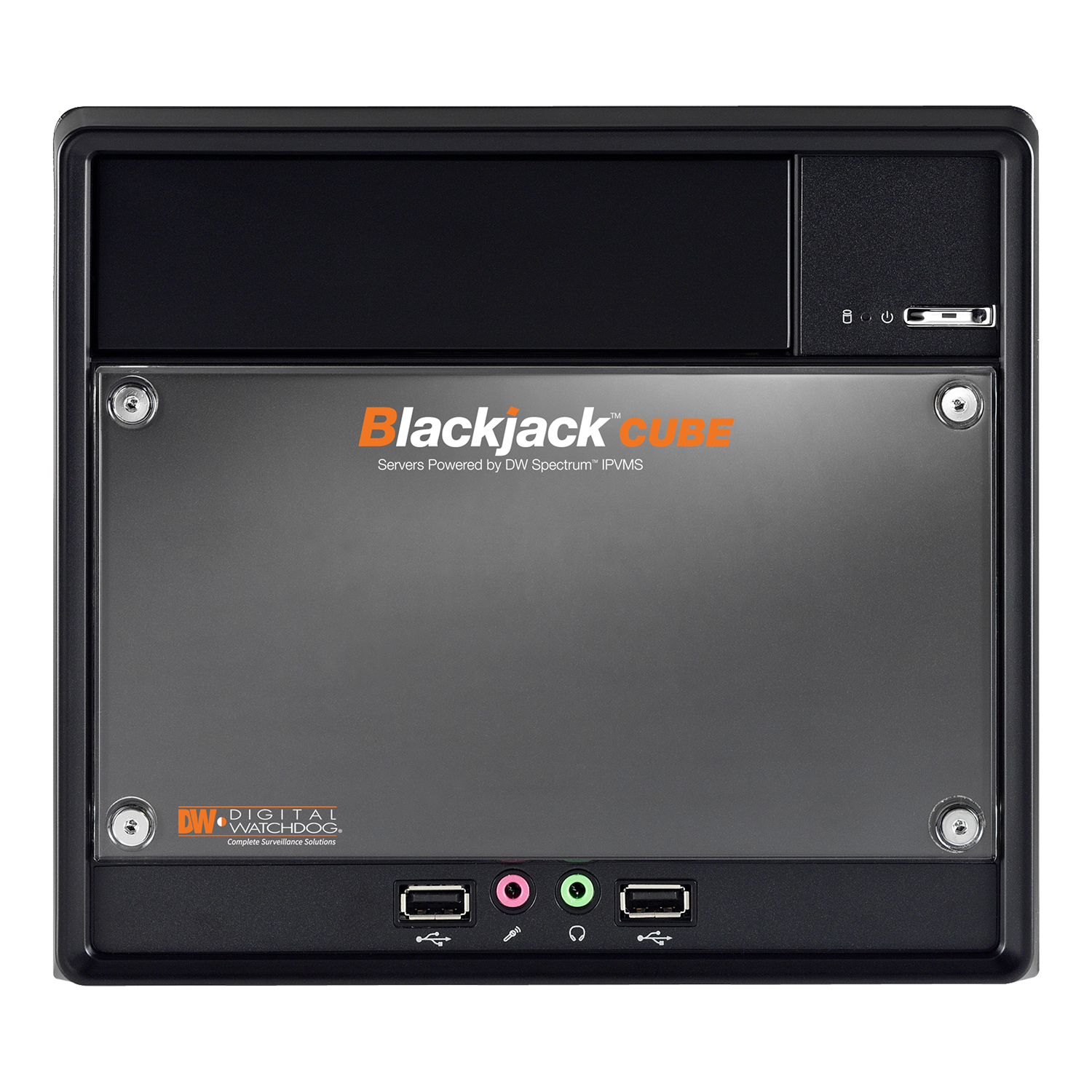

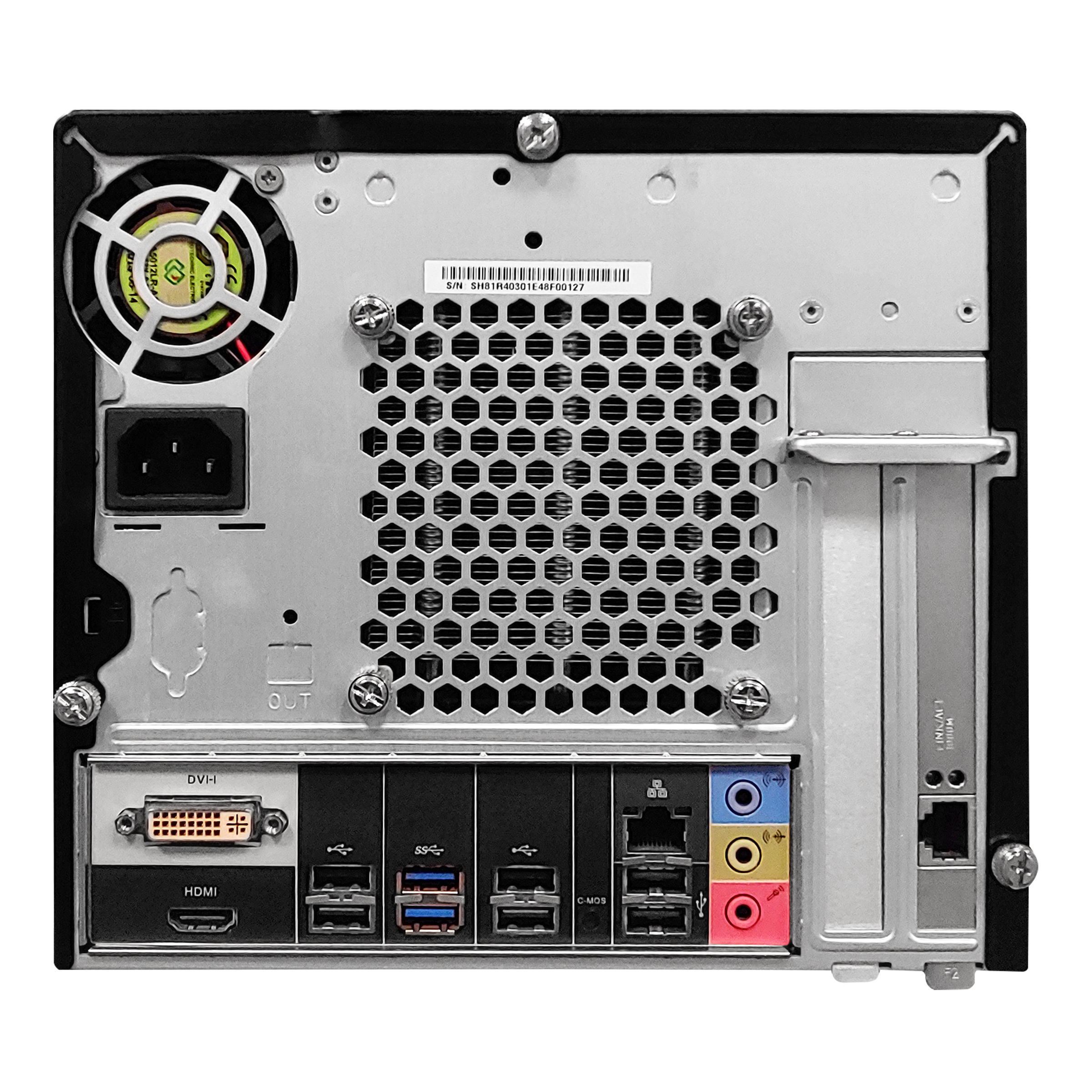

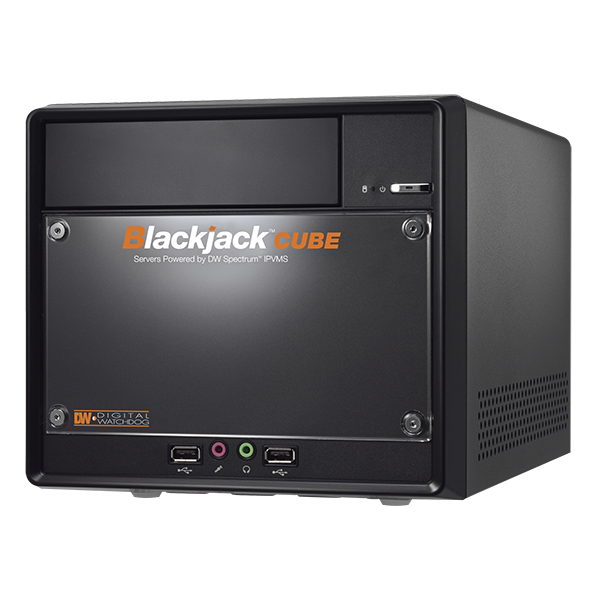

The Blackjack® CUBE™ can record and manage single-sensor IP cameras of any resolution, with a maximum of 360Mbps throughput. The hardware includes DVI-D/DVI-I outputs, Windows® 10 IoT OS, and Dual Network Card. The NVR is ONVIF conformant and is available with 3TB. 6TB or 9TB storage and 5 Year Limited Warranty.

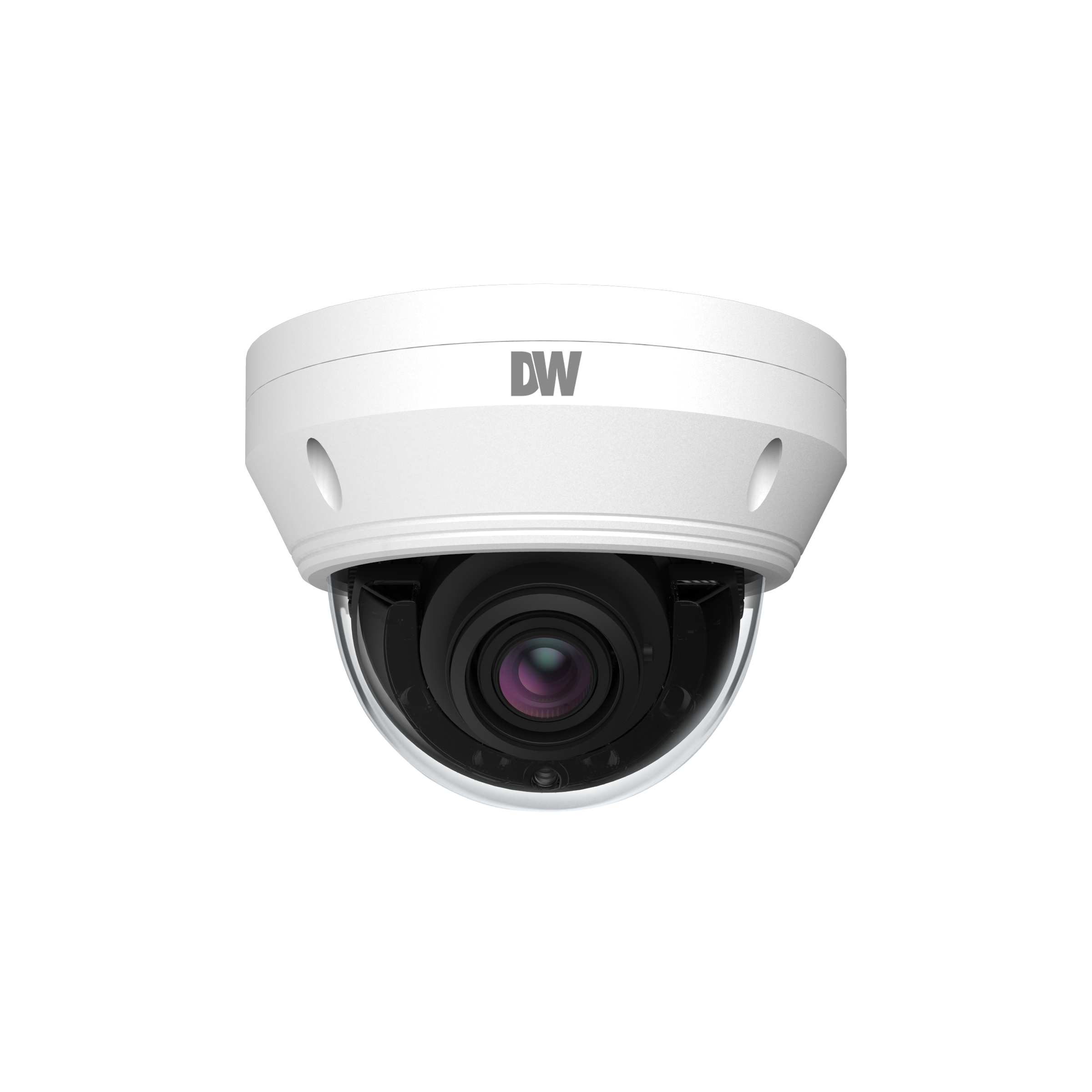

The MEGApix® turret IP cameras deliver crystal-clear images at 4MP resolution and real-time 30fps in an IP67-rated turret housing, with a 2.8~12mm vari-focal lens with a motorized zoom lens. Added intelligence includes line crossing, perimeter intrusion, video tampering detection and object classification.

Learn more about the Blackjakc Cube server here. Learn more about the 4MP turret IP camera with vari-focal lens here.

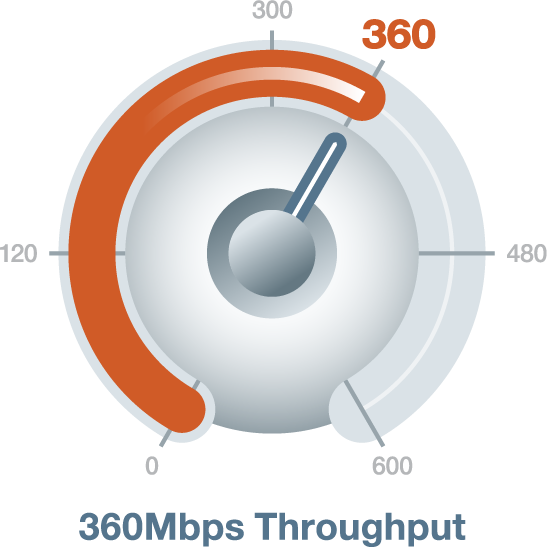

Max throughput and IP camera support
This Blackjack® server can record and manage single-sensor and multi-sensor IP cameras of any resolution up to of 360Mbps throughput.

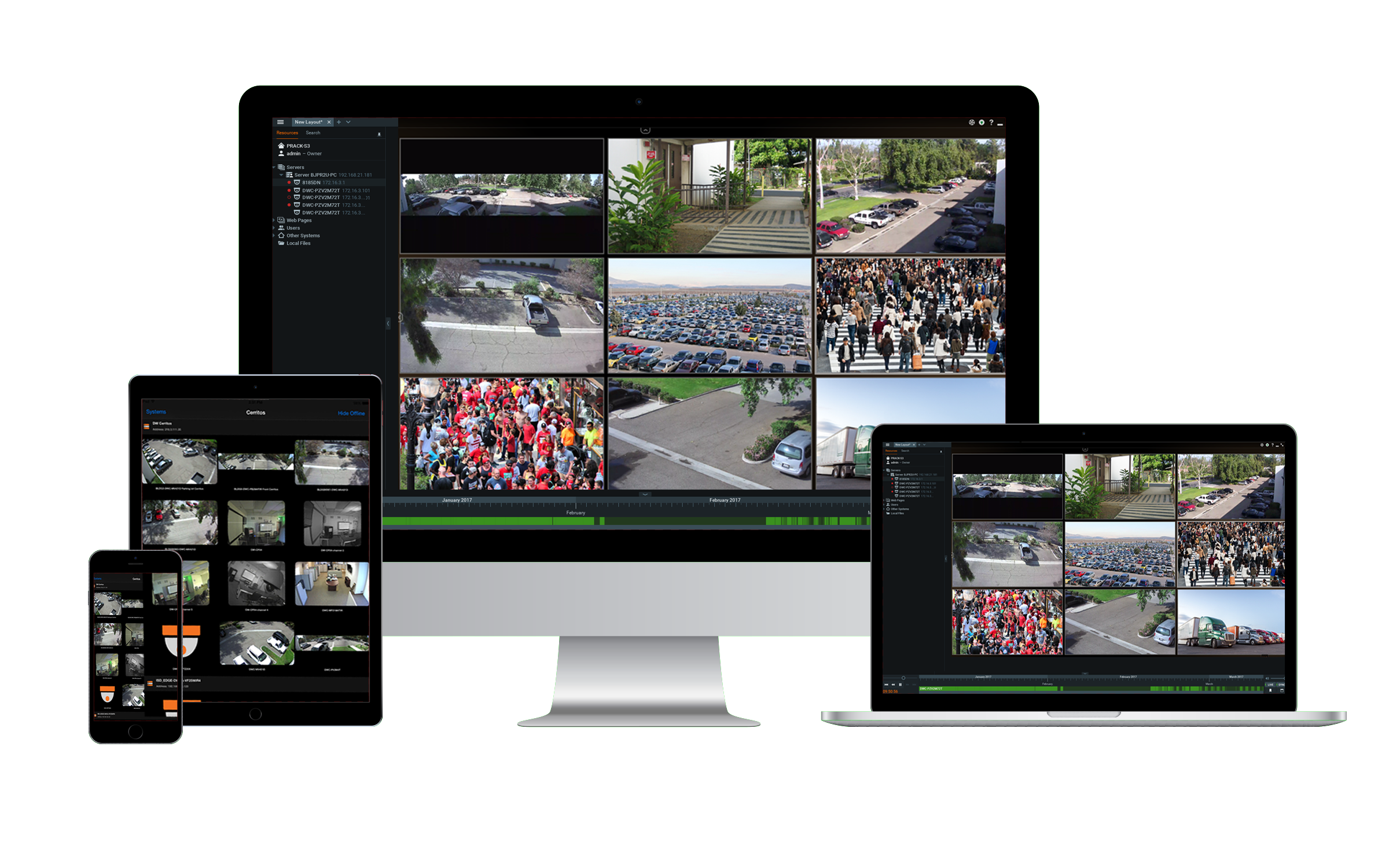

DW Spectrum® IPVMS
DW Spectrum® IPVMS is an endlessly customizable IP Video Management platform that gives users the ability to create tailored network video solutions for any type of project, from the office or on in the field.
Designed and commissioned in the U.S.A
All DW recorders, workstations and NAS devices are designed, assembled and inspected in our California facility. Each product undergoes multiple levels of quality control to guarantee the highest quality and performance.

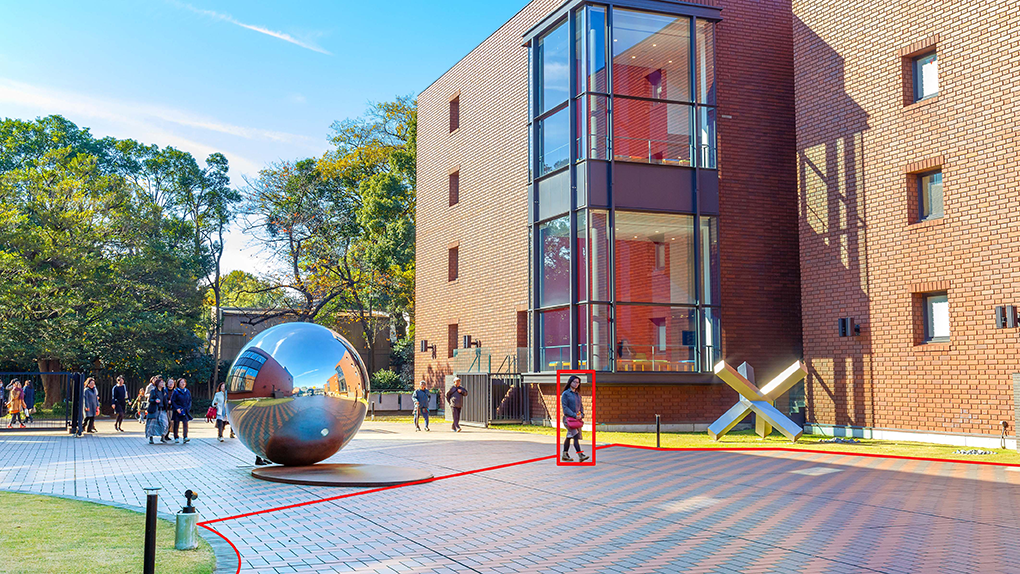

Line crossing
Once a pre-defined line is crossed from either direction, an event notification will be sent.

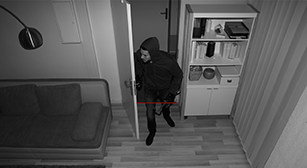

Perimeter intrusion
Once a pre-defined area is set, any crossing of the lines towards the area, out of the area, or both, will trigger an alarm.
Video tampering detection – video blur
When a sudden blur or loss in visibility is detected, an event notification will be sent.
Blackjack® Cube™ server powered by DW Spectrum® IPVMS
  • Kits w/ 3TB, 6TB and 9TB of storage capacity.
  • Supports all ONVIF conformant IP cameras.
  • Record/manage IP cameras to 360Mbps throughput.
  • Dual Gb5 NICs / Windows® IoT OS / Includes keyboard & mouse.

MEGApix® 4MP IP cameras with video analytics
  •  Kits w/ 4, 8, or 16 vandal dome IP cameras with 2.8~12mm vari-focal lens.
  • Line crossing, perimeter intrusion and video tampering analytics.
  • True WDR, Smart IR™, H.265. H.264, MJPG.

Model #

Storage Size

DW-CUVDKIT916 9TB Blackjack CUBE P/N: DW-BJCUBE9T - Qty. 1
4MP vandal come camera, 2.8~12mm fixed lens P/N: DWC-MV94WiAT - Qty. 16**
DW-CUVDKIT616 6TB Blackjack CUBE P/N: DW-BJCUBE6T - Qty. 1
4MP vandal dome camera, 2.8~12mm fixed lens P/N: DWC-MV94WiAT - Qty. 16**
DW-CUVDKIT98 9TB Blackjack CUBE P/N: DW-BJCUBE9T - Qty. 1
4MP vandal dome camera, 2.8~12mm fixed lens P/N: DWC-MV94WiAT - Qty. 8
DW-CUVDKIT68 6TB Blackjack CUBE P/N: DW-BJCUBE6T - Qty. 1
4MP vandal dome camera, 2.8~12mm fixed lens P/N: DWC-MV94WiAT - Qty. 8
DW-CUVDKIT34 3TB Blackjack CUBE P/N: DW-BJCUBE3T - Qty. 1
4MP vandal dome camera, 2.8~12mm fixed lens P/N: DWC-MV94WiAT - Qty. 4

* Redeem FREE DW Spectrum licenses here: https://portal.digital-watchdog.com/signin/
** 16 camera kits include 12 FREE Spectrum licenses, leaving 4 to purchase.
Standard DW CPP discounts are available to CPP partners only, enroll now! No additional discounts apply.
Title Type Size Download
Blackjack Cube AE specifications doc 0.11 MB
Blackjack Cube datasheet pdf 0.55 MB
Blackjack Cube Quick Start Guide pdf 2.97 MB
DWC-MV94WiAT AE specifications doc 0.25 MB
DWC-MV94WiAT CAD drawing dwg 0.60 MB
DWC-MV94WiAT datasheet pdf 0.69 MB
DWC-MV94WiAT quick setup guide pdf 1.98 MB
DWC-MV94WiAT user manual pdf 8.64 MB
DW-BJCUBE CAD Drawing dwg 0.07 MB
DW Spectrum® IPVMS Manual pdf 7.27 MB
Title Type Release Notes Version Compatibility Size Download
DW Spectrum IPVMS Client v4.2.0.32842 Mac dmg v4.2.0.32842 121.98 MB
DW Spectrum IPVMS Client v4.2.0.32842 Windows x64 Bit exe v4.2.0.32842 129.20 MB
DW Spectrum IPVMS Full Software v4.2.0.32842 Windows x64 Bit exe v4.2.0.32842 185.34 MB
DW Spectrum IPVMS Server v4.2.0.32842 Windows x64 Bit exe v4.2.0.32842 94.23 MB
DW Spectrum IPVSM Paxton Plug-in v4.2.0.32842-Net2v5 exe v4.2.0.32842 1.24 MB
DW Spectrum IPVSM Paxton Plug-in v4.2.0.32842-Net2v6 exe v4.2.0.32842 1.27 MB
