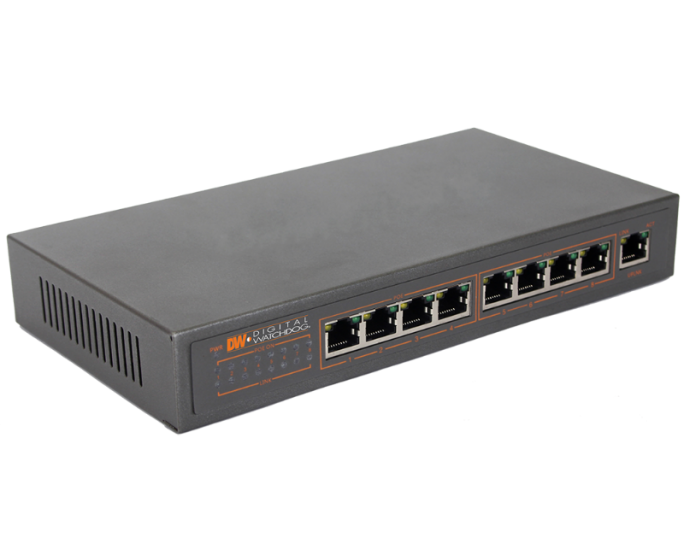

PoE switch - 8 channels

Share this Product!

Model: DW-POE896M

Find a Reseller | Request a Demo | Contact Us

DW^®’s Power over Ethernet Switch is a 10/100Mbps PoE switch with 48V/2A external power and 4 or 8 channel configuration options. The switch simplifies installation of PoE devices such as IP cameras, wireless AP, and VoIP by transmitting both power and data through a single cable. The switch supplies up to 15.4 watts per port and can automatically detect your PoE devices and their power class, minimizing the possibility of damaging your equipment with the wrong power supply. The switch can support PoE devices installed up to 320 feet away using Cat5 cables. Plug-and-Play makes the installation quick and easy, with no need for advanced configuration or installation, making this PoE switch a perfect choice for any application with IP cameras, wireless AP, and VoIP. The DW-POE896M comes with a 2 years warranty.

9 10/100Mbps Auto-Negotiation RJ45 ports with 8 PoE port
IEEE 802.3af Power over Ethernet PoE compliant
Each port support auto-negotiation-10/20, 100/200Mbps Fast Ethernet
Bandwidth 1.8Gbps
Max power for single PoE port is 15.4W
Auto PoE Class detection
LED indicators for monitoring power, link, activity and speed
48V/2A external power adapter
Supports IEEE802.3ax fl ow control for Full Duplex and back-pressure for Half Duplex mode
Store-and-forward switching method
Plug and Play
2 years warranty

Environmental*
Certificate		CE, FCC, RoHS
Power Requirements		48V/2A external power adapter
Power Consumption		Input:100-240 V/50/60 Hz 48V/2A external power Power pin:12(+) 36(-)
Operating Temperature		0°-40°
Operating Humidity		10%-90%,no condensing
Warranty		2 Year Warranty
Dimensions		8.85 x 4.76 x 1.29 In (225 x 121 x 33mm)
Network*
Data Transfer Rate		Ethernet: 10/100 Mbps (Half / Full-Duplex)
Forwarding Rate		10 Mbps / 148,00 pps, 100 Mbps / 14,8800 pps
Interface		8 10/100/Mbps RJ45 ports (Auto-negotiation, Auto MDIX) Port 9 is a 10/100Mbps uplink port
Network Media		10Base-T: UTP category 3, 4, 5 cable (max 100m) EIA/TIA-568 100Ù STP (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (max 100m) EIA/TIA-568 100Ù STP (max 100m)
Transfer Method		Store-and Forward
Network
Protocols		IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3x Flow Control CSMA/CD, TCP/IP
Environmental
Storage Temperature		-40°-70°
