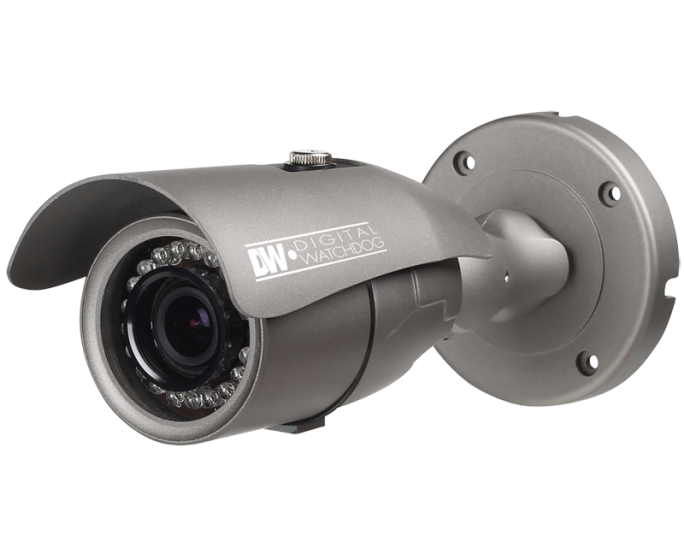

STAR-LIGHT MPA™ 1.3 Megapixel Analog Long Range Indoor/Outdoor Bullet Camera with IR

Share this Product!

STAR-LIGHT MPA™ 1.3 Megapixel Analog Long Range Indoor/Outdoor Bullet Camera with IR

Model: DWC-B5661TIR550

Find a Reseller | Request a Demo | Contact Us

DISCONTINUED

The new STAR-LIGHT™ Megapixel Analog Cameras are a groundbreaking technology with highest analog resolution with a 1.3MP CMOS sensor capable of capturing up to 720P resolution, allowing the camera to receive and process images in high resolution, digitally zoom with no pixelatoin and display up to 820TV Lines resolution. The cameras also offer Intelligent Motion Detection and Automatic Digital Zoom and motion tracing, True Day & Night, 3D Digital Noise Reduction, De-Fog enhancement for extreme weather conditions, remote camera control via RS-485/ UTP and alarm output, the Star-Light MPA™ is an intelligent and high resolution solution for any application.

De-Fog™ Image Enhancement

De-Fog™ utilizes specific enhancement algorithms that improves image clarity to reveal details obscured by fog, smog or strong weather conditions.

Highlight Masking Exposure (HME)

Highlight Masking Exposure masks the overly exposed areas in the camera’s field of view to produce a true image of any environment without detail loss from the light’s glare.

Smart IR™

Smart IR™ adjusts the image for IR cameras to prevent excessive illumination on objects that are in the front of the scene and offers a clear image in B/W without any loss of detail.

Star-Light™ Super Low-Light Technology

Star-Light™Technology provides crisp clear images in both color and B/W video in extremely low light conditions. It is an ideal solution for cameras that are installed in a low-light environment, and cannot rely on external lighting for image clarity. Coupled with a powerful IR built-in, Star-Light™ cameras can provide unparalleled details in total darkness.

TDN [True Day/Night] with IR Cut Filter

During daylight, the IR cut filter allows visible light to pass through, reflecting the unwanted infrared light. In low light environments, where artificial or external light is not available, the cut filter is removed from in front of the lens, allowing the camera to capture the infrared light that given out from the infrared LEDs, to capture as much light as possible to produce brighter images.

True Wide Dynamic Range (WDR)

Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.

1/3” Sony 1.3MP CMOS, 820TVL [B/W], 800TVL [Color]
QuickZoom™ Full Frame 8x Digital Zoom with no Loss in Resolution
STAR-LIGHT™ Super Low Light Technology
Wide Dynamic Range (WDR)
5~50mm Varifocal Auto Iris Lens
Smart IR™ with Intelligent Camera Sync. 150ft Range
Smart DNR™ 3D Digital Noise Reduction
Highlight Masking Exposure (HME)
De-Fog™ (Extreme Weather Image Compensation)
Auto Sensing 24VAC/12VDC with Line Lock
Secondary Video-BNC Output (While UTP in use)
Easy Icon Driven OSD Menu with Built-in Joystick
True Day/Night Mechanical IR Cut Filter
Programmable Privacy Zones
Auto Gain Control (AGC)
Back Light Compensation (BLC)
Dynamic Range Compressor (DRC) Reveals Low Light Detail
Auto White Balance (AWB)
UTP Built-in
RS-485 Built-in
Motion Trigger Output (5V)
IP66 Certified (Weather Resistant) – Outdoor Domes and Bullets only

Active Pixels (H X V)		1280 (H) x 1024 (V)
Frequency		15.734KHz (H), 59.95Hz (V)
Image Sensor		1/3" Sony 1.3MP CMOS Sensor
Minimum Illumination		F1.2 (30IRE): 0.0 Lux
Resolution		800TVL [Color], 820TVL [B/W]
S/N Ratio- Signal to Noise Ratio		55dB (AGC off)
Scanning System		2 : 1 Interlace
Synchronization		Internal or Line Lock
Video Output		CVBS: 1.0Vp-p / 75 ?
Lens
Digital Zoom		x8
Focal Length		5~50mm
IR Distance		150ft Range IR
Lens Type		Varifocal Auto Iris
Mechanical
Dimensions		252 x 96.7 mm (9.92 X 3.81 in)
Housing Material		Aluminum
Housing Type		Bullet
Sensor Input/ Output		1 Alarm Output
UTP Built-in		Yes
Warranty		5 Years
Weight		2.05 lbs
Operational
AGC	Auto Gain Control	0~20
AWB	Auto White Balance	ATW / AWB / PUSH / MANUAL
BLC	Backlight Compensation	OFF / ON
D/N	Day/ Night	AUTO/ DAY/ NIGHT
DPC- Dead Pixel Cancellation		OFF/ ON
Gamma		0.45 ~ 0.65
DRC	Dynamic Range Compressor	OFF / Low / Middle / High
HME	Highlight Masking Exposure	ON/OFF
Programmable Privacy Zones		OFF / ON (16 Programmable Zones)
Sharpness		0~10
Smart DNR™ 3D Digital Noise Reduction	3D Digital Noise Reduction	OFF / LOW / MIDDLE / HIGH
Starlight™ (Super Low Light Technology)		X2-X64
WDR	Wide Dynamic Range
Environmental
Operating Humidity		Less than 90% (Non-Condensing)
Operating Temperature		-20°C ~ 60°C (-4°F ~ 140°F)
Power Consumption		DC12V: Max 5.01W, 417mA (LED On) AC24V: Max 5.39W, 224 mA (LED On)
Voltage		Dual (12VDC & 24VAC)
