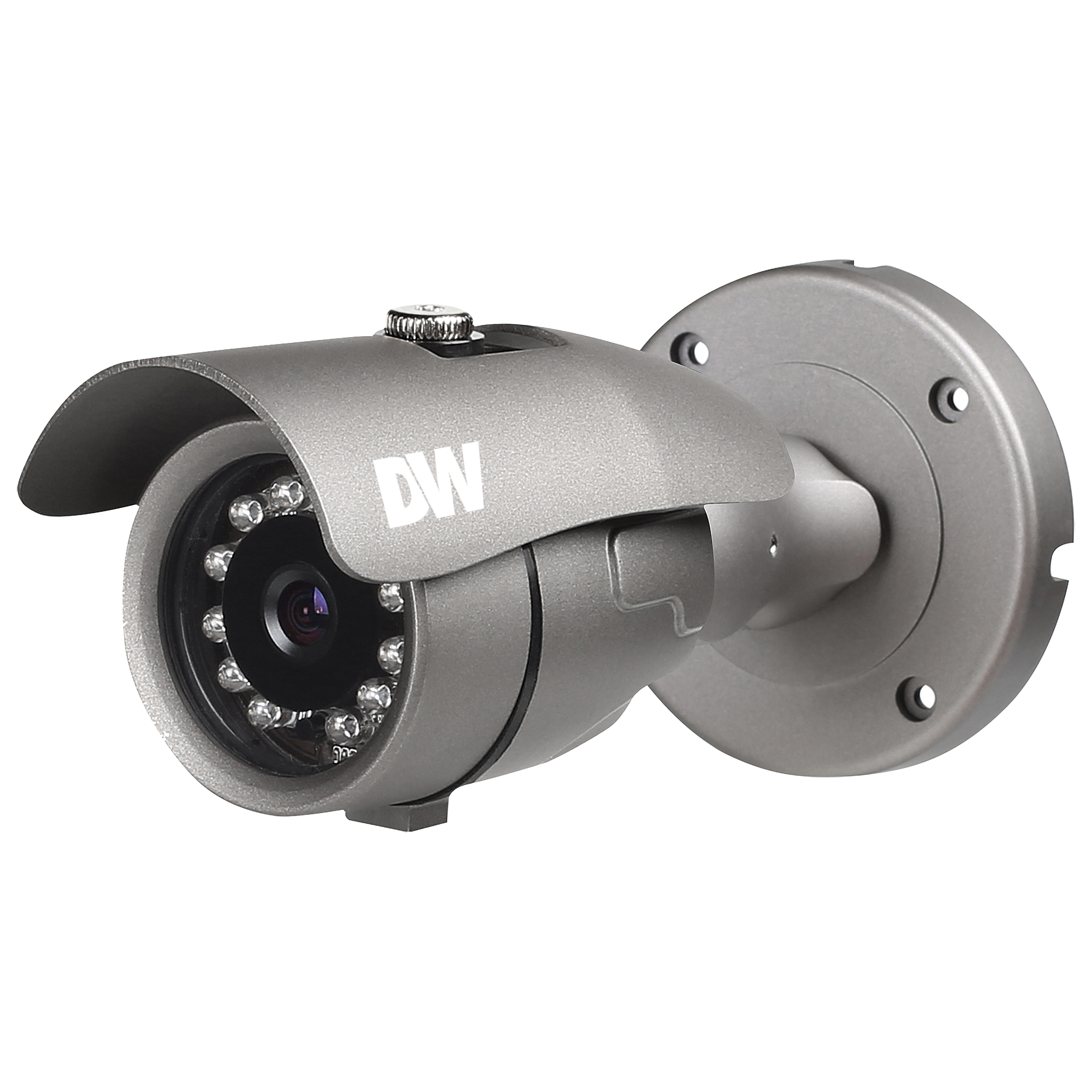

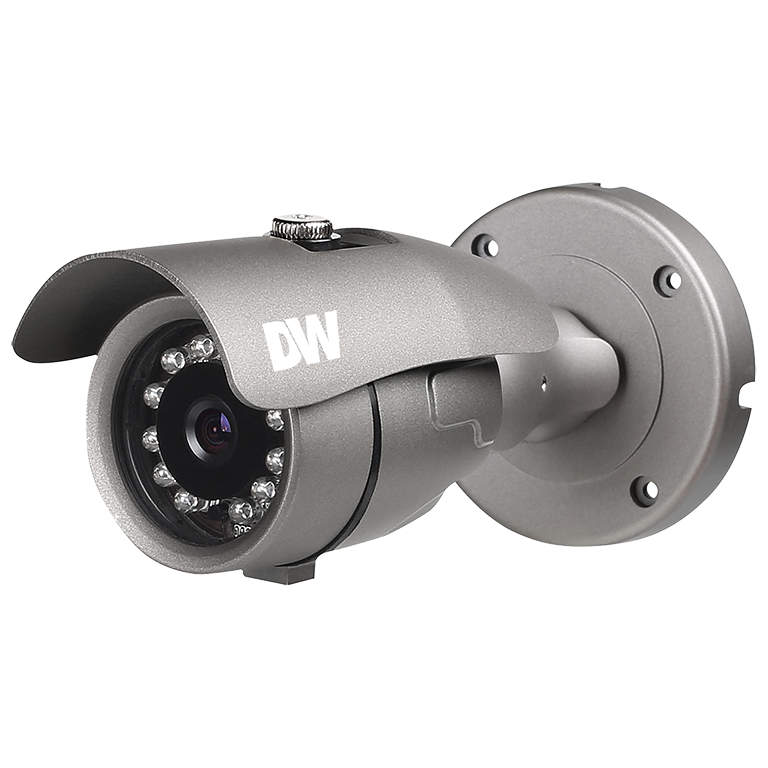

STAR-LIGHT AHD™ 2.1MP/1080p Bullet Camera with 3.6mm Lens

Share this Product!

2.1MP/1080p Bullet Camera with 3.6mm Lens

Model: DWC-B7753TIR

Find a Reseller | Request a Demo | Contact Us

Groundbreaking STAR-LIGHT AHD™ High Definition Cameras use existing coaxial cables to transmit crystal-clear detailed 1080p images. The cameras offer 2.1MP resolution along with powerful features such as P-Iris Lens, Digital Wide Dynamic Range (DWDR) and True Day/Night with Mechanical IR Cut Filter. The STAR-LIGHT AHD cameras are engineered to work with VMAX AHD DVRs, offering an easy upgrade from analog to high definition surveillance using existing infrastructure for a cost-effective, high resolution surveillance solution.

Analog High Definition (AHD)

AHD Technology delivers clear HD video
at 1920 x 1080 Resolution.

Analog High Definition (AHD) HD over Coax Technology
STAR-LIGHT™ Super Low Light Technology
Omnivision 1/2.7” CMOS Sensor
1080p Resolution at 30fps
Digital Wide Dynamic Range (DWDR)
3.6mm Fixed Lens
Smart IR™ with Intelligent Camera Sync. 50ft Range
Smart DNR™ 3D Digital Noise Reduction
Highlight Masking Exposure (HME)
True Day/Night with Mechanical IR Cut Filter
Secondary Video-BNC Output
Programmable Privacy Zones
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Auto White Balance (AWB)
RS-485 Built-in
IP66 Certified (Weather Resistant)
5 Year Warranty

Image sensor	2.1MP/1080p 1/2.7” CMOS
Active pixels	1944 (H) x 1092 (V)
Scanning system	Progressive scan
Frequency	60Hz / 50Hz
Signal technology	HD over Coax™ HD-Analog signal support
Synchronization	Internal
Resolution	1920 x 1080 (1080p)
Minimum scene illumination	0.41 lux (color)
Minimum scene illumination	0 lux (B&W)
S/N ratio	55dB
Video output	HD-Analog 2.1MP/1080p CVBS Analog up to 960H (video test only)
LENS
Focal length	3.6mm
Lens type	Fixed lens
IR distance	50ft range
OPERATIONAL
Shutter mode	Auto, manual
Shutter speed	1/30-1/30,000
Backlight	On, off
Star-Light (sense-up)	Off, x2 – x30
Dynamic range compressor (DRC)	Off, on, auto
Smart DNR™ 3D digital noise reduction	Off, low, middle, high
White balance	Auto / push / ATW / manual
Day / night	Auto, day (color), night (B/W)
Mirror / flip	Yes
Auto gain control	0~15
Motion detection	Yes
Privacy zones	4 programmable privacy zones
Sharpness	On, Off
Gamma	0.45 ~ 0.75
De-fog	On, off
ENVIRONMENTAL
Operating temperature	-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity	10–90% RH (non–condensing)
IP rating	IP66 certified weather and tamper resistant
Other certifications	FCC, CE, ROHS
ELECTRICAL
Power requirement	DC12V
Power consumption	DC12V(LED OFF): 1.86W
Power consumption	DC12V(LED ON) : 3.0W
MECHANICAL
Material	Aluminum bullet housing
Dimensions	6.47" x 2.52" (164.4 x 64mm)
Weight	0.65lbs
