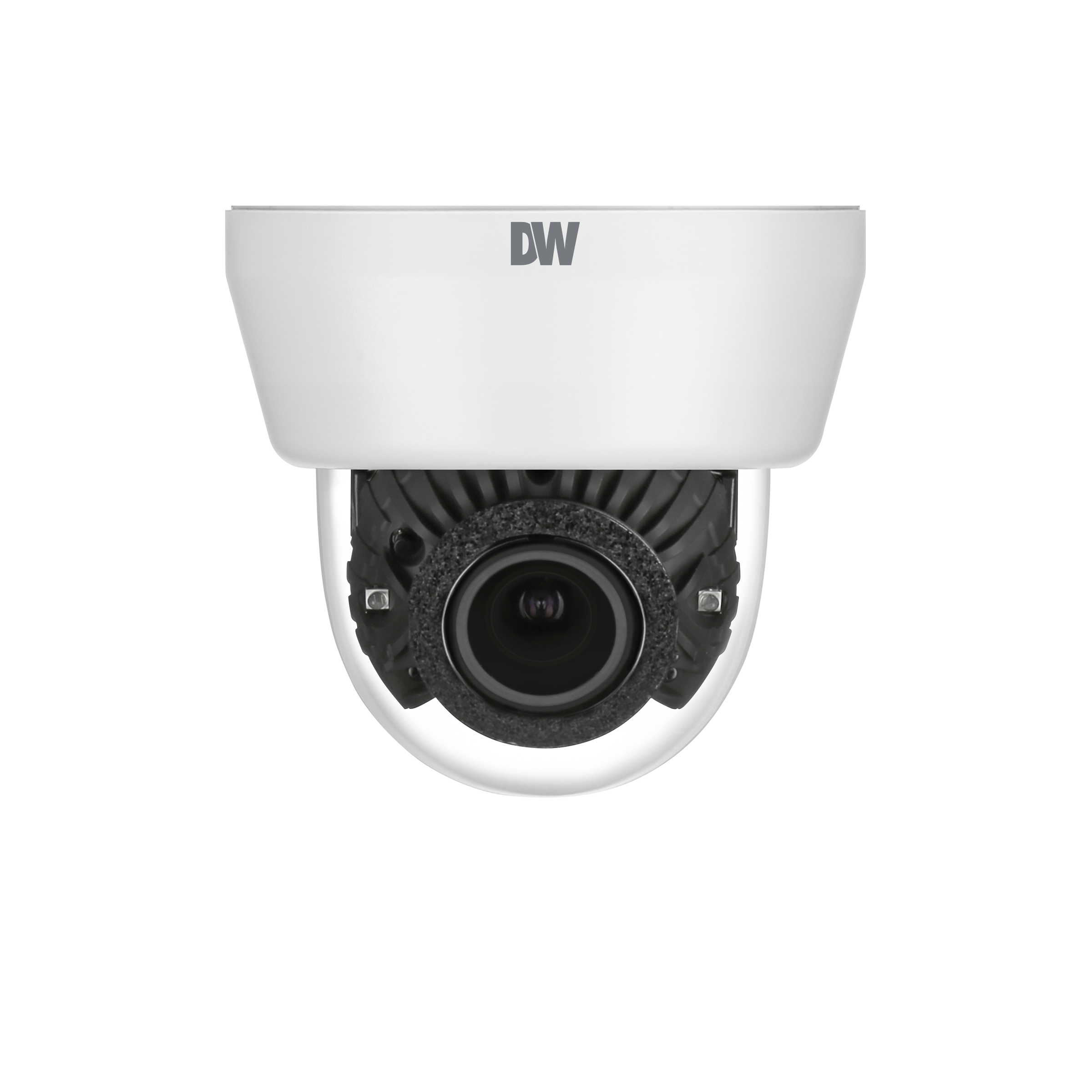

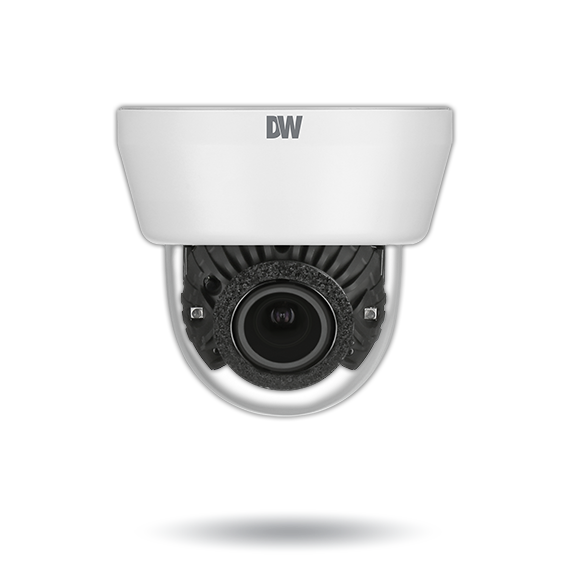

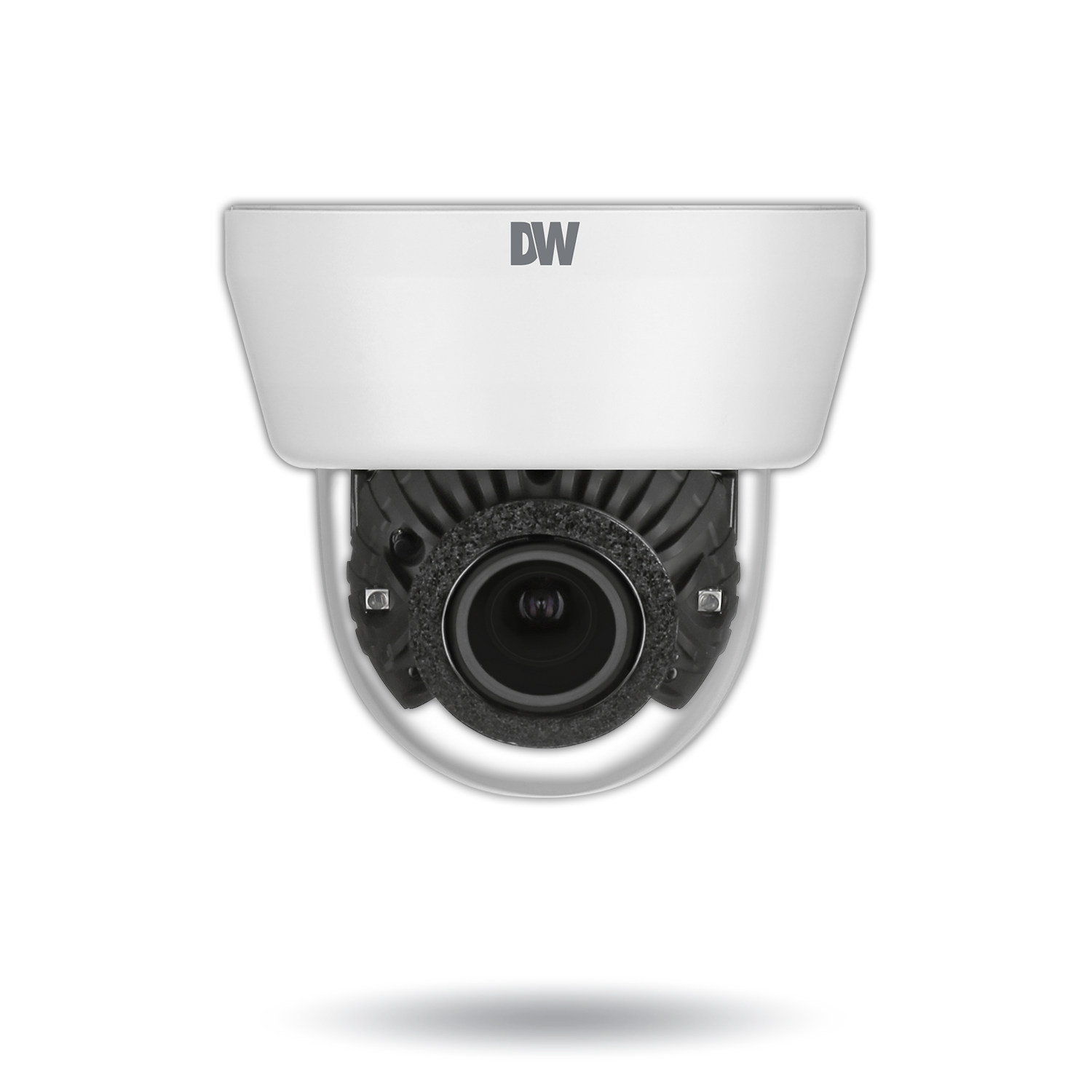

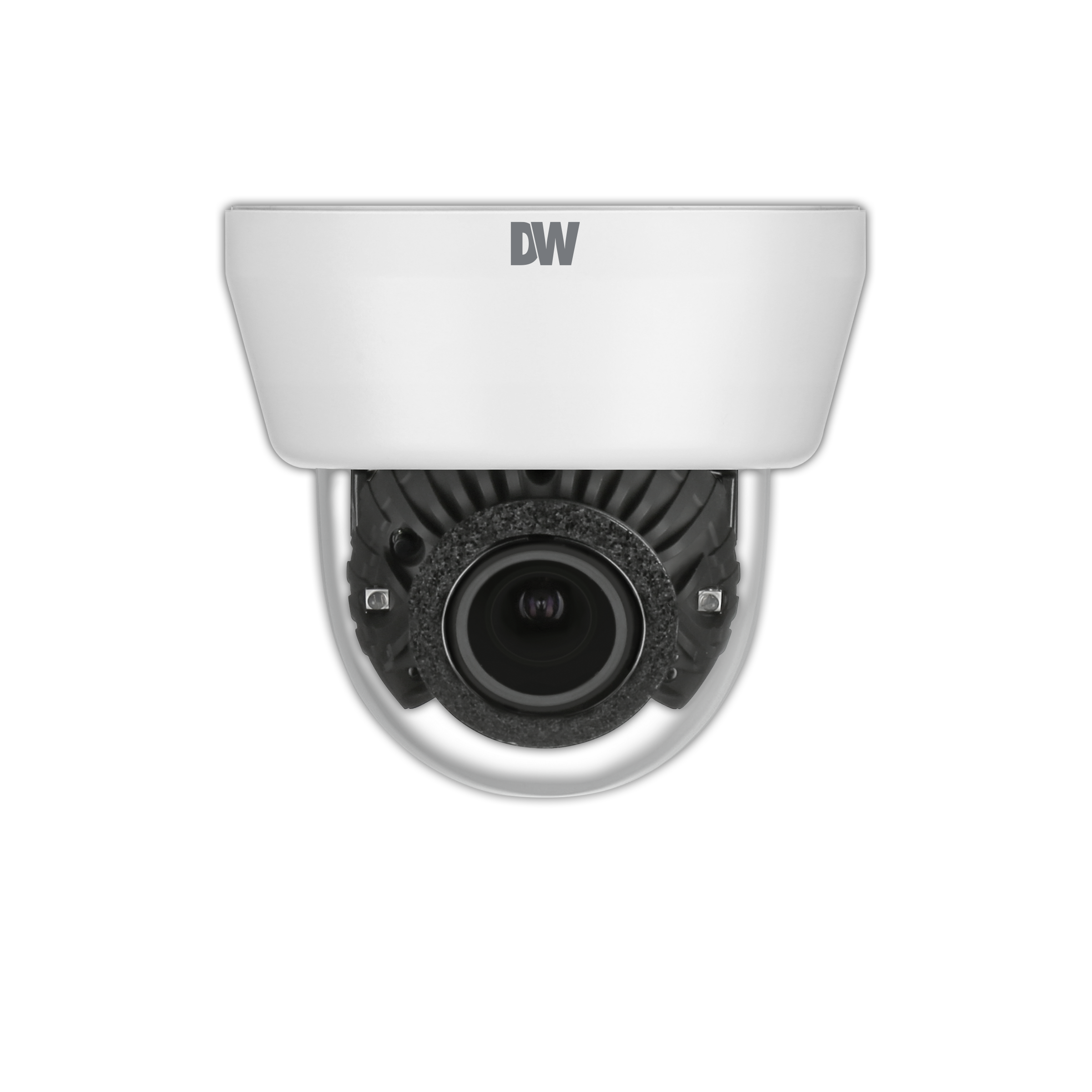

Star-Light Plus™ UHDoC® 4K indoor dome Snapit™ camera with 3.6~10mm vari-focal p-iris lens with motorized zoom and auto-focus, color in near-total darkness and IR

Share this Product!

4K indoor dome Snapit™ camera with 3.6~10mm vari-focal p-iris lens with motorized zoom and auto-focus, color in near-total darkness and IR

Model: DWC-D4883WTIRW

Find a Reseller | Request a Demo | Contact Us

Featuring Star-Light Plus™ color in near-total darkness, 4K Universal HD over Coax^® cameras deliver crystal-clear images and support HD-Analog, HD-TVI, HD-CVI and all legacy analog signals. The unique Snapit™ housing makes installation a snap! and can be controlled via the same coax cable using UTC. All Star-Light Plus™ 4K cameras are engineered to work with our VMAX^® A1 4K™ DVRs using your existing coax infrastructure for a cost-effective, high-resolution surveillance solution.

Megapixel resolution

DW’s technology delivers crystal-clear images in resolutions up to 4K over coaxial infrastructure. Higher resolution delivers forensic details when zooming into the camera’s field of view.

Star-Light Plus™ color in darkness technology

Star-Light Plus™ color in near-total darkness technology provides crisp, clear images in the absence of ambient light.

Snapit™ Housing 3-step Installation

Our Snapit™ housing offers a simple to install three-step process.
1. Install the camera base.
2. Adjust the camera’s lens module as needed.
3. Take the cover dome and Snapit™ into place.

True Wide Dynamic Range (WDR)

Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.

Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all legacy analog signal support
Star-Light Plus™ color in near-total darkness technology
1/1.8" image sensor
4K at 15fps, 4MP or 2.1MP/1080p at real-time 30fps
Built-in microphone
3.6 ~ 10mm vari-focal motorized zoom p-iris lens with auto-focus
True wide dynamic range (WDR)
OSD control via coaxial (UTC)
Snapit™ easy installation housing
70' Smart IR™ with intelligent camera sync.
Smart DNR™ 3D digital noise reduction
True day/night mechanical IR cut filter
De-Fog™ extreme weather image compensation
Auto-sensing 24VAC/12VDC with line lock
Easy icon-driven OSD menu with built-in joystick
Programmable privacy zones
Auto gain control (AGC)
Backlight compensation (BLC)
Auto white balance (AWB)
NDAA compliant
5 year warranty

Image sensor	8MP 1/1.8" CMOS
Active pixels	3864(H) x 2176(V)
Scanning system	Progressive scan
Frequency	60Hz / 50Hz
Signal technology	Universal HD over Coax^® technology with HD-Analog, HD-TVI, HD-CVI to 4K and CVBS at 960H
Synchronization	Internal
Resolution	Max 3840 x 2160
Minimum scene illumination	0.09 lux (color)
Minimum scene illumination	0 lux (B/W)
S/N ratio	55dB
Video output	4K @ 15fps 4MP/1440p @ 30fps 2.1MP/1080p @ 30fps
2nd Video output	CVBS output for video testing
I/O
Alarm output	1 alarm output
Audio input/output	1 built-in microphone
Audio sensitivity	-38dB ±2dB (Sensitivity)
Audio frequency response	50Hz ~ 10KHz (Frequency Response)
LENS
Focal length	3.6 ~ 10mm
Lens type	Vari-focal p-iris lens with motorized zoom and auto-focus
Field of view (FoV)	98.4 - 45.7°
IR distance	70ft range
OPERATIONAL
Shutter mode	Auto
Shutter speed	1/30-1/30,000
Backlight	Yes
Star-Light (sense-up)	Off-x32 (disabled at 4K)
Wide dynamic range (WDR)	True WDR, off, on
Wide dynamic range (WDR) dB	120dB
Smart DNR™ 3D digital noise reduction	3D/2D DNR
White balance	Yes
Highlight masking exposure (HME)	Yes
Dynamic range compression (DRC)	Yes
Day / night	Auto, day (color), night (B/W)
Mirror / flip	Yes
Auto gain control	Max 60dB
Motion detection	Yes
Privacy zones	Yes
Sharpness	Yes
Gamma	0.45
De-fog	Yes
RS485 / UTP built-in	UTC
ENVIRONMENTAL
Operating temperature	-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity	10–90% RH (non–condensing)
Other certifications	FCC, CE, ROHS
ELECTRICAL
Power requirement	DC12V/24VAC dual voltage
Power consumption	DC12V(LED off): 5.76W, 480mA DC12V(LED on): 7.92W, 660mA
Power consumption	AC24V(LED off): 6.49W, 429mA AC24V(LED on): 7.15W, 495mA
MECHANICAL
Material	Snapit™ plastic housing, polycarbonate dome
Dimensions	4.24" x 3.9" (107.8 x 99.1 mm)
Weight	0.55lbs (0.25kg)
Warranty	5 year warranty
