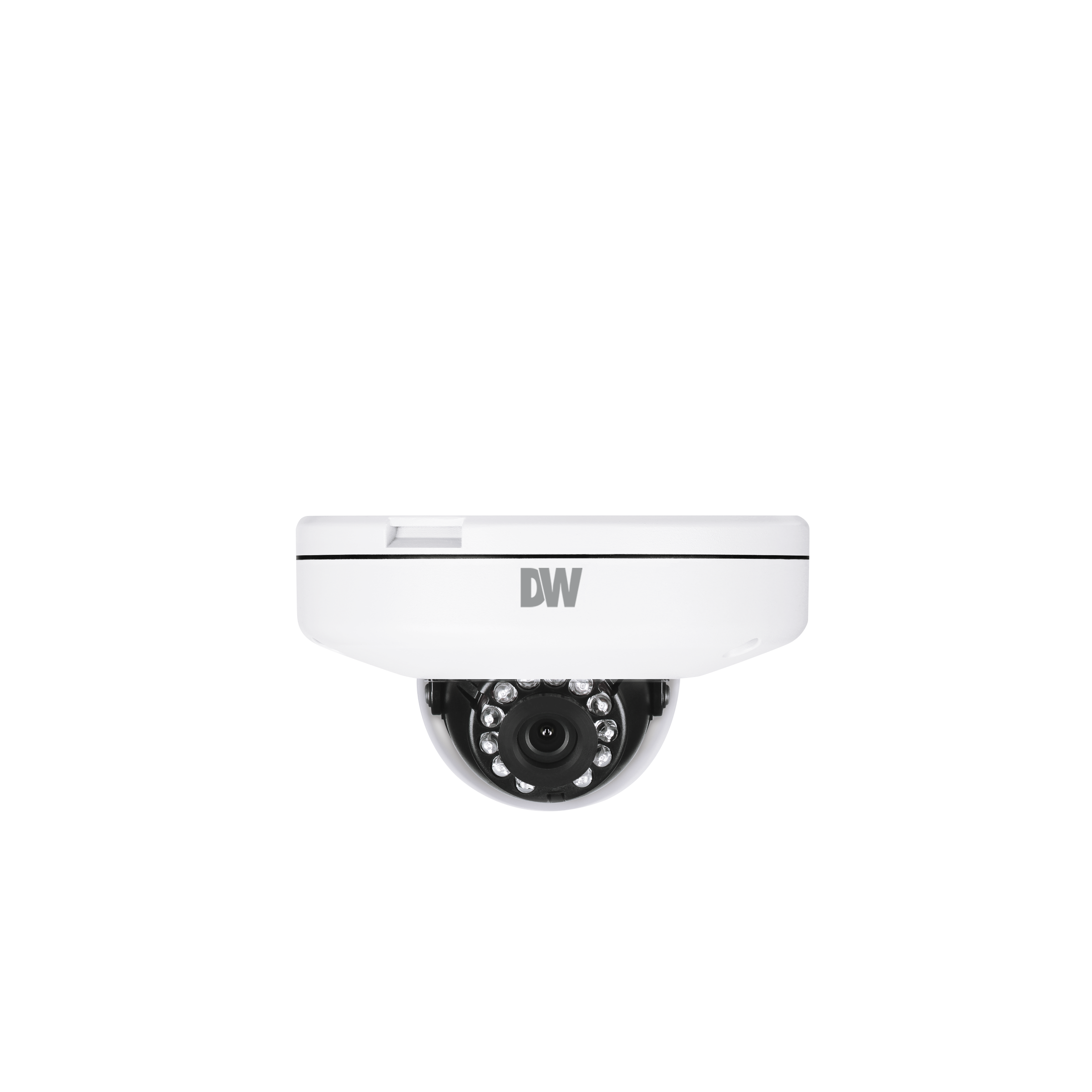

MEGApix® IVA™ 5MP ultra low-profile vandal dome IP camera with 4.0mm, 6.0mm and 8.0mm fixed lenses and color in near-total darkness and IR

Share this Product!

Ultra low-profile vandal dome IP camera with 4.0mm, 6.0mm and 8.0mm fixed lenses and color in near-total darkness and IR

Model: DWC-MF5Wi4TW, DWC-MF5Wi8TW, DWC-MF5Wi6TW, DWC-MPF5Wi4TW, DWC-MPF5Wi8TW, DWC-MPF5Wi6TW

Find a Reseller | Request a Demo | Contact Us

This MEGApix^® IVA™ IP camera is your gateway to powerful video analytics features. It is NDAA compliant and provides 5MP resolution at real-time 30fps. The MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced Video Content Analysis detection capabilities. This camera includes 4.0, 6.0 and 8.0mm fixed lens options, simultaneous H.265/H.264/MJPEG codec support and Star-Light Plus™ color in near-total darkness technology for quality video in any lighting condition, all in an IP66-rated, IK-10 impact resistant ultra low-profile vandal dome housing. All MEGApix® cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.

Megapixel resolution

DW’s technology delivers crystal clear images in any resolution. Higher-resolution offers forensic details with zooming into the camera’s field of view.

Star-Light Plus™ color in darkness technology

Star-Light Plus™ color in near-total darkness technology provides crisp, clear images in the absence of ambient light.

Ultra Low-Profile Vandal Dome Housing

The micro dome cameras are small and discrete, ideal for high-end applications where the cameras integrate into the overall design. HD video surveillance in a small and sleek design allows for discrete installations.

True Wide Dynamic Range (WDR)

Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.

5MP 1/2.8" image sensor at real-time 30fps
Star-Light Plus™ color in near-total darkness technology
Intelligent Video Analytics (IVA pre-loaded models)
Extended Intelligent Video Analytics (IVA+ pre-loaded models)
Seamless integration and control of IVA rules with DW Spectrum® IPVMS
Reduce false alarms
Increase your recording storage with logic rules and smart recording
4.0mm fixed lens (DWC-MF5Wi4TW)
6.0mm fixed lens (DWC-MF5Wi6TW) (coming soon)
8.0mm fixed lens (DWC-MF5Wi8TW) (coming soon)
True Wide Dynamic Range (WDR)
Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
50' Smart IR™ with intelligent camera sync
Ultra low-profile vandal dome camera
Smart DNR™ 3D digital noise reduction
True day/night with mechanical IR cut filter
Programmable privacy zones
Auto gain control (AGC)
Auto white balance (AWB)
Motion detection
Two-way audio
Micro SD/SDHC/SDXC class 10 card slot (card not included)
Alarm sensor input
Relay output
Web server built-in
PoE class 3 and DC12V
UL listed
ONVIF conformant, profile S
NDAA compliant
IP66 environmental-rated dust-tight and water-resistant
IK 10-rated impact-resistant
5 year warranty

Image sensor	5MP 1/2.8” Star-Light Plus CMOS
Total pixels	2592(H) X 1944(V)
Minimum scene illumination	0.16 lux (color)
Minimum scene illumination	0.0 lux (B/W)
Video output	Local video output CVBS 1.0V p-p (75?), 4:3 aspect ratio
LENS
Focal length	4.0mm, F2.0 (DWC-MF5Wi4TW) 6.0mm, F2.0 (DWC-MF5Wi6TW) (coming soon) 8.0mm, F2.0 (DWC-MF5Wi8TW) (coming soon)
Lens type	Fixed lens
Field of view (FoV)	82.3° (DWC-MF5Wi4TW) 51.9° (DWC-MF5Wi6TW) (coming soon) 37.8° (DWC-MF5Wi8TW) (coming soon)
IR distance	50ft range
I/O
Audio in / out	1 input / 1 output
Audio compression	G.711
Alarm in / out	1 input / 1 output
OPERATIONAL
Intelligent Video Analytics	IVA license: intrusion, line crossing, counting line, loitering, enter, exit, tamper
Intelligent Video Analytics	IVA+ license: object removed, tailgating, direction, stopped, appear, disappear, object left
Shutter mode	Auto, manual, anti-flicker, slow shutter
Shutter speed	1/15 ~ 1/32,000
Slow shutter	1/2,1/3,1/5,1/6,1/7.5, 1/10
Auto gain control	Auto
Day / night	Auto, day (color), night (B/W)
Smart DNR™ 3D digital noise reduction	3D DNR
Wide dynamic range (WDR)	True WDR (D-WDR) On, Off
Wide dynamic range (WDR) dB	120dB
Privacy zones	16 programmable privacy masks
Mirror and flip	Yes
Alarm notifications	Notifications via e-mail, FTP, alarm output and SD card recording
Memory slot	Micro SD / SDHC / SDXC (card not included)
NETWORK
LAN	RJ45 (10/100Base-T)
Video compression type	H.265, H.264, MJPEG
Resolution	H.265: 2592x1944, 2304x1296, 2.1MP/1080p, 720p, VGA, D1, CIF H.264: 2592x1944, 2304x1296, 2.1MP/1080p, 720p, VGA, D1, CIF MJPEG: 2.1MP/1080p, 720p, 800x600, VGA, 768x432, D1, CIF
Frame rate	Up to 30fps at all resolutions
Video bitrate	100Kbps ~ 10Mbps, multi-rate for preview and recording
Bitrate control	Multistreaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
Streaming capability	Dual-stream at different rates and resolutions
IP	IPv4, IPv6
Protocol	TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF
Security	HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW)
ONVIF conformance	Yes
Web viewer	OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®
Video management software	DW Spectrum® IPVMS
ENVIRONMENTAL
Operating temperature	-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity	10–90% RH (non–condensing)
IK rating	IK10 impact-resistant
IP rating	IP66-rated
Other certifications	CE, FCC, RoHS
ELECTRICAL
Power requirement	DC12V, POE IEEE 802.3af class 3 (adaptor not Included)
Power consumption	DC12V: max 5.9W PoE: max 7.2W
MECHANICAL
Material	Aluminum vandal housing, polycarbonate dome
Dimensions	4.9" x 2.9" (125 x 74.3 mm)
Weight	0.92 lbs (0.42kg)
Warranty	5 year warranty

DWC-MF5Wi4TW: preloaded with IVA license, 4.0mm fixed lens.
DWC-MF5Wi6TW: preloaded with IVA license, 6.0mm fixed lens.
DWC-MF5Wi8TW: preloaded with IVA license, 8.0mm fixed lens.
DWC-MPF5Wi4TW: preloaded with IVA+ license, 4.0mm fixed lens.
DWC-MPF5Wi6TW: preloaded with IVA+ license, 6.0mm fixed lens.
DWC-MPF5Wi8TW: preloaded with IVA+ license, 8.0mm fixed lens.
