MEGApix IVA™ 2.1MP/1080p pinhole ATM IP camera with 2.8mm fixed lens pre-loaded with IVA

Share this Product!

2.1MP/1080p pinhole ATM IP camera pre-loaded with IVA

Model: DWC-MPH2W28TW, DWC-MPPH2W28TW

Find a Reseller | Request a Demo | Contact Us

This MEGApix^® IVA™ IP camera is your gateway to powerful video analytics features. The 2.1MP/1080p pinhole IP camera is an NDAA compliant ATM camera that delivers crystal-clear real-time 30fps images at close range. The MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced Video Content Analysis detection capabilities. The camera’s small, compact design and sturdy main body make it ideal for banks and credit unions looking for reliable and discreet surveillance at ATMs.

Discreet installation with no location restrictions

The pinhole camera is ideal for any application where discrete surveillance is needed. The camera has little to no impact on the interiors and its small size makes it easy to install even in constrained spaces such as ATMs, ticket and vending machines and health monitoring systems.

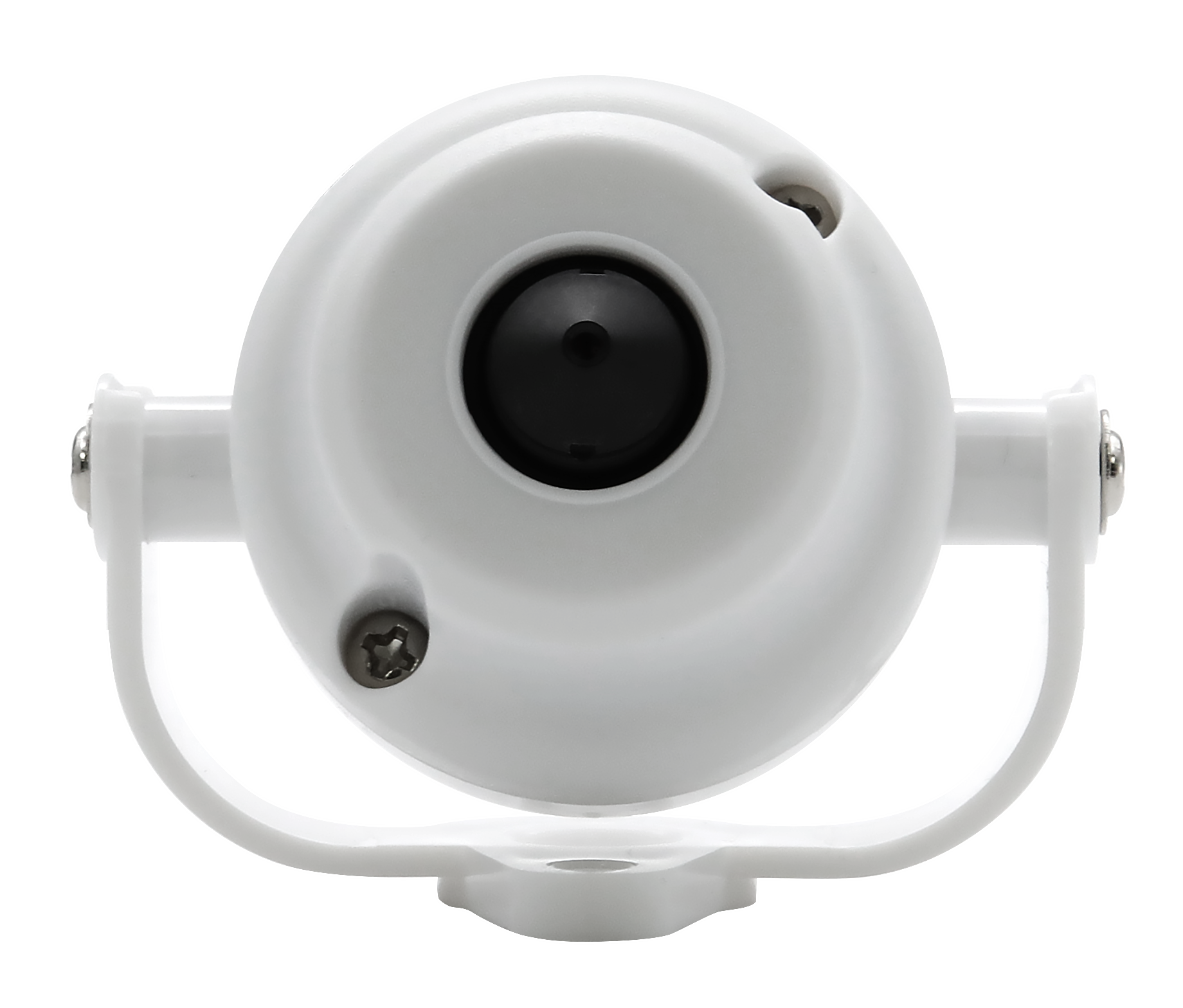

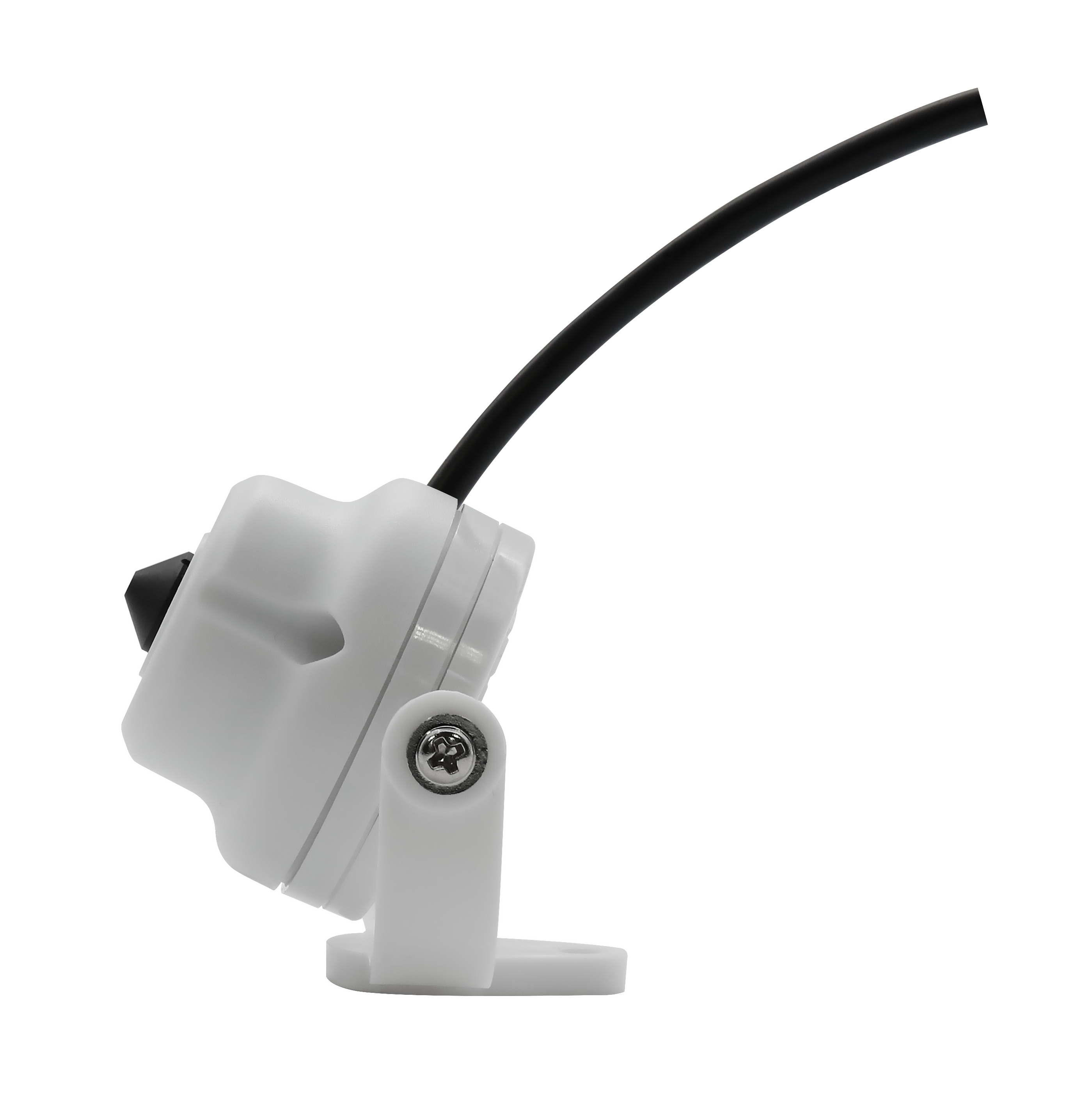

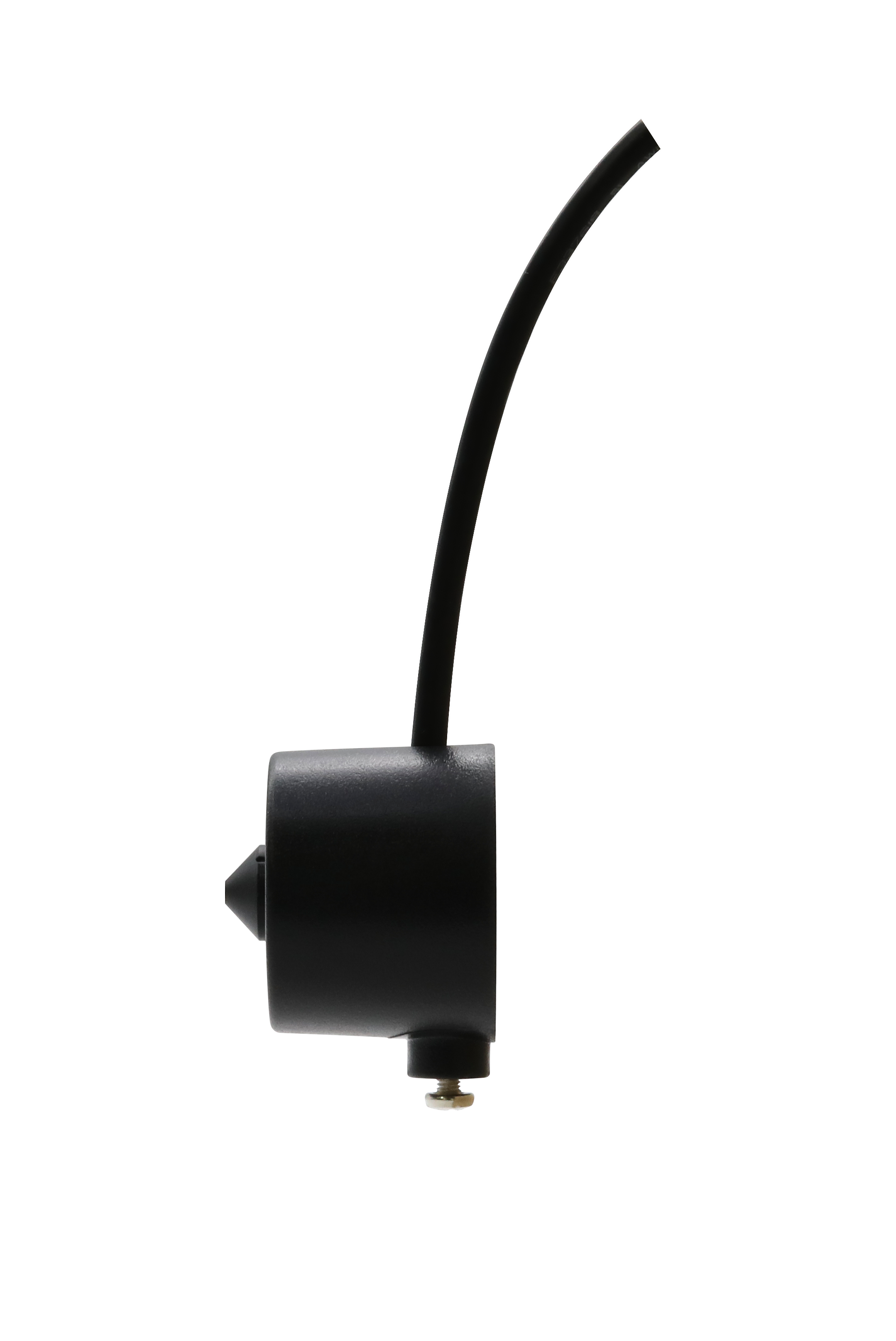

Visible and concealed brackets

The camera comes with a mounting bracket that can be mounted hidden behind a wall or ceiling for concealed surveillance or tilted and placed on top of the mounting surface for a visible installation.

Wide-angle lens for large areas surveillance

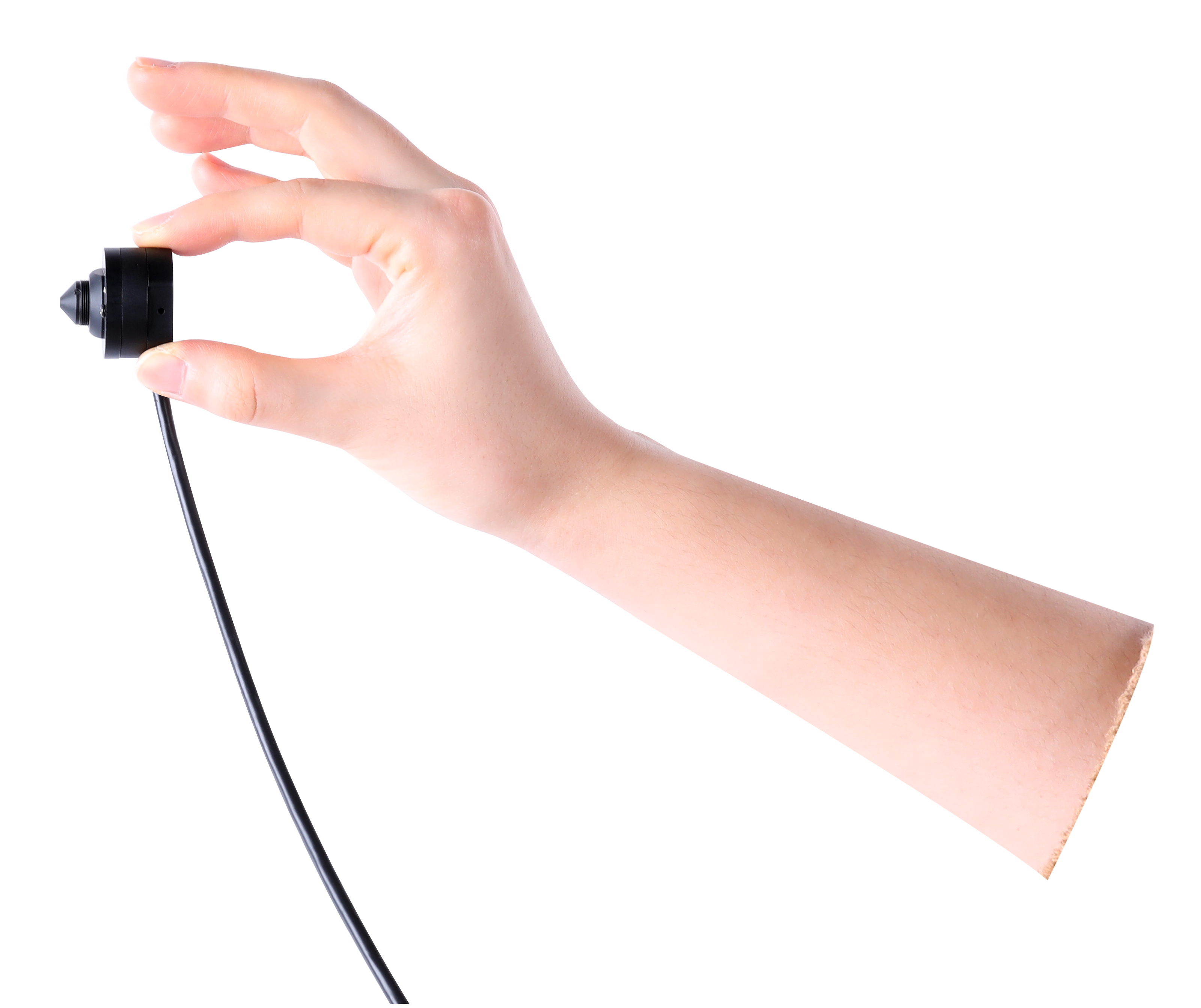

The ultra-small sensor unit is equipped with an invisible pinhole lens, enabling thorough concealed monitoring. The lens showcases a horizontal angle up to 106.6°, allowing users to monitor large areas at a glance.

True Wide Dynamic Range (WDR)

Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.

H.265 codec support

High-Efficiency video codec standards deliver 25% to 50% better data compression while maintaining video quality.

2.1MP/1080p 1/2.8" image sensor at real-time 30fps
Intelligent Video Analytics (DWC-MPH2W28TW IVA model)
Intelligent Video Analytics (IVA) with extended features (DWC-MPPH2W28TW IVA+ model)
Seamless integration and control of IVA rules with DW Spectrum® IPVMS
Reduce false alarms
Increase your recording storage with logic rules and smart recording
2.8mm fixed lens
True Wide Dynamic Range (WDR)
Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
ATM pinhole camera
Smart DNR™ 3D digital noise reduction
Programmable privacy zones
Auto gain control (AGC)
Backlight compensation (BLC)
Auto white balance (AWB)
Motion detection

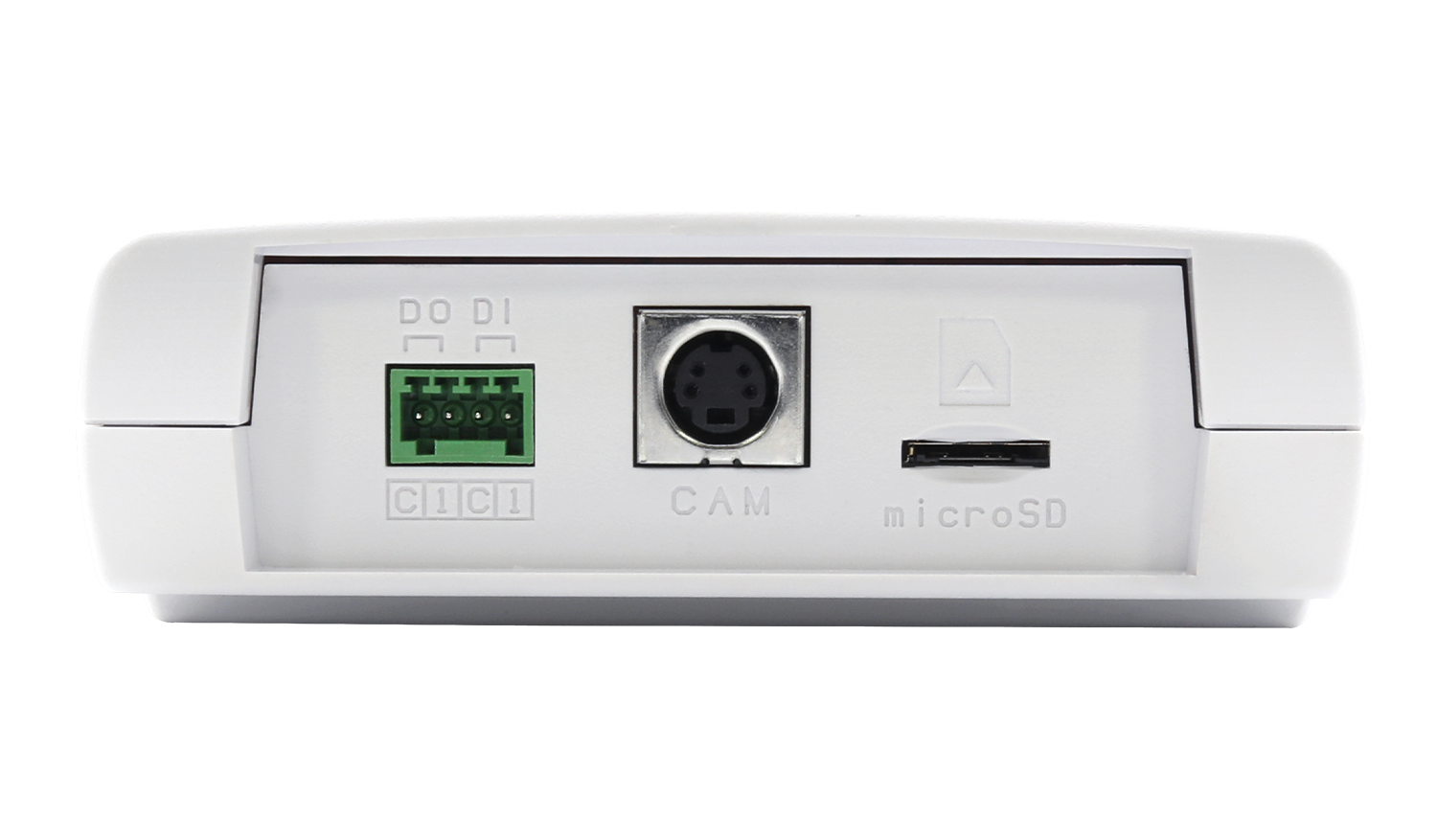

Micro SD/SDHC/SDXC class 10 card slot (card not included)
Alarm sensor input
Relay output
Web server built-in
PoE class 3 and DC12V
ONVIF conformant, profile S
NDAA compliant
5 year warranty

Image sensor	2.1MP/1080p 1/2.8" CMOS
Total pixels	1945(H) X 1109(V)
Minimum scene illumination	0.065 lux (color)
LENS
Focal length	2.8mm, F2.2
Lens type	Fixed lens
Field of view (FoV)	106.6°
I/O

Alarm in/out	1/1
OPERATIONAL
Intelligent Video Analytics	IVA license (DWC-MPH2W28TW): intrusion, line crossing, counting line, loitering, enter, exit, tamper
Intelligent Video Analytics	IVA+ license (DWC-MPPH2W28TW): object removed, tailgating, direction, stopped, appear, disappear, object left
Shutter mode	Auto, manual, anti-flicker, slow shutter
Shutter speed	1/15 ~ 1/32000
Slow Shutter	1/2, 1/3, 1/5, 1/6, 1/7.5, 1/10
Auto gain control	Auto
Day / night	Day (color) only
Smart DNR™ 3D digital noise reduction	Yes
Wide dynamic range (WDR)	True WDR on, off
Wide dynamic range (WDR) dB	120dB
Backlight compensation (BLC)	Yes
Mirror and flip	Yes
Privacy zones	16 programmable privacy masks
Alarm notifications	Email, alarm output, FTP server or SD card recording
Memory Slot	Micro SD/SDHC/SDXC class 10 card (card not included)
NETWORK
LAN	RJ45 (10/100Base-T)
Video compression type	H.264, MJPEG
Resolution	H.265: 2.1MP/1080p, 720p, 640x360, CIF, SIF H.264: 2.1MP/1080p, 720p, 640x360, CIF, SIF MJPEG: 2.1MP/1080p, 720p, 800x600, 768x432, 704x576, 480p, VGA, 640x360, CIF, SIF
Frame rate	Up to 30fps at all resolutions
Video bitrate	100Kbps ~ 10Mbps, multi-rate for preview and recording
Bitrate control	Multistreaming CBR/VBR at H.265 (controllable frame rate and bandwidth)
Streaming capability	Dual-stream at different rates and resolutions
IP	IPv4
Protocol	TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB-2), ONVIF
Security	HTTPS (TLS), IP filtering, 802.1x, Digest Authentication (ID/PW)
ONVIF conformance	Yes
Web viewer	OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®
Video management software	DW Spectrum® IPVMS
ENVIRONMENTAL
Operating temperature	-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity	10–90% RH (non–condensing)
Other certifications	FCC, CE, ROHS
ELECTRICAL
Power requirement	DC 12V, PoE IEEE 802.3af Class 3. (Adapter not included)
Power consumption	DC12V: 3.6W PoE: 4W
MECHANICAL
Material	Plastic
Dimensions	Main unit: 4.21" x 4.88" x 1.41" (107 x 124 x 36mm) Camera sensor: 1.1" x 1.08" (28.1 x 27.5mm) Cable length: 21.32ft (6.5m)
Weight	0.92 lbs (0.42 kg)
Warranty	5 year warranty

DWC-MPH2W28TW: preloaded with IVA license.
DWC-MPPH2W28TW: preloaded withIVA+ license.
