MEGApix IVA™ 5MP ultra low-profile vandal dome IP camera with 2.8mm, 4.0mm and 6.0mm fixed lens options, color in near-total darkness and IR

Share this Product!

5MP ultra low-profile vandal dome IP camera with 2.8mm, 4.0mm and 6.0mm fixed lens options, color in near-total darkness and IR

Model: DWC-MV75Wi28TW, DWC-MV75Wi4TW, DWC-MV75Wi6TW, DWC-MPV75Wi28TW, DWC-MPV75Wi4TW, DWC-MPV75Wi6TW

Find a Reseller | Request a Demo | Contact Us

This MEGApix^® IVA™ IP camera is your gateway to powerful video analytics features. It is NDAA compliant and provides 5MP resolution at real-time 30fps. The MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced Video Content Analysis detection capabilities. This camera includes 2.8, 4.0 and 6.0mm fixed lens options, simultaneous H.265/H.264/MJPEG codec support and Star-Light Plus™ color in near-total darkness technology for quality video in any lighting condition, all in an IP67-rated, IK-10 impact-resistant ultra low-profile vandal dome housing. All MEGApix^® cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.

DWC-V7DECO Accessory: Set of five (5) white decorative rings for our MEGApix^® and Star-Light Plus™ cameras in ultra-low-profile V7 housings (DWC-xV7xxxx) make it easy to customize the look of the cameras for specific applications. Simply paint the rings to match your décor.

IVA Analytics

MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced video content analysis detection capabilities.

LEARN MORE

IVA integrates seamlessly with DW Spectrum^® IPVMS

MEGApix IVA analytics are seamlessly integrated with DW Spectrum IPVMS for easy configuration, real-time alerts and automatic notifications.
Learn more.

Star-Light Plus™ color in darkness technology

Star-Light Plus™ color in near-total darkness technology provides crisp, clear images in the absence of ambient light.

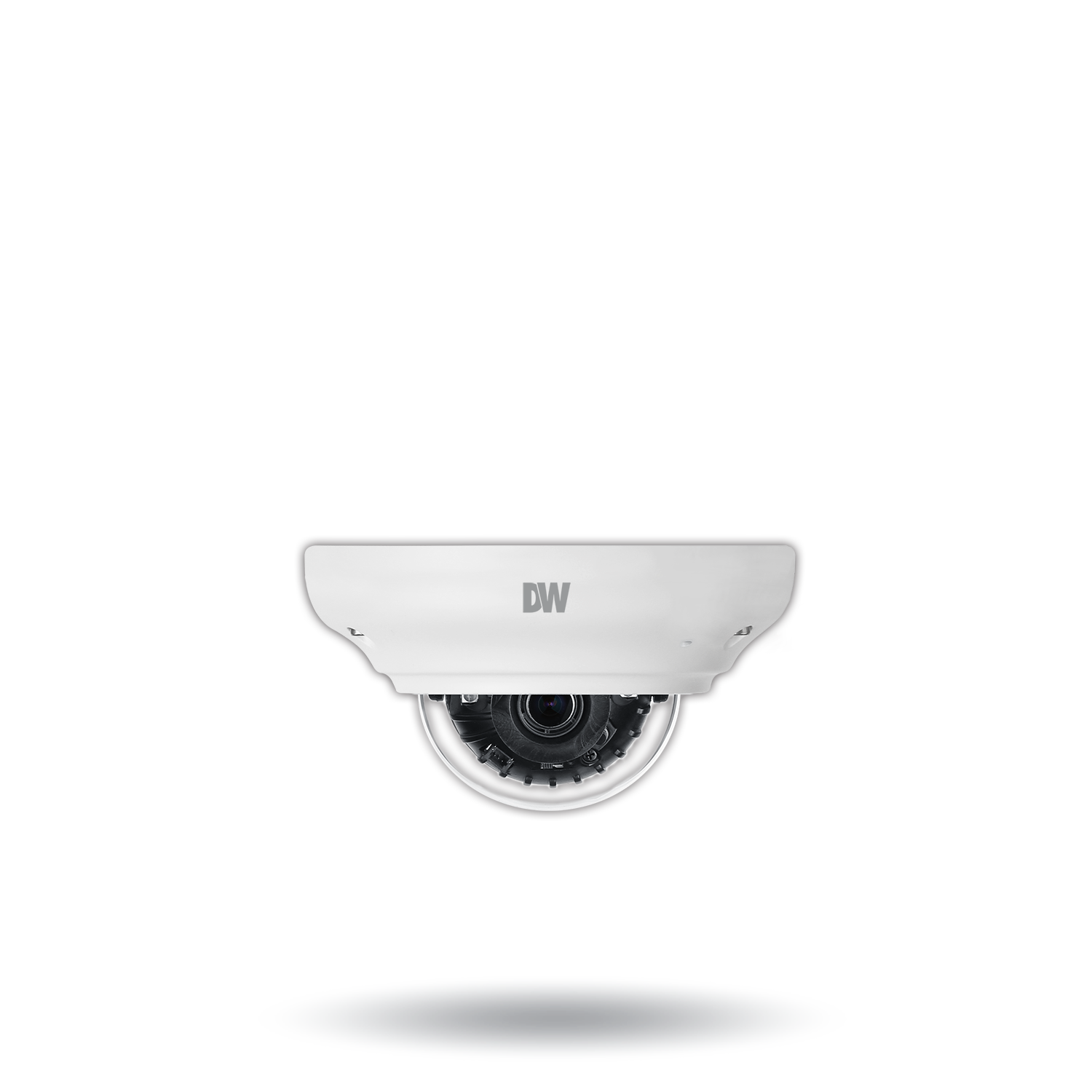

Ultra Low-Profile Vandal Dome Housing

The micro dome cameras are small and discrete, ideal for high-end applications where the cameras integrate into the overall design. HD video surveillance in a small and sleek design allows for discrete installations.

Decorative rings

Customize your ultra low-profile vandal domes with decorative rings. The DWC-V7DECO set of five (5) white rings can be painted to match your décor.

5MP 1/2.8” image sensor at real-time 30fps
Star-Light Plus™ color in near-total darkness technology
Intelligent Video Analytics (IVA pre-loaded models)
Extended Intelligent Video Analytics (IVA+ pre-loaded models)

Seamless integration and control of IVA rules with DW Spectrum® IPVMS
2.8mm fixed lens (DWC-MV75Wi28TW)
4.0mm fixed lens (DWC-MV75Wi4TW)
6.0mm fixed lens (DWC-MV75Wi6TW)
True Wide Dynamic Range (WDR)
Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
80’ Smart IR™ with intelligent camera sync
Ultra low-profile vandal dome camera
Smart DNR™ 3D digital noise reduction
True day/night mechanical IR cut filter
Programmable privacy zones
Auto gain control (AGC)
Auto white balance (AWB)
Motion detection
Micro SD/SDHC/SDXC class 10 card slot (card not included)
PoE class 3 and DC12V
UL listed
NDAA compliant
IP67 dust-tight and waterproof to 3 feet
IK 10-rated impact-resistant
5 year warranty

Image sensor	5MP 1/2.8” Star-Light Plus CMOS
Total pixels	2592 (H) × 1944 (V)
Minimum scene illumination	0.13 lux (color) (DWC-MV75Wi28TW) 0.16 lux (color) (DWC-MV75Wi4TW, DWC-MV75Wi6TW)
Minimum scene illumination	0.0 lux (B/W)
Test Monitor Video Output	Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio
LENS
Focal length	2.8mm, F1.8 (DWC-MV75Wi28TW) 4.0mm, F2.0 (DWC-MV75Wi4TW) 6.0mm, F2.0 (DWC-MV75Wi6TW)
Lens type	Fixed lens
Field of view (FoV)	102.4° (DWC-MV75Wi28TW) 82.3° (DWC-MV75Wi4TW) 51.9° (DWC-MV75Wi6TW)
IR distance	80ft range
OPERATIONAL
Intelligent Video Analytics	IVA license: intrusion, line crossing, counting line, loitering, enter, exit, tamper
Intelligent Video Analytics	IVA+ license: object removed, tailgating, direction, stopped, appear, disappear, object left
Shutter mode	Auto, manual, anti-flicker, slow shutter
Shutter speed	1/30 ~ 1/32,000
Slow shutter	1/2,1/3,1/5,1/6,1/7.5, 1/10
Auto gain control	Auto
Day / night	Auto, day (color), night (B/W)
Smart DNR™ 3D digital noise reduction	3D DNR
Wide dynamic range (WDR)	True WDR (D-WDR) On, Off
Wide dynamic range (WDR) dB	120dB
Privacy zones	16 programmable privacy masks
Mirror and flip	Yes
Alarm notifications	Notifications via e-mail, FTP, alarm output and SD card recording
Memory slot	Micro SD / SDHC / SDXC (card not included)
NETWORK
LAN	RJ45 (10/100Base-T)
Video compression type	H.265, H.264, MJPEG
Resolution	H.265: 2592x1944, 2304x1296, 2.1MP/1080p, 720p, VGA, D1, CIF H.264: 2592x1944, 2304x1296, 2.1MP/1080p, 720p, VGA, D1, CIF MJPEG: 2.1MP/1080p, 720p, 800x600, VGA, 768x432, D1, CIF
Frame rate	Up to 30fps at all resolutions
Video bitrate	100Kbps ~ 10Mbps, multi-rate for preview and recording
Bitrate control	Multistreaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
Streaming capability	Dual-stream at different rates and resolutions
IP	IPv4, IPv6
Protocol	TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF
Security	HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW)
ONVIF conformance	Yes
Web viewer	OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® NOTE: Chrome browser is recommended for IVA configuration.
Video management software	DW Spectrum® IPVMS
ENVIRONMENTAL
Operating temperature	-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity	10–90% RH (non–condensing)
IK rating	IK10 impact-resistant
IP rating	IP67-rated
Other certifications	CE, FCC, RoHS
ELECTRICAL
Power requirement	DC12V, POE IEEE 802.3af class 3 (adaptor not Included)
Power consumption	DC12V: max 6W PoE: max 7.2W
MECHANICAL
Material	Aluminum vandal housing, polycarbonate dome
Dimensions	4.13" x 2.4" (105 x 61mm)
Weight	0.79 lbs (0.36kg)
Warranty	5 year warranty

DWC-MV75Wi28TW: preloaded with IVA license, 2.8mm fixed lens.
DWC-MV75Wi4TW: preloaded with IVA license, 4.0mm fixed lens.
DWC-MV75Wi6TW: preloaded with IVA license, 6.0mm fixed lens.
DWC-MPV75Wi28TW: preloaded with IVA+ license, 2.8mm fixed lens.
DWC-MPV75Wi4TW: preloaded with IVA+ license, 4.0mm fixed lens.
DWC-MPV75Wi6TW: preloaded with IVA+ license, 6.0mm fixed lens.

DW Spectrum® IPVMS

LEARN MORE

Blackjack® servers

LEARN MORE

C3™ CMS

LEARN MORE

VMAX® IP Plus™ NVRs

LEARN MORE

DWC-V7CMW

Ceiling mount bracket - white

DWC-GPLT-W

Converter plate for electronic gang box - white

DWC-V7DECO

Decorative rings for V7 ultra low-profile vandal dome cameras

DWC-V7JUNCW

Junction box - white

DWC-WMJUNCW

Junction box for wall mount brackets

DWC-PMB-WLW

Pole mount bracket for bullets and dome cameras

DWC-V7WMW

Wall mount bracket - white

Title	Type	Size	Download
Camera part numbering system		0.03 MB
DW Accessories Chart		0.05 MB
DWC-M(P)V7 series quick setup guide		1.90 MB
DWC-M(P)V75WixTW series user manual		4.91 MB
DWC-MPV75WixTW CAD drawing		0.22 MB
DWC-MPV75WixTW datasheet		0.72 MB
DWC-MPV75WixTW UL certificate		0.34 MB
DWC-MV75Wi28TW AE specifications		0.10 MB
DWC-MV75Wi28TW CAD drawing		0.22 MB
DWC-MV75Wi4TW AE specifications		0.10 MB
DWC-MV75Wi4TW CAD drawing		0.22 MB
DWC-MV75Wi6TW AE specifications		0.10 MB
DWC-MV75Wi6TW CAD drawing		0.22 MB
DWC-MV75WixTW datasheet		0.72 MB
DWC-MV75WixTW UL certificate		0.34 MB
MEGApix IVA user manual - rules and analytics		6.92 MB
MEGApix Single-Sensor Brochure		3.29 MB

Title	Release Notes	Version	Size
DW IP Finder v4.4.14 for Linux OS	-	v4.4.14	47.86 MB
DW IP Finder v4.4.14 for Windows OS	-	v4.4.14	17.64 MB
IVA and IVA+ plugin v.1.0.34b		v.1.0.34b	10.67 MB
MEGApix® 5MP firmware vA6.2.2_20211029	-	vA6.2.2_20211029	64.35 MB
