Home Products MEGApix® IVA™ 2.1MP/1080p vandal ball IP camera with 2.7~13.5mm vari-focal p-iris lens with motorized zoom and auto-focus and color in near-total darkness and IR

Share this Product!

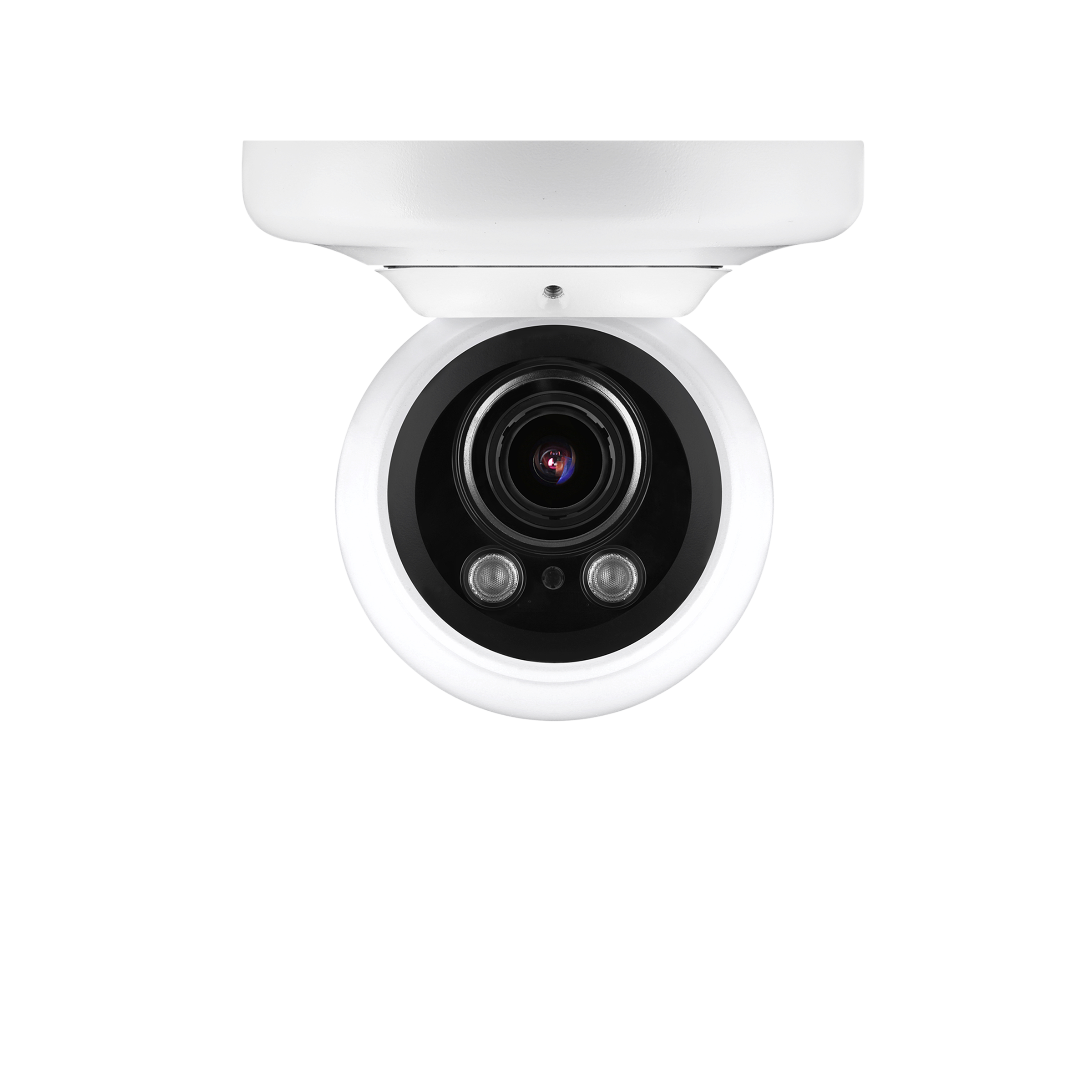

Vandal ball IP camera with 2.7~13.5mm vari-focal p-iris lens with motorized zoom and auto-focus and color in near-total darkness and IR
Model: DWC-MVA2WiAT, DWC-MPVA2WiAT
Find a Reseller | Request a Demo | Contact Us

This MEGApix® IVA™ IP camera is your gateway to powerful video analytics features. It is NDAA compliant and provides 2.1MP/1080p resolution at real-time 30fps. The MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced Video Content Analysis detection capabilities. This camera includes a 2.7~13.5mm vari-focal auto-focus lens with motorized zoom, simultaneous H.265/H.264/MJPEG codec support and Star-Light Plus™ color in near-total darkness technology for quality video in any lighting condition. The weather-resistant vandal ball cameras are IP67 rated, eliminate IR reflections and offer easy angle adjustment for optimal image quality. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.

NDAA
  • DWC-MVA2WiAT

Vandal ball housing
The vandal ball cameras have a unique dome-free design that allows for a true 90° tilting angle with endless 360° panning and rotation.
Megapixel resolution
DW’s technology delivers crystal clear images in any resolution. Higher-resolution offers forensic details with zooming into the camera’s field of view.
Star-Light Plus™ color in darkness technology
Star-Light Plus™ color in near-total darkness technology provides crisp, clear images in the absence of ambient light.
True Wide Dynamic Range (WDR)
Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.
  • 2.1MP/1080p 1/2.8" image sensor at real-time 30fps
  • Star-Light Plus™ color in near-total darkness technology
  • Intelligent Video Analytics (IVA pre-loaded models)
  • Extended Intelligent Video Analytics (IVA+ pre-loaded models)
  • Seamless integration and control of IVA rules with DW Spectrum® IPVMS
  • Reduce false alarms
  • Increase your recording storage with logic rules and smart recording
  • 2.7~13.5mm vari-focal p-iris lens with motorized zoom and auto-focus
  • True Wide Dynamic Range (WDR)
  • Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
  • 100' Smart IR™ with intelligent camera sync
  • Vandal ball housing reduces IR reflection
  • Smart DNR™ 3D digital noise reduction
  • True day/night mechanical IR cut filter
  • Programmable privacy zones
  • Auto gain control (AGC)
  • Auto white balance (AWB)
  • Motion detection
  • Web server built-in
  • PoE class 3 and DC12V
  • Waterproof cabling
  • UL listed
  • ONVIF conformant, profile S
  • NDAA compliant
  • IP67 dust-tight and waterproof to 3 feet
  • IK 10-rated impact-resistant
  • 5 year warranty

Image sensor
2.1MP/1080p 1/2.8” CMOS
Total pixels
1945 (H) × 1109 (V)
Minimum scene illumination
0.043 lux (color)
0.0 lux (B/W)

LENS
Focal length
2.7 ~ 13.5mm, F1.8
Lens type
Vari-focal p-iris lens with motorized-zoom and auto-focus
Field of view (FoV)
93.6° ~ 34.1°
IR distance
100ft range
Optical zoom
x5 optical zoom

OPERATIONAL
Intelligent Video Analytics
IVA license: intrusion, line crossing, counting line, loitering, enter, exit, tamper
IVA+ license: object removed, tailgating, direction, stopped, appear, disappear, object left
Shutter mode
Auto, manual, anti-flicker, slow shutter
Shutter speed
1/30 ~ 1/32,000
Slow shutter 1/2,1/3,1/5,1/6,1/7.5, 1/10
Auto gain control
Auto
Day / night
Auto, day (color), night (B/W)
Smart DNR™ 3D digital noise reduction
3D DNR
Wide dynamic range (WDR)
True WDR (D-WDR) On, Off
Wide dynamic range (WDR) dB 120dB
Privacy zones 16 programmable privacy masks
Mirror and flip Yes
Alarm notifications
Notifications via e-mail, FTP and alarm output

NETWORK
LAN
RJ45 (10/100Base-T)
Video compression type
H.265, H.264, MJPEG
Resolution
H.265: 2.1MP/1080p, 720p, VGA, D1, CIF
H.264: 2.1MP/1080p, 720p, VGA, D1, CIF
MJPEG: 1280x720, 800x600, VGA, 768x432, D1, CIF
Frame rate
Up to 30fps at all resolutions
Video bitrate
100Kbps ~ 10Mbps, multi-rate for preview and recording
Bitrate control
Multistreaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
Streaming capability
Dual-stream at different rates and resolutions
IP
IPv4, IPv6
Protocol
TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF
Security
HTTPS(TLS), IP filtering, 802.1x,
digest authentication(ID/PW)
ONVIF conformance
Yes
Web viewer
OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®
Video management software
DW Spectrum® IPVMS

ENVIRONMENTAL
Operating temperature
-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity
10–90% RH (non–condensing)
IK rating IK10 impact resistant
IP rating
IP67-rated
Other certifications
CE, FCC, RoHS

ELECTRICAL
Power requirement
DC12V, POE IEEE 802.3af class 3 (adaptor not Included)
Power consumption
DC12V: max 6.4W
PoE: max 7.6W

MECHANICAL
Material
Aluminum vandal ball housing
Dimensions
4.92" x 4.8"
(125 x 122 mm)
Weight
1.87 lbs (0.85kg)
Warranty 5 year warranty
DWC-MVA2WiAT: preloaded with IVA license.
DWC-MPVA2WiAT: preloaded withIVA+ license.
DW Spectrum® IPVMS
LEARN MORE
Blackjack® servers
LEARN MORE
C3™ CMS
LEARN MORE
VMAX® IP Plus™ NVRs
LEARN MORE
DWC-VACM
Ceiling mount bracket for vandal ball cameras
DWC-GPLT-W
Converter plate for electronic gang box - white
DWC-VAJUNC
Junction box for vandal ball cameras
DWC-WMJUNCW
Junction box for wall mount brackets
DWC-PMB-WLW
Pole mount bracket for bullets and dome cameras
DWC-VAWM
Wall mount bracket for vandal ball cameras
Title Type Size Download
Camera part numbering system pdf 0.03 MB
DW Accessories Chart xlsx 0.05 MB
DWC-M(P)VA series quick setup guide pdf 1.63 MB
DWC-M(P)VA2WiAT series user manual pdf 0.00 MB
DWC-MPVA2WiAT CAD drawing dwg 0.21 MB
DWC-MPVA2WiAT datasheet pdf 0.75 MB
DWC-MPVA2WiAT UL certificate pdf 2.80 MB
DWC-MVA2WiAT AE specifications doc 0.10 MB
DWC-MVA2WiAT CAD drawing dwg 0.21 MB
DWC-MVA2WiAT datasheet pdf 0.75 MB
DWC-MVA2WiAT UL certificate pdf 2.80 MB
MEGApix IVA brochure pdf 7.32 MB
MEGApix IVA user manual - rules and analytics pdf 6.92 MB
Title Type Release Notes Version Compatibility Size Download
DW IP Finder v4.4.14 for Linux OS run - v4.4.14 47.86 MB
DW IP Finder v4.4.14 for Windows OS exe - v4.4.14 17.64 MB
IVA and IVA+ plugin v.1.0.34b enc v.1.0.34b 10.67 MB
MEGApix® Star-Light Plus™ 2.1MP/1080p firmware vA7.2.2_20211029 img vA7.2.2_20211029 69.40 MB
