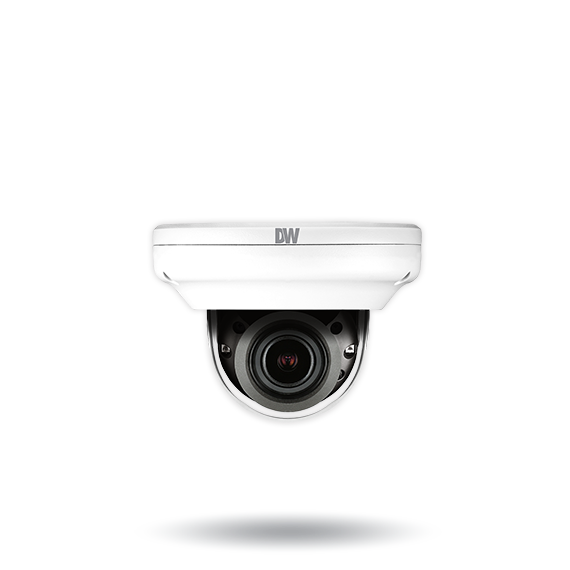

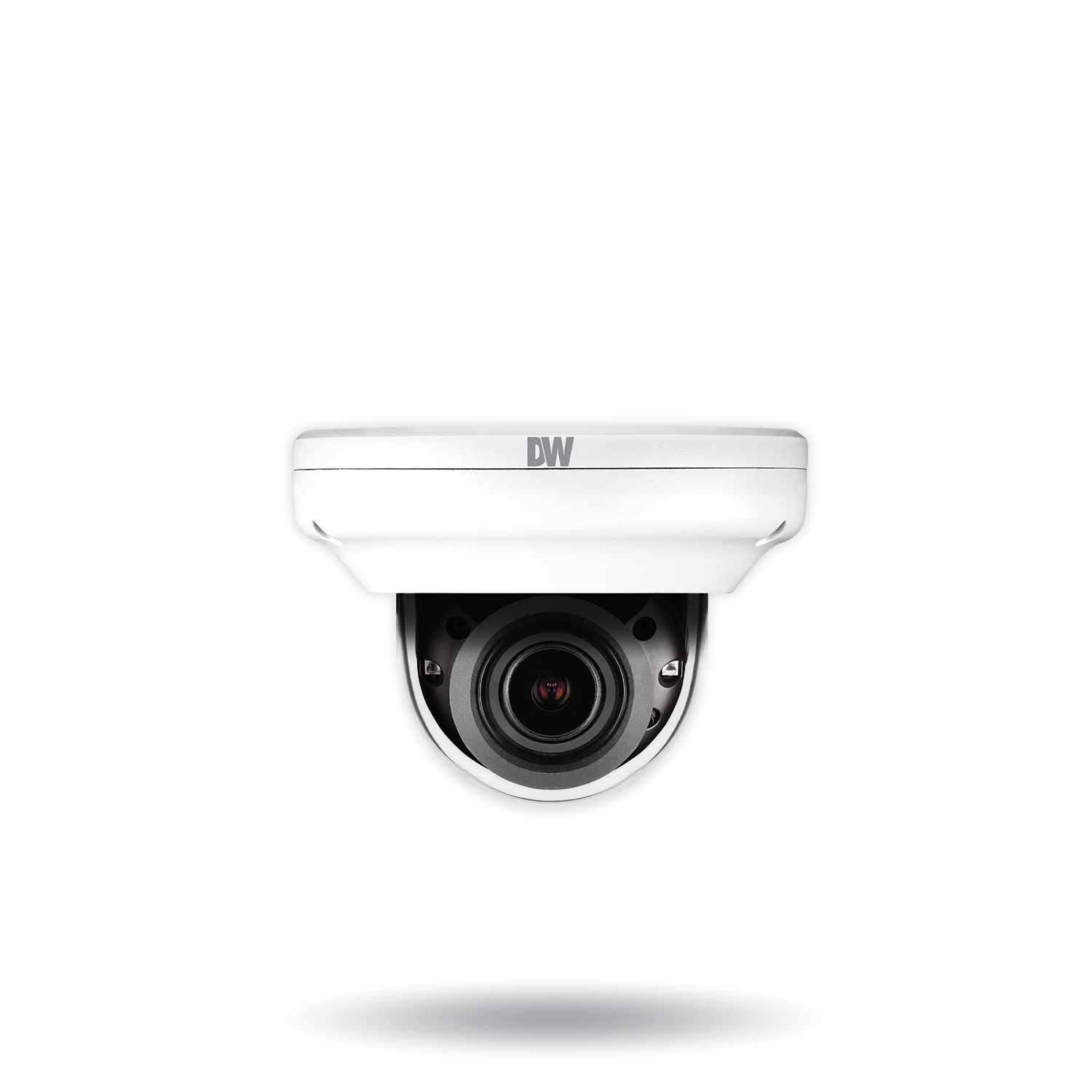

MEGApix IVA™ 4K low-profile vandal dome IP camera with 2.7~13.5mm vari-focal p-iris lens with motorized zoom and auto-focus, color in near-total darkness and IR

IVA integrates seamlessly with DW Spectrum^® IPVMS

MEGApix IVA analytics are seamlessly integrated with DW Spectrum IPVMS for easy configuration, real-time alerts and automatic notifications.
Learn more.

Improved Recording Management

Manage your recording storage smarter by fine-tuning events and alarms that are to be recorded. Combining IVA analytics, logic rules and non-detection zones, users can create specific conditions unique to their environment people and objects must trigger to activate an alarm. Smart management of your available storage.

IVA Analytics

MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced video content analysis detection capabilities.

LEARN MORE

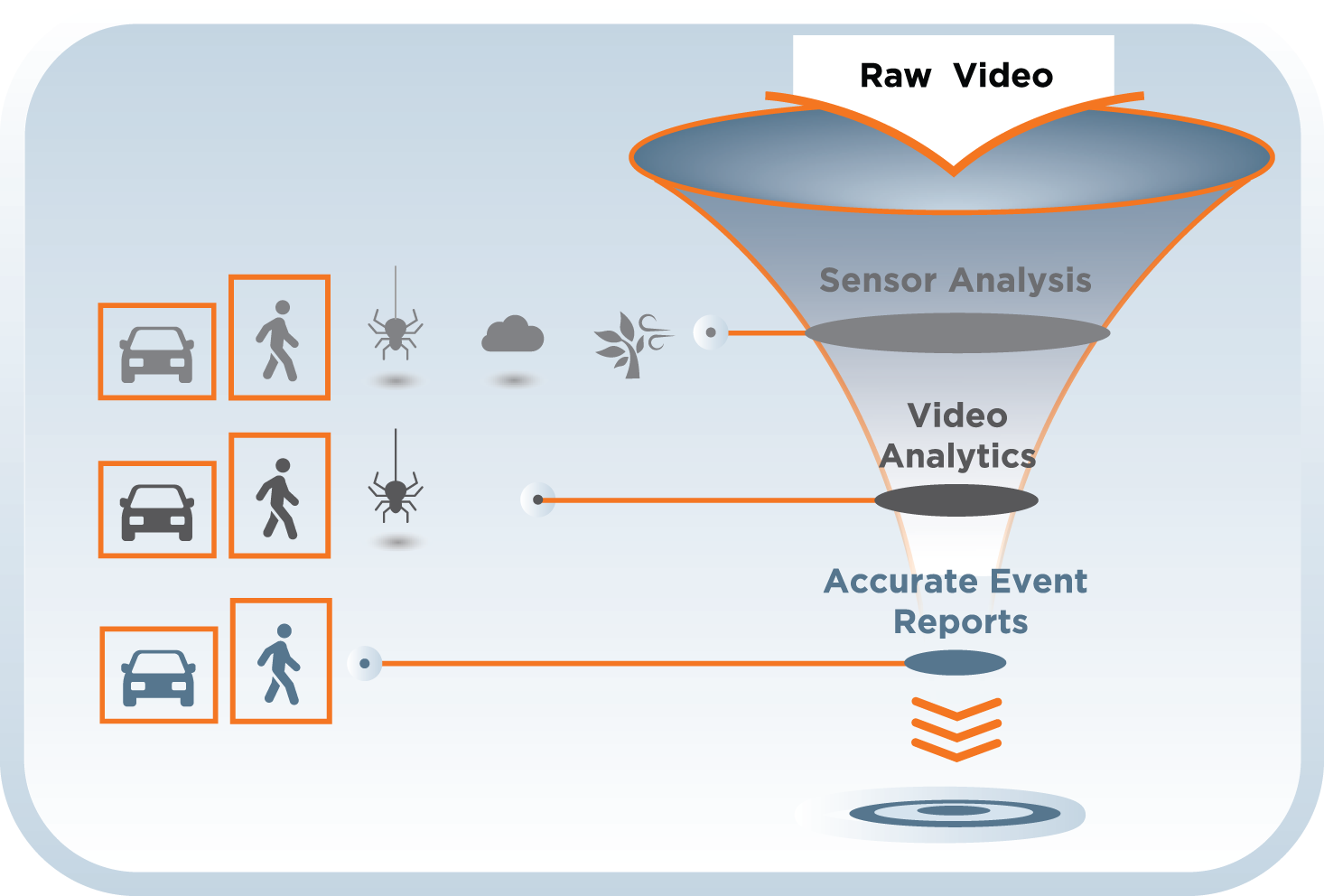

Reduce false alarms

MEGApix IVA’s intelligent algorithms offer better object classification and identify environmental elements. The result is a substantial reduction in false alarms for control room operators and security personnel. By allowing only valid events to filter through MEGApix IVA cameras increase efficiency, productivity and cut unnecessary costs.

Star-Light Plus™ color in darkness technology

Star-Light Plus™ color in near-total darkness technology provides crisp, clear images in the absence of ambient light.

CleanView™ Hydrophobic Dome Coating

The CleanView™ coating improves visibility by reducing water spots, dust and grease build-up on the camera dome housing’s glass. The CleanView™ coating treatment will allow the liquid to roll off of the dome’s glass surfaces when tilted vertically up to 10° or less. The CleanView™ coating leaves the camera dome’s glass clean, repels dust and grease, preventing IR reflections due to dust and smudges.

4K 1/2.8" image sensor at real-time 30fps
Star-Light Plus™ color in near-total darkness technology
Intelligent Video Analytics (IVA pre-loaded models)
Extended Intelligent Video Analytics (IVA+ pre-loaded models)
Seamless integration and control of IVA rules with DW Spectrum® IPVMS
Reduce false alarms
Increase your recording storage with logic rules and smart recording
2.7~13.5mm vari-focal p-iris lens with motorized zoom and auto-focus
True Wide Dynamic Range (WDR)
Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
100' Smart IR™ with intelligent camera sync
CleanView™ hydrophobic dome coating repels water, dust and grease
Smart DNR™ 3D digital noise reduction
True day/night with mechanical IR cut filter
Programmable privacy zones
Auto gain control (AGC)
Backlight compensation (BLC)
Auto white balance (AWB)
Motion detection
Two-way audio
Micro SD/SDHC/SDXC class 10 card slot (card not included)
Alarm sensor input
Relay output
Web server built-in
PoE class 3 and DC12V
ONVIF conformant, profile S
UL listed
NDAA compliant
IP67 dust-tight and waterproof to 3 feet
IK 10-rated impact-resistant
5 year warranty

Image sensor	4K 1/2.8” CMOS
Total pixels	3864(H) x 2228(V)
Active pixels	3840 (H) X 2160 (V)
Minimum scene illumination	0.043 lux (color)
Minimum scene illumination	0.0 lux (B/W)
Test Monitor Video Output	Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio
LENS
Focal length	2.7 ~ 13.5mm, F1.4
Lens type	Vari-focal p-iris lens with motorized-zoom and auto-focus
HFOV / VFOV	33.1°~90.3° / 18.9°~49°
IR distance	100ft range
Optical zoom	x5 optical zoom
I/O
Audio in / out	1 input / 1 output
Audio compression	G.711
Alarm in / out	1 input / 1 output
OPERATIONAL
Intelligent Video Analytics	Intrusion, line crossing, counting line, loitering, enter, exit, tamper, object removed, tailgating, direction, stopped, appear, disappear, object left
Shutter mode	Auto, manual, anti-flicker, slow shutter
Shutter speed	1/15 ~ 1/32,000
Slow shutter	1/2,1/3,1/5,1/6,1/7.5, 1/10
Auto gain control	Auto
Day / night	Auto, day (color), night (B/W)
Smart DNR™ 3D digital noise reduction	3D DNR
Wide dynamic range (WDR)	True WDR (D-WDR) On, Off
Wide dynamic range (WDR) dB	120dB
Privacy zones	16 programmable privacy masks
Mirror and flip	Yes
Alarm notifications	Notifications via e-mail, FTP, alarm output and SD card recording
Memory slot	Micro SD / SDHC / SDXC (card not included)
NETWORK
LAN	RJ45 (10/100Base-T)
Video compression type	H.265, H.264, MJPEG
Resolution	H.265: QFHD, 2.1MP/1080p, 720p, VGA, D1, CIF H.264: QFHD, 2.1MP/1080p, 720p, VGA, D1, CIF MJPEG: 2.1MP/1080p, 720p, 800x600, VGA, 768x432, D1, CIF
Frame rate	Up to 30fps at all resolutions
Video bitrate	H.264 / H.265 : 32Kbps ~ 14Mbps MJPEG : 1Mbps ~ 40Mbps
Bitrate control	H.265 dual-stream or simultaneous H.265 / H.264 / MJPEG
Streaming capability	Dual-stream at different rates and resolutions
IP	IPv4, IPv6
Protocol	TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF
Security	HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW)
ONVIF conformance	Yes
Web viewer	OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® NOTE: Chrome browser is recommended for IVA configuration.
Video management software	DW Spectrum^® IPVMS
ENVIRONMENTAL
Operating temperature	-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity	10–90% RH (non–condensing)
IK rating	IK10 impact-resistant
IP rating	IP67-rated
Other certifications	CE, FCC, RoHS
ELECTRICAL
Power requirement	DC12V, PoE IEEE 802.3af Class 3 (Adapter not included)
Power consumption	DC12V: max 9W PoE: max 11.52W
MECHANICAL
Material	Aluminum vandal housing, polycarbonate dome, CleanView™ dome treatment
Dimensions	4.92" x 3.62" (125 x 92mm)
Weight	1.14 lbs (0.52 kg)
Warranty	5 year warranty

DWC-MVC8WiATW: preloaded with IVA license.
DWC-MPVC8WiATW: preloaded withIVA+ license.

DW Spectrum® IPVMS

LEARN MORE

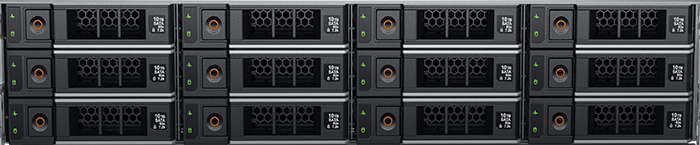

Blackjack® servers

LEARN MORE

C3™ CMS

LEARN MORE

VMAX® IP Plus™ NVRs

LEARN MORE

DWC-VFCMW

Ceiling mount bracket - white

DWC-GPLT-W

Converter plate for electronic gang box - white

DWC-V1CNMW

Corner and pole mount bracket - white

DWC-VFJUNCW

Junction box - white

DWC-WMJUNCW

Junction box for wall mount brackets

DWC-PMB-WLW

Pole mount bracket for bullets and dome cameras

DWC-VFWMW

Wall mount bracket - white
