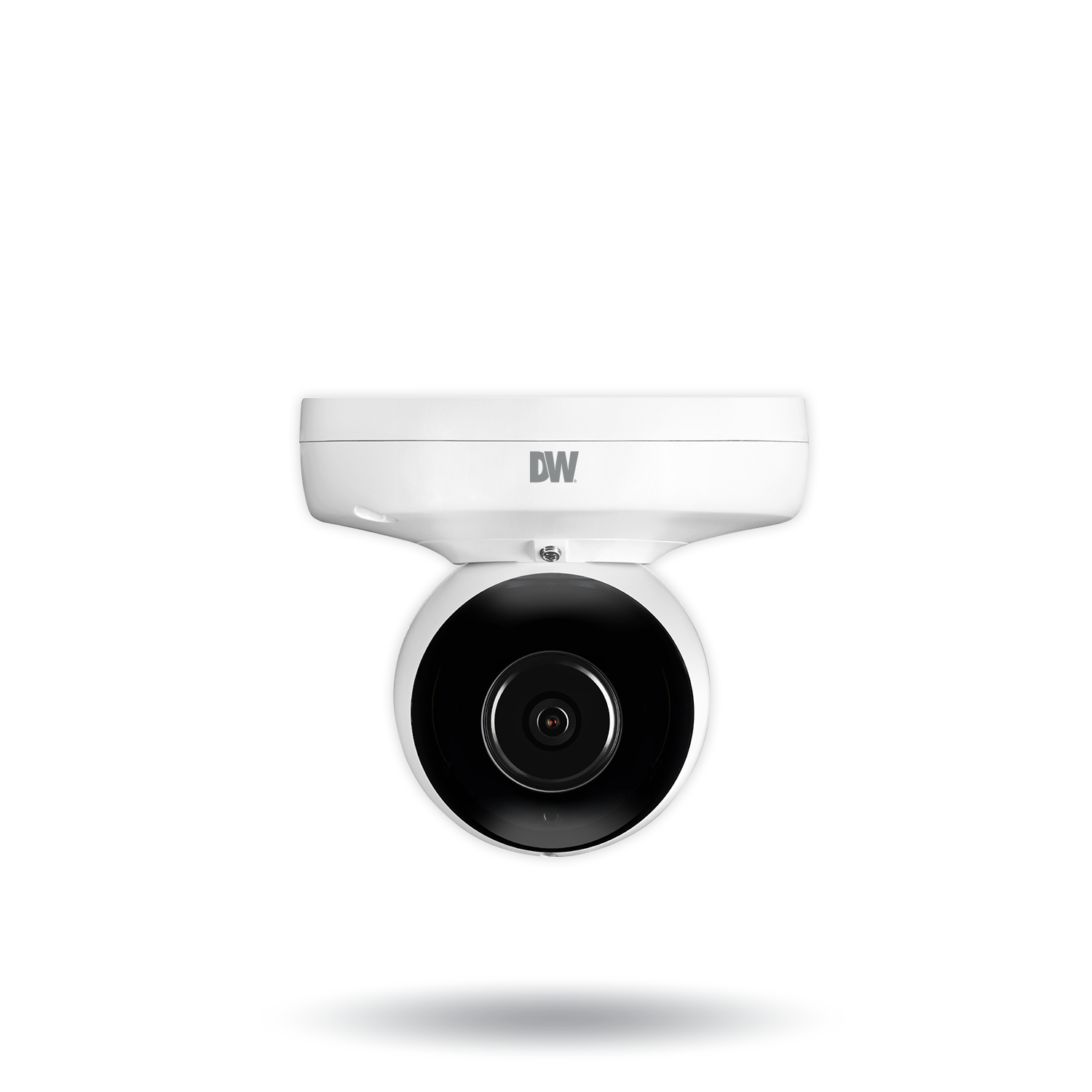

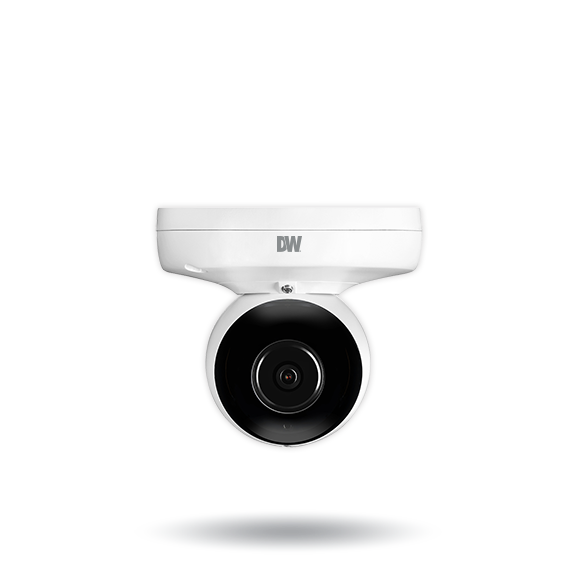

MEGApix IVA™ 4K Galaxy™ vandal ball IP camera with 2.8mm fixed lens, color in near-total darkness and IR

Share this Product!

4K color in near-total darkness Galaxy™ vandal ball IP camera with IVA

Model: DWC-MVD8Wi28TW, DWC-MPVD8Wi28TW

Find a Reseller | Request a Demo | Contact Us

This MEGApix^® IVA™ Galaxy IP camera is your gateway to powerful video analytics features. It is NDAA compliant and provides 4K resolution at real-time 30fps. The MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced Video Content Analysis detection capabilities. This camera features Star-Light Plus™ color in near-total darkness technology for quality video in any lighting condition, simultaneous H.265/H.264/MJPEG codec support and a 2.8mm fixed lens. The Galaxy weather-resistant vandal ball cameras are IP66-rated, eliminate IR reflections, offer easy angle adjustment for optimal image quality and easy access to the camera's control board from the base of the camera. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.

Galaxy™ vandal ball cameras

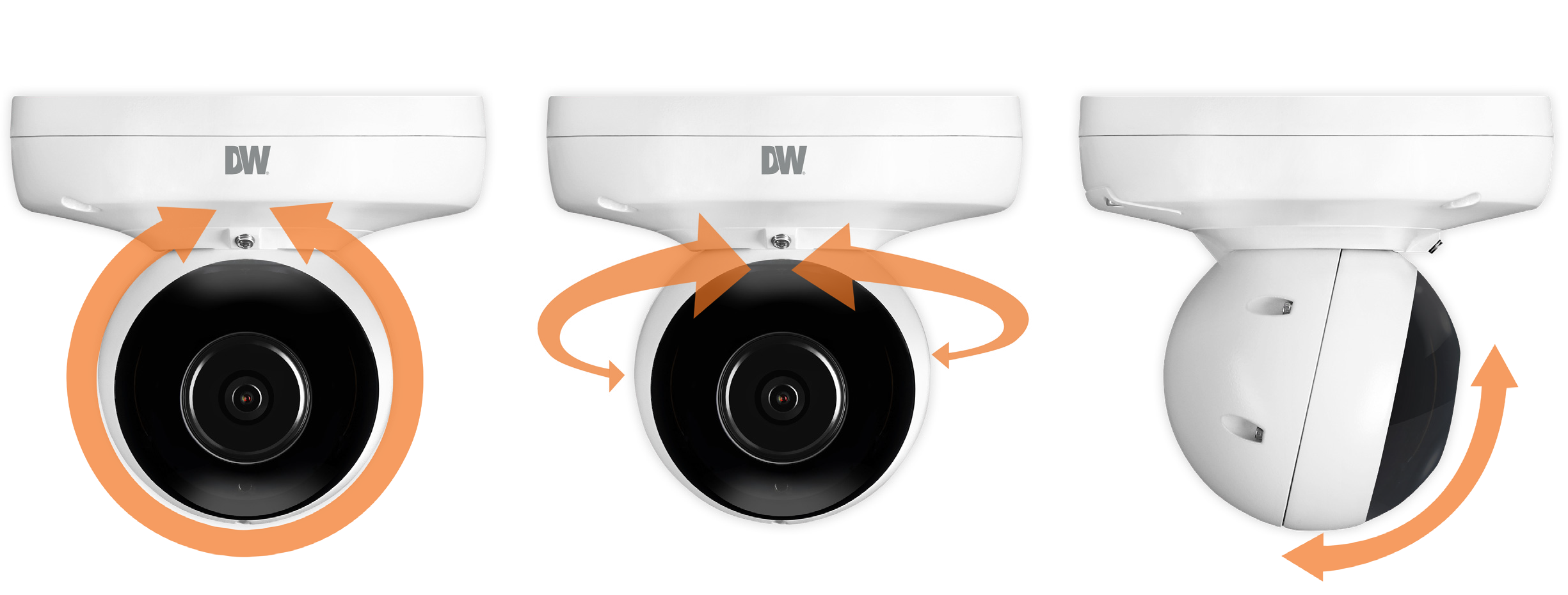

The unique Galaxy housing offers 80° tilting, 300° rotation and 140° panning, with no need to disassemble the dome cover.

Bubble-free dome

The camera’s bubble-free housing minimizes IR reflections caused by cobwebs, rain, dust, or sand.

External OSD Control

The camera’s control panel, reset button, local video output and micro SD card slot are accessible from outside the camera’s housing, making maintenance and configuration simple and hassle-free.

IVA integrates seamlessly with DW Spectrum^® IPVMS

MEGApix IVA analytics are seamlessly integrated with DW Spectrum IPVMS for easy configuration, real-time alerts and automatic notifications.
Learn more.

Improved Recording Management

Manage your recording storage smarter by fine-tuning events and alarms that are to be recorded. Combining IVA analytics, logic rules and non-detection zones, users can create specific conditions unique to their environment people and objects must trigger to activate an alarm. Smart management of your available storage.

IVA Analytics

MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced video content analysis detection capabilities.

LEARN MORE

Reduce false alarms

MEGApix IVA’s intelligent algorithms offer better object classification and identify environmental elements. The result is a substantial reduction in false alarms for control room operators and security personnel. By allowing only valid events to filter through MEGApix IVA cameras increase efficiency, productivity and cut unnecessary costs.

Star-Light Plus™ color in darkness technology

Star-Light Plus™ color in near-total darkness technology provides crisp, clear images in the absence of ambient light.

4K 1/2.8" image sensor at real-time 30fps
Star-Light Plus™ color in near-total darkness technology
Intelligent Video Analytics (IVA pre-loaded models)
Extended Intelligent Video Analytics (IVA+ pre-loaded models)
Seamless integration and control of IVA rules with DW Spectrum® IPVMS
Reduce false alarms
Increase your recording storage with logic rules and smart recording
2.8mm fixed lens
True Wide Dynamic Range (WDR)
Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
100' Smart IR™ with intelligent camera sync
Galaxy™ vandal ball camera
Smart DNR™ 3D digital noise reduction
True day/night with mechanical IR cut filter
Programmable privacy zones
Auto gain control (AGC)
Backlight compensation (BLC)
Auto white balance (AWB)
Motion detection
Two-way audio
Micro SD/SDHC/SDXC class 10 card slot (card not included)
Alarm sensor input
Relay output
Web server built-in
PoE class 3 and DC12V
ONVIF conformant, profile S
UL listed
NDAA compliant
IP66 environmental-rated dust-tight and water-resistant
IK 9-rated impact-resistant
5 year warranty

Image sensor	4K 1/2.8” CMOS
Total pixels	3864(H) x 2228(V)
Active pixels	3840 (H) X 2160 (V)
Minimum scene illumination	0.12 lux (color)
Minimum scene illumination	0.0 lux (B/W)
S/N ratio	50dB
Test Monitor Video Output	Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio
LENS
Focal length	2.8mm, F2.0
Lens type	Fixed lens
HFoV / VFoV	105.5° / 56.3°
IR distance	100ft range
I/O
Audio in / out	1 input / 1 output
Audio compression	G.711
Alarm in / out	1 input / 1 output
OPERATIONAL
Intelligent Video Analytics	IVA license: intrusion, line crossing, counting line, loitering, enter, exit, tamper
Intelligent Video Analytics	IVA+ license: object removed, tailgating, direction, stopped, appear, disappear, object left
Shutter mode	Auto, manual, anti-flicker, slow shutter
Shutter speed	1/15 ~ 1/32,000
Slow shutter	1/2,1/3,1/5,1/6,1/7.5, 1/10
Auto gain control	Auto
Day / night	Auto, day (color), night (B/W)
Smart DNR™ 3D digital noise reduction	3D DNR
Wide dynamic range (WDR)	True WDR (D-WDR) On, Off
Wide dynamic range (WDR) dB	120dB
Privacy zones	16 programmable privacy masks
Mirror and flip	Yes
Alarm notifications	Notifications via e-mail, FTP and alarm output
NETWORK
LAN	RJ45 (10/100Base-T)
Video compression type	H.265, H.264, MJPEG
Resolution	H.265: QFHD, 2.1MP/1080p, 720p, VGA, D1, CIF H.264: QFHD, 2.1MP/1080p, 720p, VGA, D1, CIF MJPEG: 2.1MP/1080p, 720p, 800x600, VGA, 768x432, D1, CIF
Frame rate	Up to 30fps at all resolutions
Video bitrate	100Kbps ~ 10Mbps, multi-rate for preview and recording
Bitrate control	Multi-streaming CBR/VBR at H.265 (controllable frame rate and bandwidth)
Streaming capability	Dual-stream at different rates and resolutions
IP	IPv4
Protocol	TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB-2), ONVIF
Security	HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW)
ONVIF conformance	Yes
Web viewer	OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® NOTE: Chrome browser is recommended for IVA configuration.
Video management software	DW Spectrum^® IPVMS
ENVIRONMENTAL
Operating temperature	-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity	10–90% RH (non–condensing)
IK rating	IK9 impact resistant
IP rating	IP66-rated
Other certifications	CE, FCC, RoHS
ELECTRICAL
Power requirement	DC12V, PoE IEEE 802.3af Class 3 (Adapter not included)
Power consumption	DC12V: 9.8W PoE: 13.9W
MECHANICAL
Material	Aluminum vandal ball housing
Dimensions	4.92" x 4.4" (125 x 112mm)
Weight	1.87 lbs (0.85kg)
Warranty	5 year warranty

DWC-MVD8Wi28TW: preloaded with IVA license.
DWC-MPVD8Wi28TW: preloaded withIVA+ license.
