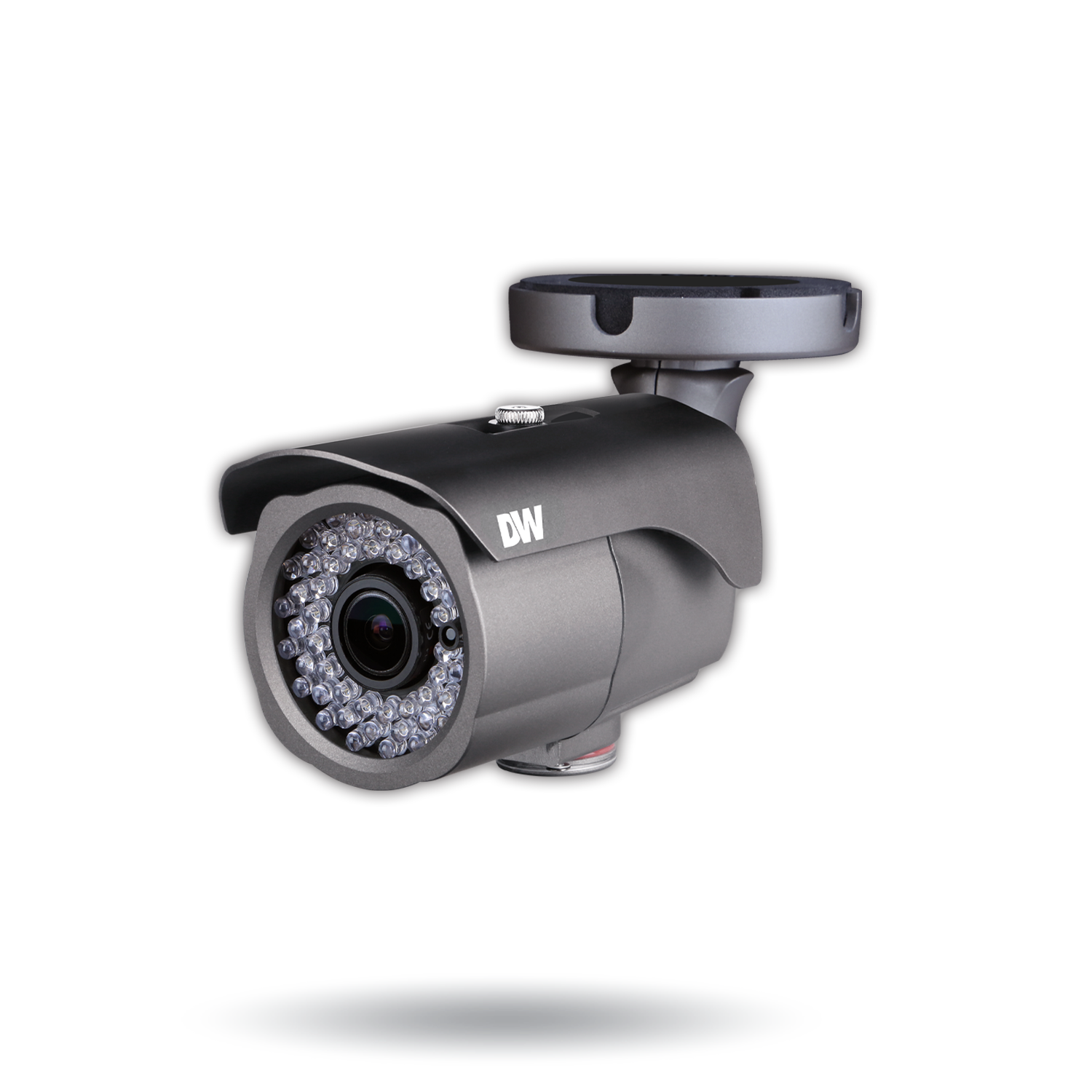

MEGApix® 5MP bullet camera with 3.6~10mm vari-focal p-iris lens with motorized zoom and auto-focus and IR

Share this Product!

5MP bullet camera with 3.6~10mm vari-focal p-iris lens with motorized zoom and auto-focus and IR

Model: DWC-MB45DiA

Find a Reseller | Request a Demo | Contact Us

DISCONTINUED

These MEGApix® IP cameras deliver crystal-clear images at 5 Megapixel resolution at real-time 30fps. Features include Smart IR™, Smart DNR™ and WDR for quality video in challenging lighting environments. The weather-resistant housing is easy to install and will Cold Start at -40º F/-40º C.

Cold Start -40°F (-40°C)

The installed heater helps the camera power up in extreme cold weather conditions where temperatures may go as low as -40°F. This makes the cameras ideal for any harsh environment installation.

5MP 1/1.8" Image Sensor at Real-time 30fps
3.6~10mm Motorized Zoom Auto-Focus P-Iris Lens
Digital Wide Dynamic Range (D-WDR)
Triple Codecs (H.265, H.264, MJPEG) with Simultaneous Dual-Stream
Cold Start -40°F (-40°C)
120' Smart IR™ with Intelligent Camera Sync.
Smart DNR™ 3D Digital Noise Reduction
True Day/Night Mechanical IR Cut Filter
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Auto White Balance (AWB)
Motion Detection
Two-Way Audio
Micro SD/SDHC Class 10 Card Slot for Event and Continuous Recording(Card Not Included)
Alarm Sensor Input
Relay Output
Web Server Built-in
PoE Class 3 and DC12V
ONVIF Conformant, Profile S
NDAA compliant
IP66 Weather and Tampering Resistant
5 Year Warranty

Image sensor	5MP 1/1.8” CMOS
Total pixels	2592 (H) × 1944 (V)
Minimum scene illumination	0.14 lux (color)
Minimum scene illumination	0.0 lux (B&W)
LENS
Focal length	3.6-10mm, F1.5
Lens type	Motorized-zoom auto-focus p-iris lens
Field of view (FoV)	86° ~ 35°
IR distance	120ft range
Optical zoom	x2.7 optical zoom
I/O
Audio in / out	1 input / 1 output
Audio compression	G.711
Alarm in / out	1 input / 1 output
OPERATIONAL
Shutter mode	Auto, manual, anti-flicker
Shutter speed	1/30 ~ 1/60,000
Auto gain control	Auto
Day / night	Auto, day (color), night (B/W)
Smart DNR™ 3D digital noise reduction	0~11
Wide dynamic range (WDR)	Digital WDR (D-WDR) On, Off
Alarm notifications	Notifications via SD card recording
Memory slot	Micro SD / SDHC. (card not included)
NETWORK
LAN	802.3 compliance 10/100 LAN
Video compression type	H.265, H.264, MJPEG
Resolution	2592x1944 / 2592x1520/ 2048x1536 / 1080p / 720p / 1024x576 / 640x360/ D1 / 4CIF / VGA / CIF / QVGA / QCIF
Frame rate	Up to 30fps at all resolutions
Video bitrate	H.264 / H.265 : 32Kbps ~ 14Mbps MJPEG : 1Mbps ~ 40Mbps
Bitrate control	H.265 dual-stream or simultaneous H.265 / H.264 / MJPEG
Streaming capability	Dual-stream at different rates and resolutions
IP	IPv4, IPv6
Protocol	TCP, UDP, IP, HTTP, DHCP, DNS, ICMP, ARP, DDNS, NTP, SNMP, Syslog, UPnP, Bonjure, ZeroConf, RTP/RTSP, Onvif, Genetec protocol
Security	Password authentication, multi-level user configuration
ONVIF conformance	Yes
Web viewer	OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®
Video management software	DW Spectrum® IPVMS
ENVIRONMENTAL
Operating temperature	-40°F ~ 122°F (-40°C ~ 50°C)
Operating humidity	10–90% RH (non–condensing)
IP rating	IP66 certified weather and tamper resistant
Other certifications	CE, FCC, RoHS
ELECTRICAL
Power requirement	DC12V, POE IEEE 802.3af class 3 (adaptor not Included)
Power consumption	LED On : 9.4W LED Off : 5.1W, 425mA
MECHANICAL
Material	Aluminum bullet housing
Dimensions	8.77" x 3.07" (223 x 78mm)
Weight	3.96 lbs (1.8kg)
