MEGApix® 5MP License Plate Recognition (LPR) bullet camera with 6~50mm vari-focal p-iris lens with motorized zoom and auto-focus and IR

Share this Product!

License Plate Recognition (LPR) bullet camera with 6~50mm vari-focal p-iris lens with motorized zoom and auto-focus and IR

Model: DWC-MB45iALPRT

Find a Reseller | Request a Demo | Contact Us

These MEGApix^® IP cameras deliver crystal-clear images at 5MP resolution and real-time 30fps with a 6-50mm long range vari-focal auto-focus lens and motorized zoom. The cameras are engineered to capture license plates of moving vehicles in extreme light conditions, from ranges of up to 60’ at up to 50mph. They deliver simultaneous H.265/H.264/MJPEG codec support. The IP66 weather-resistant housing and Cold Start at -40° F/-40° C assure that license plates are captured clearly and visibly no matter the lighting conditions or weather challenges.

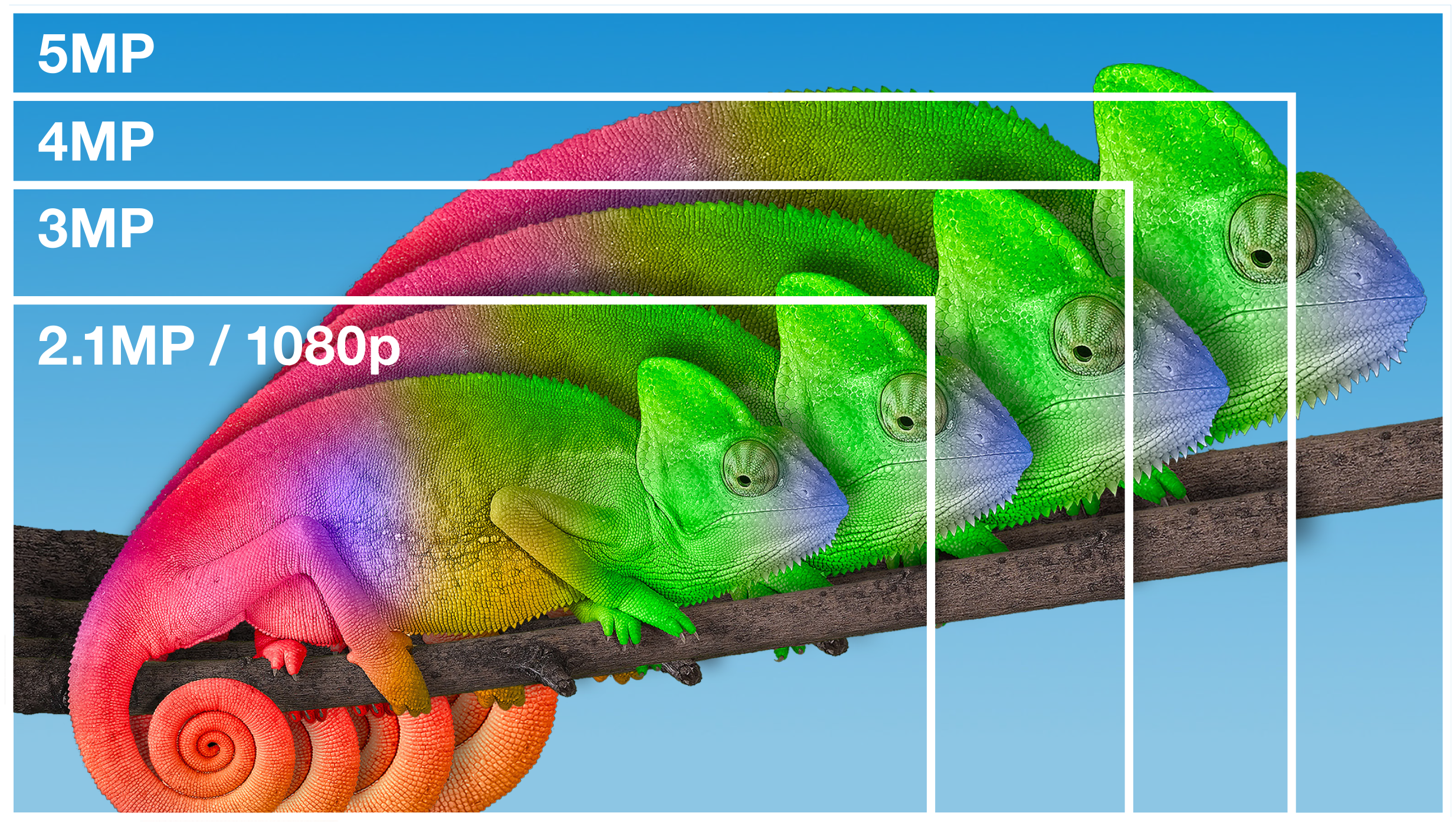

Megapixel resolution

DW’s technology delivers crystal clear images in any resolution. Higher-resolution offers forensic details with zooming into the camera’s field of view.

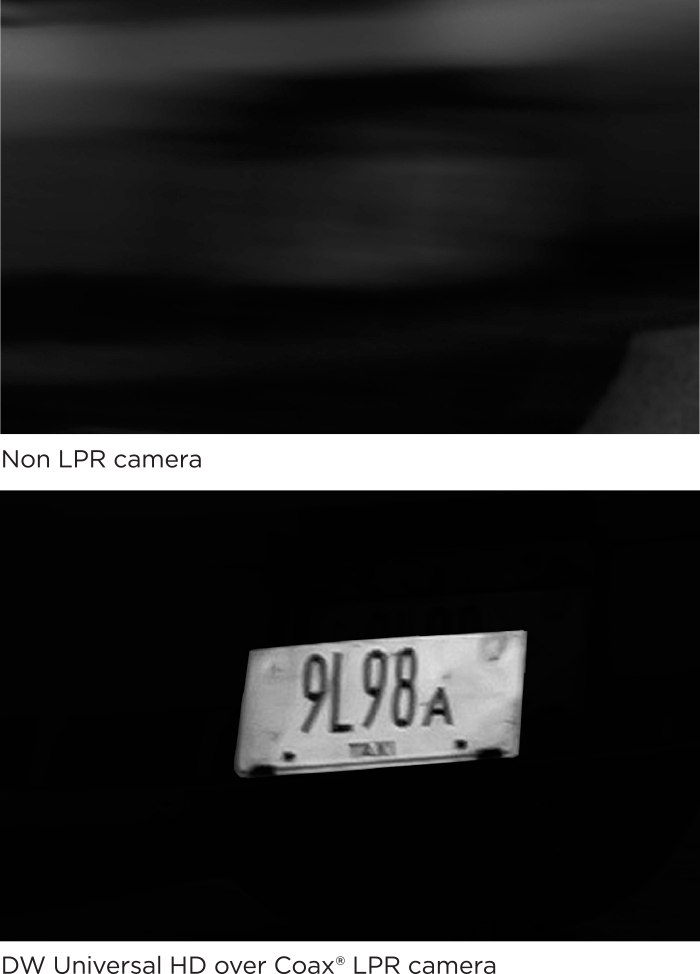

License Plate Recognition (LPR) Camera

Capture license plates in moving vehicles at up to 50mph in extremely low light visibility.

Cold Start -40°F (-40°C)

The installed heater helps the camera power up in extreme cold weather conditions where temperatures may go as low as -40°F. This makes the cameras ideal for any harsh environment installation.

5MP 1/2.8" image sensor at real-time 30fps
License plate recognition technology captures reflective license plates up to 50mph with up to 60’ capture range
Reliable performance under any lighting conditions
6~50mm vari-focal p-iris lens with motorized zoom and auto-focus
Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
Cold start -40°F (-40°C)
80' Smart IR™ with intelligent camera sync
Programmable privacy zones
Auto gain control (AGC)
Auto white balance (AWB)
Motion detection
Two-way audio
Micro SD/SDHC/SDXC class 10 card slot (card not included)
Alarm sensor input
Relay output
Web server built-in
PoE class 3 and DC12V
UL listed
ONVIF conformant, profile S
NDAA compliant
IP66 environmental-rated dust-tight and water-resistant
IK 9-rated impact-resistant
5 year warranty

Image sensor	5MP 1/2.8” CMOS
Total pixels	2592 (H) × 1944 (V)
Minimum scene illumination	0 lux (B/W)
Test Monitor Video Output	Local video output CVBS 1.0V p-p (75?), 4:3 aspect ratio
LENS
Focal length	6 ~ 50mm, F1.6
Lens type	Vari-focal p-iris lens with motorized-zoom and auto-focus
Field of view (FoV)	6.9° ~ 40.8°
IR distance	80ft range
Optical zoom	x8 optical zoom
I/O
Audio in / out	1 input / 1 output
Audio compression	G.711
Alarm in / out	1 input / 1 output
OPERATIONAL
Image capture range	Up to 60’ and 50 MPH
Shutter mode	Auto, manual, anti-flicker, slow shutter
Shutter speed	1/15 ~ 1/32,000
Slow shutter	off, x2, x3, x5, x6, x7.5, x10
Auto gain control	Auto
Day / night	B/W mode only
Privacy zones	16 programmable privacy masks
Alarm notifications	Notifications via e-mail, FTP, alarm output activation and SD card recording
Memory slot	Micro SD / SDHC / SDXC (card not included)
NETWORK
LAN	RJ45 (10/100Base-T)
Video compression type	H.265, H.264, MJPEG
Resolution	H.265: 2592x1944, 2304x1296, 2.1MP/1080p, 720p, VGA, D1, CIF H.264: 2592x1944, 2304x1296, 2.1MP/1080p, 720p, VGA, D1, CIF MJPEG: 2.1MP/1080p, 720p, 800x600, VGA, 768x432, D1, CIF
Frame rate	Up to 30fps at all resolutions
Video bitrate	100Kbps ~ 10Mbps, multi-rate for preview and recording
Bitrate control	Multi Streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
Streaming capability	Dual-stream at different rates and resolutions
IP	IPv4, IPv6
Protocol	TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF
Security	HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW)
ONVIF conformance	Yes
Web viewer	OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®
Video management software	DW Spectrum® IPVMS
ENVIRONMENTAL
Operating temperature	-40°F ~ 122°F (-40°C ~ 50°C)
Operating humidity	10–90% RH (non–condensing)
IP rating	IP66 certified
IK rating	IK9 impact-resistant
Other certifications	CE, FCC, RoHS
ELECTRICAL
Power requirement	DC12V, POE IEEE 802.3af class 3 (adaptor not Included)
Power consumption	DC12V: max 9W PoE: max 10.5W
MECHANICAL
Material	Aluminum bullet housing
Dimensions	9.73” x 3.8” (247.2 x 96.7mm) *Dimensions based on the position of the sun shield cover
Weight	1.98 lbs (0.9kg)
Warranty	5 year warranty
