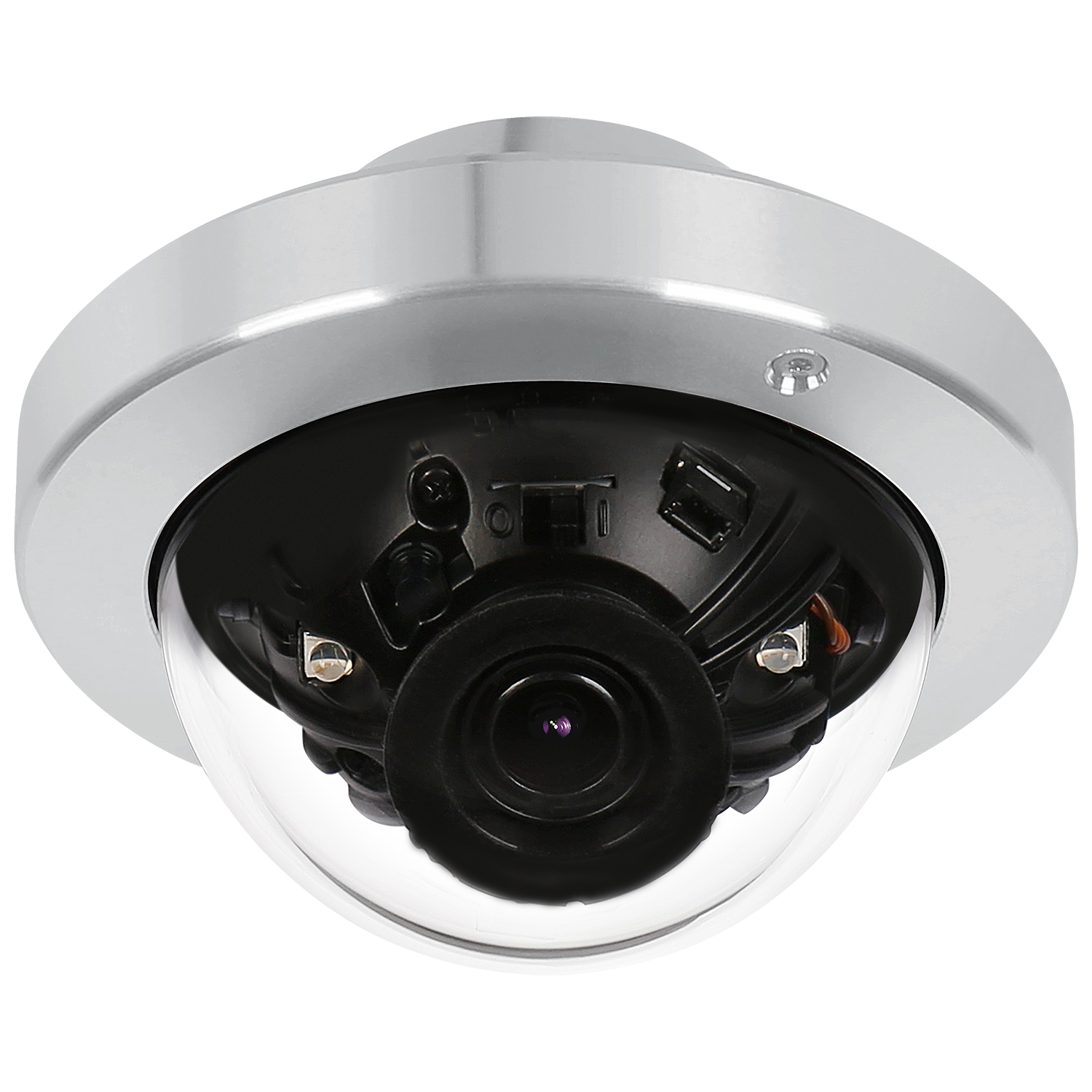

STAR-LIGHT AHD™ 2.1MP/1080p Micro Dome Camera with 3.6mm Lens

Share this Product!

2.1MP/1080p Micro Dome Camera with 3.6mm Lens

Model: DWC-MC753WTIR

Find a Reseller | Request a Demo | Contact Us

DISCONTINUED

Groundbreaking STAR-LIGHT AHD™ High Definition Cameras use existing coaxial cables to transmit crystal-clear detailed 1080p images. The cameras offer 2.1MP resolution along with powerful features such as P-Iris Lens, Double Shutter Wide Dynamic Range (WDR) and True Day/Night with Mechanical IR Cut Filter. The STAR-LIGHT AHD cameras are engineered to work with VMAX AHD DVRs, offering an easy upgrade from analog to high definition surveillance using existing infrastructure for a cost-effective, high resolution surveillance solution.

Important Note: The camera requires a DVR that supports HD over Coax protocols, like the VMAX A1.

Analog High Definition (AHD)

AHD Technology delivers clear HD video
at 1920 x 1080 Resolution.

Analog High Definition (AHD) HD over Coax Technology
STAR-LIGHT™ Super Low Light Technology
Panasonic 1/3" CMOS Sensor
1080p Resolution at 30fps
Wide Dynamic Range (WDR)
Fixed Lens 3.6mm
Smart IR™ with Intelligent Camera Sync. 100~150ft Range
Smart DNR™ 3D Digital Noise Reduction
Highlight Masking Exposure (HME)
True Day/Night with Mechanical IR Cut Filter
Secondary Video-BNC Output
Easy Icon Driven OSD Menu with Built-in Joystick
Programmable Privacy Zones
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Dynamic Range Compressor (DRC) Reveals Low Light Detail
Auto White Balance (AWB)
IP66 Certified (Weather Resistant)
5 Year Warranty

Image Sensor		Panasonic 1/3" CMOS
Active Pixels		1944 (H) x 1092 (V)
Scanning System		Progressive Scan
Frequency		60Hz / 50Hz
Signal Technology		2.0 Megapixel AHD
Synchronization		Internal
Resolution		1920x1080 (1080p)
Minimum Scene Illumination		F2.0 (30IRE): 0.7Lux [Color] F2.0 (30IRE): 0 Lux [B&W]
S/N Ratio		55dB
Video Output		AHD 1080p30fps / 720p60fps / 720p30fps
LENS
Focal Length		3.6mm
Lens Type		Fixed Lens
IR Distance		50ft
OPERATIONAL
Shutter Speed		1/30(25) – 1/30,000
Backlight		Off / On
STAR-LIGHT (Sense-up)		Off, x2 – x32
Wide Dynamic Range (WDR)		Off / On
Digital Noise Reduction		Off, Low, Middle, High
White Balance		Auto / Auto-Ex / Preset / Manual
Day and Night		Day / Night / Auto
Mirror / Flip		Yes
Auto Gain Control		Max 60dB
Motion Detection		Yes
Privacy Zones		16 Privacy Zones
Sharpness		0 ~ 10
Gamma		0.45 ~ 0.75
Digital Zoom		x1.0 ~ x16.0
ENVIRONMENTAL
Operating Temperature		-20°C ~ 50°C (-4°F ~ 122°F)
Operating Humidity		Less than 90% (Non-Condensing)
IP Rating		IP66 (Weather Resistant)
Other Certifications		FCC, CE, ROHS
ELECTRICAL
Power Requirements		DC12V
Power Consumption		LED Off: 2.15W, 179mA, LED On: 3.64W, 3.3mA
MECHANICAL
Material		Aluminum
Dimensions		80 x 58.5 mm (3.15 x 2.31 inch)
Weight		181.4 g (0.4 lbs)
