Home Products MEGApix® 2.1MP/1080p indoor dome IP camera with 2.8mm fixed lens and IR

Share this Product!

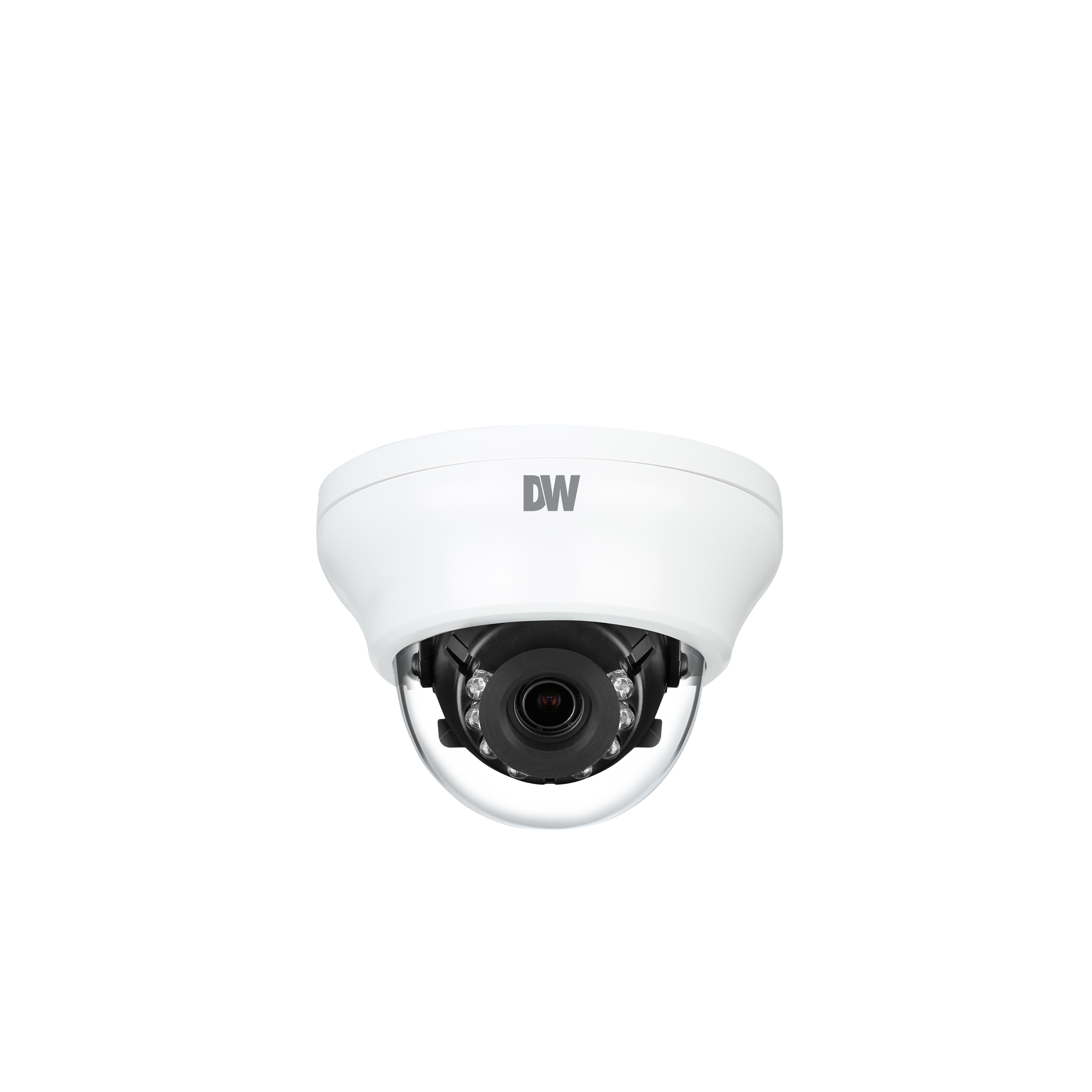

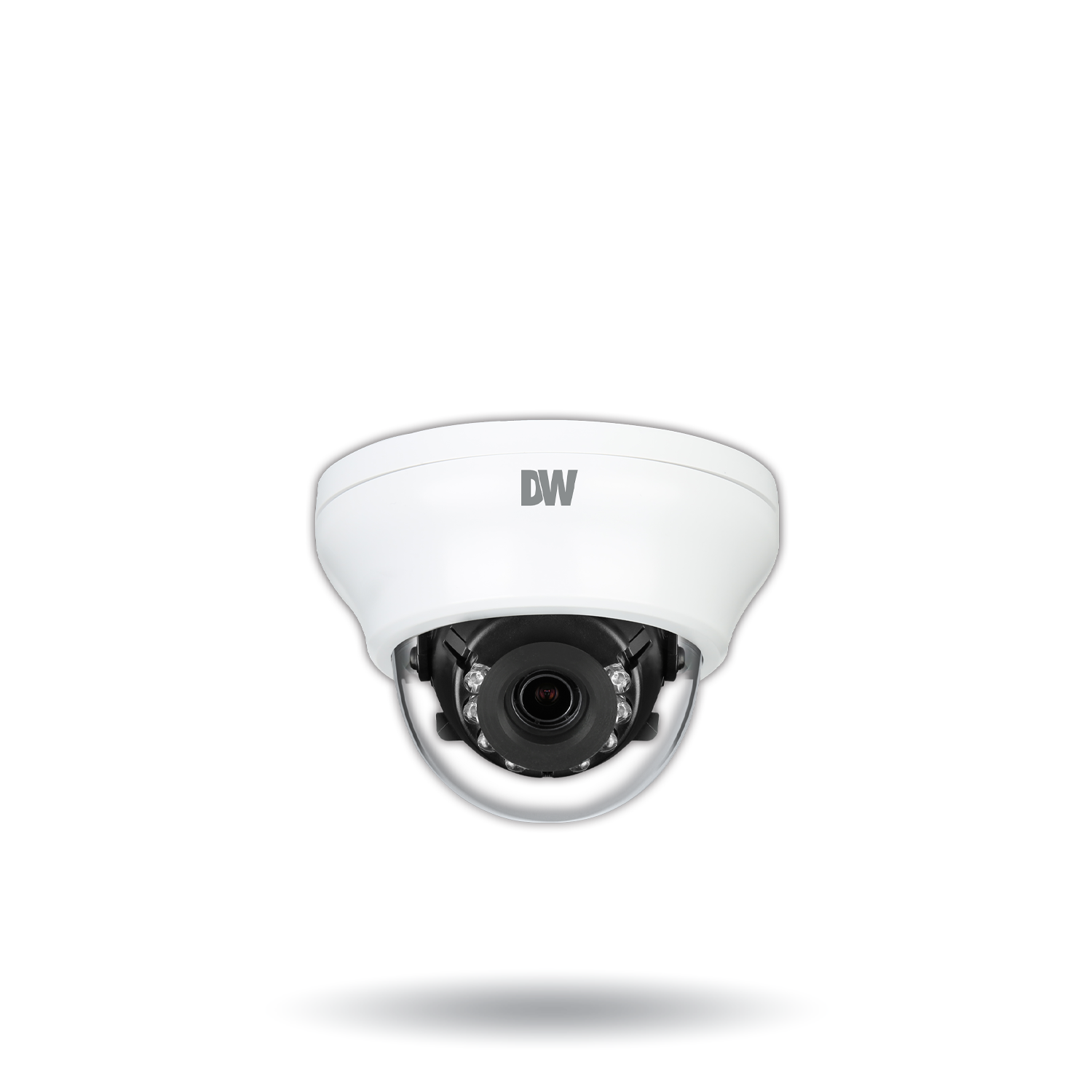

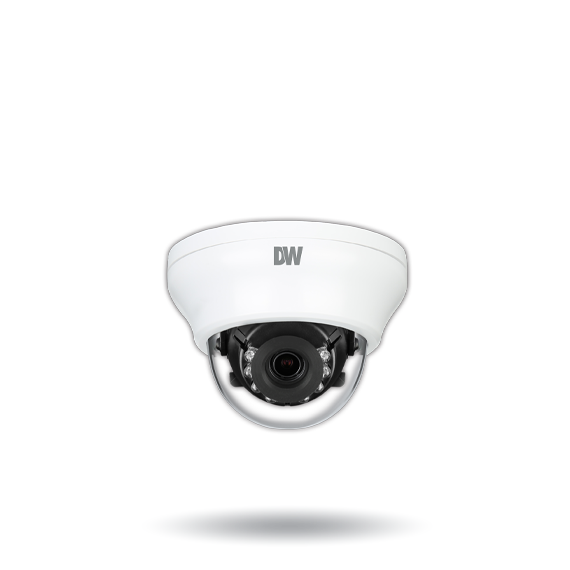

Indoor dome IP camera with 2.8mm fixed lens and IR
Model: DWC-MD72Di28T
Find a Reseller | Request a Demo | Contact Us

This MEGApix® IP camera provides 2.1MP/1080p resolution at real-time 30fps. The indoor dome camera includes a 2.8mm fixed lens and simultaneous H.265/H.264/MJPEG codec support and brings the capabilities of a robust camera in a small and discrete housing. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.

NDAA
  • DWC-MD72Di28T

Megapixel resolution
DW’s technology delivers crystal clear images in any resolution. Higher-resolution offers forensic details with zooming into the camera’s field of view.
Smart IR™
Smart IR™ adjusts the image for IR cameras to prevent excessive illumination on objects that are in the front of the scene and offers a clear image in B/W without any loss of detail.
Smart 3D DNR™ (digital noise reduction)
Use DW’s exclusive noise reduction technology to produce clearer color and monochromatic video in low light without adding visual lag or ghost effects.
  • 2.1MP/1080p 1/2.9" image sensor at real-time 30fps
  • 2.8mm fixed lens
  • Digital Wide Dynamic Range (D-WDR)
  • Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
  • 50' Smart IR™ with intelligent camera sync
  • Smart DNR™ 3D digital noise reduction
  • True day/night mechanical IR cut filter
  • Programmable privacy zones
  • Auto gain control (AGC)
  • Backlight compensation (BLC)
  • Auto white balance (AWB)
  • Motion detection
  • Web server built-in
  • PoE class 2 and DC12V
  • Waterproof cabling
  • UL listed
  • ONVIF conformant, profile S
  • NDAA compliant
  • 5 year warranty

Image sensor
2.1MP/1080p 1/2.9” CMOS
Total pixels
2001 (H) × 1121 (V)
Minimum scene illumination
0.25 lux (color)
0.0 lux (B/W)

LENS
Focal length
2.8mm, F2.0
Lens type
Fixed lens
Field of view (FoV)
109°
IR distance
50ft range

OPERATIONAL
Shutter mode
Auto, manual, anti-flicker, slow shutter
Shutter speed
1/30 ~ 1/32,000
Slow shutter 2x, 3x, 5x, 6x, 7.5x, 10x
Auto gain control
Auto
Day / night
Auto, day (color), night (B/W)
Smart DNR™ 3D digital noise reduction
3D DNR
Wide dynamic range (WDR)
D-WDR On, Off
Backlight compensation (BLC) Yes
Privacy zones 16 programmable privacy masks
Mirror and flip Yes
Alarm notifications
Notifications via e-mail and FTP server recording

NETWORK
LAN
RJ45 (10/100Base-T)
Video compression type
H.265, H.264, MJPEG
Resolution
H.265: 2.1MP/1080p, 720p(main), CIF(sub)
H.264: 2.1MP/1080p, 720p(main), CIF(sub)
MJPEG: CIF
Frame rate
Up to 30fps at all resolutions
Video bitrate
100Kbps ~ 10Mbps, multi-rate for preview and recording
Bitrate control
Multistreaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
Streaming capability
Dual-stream at different rates and resolutions
IP
IPv4, IPv6
Protocol
TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB-2), ONVIF
Security
HTTPS(TLS), IP filtering, 802.1x,
digest authentication (ID/PW)
ONVIF conformance
Yes
Web viewer
OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®
Video management software
DW Spectrum® IPVMS

ENVIRONMENTAL
Operating temperature
-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity
10–90% RH (non–condensing)
Other certifications
CE, FCC, RoHS

ELECTRICAL
Power requirement
DC12V, POE IEEE 802.3af class 2 (adaptor not Included)
Power consumption
DC12V: max 3.8W
PoE: max 5.5W

MECHANICAL
Material
Plastic housing, polycarbonate dome
Dimensions
 4.13" x 2.93" (105 x 74.6mm)
Weight
0.66 lbs (0.3kg)
Warranty 5 year warranty
DW Spectrum® IPVMS
LEARN MORE
Blackjack® Servers
LEARN MORE
C3™ CMS
LEARN MORE
VMAX® IP Plus™ NVRs
LEARN MORE
DWC-D1WMW
Wall mount bracket - white
Title Type Size Download
Camera part numbering system pdf 0.03 MB
DW Accessories Chart xlsx 0.05 MB
DWC-MD72Di28T AE specifications docx 0.07 MB
DWC-MD72Di28T CAD drawing dwg 0.15 MB
DWC-MD72Di28T datasheet pdf 0.64 MB
DWC-MD72Di28T datasheet - French pdf 0.37 MB
DWC-MD72Di28T datasheet - Spanish pdf 0.36 MB
DWC-MD72Di28T quick setup guide pdf 1.58 MB
DWC-MD72Di28T UL certificate pdf 3.46 MB
DWC-MD72Di28T user manual pdf 6.64 MB
MEGApix Single-Sensor Brochure pdf 3.29 MB
Title Type Release Notes Version Compatibility Size Download
2.1MP firmware vA8.2.1_20220502 img vA8.2.1_20220502 2.1MP H.265 IP Cameras 50.09 MB
DW IP Finder v4.4.14 for Linux OS run - v4.4.14 47.86 MB
DW IP Finder v4.4.14 for Windows OS exe - v4.4.14 17.64 MB
