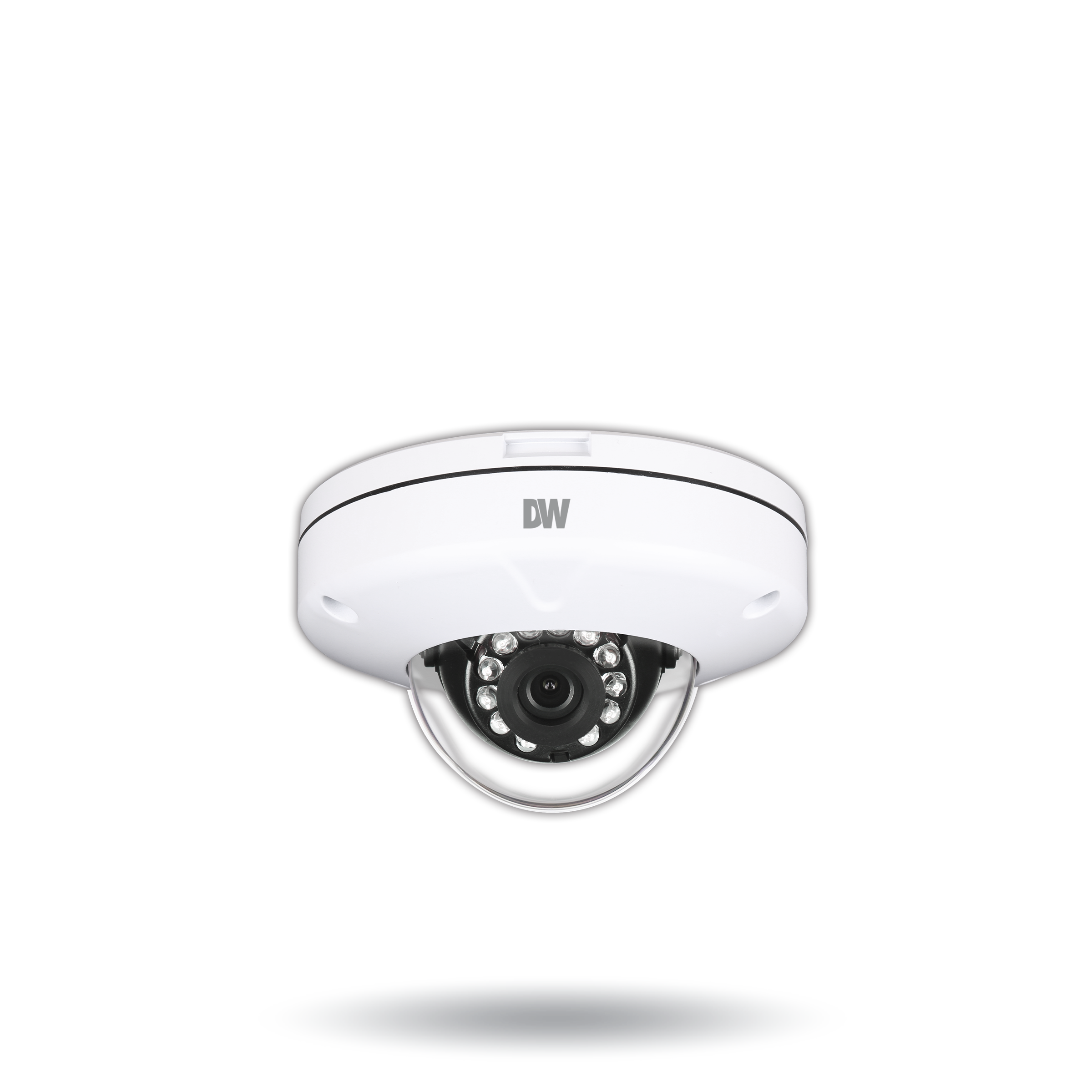

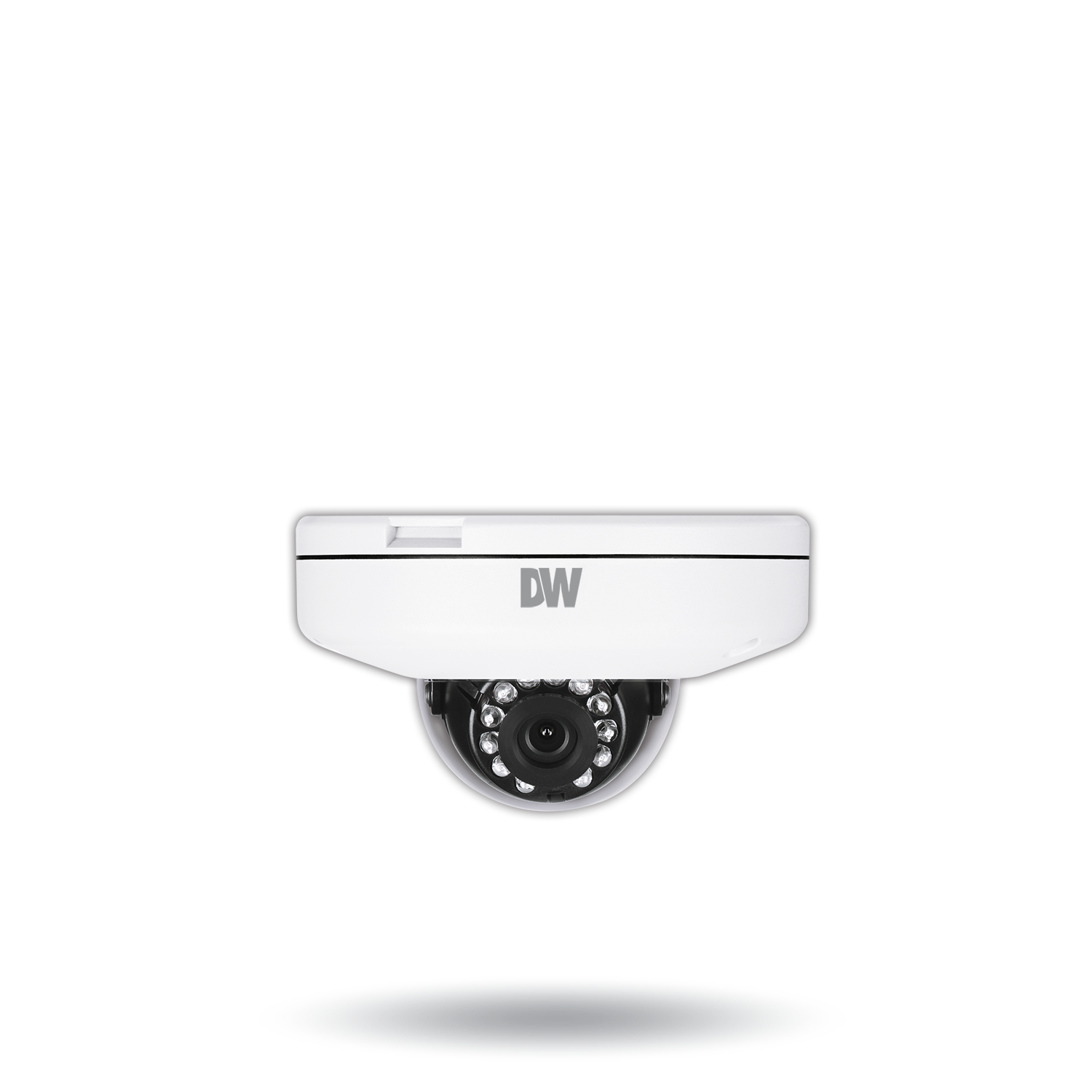

MEGApix® CaaS™ all-in-one 4MP ultra low-profile vandal dome IP camera with 4.0mm and 6.0mm fixed lens options and IR

Share this Product!

All-in-one 4MP ultra low-profile vandal dome IP camera with 4.0mm and 6.0mm fixed lens options and IR

Model: DWC-MF4Wi4WC5, DWC-MF4Wi4WC1T, DWC-MF4Wi6WC5, DWC-MF4Wi6WC1T

Find a Reseller | Request a Demo | Contact Us

The MEGApix^® CaaS™ series (Camera as a Server) combines the quality of MEGApix cameras with the ease and power of DW Spectrum^® IPVMS pre-loaded and on-board storage, MAKING EACH CaaS™ CAMERA ITS OWN SELF-CONTAINED VIDEO SURVEILLANCE SYSTEM!

Each CaaS camera includes the DW Spectrum IPVMS server software and a recording license. No additional server hardware is required, making MEGApix CaaS an easy and cost-effective way to deploy high-definition IP video systems in small installations. Easily manage all your DW Spectrum systems with the DW^® Cloud™ online portal. On-board storage options at 256GB, 128GB or 64GB provide up to 30 days of retained video. Need more storage? Add a Blackjack^® NAS device to any DW Spectrum system.

All-in-one cameras that do not require NVR’s, DVR’s or on-premise servers

MEGApix^® CaaS™ cameras act as an all-in-one solution, handling recording, notifications, management and monitoring all accessed remotely, with no need for a dedicated server or remote recorder.

Easily add storage capacity

Blackjack^® NAS devices can be implemented into a MEGApix^® CaaS™ network, offering lower cost and greater flexibility than adding additional servers to an existing system.

Camera as a system

The CaaS™ solution supports multiple cameras in the same network, and unlimited systems all accessible and manageable via DW Spectrum^® client, app and DW Cloud™.

All-in-one cameras, no server required
4MP 1/3" image sensor at real-time 30fps
4.0mm fixed lens (DWC-MF4Wi4WC5, DWC-MWF4Wi4WC1T)
6.0mm fixed lens (DWC-MF4Wi6WC5, DWC-MWF4Wi6WC1T)
Built-in 512GB and 1TB storage options for up to 60 days of retained video*
Easily to deploy with pre-loaded DW Spectrum® IPVMS for out-of-the-box operation
24/7 access to live and recorded video feed
Automatic installation and licensing with first power on
Connect up to 30 MEGApix® CaaS™ edge cameras
True Wide Dynamic Range (WDR)
Dual recording option with Blackjack® NAS appliance
Dual codecs (H.264, MJPEG) with simultaneous dual-stream
50’ Smart IR™ with intelligent camera sync
Ultra low-profile outdoor vandal dome
Smart DNR™ 3D digital noise reduction
True day/night with mechanical IR cut filter
Programmable privacy zones
Auto gain control (AGC)
Auto white balance (AWB)
Motion detection
Web server built-in
PoE class 3 and DC12V
Waterproof cabling
UL listed
ONVIF conformant, profile S
NDAA compliant
IP66 environmental-rated dust-tight and water-resistant
IK 10-rated impact-resistant
5 year warranty

	DWC-MF4Wi4C6
Image sensor	4MP 1/3” CMOS
Total pixels	2688 (H) x 1520 (V)
Minimum scene illumination	0.41 lux (color)
Minimum scene illumination	0.0 lux (B&W)
Test Monitor Video Output	Local video output CVBS 1.0V p-p (75 ?), 4:3 aspect ratio
Resolution	4MP (2560 x 1440)
LENS
Focal length	4.0mm F2.0 (DWC-MF4Wi4WC5, DWC-MF4Wi4WC1T) 6.0mm F2.0 (DWC-MF4Wi6WC5, DWC-MF4Wi6WC1T)
Lens type	Fixed lens
Field of view (FoV)	81° (DWC-MF4Wi4WC5, DWC-MF4Wi4WC1T) 51° (DWC-MF4Wi6WC5, DWC-MF4Wi6WC1T6)
IR distance	50ft range
OPERATIONAL
Shutter mode	Auto, manual, anti-flicker, slow shutter
Shutter speed	1/30~1/32000
Slow shutter	1~1/5,1/7.5, 1/10
Auto gain control	Auto
Day / night	Auto, day (color), night (B/W)
Smart DNR™ 3D digital noise reduction	0~11
Wide dynamic range (WDR)	True WDR Off, WDR2x, WDR3x
Wide dynamic range (WDR) dB	120dB
Privacy zone	4 programmable privacy masks
Alarm notifications	Notifications via e-mail, FTP server or SD card recording (card not included)
NETWORK
LAN	802.3 compliance 10/100 LAN
Video compression type	H.264, MJPEG
Resolution	H.264: 1440p/1080p/720p/VGA/D1/CIF MJPEG: 1280x720/800x600/VGA/768x432/D1/CIF
Frame rate	Up to 30fps at all resolutions
Video bitrate	100Kbps ~ 10Mbps, multi-rate for preview and recording
Bitrate control	Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth)
Streaming capability	Dual-stream at different rates and resolutions
IP	IPv4
Protocol	Zero config(Auto IP), ONVIF, TCP/IP, UDP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3(MIB-2)
Security	HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW)
ONVIF conformance	Yes
Web viewer	OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®
Video management software	DW Spectrum® IPVMS
Number of DW Spectrum® CaaS™ licenses included	1 DW Spectrum® CaaS™ license included
Local server recording	DWC-MF4Wi4WC5: 512GB local memory for recording DWC-MF4Wi4WC1T: 1TB local memory for recording DWC-MF4Wi6WC5: 512GB local memory for recording DWC-MF4Wi6WC1T: 1TB local memory for recording
Max. number of CaaS™ cameras in the same network/system	Up to 30 MEGApix® CaaS™ cameras in the same network/system
ENVIRONMENTAL
Operating temperature	-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity	10–90% RH (non–condensing)
IP rating	IP66-rated weather and tamper-resistant
IK rating	IK10 rated impact resistant
Other certifications	CE, FCC, RoHS
ELECTRICAL
Power requirement	DC12V, POE (IEEE 802.3af class 3). Adaptor not included.
Power consumption	DC12V: Max 5.6W PoE: Max 7.4W
MECHANICAL
Material	Aluminum vandal housing, polycarbonate dome
Dimensions	4.9" x 2.9" (125 x 74.3 mm)
Weight	1.54 lbs (0.7kg)

NOTE:

External ONVIF devices cannot be added
IVA/IVA+ is not available on this model
Plugins from external devices cannot be added

Model #	Storage size
DWC-MF4Wi4WC5	512GB
DWC-MF4Wi4WC1T	1TB
DWC-MF4Wi6WC5	512GB
DWC-MF4Wi6WC1T	1TB
