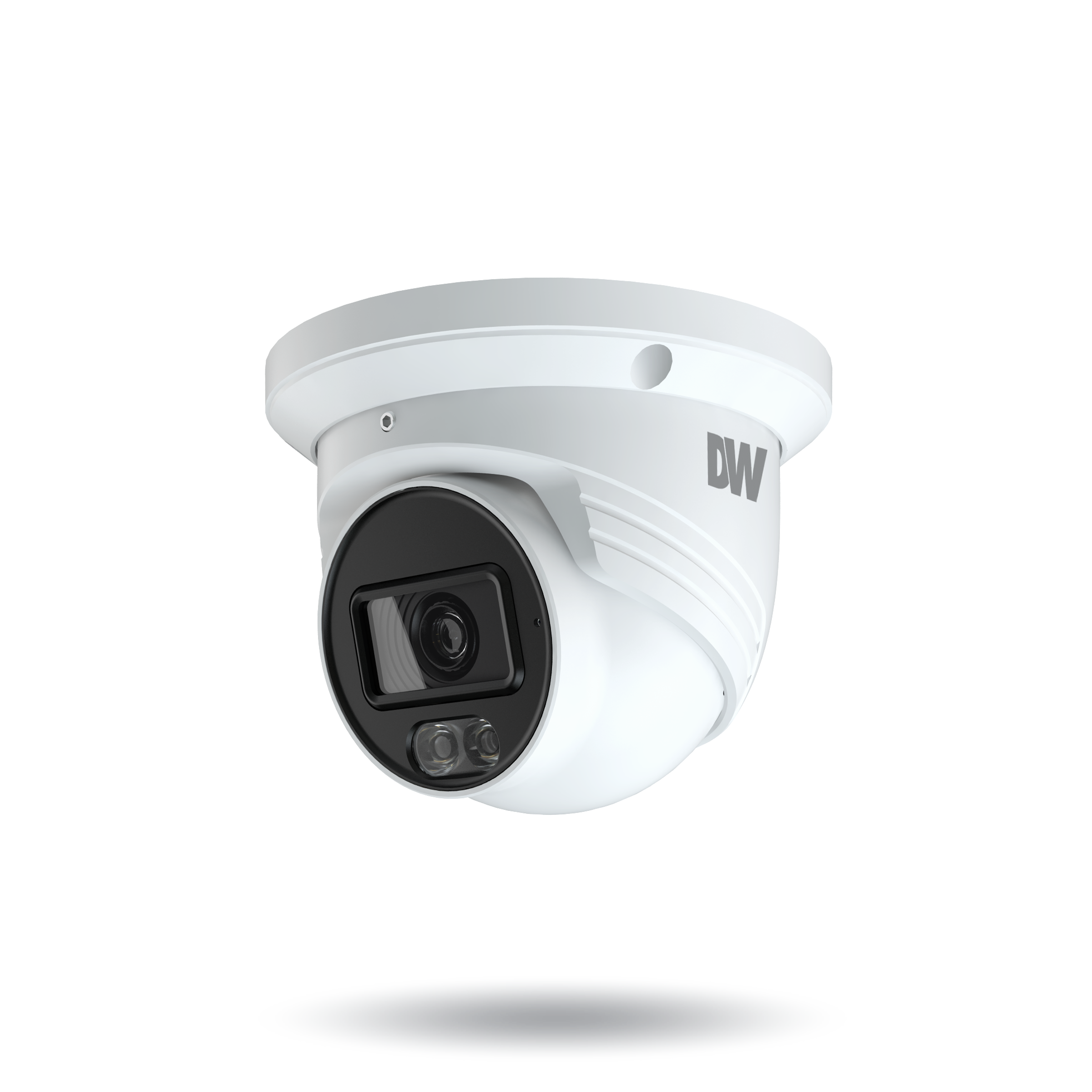

MEGApix 5MP turret IP camera with built-in White-Light LEDs

Share this Product!

5MP turret IP camera with built-in White-Light LEDs

Model: DWC-MT95WW28TW

Find a Reseller | Request a Demo | Contact Us

This NDAA compliant MEGApix IP camera delivers crystal-clear color images at 5MP resolution at real-time 30fps with White-Light LEDs built-in. The IP67-rated turret camera features a 2.8mm fixed lens and a 360° camera gimbal for absolute view adjustment. The White-Light LEDs offer up to 100ft range for quality color video in any lighting condition. Added intelligence includes line crossing, perimeter intrusion, video tampering detection and object classification. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.

White light LEDs built-in

Create deterrence and provide crystal-clear images in color without the need for external illumination or the potential loss of color and detail from B/W images.

Megapixel resolution

DW’s technology delivers crystal clear images in any resolution. Higher-resolution offers forensic details with zooming into the camera’s field of view.

True Wide Dynamic Range (WDR)

Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.

5MP 1/2.7 image sensor at real-time 30fps
2.8mm fixed lens
True Wide Dynamic Range (WDR)
Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
100ft range White-Light LEDs
Object classification video analytics
Line crossing video analytics
Perimeter intrusion video analytics
Video tampering with scene change detection video analytics
Video tampering with video blur detection video analytics
Video tampering with abnormal color detection video analytics
Smart DNR 3D digital noise reduction
True day/night with mechanical IR cut filter
Programmable privacy zones
Auto gain control (AGC)
Backlight compensation (BLC)
De-Fog extreme weather image compensation
Auto white balance (AWB)
Motion detection
Audio input through built-in microphone
Micro SD/SDHC/SDXC class 10 card slot (card not included)
Web server built-in
PoE class 3 and DC12V
ONVIF conformant, profile S
NDAA compliant
IP67 dust-tight and waterproof to 3 feet
IK 10-rated impact-resistant
5 year warranty

Image sensor	5MP 1/2.7” CMOS
Total pixels	2592 (H) x 1944 (V)
Minimum scene illumination
Minimum scene illumination	0.0 lux (B/W)
S/N ratio	50dB
LENS
Focal length	2.8mm, F1.0
Lens type	Fixed lens
Field of view (FoV)	94.8°
IR distance	2 White-Light LEDs, 98ft range
I/O
Audio in/out	1 audio input and 1 microphone built-in
Audio compression	G.711A / U
OPERATIONAL
Shutter mode	Auto, manual
Shutter speed	1/30s ~ 1/100000s
Auto gain control	Auto
Day / night	Auto, day (color), night (B/W), schedule
Smart DNR™ 3D digital noise reduction	3D DNR
Wide dynamic range (WDR)	True WDR low, middle, high
Wide dynamic range (WDR) dB	120dB
Privacy zone	4 programmable privacy masks
Camera analytics	Line crossing, perimeter intrusion, video tampering detection (scene change, video blur, abnormal color detection), object classification (differentiate humans from objects)
Alarm notifications	Notifications via e-mail or FTP server
Memory slot	Micro SD / SDHC / SDXC (card not Included)
NETWORK
LAN	802.3 compliance 10/100 LAN
Video compression type	H.265. H.264, MJPEG
Resolution	5MP, 4MP, 2K, 3MP, 2.1MP/1080P, 720P (60Hz: 1 ~ 30fps; 50Hz: 1~25fps) HFR mode: 1080P / 720P (60Hz: 1 ~ 60fps; 50Hz: 1~50fps)
Frame rate	Up to 30fps at all resolutions
Video bitrate	64 Kbps ~ 8 Mbps
Bitrate control	Multi-streaming CBR/VBR at H.264/ H.265 (controllable frame rate and bandwidth)
Streaming capability	Dual-stream at different rates and resolutions
IP	IPv4, IPv6
Protocol	UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS
Security	IP filtering, MAC filtering, authentication (ID/PW), SSL/TSL
ONVIF conformance	Yes
Web viewer	OS: Windows® Browser: Internet Explorer
Video management software	DW Spectrum® IPVMS
ENVIRONMENTAL
Operating temperature	-22°F ~ 140°F (-30°C ~ 60°C)
Operating humidity	95% RH (non–condensing)
IP rating	IP67-rated
IK rating	IK 10 impact-resistant
Other certifications	CE, FCC, RoHS
ELECTRICAL
Power requirement	DC 12V, PoE IEEE 802.3af Class 3. (Adapter not included)
Power consumption	7W
MECHANICAL
Material	Metal turret housing
Dimensions	4.66" x 3.58" (118.6 x 91 mm)
Weight	1.01 lb (0.46 kg)
Warranty	5 year warranty
