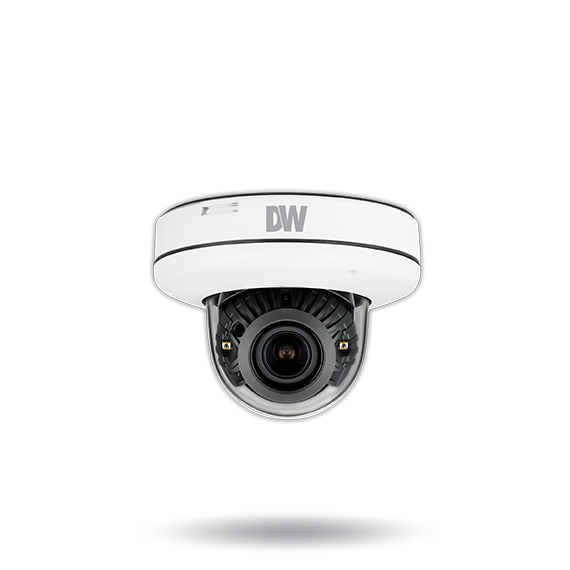

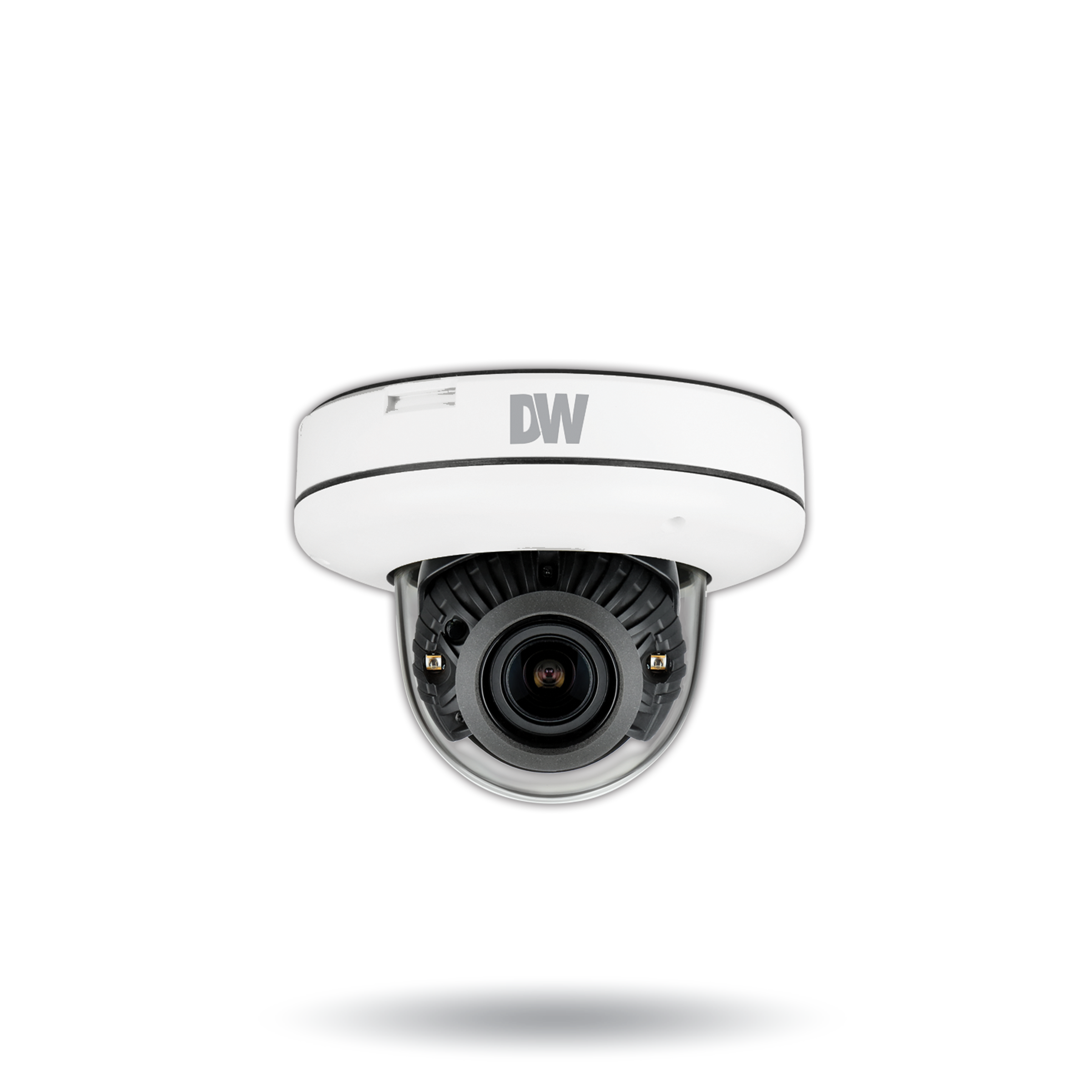

MEGApix CaaS™ all-in-one 4MP low-profile vandal dome IP camera with 2.8~12mm vari-focal p-iris lens with motorized zoom and auto-focus and IR

Share this Product!

All-in-one 4MP low-profile vandal dome IP camera with 2.8~12mm vari-focal p-iris lens with motorized zoom and auto-focus and IR

Model: DWC-MV84WiAWC5, DWC-MV84WiAWC1T

Find a Reseller | Request a Demo | Contact Us

The MEGApix^® CaaS™ series (Camera as a Server) combines the quality of MEGApix cameras with the ease and power of DW Spectrum^® IPVMS pre-loaded and on-board storage, MAKING EACH CaaS™ CAMERA ITS OWN SELF-CONTAINED VIDEO SURVEILLANCE SYSTEM!

Each CaaS camera includes the DW Spectrum IPVMS server software and a recording license. No additional server hardware is required, making MEGApix CaaS an easy and cost-effective way to deploy high-definition IP video systems in small installations. Easily manage all your DW Spectrum systems with the DW^® Cloud™ online portal. On-board storage options at 256GB, 128GB or 64GB provide up to 30 days of retained video. Need more storage? Add a Blackjack^® NAS device to any DW Spectrum system.

All-in-one cameras that do not require NVR’s, DVR’s or on-premise servers

MEGApix^® CaaS™ cameras act as an all-in-one solution, handling recording, notifications, management and monitoring all accessed remotely, with no need for a dedicated server or remote recorder.

Easily add storage capacity

Blackjack^® NAS devices can be implemented into a MEGApix^® CaaS™ network, offering lower cost and greater flexibility than adding additional servers to an existing system.

Camera as a system

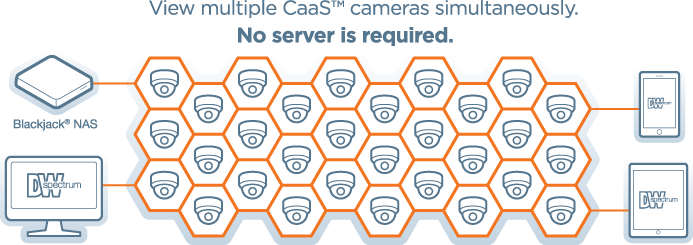

The CaaS™ solution supports multiple cameras in the same network, and unlimited systems all accessible and manageable via DW Spectrum^® client, app and DW Cloud™.

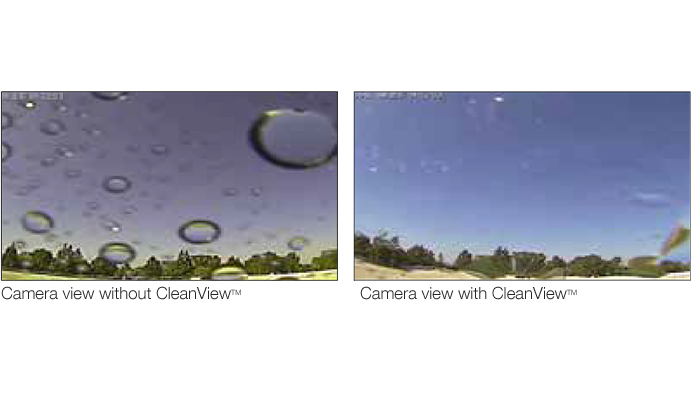

CleanView™ Hydrophobic Dome Coating

The CleanView™ coating improves visibility by reducing water spots, dust and grease build-up on the camera dome housing’s glass. The CleanView™ coating treatment will allow the liquid to roll off of the dome’s glass surfaces when tilted vertically up to 10° or less. The CleanView™ coating leaves the camera dome’s glass clean, repels dust and grease, preventing IR reflections due to dust and smudges.

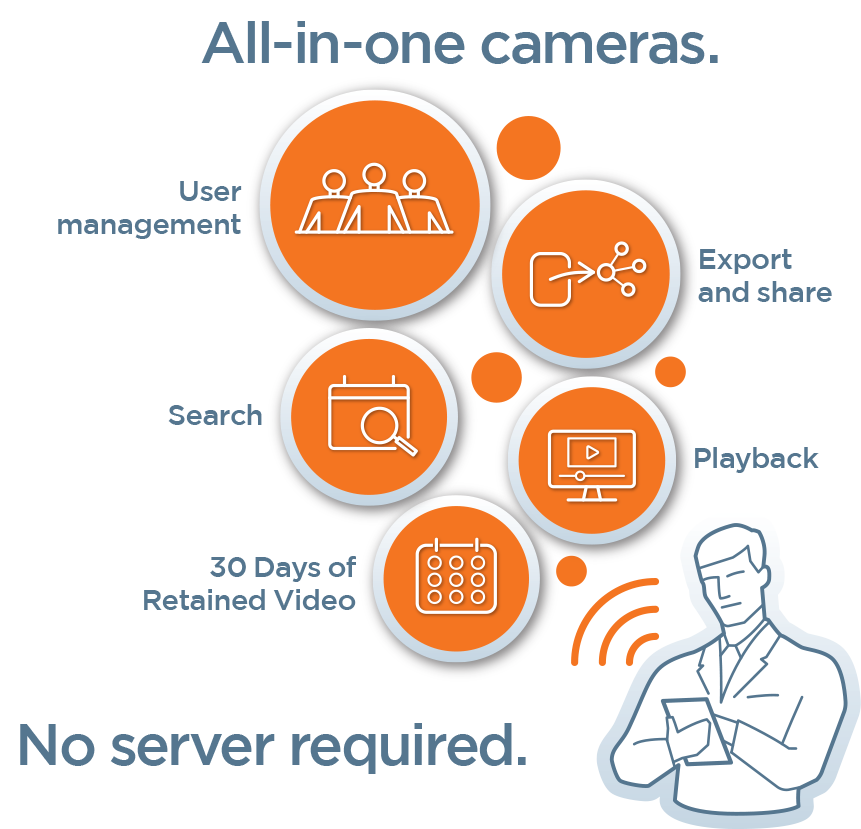

All-in-one cameras, no server required
4MP 1/3" image sensor at real-time 30fps
2.8~12mm vari-focal p-iris lens with motorized zoom and auto-focus
Built-in 512GB and 1TB storage options for up to 60 days of retained video*
Easily to deploy with pre-loaded DW Spectrum® IPVMS for out-of-the-box operation
24/7 access to live and recorded video feed
Automatic installation and licensing with first power on
Connect up to 30 MEGApix® CaaS™ edge cameras
True Wide Dynamic Range (WDR)
Dual recording option with Blackjack® NAS appliance
Dual codecs (H.264, MJPEG) with simultaneous dual-stream
100’ Smart IR™ with intelligent camera sync
CleanView™ hydrophobic dome coating repels water, dust and grease
Smart DNR™ 3D digital noise reduction
True day/night with mechanical IR cut filter
Programmable privacy zones
Auto gain control (AGC)
Auto white balance (AWB)
Motion detection
Web server built-in
PoE class 3 and DC12V
Waterproof cabling
UL listed
ONVIF conformant, profile S
NDAA compliant
IP66 environmental-rated dust-tight and water-resistant
IK 10-rated impact-resistant
5 year warranty

Image sensor	4MP 1/3” CMOS
Total pixels	2688 (H) x 1520 (V)
Minimum scene illumination	0.2 lux (color)
Minimum scene illumination	0.0 lux (B/W)
Video output	Local video output CVBS 1.0V p-p (75 ?), 4:3 aspect ratio
Resolution	4MP (2560 x 1440)
LENS
Focal length	2.8 ~ 12mm, F1.4
Lens type	Motorized zoom auto-focus p-iris lens
Field of view (FoV)	87° ~ 32°
IR distance	100ft range
Optical zoom	x4.2 Optical zoom
OPERATIONAL
Shutter mode	Auto, manual, anti-flicker, slow shutter
Shutter speed	1/30~1/32000
Slow shutter	1~1/5,1/7.5, 1/10
Auto gain control	Auto
Day / night	Auto, day (color), night (B/W)
Smart DNR™ 3D digital noise reduction	0~11
Wide dynamic range (WDR)	True WDR Off, WDR2x, WDR3x
Wide dynamic range (WDR) dB	120dB
Privacy zone	4 programmable privacy masks
Alarm notifications	Notifications via e-mail or FTP server
NETWORK
LAN	802.3 compliance 10/100 LAN
Video compression type	H.264, MJPEG
Resolution	H.264: 1440p/1080p/720p/VGA/D1/CIF MJPEG: 1280x720/800x600/VGA/768x432/D1/CIF
Frame rate	Up to 30fps at all resolutions
Video bitrate	100Kbps ~ 10Mbps, multi-rate for preview and recording
Bitrate control	Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth)
Streaming capability	Dual-stream at different rates and resolutions
IP	IPv4
Protocol	Zero config(Auto IP), ONVIF, TCP/IP, UDP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3(MIB-2)
Security	HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW)
ONVIF conformance	Yes
Web viewer	OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®
Video management software	DW Spectrum® IPVMS
Number of DW Spectrum® CaaS™ licenses included	1 DW Spectrum® CaaS™ license included
Local server recording	DWC-MV84WiAWC5: 512GB local memory for recording DWC-MV84WiAWC1T: 1TB local memory for recording
Max. number of CaaS™ cameras in the same network/system	Up to 30 MEGApix® CaaS™ cameras in the same network/system
ENVIRONMENTAL
Operating temperature	-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity	10–90% RH (non–condensing)
IP rating	IP66-rated weather and tamper-resistant
IK rating	IK10-rated impact-resistant
Other certifications	CE, FCC, RoHS
ELECTRICAL
Power requirement	DC12V, POE IEEE 802.3af class 3 (adaptor not Included)
Power consumption	DC12V: Max 7.1W PoE: Max 9.2W
MECHANICAL
Material	Aluminum vandal housing, polycarbonate dome
Dimensions	4.9" x 3.6" (125 x 92 mm)
Weight	1.87 lb (0.85kg)

NOTE:

External ONVIF devices cannot be added
IVA/IVA+ is not available on this model
Plugins from external devices cannot be added

Model #	Storage size
DWC-MV84WiAWC5	512GB
DWC-MV84WiAWC1T	1TB

DW Spectrum® IPVMS

LEARN MORE

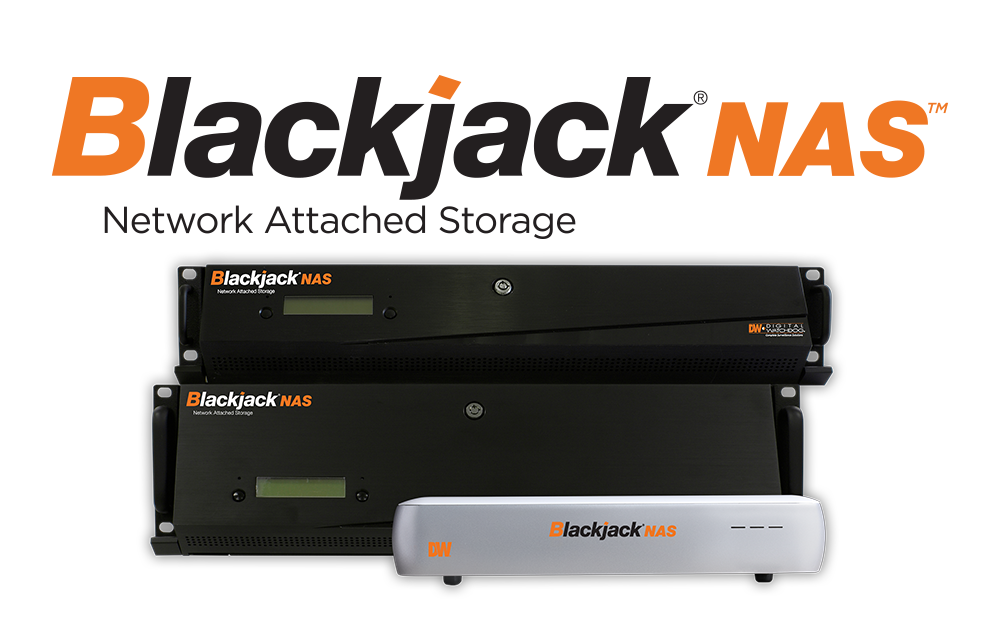

Blackjack® NAS

LEARN MORE

DWC-VFCMW

Ceiling mount bracket - white

DWC-GPLT-W

Converter plate for electronic gang box - white

DWC-V1CNMW

Corner and pole mount bracket - white

DWC-VFJUNCW

Junction box - white

DWC-WMJUNCW

Junction box for wall mount brackets

DWC-PMB-WLW

Pole mount bracket for bullets and dome cameras

DWC-VFWMW

Wall mount bracket - white

Title	Type	Size	Download
Camera part numbering system		0.03 MB
DW Accessories Chart		0.05 MB
MEGApix CaaS brochure		4.14 MB
MEGApix CaaS solutions brief		0.69 MB
MEGApix Single-Sensor Brochure		3.29 MB
MEGApix^® CaaS™ DW Spectrum^® quick start guide		0.60 MB

Title	Release Notes	Version	Size
DW IP Finder v4.4.14 for Linux OS	-	v4.4.14	47.86 MB
DW IP Finder v4.4.14 for Windows OS	-	v4.4.14	17.64 MB
DW Spectrum IPVMS ARM v5.0.0.35271 for CaaS		v5.0.0.35271	81.48 MB
DW Spectrum IPVMS Client v5.0.0.35271 Linux x64 Bit (DEB file)		v5.0.0.35271	174.69 MB
DW Spectrum IPVMS Client v5.0.0.35271 Mac ARM x64 Bit (DMG file)		v5.0.0.35271	124.80 MB
DW Spectrum IPVMS Client v5.0.0.35271 Mac x64 Bit (DMG file)		v5.0.0.35271	135.98 MB
DW Spectrum IPVMS Client v5.0.0.35271 Windows x64 Bit		v5.0.0.35271	146.55 MB
MEGApix^® CaaS™ firmware vA4.1.2-20190212	-	vA4.1.2-20190212	57.24 MB
