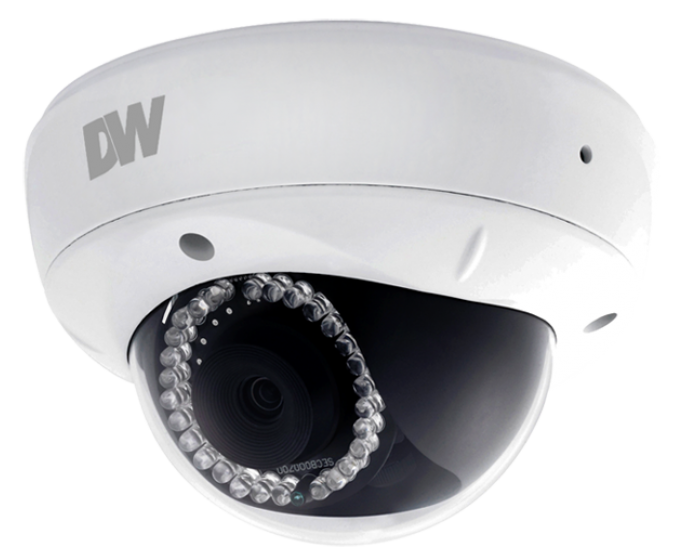

MEGApix® 5 Megapixel Indoor/Outdoor Dome IP Camera

Smart 3D DNR™ (digital noise reduction)

Use DW’s exclusive noise reduction technology to produce clearer color and monochromatic video in low light without adding visual lag or ghost effects.

TDN [True Day/Night] with IR Cut Filter

During daylight, the IR cut filter allows visible light to pass through, reflecting the unwanted infrared light. In low light environments, where artificial or external light is not available, the cut filter is removed from in front of the lens, allowing the camera to capture the infrared light that given out from the infrared LEDs, to capture as much light as possible to produce brighter images.

Triple Codecs (H.264, MJPEG, MPEG4) with Simultaneous Dual-Stream

The cameras allow you to optimize your bandwidth usage, by offering simultaneous streaming. This allows you to stream high resolution for live monitoring and motion events, and setup a lower resolution streaming profile for when no activity is detected. This allows the camera to seamlessly transition between low and high resolution streams to maximize bandwidth usage, reduce network traffic and improve your overall system’s performance and power.

True Wide Dynamic Range (WDR)

Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.

5 Megapixel Image Sensor
Wide Dynamic Range (WDR)
Triple Codecs (H.264, MJPEG, MPEG4) with Simultaneous Dual-Stream
3.4~10mm Varifocal Lens
Smart IR™ with Intelligent Camera Sync. 50ft Range
True Day/Night with Mechanical IR Cut Filter
Smart DNR™ 3D Digital Noise Reduction
Auto Gain Control (AGC)
Back Light Compensation (BLC)
Auto White Balance (AWB)
Programmable Privacy Zones
Motion Detection
Two-Way Audio with Microphone Built-in
Micro SD/SDHC Class 10 Card Slot for Emergency Backup [card not included]
Alarm Sensor Input
Relay Output
Web Server Built-in
PoE and DC12V
OnVIF Compliant, Profile S
IP66 Certified (Weather Resistant)

Image Sensor		1/2.5" 5MP CMOS Sensor
Minimum Illumination		0.0 Lux
Resolution		5 Megapixels (2592 x 1920, 10fps) Resolution
Total Pixels (H X V)		2592 (H) X 1920 (V)
Software Special Features
Two-way Audio		With Built-in Microphone
Lens
Focal Length		3.4~10mm Varifocal Lens
IR Distance		50ft Range IR
Lens Type		Varifocal/ DC- Iris
Zoom		3x Optical Zoom
Mechanical
Dimensions		152 X 98 mm (5.98 X 3.85 in)
Housing Material		Aluminum
Housing Type		Vandal Dome
Weight		2.42 lbs
Network
Frame Rate		Up to 10 frames per second at 5MP Up to 30 frames per second at 2MP
LAN		802.3 Compliance 10/100 LAN
Maximum Simultaneous User Access		10 Simultaneous Users
OnVIF Conformant
Protocols		TCP/IP, HTTP, DHCP, PPPoE, HTTPS, ICMP, ARP, RTSP, NTP, UDP, NTP, SMTP, RTP, RTCP, 3GPP, SAMBA (NAS)
SD Card Backup		Up to 24 Hours to Micro SD Card (4~32GB) Card not included.
Streaming Capability		Simultaneous Dual-Stream
Video Compression Type		H.264, MPEG4, MJPEG
Video Management Software		DW Spectrum
Web Viewer		OS: Windows XP / Vista / 7, MAC OS Browser: I.E. 8 or Higher, Chrome, Firefox, Safari
Operational
3D DNR	3D Digital Noise Reduction	Off, Auto, Manual (0~255)
AGC	Auto Gain Control	2x~128x, Max Gain, Manual
Alarm Notifications		File Upload via FTP and E-mail, E-mail Notifications with Snapshot attachment, External Output Activation, File Recording to SD Card, Remote FTP or NAS
BLC	Backlight Compensation	-2.0EV ~ +2.0EV, Off
Brightness		0~255
D/N	Day/ Night	Auto, Day (Color), Night (B/W) , Activate with Digital Input
DSS- Digital Slow Shutter		1/4~1/15000 Selectable
Programmable Privacy Zones		OFF / ON (5 Programmable Zones)
Recording Schedule		Continuous, Event, Pre- & Post-Alarm Recording to SD Card, FTP Server, and Network Storage
Sharpness		0~255
WDR	Wide Dynamic Range	Off, Low, Medium, High
Environmental
Operating Humidity		Less than 80% (Non-Condensing)
Operating Temperature		-25°C ~ 55°C (-13°F ~ 131°F)
Power Consumption		LED OFF: 4.5W, 187mA LED ON: 8.9W, 370mA
Voltage		DC 8~25V, AC 24V, PoE (IEEE802.3af Class 3)
