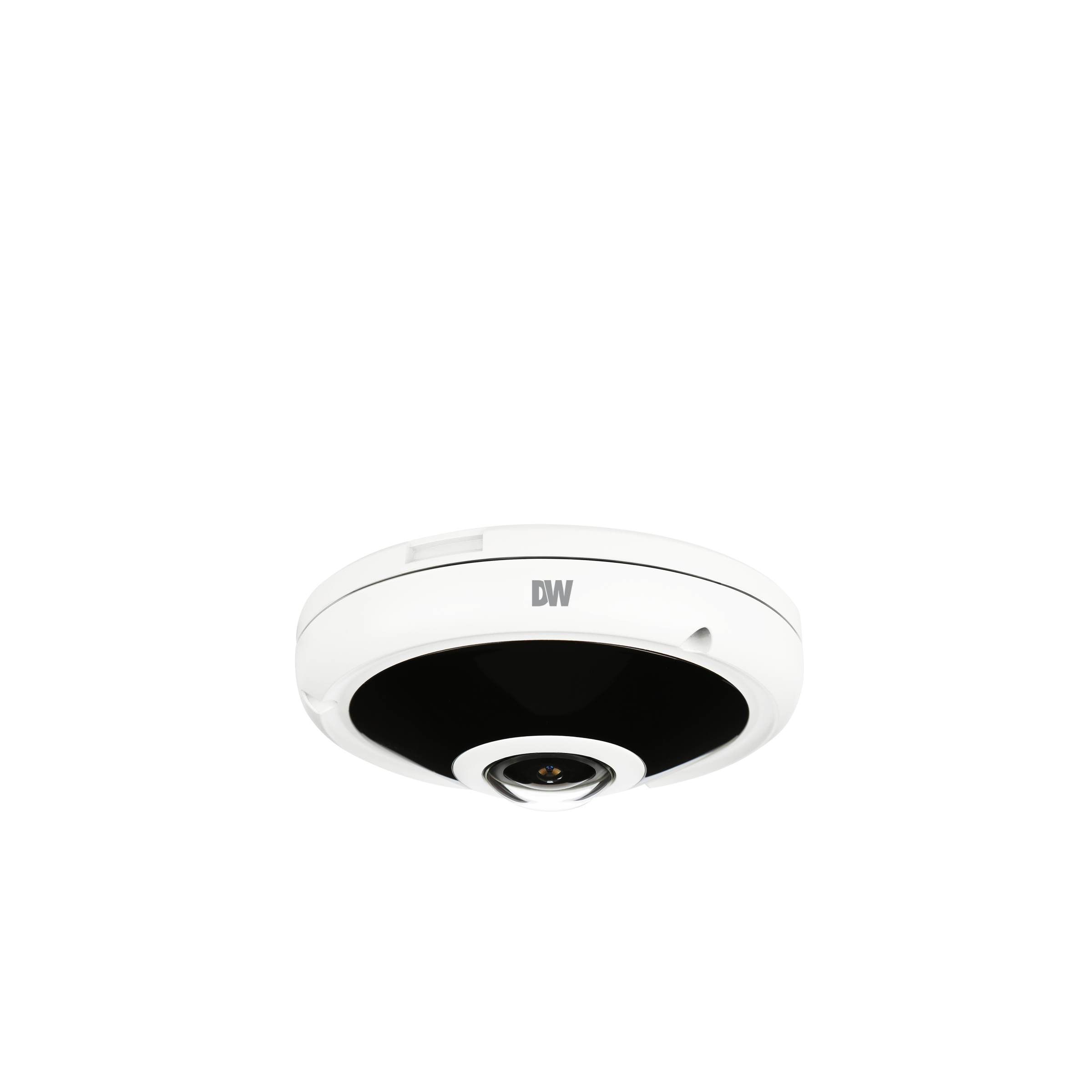

MEGApix® Pano IVA™ 9MP vandal fisheye IP camera with 2.1mm fisheye lens, color in near-total darkness and IR

Share this Product!

9MP color in near-total darkness fisheye IP camera with IVA

Model: DWC-PVF9Di2TW, DWC-PPVF9Di2TW

Find a Reseller | Request a Demo | Contact Us

MEGApix^® Pano IVA™ 9MP 360° view fisheye outdoor IP camera with IR is your gateway to powerful video analytics features. It is NDAA compliant and can monitor an entire area, providing ultimate ROI. The MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced Video Content Analysis detection capabilities. This camera’s 2.1mm fisheye lens provides edge-to-edge image clarity producing 9MP panoramic images at real-time 30fps. Star-Light Plus™ color in near-total darkness technology ensures quality video in any lighting condition. The camera also offers simultaneous H.265/H.264/MJPEG codec support in an IP66 vandal-resistant, discrete housing. The camera is optimized to work with the DW Spectrum™ IPVMS instant dewarping feature.

IVA Analytics

MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced video content analysis detection capabilities.

LEARN MORE

IVA integrates seamlessly with DW Spectrum^® IPVMS

MEGApix IVA analytics are seamlessly integrated with DW Spectrum IPVMS for easy configuration, real-time alerts and automatic notifications.
Learn more.

Star-Light Plus™ color in darkness technology

Star-Light Plus™ color in near-total darkness technology provides crisp, clear images in the absence of ambient light.

360° hemispheric and panoramic fisheye views at real-time 30fps

360° fisheye view IP cameras MEGApix^® Pano™ 360° view fisheye cameras with IR monitor an entire room with a single camera, providing the ultimate ROI.

Smart IR™

Smart IR™ adjusts the image for IR cameras to prevent excessive illumination on objects that are in the front of the scene and offers a clear image in B/W without any loss of detail.

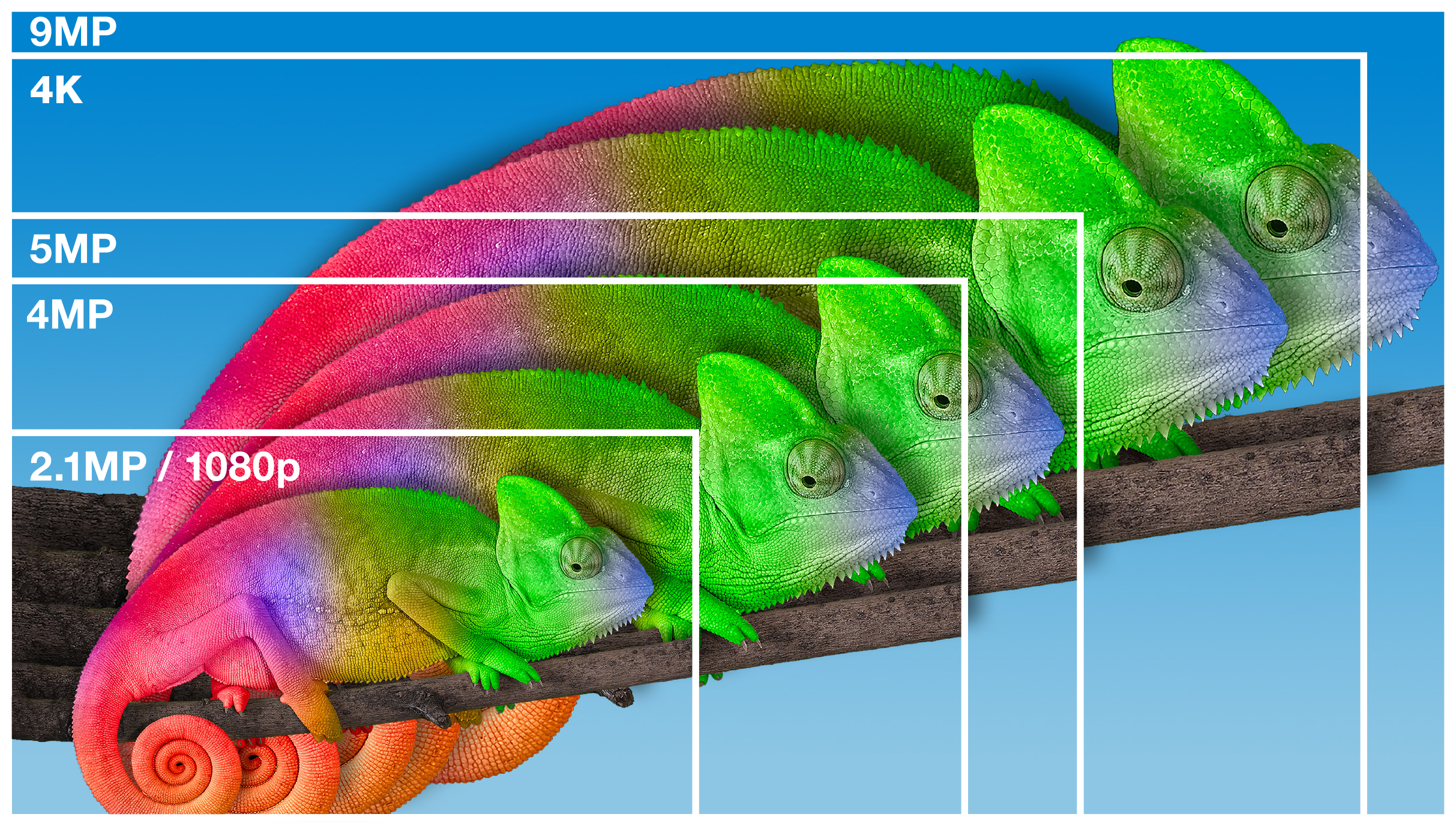

Megapixel resolution

DW’s technology delivers crystal clear images in any resolution. Higher-resolution offers forensic details with zooming into the camera’s field of view.

9MP 1/1.7 image Sensor at real-time 30fps
Star-Light Plus™ color in near-total darkness technology
Intelligent Video Analytics (IVA pre-loaded models)
Extended Intelligent Video Analytics (IVA+ pre-loaded models)
Seamless integration and control of IVA rules with DW Spectrum® IPVMS
Reduce false alarms
Increase your recording storage with logic rules and smart recording
Support 360° hemispheric fisheye view and 360°, 180° and 90° panoramic view
Edge-to-edge image clarity
2.1mm fisheye lens
Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
360° 80' Smart IR™ with intelligent camera sync.
Smart DNR™ 3D digital noise reduction
True day/night with mechanical IR cut filter
Auto gain control (AGC)
Backlight compensation (BLC)
Auto white balance (AWB)
Motion detection
Two-way audio
Micro SD/SDHC class 10 card slot (card not included)
Alarm sensor input
Relay output
Web server built-in
PoE class 3 and DC12V
ONVIF conformant, profile S
NDAA compliant
IP66 environmental-rated dust-tight and water-resistant
IK 9-rated impact-resistant
5 year warranty

Image sensor	12.4MP 1/1.7" Star-Light Plus CMOS
Total pixels	4000(H) X 3000(V)
Minimum scene illumination	0.3 lux (color)
Minimum scene illumination	0 lux (B/W)
S/N ratio	50dB
Maximum resolution	9MP (3008 x 3000)
LENS
Focal length	2.1mm, F2.2
Lens type	Fisheye lens
Field of view (FoV)	185°
IR distance	80ft range
I/O
Audio in / out	1 input (1.0Vms, 3K ohm) / 1 output
Alarm In/Out	1 input / 1 output
Audio compression	G.711
OPERATIONAL
Intelligent Video Analytics	IVA license: intrusion, line crossing, counting line, loitering, enter, exit, tamper
Intelligent Video Analytics	IVA+ license: object removed, tailgating, direction, stopped, appear, disappear, object left
Shutter mode	Auto, manual, anti-flicker, slow shutter
Shutter speed	1/15 ~ 1/32,000sec
Slow shutter	Off, x2, x3, x5, x6, x7.5, x10
Auto gain control	Auto
Day / night	Auto, day (color), night (B/W)
Smart DNR™ 3D digital noise reduction	3D DNR
Backlight compensation (BLC)	Yes
White balance	Yes
Mirror and flip	Yes
Privacy zones	16 programmable privacy masks
Alarm notifications	Notifications via e-mail, FTP server, alarm output activation or SD card recording
Memory slot	Micro SD/SDHC/SDXC (card not included).
NETWORK
LAN	RJ45 (10/100Base-T)
Video compression type	H.265, H.264, MJPEG
Resolution	H.265: 3008x3000, 2800x2800, 2048x2048, 1600x1600, 640x640, 320x320 H.264: 3008x3000, 2800x2800, 2048x2048, 1600x1600, 640x640, 320x320 MJPEG: 1280x1280, 640x640, 320x320
Frame rate	Up to 30fps at all resolutions
Video bitrate	100Kbps ~ 10Mbps
Bitrate control	Multistreaming CBR/VBR at H.265 (controllable frame rate and bandwidth)
Streaming capability	Dual-stream at different rates and resolutions
IP	IPv4, IPv6
Protocol	TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF
Security	HTTPS(TLS), IP filtering, 802.1x, digest authentication (ID/PW)
ONVIF conformance	Yes
Web viewer	OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®
Video management software	DW Spectrum® IPVMS
ENVIRONMENTAL
Operating temperature	-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity	Less than 90% (non-condensing)
IP rating	IP66-rated weather and tamper-resistant
IK rating	IK9 impact-resistant
Other certifications	FCC, CE, ROHS
ELECTRICAL
Power requirement	DC12V, POE IEEE 802.3af class 3 (adaptor not included)
Power consumption	DC12V: max 8.5W PoE: max 10W
MECHANICAL
Material	Aluminum vandal fisheye housing, polycarbonate dome
Dimensions	4.9" x 1.88” (125 x 48mm)
Weight	1.1 lbs (0.5kg)
Warranty	5 year warranty

DWC-PVF9Di2TW: preloaded with IVA license.
DWC-PPVF9Di2TW: preloaded withIVA+ license.
