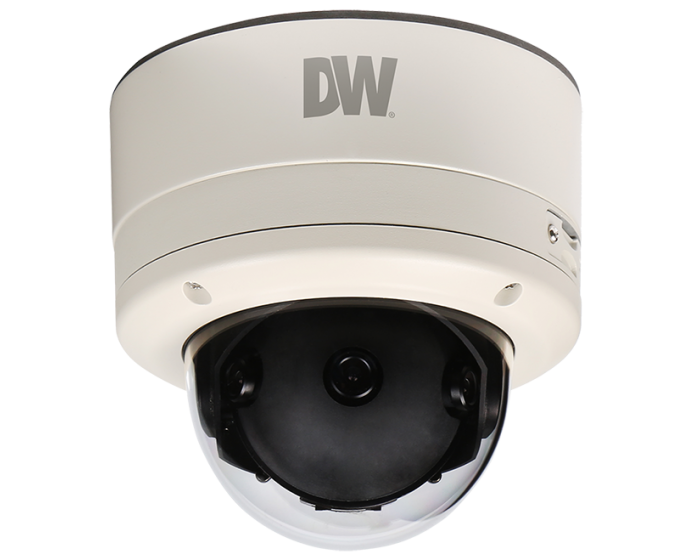

MEGApix® PANO™ 2.1 Megapixel Three-Sensor Indoor/Outdoor Vandal Dome IP Camera

Share this Product!

2.1MP/1080p Three-Sensor Indoor/Outdoor Vandal Dome IP Camera

Model: DWC-PV2M4T

Find a Reseller | Request a Demo | Contact Us

DISCONTINUED

The MEGApix® PANO™ 1080p Outdoor Dome Camera uses three 4.9mm lenses to produce 180° views at real-time 30fps. This camera represents a lower TCO and superior ROI for wide area surveillance, replacing the need to install and monitor multiple cameras. The MEGApix PANO’s advanced technologies such as True Day/Night and 3D Digital Noise Reduction deliver the best images in challenging lighting environments. Alarm in/out and two-way audio help you to monitor and react quickly to events. The new EasyAdjust™ IP66-rated Dome Enclosure with CleanView™ Self Cleaning Technology allows you to adjust the gimbal’s pan and tilt externally, reducing installation time and simplifying the configuration process. The cameras are ONVIF conformant, facilitating their successful integration with any open platform solution on the market.

Smart 3D DNR™ (digital noise reduction)

Use DW’s exclusive noise reduction technology to produce clearer color and monochromatic video in low light without adding visual lag or ghost effects.

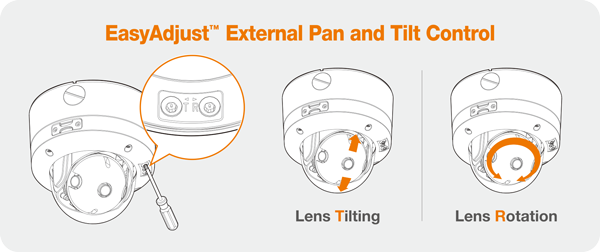

EasyAdjust™ External Pan and Tilt Control

The new EasyAdjust™ IP66-rated Dome Enclosure with CleanView™ Self Cleaning Technology allows you to adjust the lens' pan and tilt externally, reducing installation time and simplifying the configuration process.

TDN [True Day/Night] with IR Cut Filter

During daylight, the IR cut filter allows visible light to pass through, reflecting the unwanted infrared light. In low light environments, where artificial or external light is not available, the cut filter is removed from in front of the lens, allowing the camera to capture the infrared light that given out from the infrared LEDs, to capture as much light as possible to produce brighter images.

Two-Way Audio

The Cameras support two- way Audio interaction. This allows communication to run between the camera’s web-based UI and the camera’s location.

3x 2.1MP 1/2.8" Image Sensor at Real-time 30fps
2.1MP 180° Panoramic View IP Camera
3x 4.9mm Fixed Lens
EasyAdjust™ external pan and tilt control
CleanView™ Hydrophobic Dome Coating Repels Water, Dust and Grease
Dual Codecs (H.264, MJPEG) with Simultaneous Dual-Stream
Two-Way Audio
Easy Image Alignment and Stitching
Digital Zoom and Pan Control
Smart DNR™ 3D Digital Noise Reduction
True Day/Night with Mechanical IR Cut Filter
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Auto White Balance (AWB)
Motion Detection
Micro SD/SDHC Class 10 Card Slot (card not included)
Alarm Sensor Input
Relay Output
Web Server Built-in
ONVIF Conformant, Profile S
PoE+ Class 3 and DC12V
IP66 Certified Weather and Tamper Resistant
5 Year Warranty

Image sensor	3x 1/2.8" CMOS
Total pixels	1920 (H) x 1080 (V)
Minimum scene illumination	0.5 lux (Color)
Minimum scene illumination	0.27 lux (B&W)
Test video output	Local video output CVBS 1.0V p-p (75 ?), 4:3 aspect ratio
Maximum resolution	2.1MP/1080p
LENS
Focal length	3x 4.9mm
Lens type	Fixed lens
Field of view (FoV)	180° panoramic view (3x 70°)
I/O
Audio in / out	1 input / 1 output
Alarm In/Out	1 input / 1 output
Audio compression	G.711 PCM. ?-law 64kbps 8kHz
OPERATIONAL
Shutter mode	Auto, manual, slow shutter
Shutter speed	1/30 - 1/30,000
Slow Shutter	2x ~ 8x
Auto gain control	Max 41dB
Day / night	Auto, day (color), night (B/W)
Smart DNR™ 3D digital noise reduction	Off, low, middle, high
White balance	Auto / auto-ext / indoor / outdoor / manual / preset
Mirror and flip	Yes
Alarm notifications	Notifications via e-mail, FTP server, alarm out activation, JPEG capture or SD card recording
Memory Slot	Micro SD memory card (not included)
NETWORK
LAN	802.3 compliance 10/100 base-T LAN
Video compression type	H.264, MJPEG
Resolution	H.264 : 1080p/D1/CIF/QCIF MJPEG : 1080p/D1/CIF/QCIF
Frame rate	Up to 30fps at all resolutions
Streaming capability	Multi-streaming CBR/VBR (controllable frame rate and bandwidth)
IP	IPv4, IPv6
Protocol	ONVIF, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3 (MIB-2)
Security	HTTPS(TLS), digest authentication (ID/PW)
ONVIF conformance	Yes
Web viewer	OS: Windows® Browser: Internet Explorer®
Video management software	DW Spectrum® IPVMS
ENVIRONMENTAL
Operating temperature	-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity	Less than 90% (non-condensing)
IP rating	IP67 certified weather and tamper resistant
Other certifications	FCC, CE, ROHS
ELECTRICAL
Power requirement	DC 12V, PoE IEEE 802.3at PoE+ / high power PoE
Power consumption	DC 12V: 6.3W \ TDN On: 8.8W PoE: 7W\ TDN On: 9.3W
MECHANICAL
Material	Aluminum vandal housing, polycarbonate dome
Dimensions	5.9" x 5.7" (150 x 144.9 mm)
Weight	2 kg (4.4 lbs)
