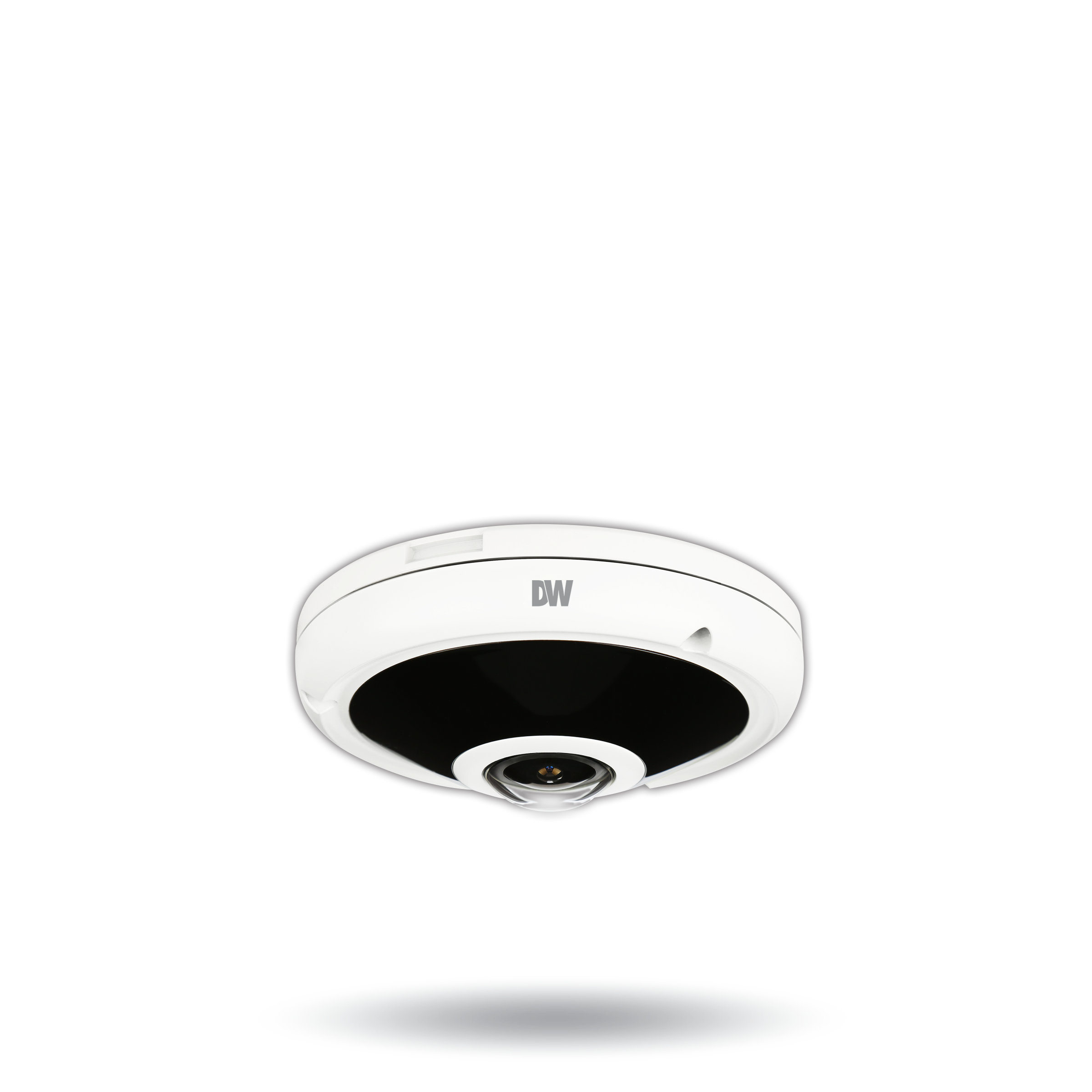

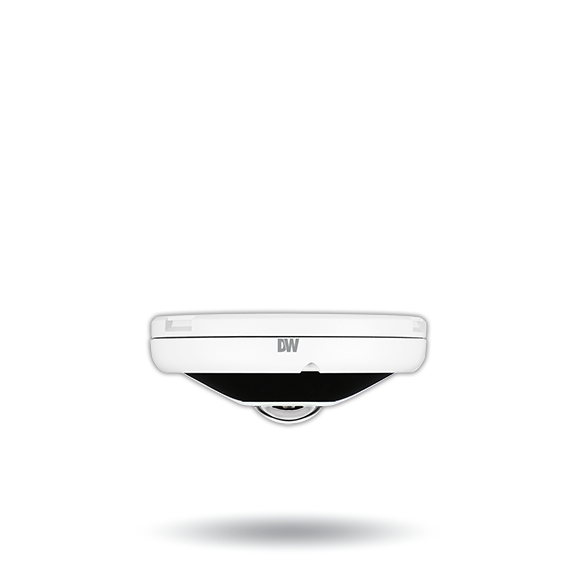

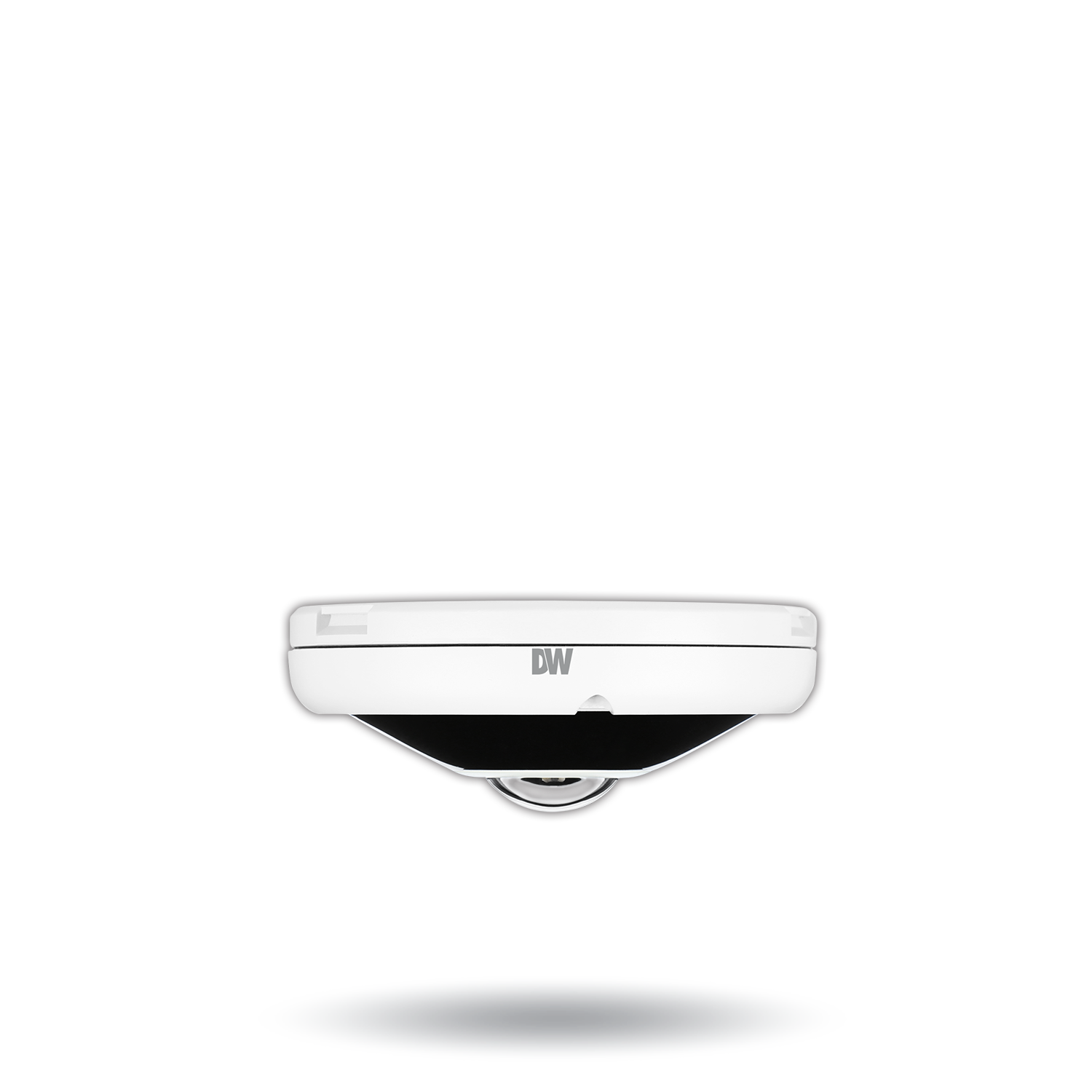

MEGApix® CaaS™ all-in-one 5MP vandal fisheye IP camera with 1.5mm fisheye lens and IR

Share this Product!

All-in-one 5MP vandal fisheye IP camera with 1.5mm fisheye lens and IR

Model: DWC-PVF5M1TIRWC5, DWC-PVF5M1TIRWC1T

Find a Reseller | Request a Demo | Contact Us

The MEGApix^® CaaS™ series (Camera as a Server) combines the quality of MEGApix cameras with the ease and power of DW Spectrum^® IPVMS pre-loaded and on-board storage, MAKING EACH CaaS™ CAMERA ITS OWN SELF-CONTAINED VIDEO SURVEILLANCE SYSTEM!

Each CaaS camera includes the DW Spectrum IPVMS server software and a recording license. No additional server hardware is required, making MEGApix CaaS an easy and cost-effective way to deploy high-definition IP video systems in small installations. Easily manage all your DW Spectrum systems with the DW^® Cloud™ online portal. On-board storage options at 256GB, 128GB or 64GB provide up to 30 days of retained video. Need more storage? Add a Blackjack^® NAS device to any DW Spectrum system.

All-in-one cameras that do not require NVR’s, DVR’s or on-premise servers

MEGApix^® CaaS™ cameras act as an all-in-one solution, handling recording, notifications, management and monitoring all accessed remotely, with no need for a dedicated server or remote recorder.

Easily add storage capacity

Blackjack^® NAS devices can be implemented into a MEGApix^® CaaS™ network, offering lower cost and greater flexibility than adding additional servers to an existing system.

Camera as a system

The CaaS™ solution supports multiple cameras in the same network, and unlimited systems all accessible and manageable via DW Spectrum^® client, app and DW Cloud™.

360° hemispheric and panoramic fisheye views at real-time 30fps

360° fisheye view IP cameras MEGApix^® Pano™ 360° view fisheye cameras with IR monitor an entire room with a single camera, providing the ultimate ROI.

All-in-one cameras, no server required
5MP 1/1.8" image sensor at real-time 30fps
1.5mm fisheye lens
Built-in 512GB and 1TB storage options for up to 60 days of retained video*
Support 360° hemispheric fisheye view and 360°, 180° and 90° panoramic views
Edge-to-edge image clarity
Easily to deploy with pre-loaded DW Spectrum® IPVMS for out-of-the-box operation
24/7 access to live and recorded video feed
Automatic installation and licensing with first power on
Connect up to 30 MEGApix® CaaS™ edge cameras
Dual recording option with Blackjack® NAS appliance
Dual codecs (H.264, MJPEG) with simultaneous dual-stream
55’ Smart IR™ with intelligent camera sync
Smart DNR™ 3D digital noise reduction
True day/night with mechanical IR cut filter
Programmable privacy zones
Auto gain control (AGC)
Backlight compensation (BLC)
Auto white balance (AWB)
Motion detection
Web server built-in
PoE class 3 and DC12V
Waterproof cabling
UL listed
ONVIF conformant, profile S
NDAA compliant
IP66 environmental-rated dust-tight and water-resistant
5 year warranty

Image sensor	6.4MP 1/1.8” CMOS
Total pixels	3096 (H) X 2080 (V)
Minimum scene illumination	0.39 lux (color)
Minimum scene illumination	0 lux (B/W)
Video output	Local video output CVBS 1.0V p-p (75 ?), 4:3 aspect ratio
Resolution	5MP (2592x1944)
LENS
Focal length	1.55mm, F2.5
Lens type	Fisheye lens
Field of view (FoV)	360°
IR distance	55ft range
OPERATIONAL
Shutter mode	Auto, manual, anti-flicker, slow shutter
Shutter speed	1/30~1/32000
Slow shutter	1~1/5,1/7.5, 1/10
Auto gain control	Auto
Day / night	Auto, day (color), night (B/W)
Smart DNR™ 3D digital noise reduction	0~11
Privacy zone	4 programmable privacy masks
Alarm notifications	Notifications via e-mail, FTP server or SD card recording (card not included)
NETWORK
LAN	10/100 based-T, RJ-45 connector
Video compression type	H.264, MJPEG
Resolution	2592 X 1944 @ 30fps 640X480 @ 30fps 320X240 @ 30fps
Frame rate	Up to 30fps at all resolutions
Video bitrate	100Kbps ~ 10Mbps, multi-rate for preview and recording
Bitrate control	Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth)
Streaming capability	Dual-stream at different rates and resolutions
IP	IPv4
Protocol	Zero config(Auto IP), ONVIF, TCP/IP, UDP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3(MIB-2)
Security	HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW)
ONVIF conformance	Yes
Web viewer	OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®
Video management software	DW Spectrum® IPVMS
Number of DW Spectrum® CaaS™ licenses included	1 DW Spectrum® CaaS™ license included
Local server recording	DWC-PVF5M1TIRWC5: 512GB local memory for recording DWC-PVF5M1TIRWC1T: 1tB local memory for recording
Max. number of CaaS™ cameras in the same network/system	Up to 30 MEGApix® CaaS™ cameras in the same network/system
ENVIRONMENTAL
Operating temperature	-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity	Less than 90% (Non-Condensing)
IP rating	IP66-rated weather and tamper-resistant
Other certifications	CE, FCC, RoHS
ELECTRICAL
Power requirement	DC12V, POE IEEE 802.3af class 3 (adaptor not Included)
Power consumption	LED On: 6.5W LED Off: 3.6W
MECHANICAL
Material	Aluminum vandal housing, polycarbonate dome
Dimensions	4.9" x 1.88” (125 x 48mm)
Weight	1.1 lbs (0.5kg)

NOTE:

External ONVIF devices cannot be added
IVA/IVA+ is not available on this model
Plugins from external devices cannot be added

Model #	Storage size
DWC-PVF5M1TIRWC5	512GB
DWC-PVF5M1TIRWC1T	1TB

DW Spectrum® IPVMS

LEARN MORE

Blackjack® NAS

LEARN MORE

DWC-VFCMW

Ceiling mount bracket - white

DWC-GPLT-W

Converter plate for electronic gang box - white

DWC-V1CNMW

Corner and pole mount bracket - white

DWC-VFJUNCW

Junction box - white

DWC-WMJUNCW

Junction box for wall mount brackets

DWC-PMB-WLW

Pole mount bracket for bullets and dome cameras

DWC-VFWMW

Wall mount bracket - white
