MEGApix® Pano™ 48MP multi-sensor vandal IP camera with 7.2mm fixed lenses

Share this Product!

48MP multi-sensor vandal IP camera with 7.2mm fixed lenses

Model: DWC-PZV2M72T

Find a Reseller | Request a Demo | Contact Us

DISCONTINUED

The multi-sensor MEGApix® PANO 48MP 180° View Camera uses four 12MP CMOS sensors to produce 180° views at up to 15fps at 48MP and 30fps at 32MP resolution via a single PoE Plus connection. The camera’s remote alignment and field of view adjustment delivers unbeatable image quality. The camera comes in an IP66-rated weather resistant enclosure with anti-reflective glass.

Megapixel resolution in multi-sensor IP cameras

DW’s technology delivers crystal clear images in any resolution. Higher resolution offers forensic details with zooming into the camera’s field of view.

Smart 3D DNR™ (digital noise reduction)

Use DW’s exclusive noise reduction technology to produce clearer color and monochromatic video in low light without adding visual lag or ghost effects.

TDN [True Day/Night] with IR Cut Filter

During daylight, the IR cut filter allows visible light to pass through, reflecting the unwanted infrared light. In low light environments, where artificial or external light is not available, the cut filter is removed from in front of the lens, allowing the camera to capture the infrared light that given out from the infrared LEDs, to capture as much light as possible to produce brighter images.

4x 12MP 1/2.3" Image Sensor at Real Time 30fps

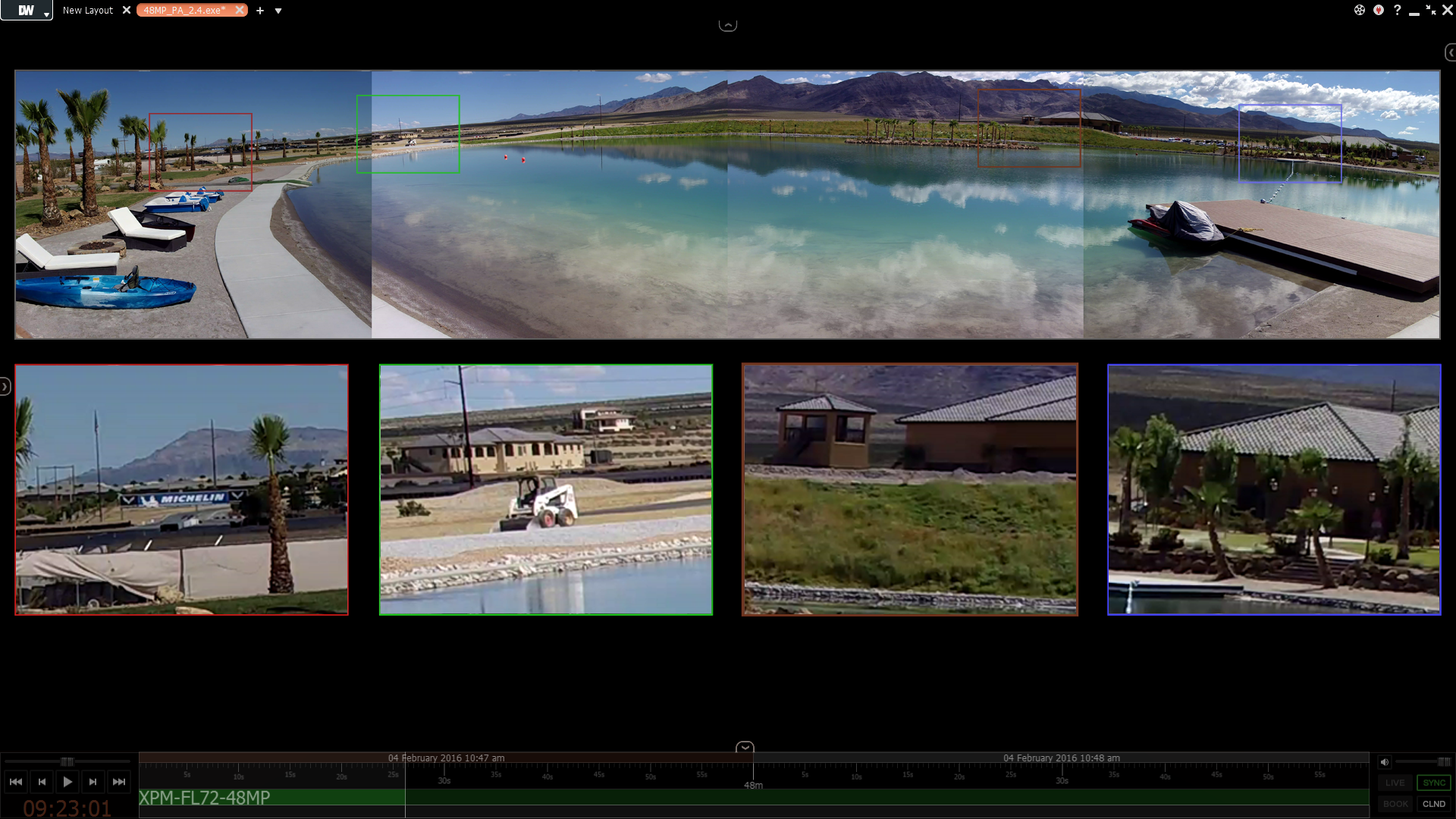

48MP 180° Panoramic View IP Camera
4x 7.2mm Auto Focus Fixed Lens
Fast Frame Rates: 15fps at 48MP / Real-time 30fps at 32MP
Zero Distortion Anti-reflective Glass
PoE Injector Included
H.264 Codec with Simultaneous Dual-Stream
Easy Image Alignment and Stitching
Advanced 1.0Ghz Dual Core Video Processors
Smart DNR™ 3D Digital Noise Reduction
True Day/Night with Mechanical IR Cut Filter
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Auto White Balance (AWB)
Motion Detection
Web Server Built-in
PoE+ High Power and DC12V
NDAA/TAA compliant
IP66 Certified Weather and Tamper Resistant

Image sensor	4x 1/2.3” CMOS
Total pixels	4000(H) x 3000(V)
Minimum scene illumination	0.5 lux (color)
Minimum scene illumination	0.1 lux (B&W)
S/N ratio	50dB
Maximum resolution	48MP (4x 12MP)
LENS
Focal length	4x 7.2mm
Lens type	Fixed lens
Field of view (FoV)	48MP mode: 48° HFOV per image, 185° total HFOV
Field of view (FoV)	32MP mode: 46° HFOV per image, 180° total HFOV
OPERATIONAL
Shutter mode	Auto, manual, slow shutter
Shutter speed	1/25 ~ 1/10000 Sec
Slow Shutter	1/7.5 ~ 1/32000
Auto gain control	Auto
Day / night	Auto, day (color), night (B/W)
Smart DNR™ 3D digital noise reduction	Off, low, middle, high
White balance	Auto, indoor, outdoor, manual
Mirror and flip	Yes
Backlight compensation (BLC)	On, off
NETWORK
LAN	1000Base-T (1Gbps)
Video compression type	H.264
Resolution	Up to 16000 x 3000
Frame rate	48MP: 15fps per sensor
Frame rate	32MP: 30fps per sensor
Video bitrate	4Mbps/8Mbps/12Mbps
Bitrate control	Multi Streaming CBR/VBR at H.264 (Controllable frame rate and Bandwidth)
Streaming capability	1 main high resolution, 1 low resolution streams
IP	IPv4
Protocol	TCP/IP, DHCP, UDP, RTSP,NTP, RTP,Zeroconf, UpnP, Telnet
Web viewer	OS: Windows® 7, Windows® 8, Windows® 10 Browser: IE, Chrome, Firefox
Video management software	DW Spectrum® IPVMS
ENVIRONMENTAL
Operating temperature	-40°F ~ 122°F (-40°C ~ 50°C)
Operating humidity	Less than 80% (non-condensing)
IP rating	IP66 certified weather and tamper resistant
Other certifications	FCC, CE, ROHS
ELECTRICAL
Power requirement	DC12V, PoE+ IEEE 802.3at PoE+ (High power PoE injector included)
Power consumption	12VDC: 22.5W PoE+: 25.5W
MECHANICAL
Material	Aluminum vandal housing, polycarbonate lens cover
Dimensions	7.5" x 4.25" (190 x 108mm)
Weight	4.4 lbs (2kg)
MINIMUM CLIENT REQUIREMENTS
NOTE: DW Spectrum® IPVMS client must run a a separate system than the recording one	NOTE: DW Spectrum® IPVMS client must run a a separate system than the recording one
Processor	Intel® Core™ i5 4th generation processor or higher
RAM	16GB
Network	1Gbps
Graphics card	nVidia GeForce® 1050 or comparable
MINIMUM SERVER REQUIREMENTS
NOTE: Blackjack® servers supporting the DWC-PZV2M72T: DW-BJER2UxT, DW-BJER3UxT, DW-BJER4UxT	NOTE: Blackjack® servers supporting the DWC-PZV2M72T: DW-BJER2UxT, DW-BJER3UxT, DW-BJER4UxT
Processor	Intel® Core™ i7 4th generation processor or higher
RAM	16GB
Network	1Gbps
Hard drive	Enterprise level HDD

Minimum Client Requirements
NOTE: DW Spectrum® IPVMS Client must run a separate system than the recording one
Processor		Intel® Core™ i5 4th Generation Processor or higher
RAM		16GB
Network		1Gbps
Graphics Card		nVidia GeForce 1050 or comparable
Minimum Server Requirements
Blackjack Servers supporting the DWC-PZV2M72T: DW-BJER2UxT, DW-BJER3UxT, DW-BJER4UxT
Processor		Intel® Core ™ i7 4th Generation Processor or Higher
RAM		16GB
Network		1Gbps
Hard Drive		Enterprise Level HDD
