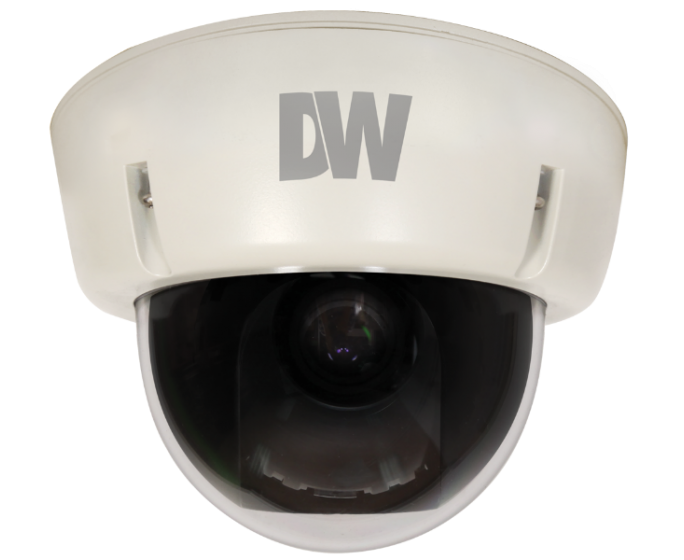

STAR-LIGHT MPA™ 1.3 Megapixel Analog Indoor/Outdoor Dome Camera

Share this Product!

Model: DWC-V5661T

Find a Reseller | Request a Demo | Contact Us

DISCONTINUED

The STAR-LIGHT™ MPA cameras are groundbreaking analog cameras that deliver up to 800TVL resolution thanks to their 1.3MP CMOS sensor. These cameras offer powerful features such as STAR-LIGHT™ super low light technology, CleanView™ self-cleaning dome technology, WDR, true day/night, QuickZoom™ technology without pixilation and De-Fog™ enhancement for extreme weather conditions.

De-Fog™ Image Enhancement

De-Fog™ utilizes specific enhancement algorithms that improves image clarity to reveal details obscured by fog, smog or strong weather conditions.

Highlight Masking Exposure (HME)

Highlight Masking Exposure masks the overly exposed areas in the camera’s field of view to produce a true image of any environment without detail loss from the light’s glare.

Star-Light™ Super Low-Light Technology

Star-Light™Technology provides crisp clear images in both color and B/W video in extremely low light conditions. It is an ideal solution for cameras that are installed in a low-light environment, and cannot rely on external lighting for image clarity. Coupled with a powerful IR built-in, Star-Light™ cameras can provide unparalleled details in total darkness.

TDN [True Day/Night] with IR Cut Filter

During daylight, the IR cut filter allows visible light to pass through, reflecting the unwanted infrared light. In low light environments, where artificial or external light is not available, the cut filter is removed from in front of the lens, allowing the camera to capture the infrared light that given out from the infrared LEDs, to capture as much light as possible to produce brighter images.

True Wide Dynamic Range (WDR)

Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.

1/3” Sony 1.3MP CMOS, 820TVL [B/W], 800TVL [Color]
QuickZoom™ Full Frame 8x Digital Zoom with no Loss in Resolution
STAR-LIGHT™ Super Low Light Technology
Wide Dynamic Range (WDR)
2.8~12mm Varifocal Auto Iris Lens
CleanView™ Hydrophobic Dome Coating Repels Water, Dust and Grease (Outdoor Domes Only)
Smart DNR™ 3D Digital Noise Reduction
Highlight Masking Exposure (HME)
De-Fog™ (Extreme Weather Image Compensation)
Auto Sensing 24VAC/12VDC with Line Lock
Secondary Video-BNC Output (While UTP in use)
Easy Icon Driven OSD Menu with Built-in Joystick
True Day/Night Mechanical IR Cut Filter
Programmable Privacy Zones
Auto Gain Control (AGC)
Back Light Compensation (BLC)
Dynamic Range Compressor (DRC) Reveals Low Light Detail
Auto White Balance (AWB)
UTP Built-in
RS-485 Built-in
Motion Trigger Output (5V)
IP66 Certified (Weather Resistant) – Outdoor Domes and Bullets only

Frequency		15.734KHz (H), 59.95Hz (V)
Image Sensor		1/3" Sony 1.3MP CMOS Sensor
Minimum Illumination		F1.2 (30IRE): 0.0 Lux
Resolution		800TVL [Color], 820TVL [B/W]
S/N Ratio- Signal to Noise Ratio		55dB (AGC off)
Scanning System		2 : 1 Interlace
Synchronization		Internal or Line Lock
Total Pixels (H X V)		1280 (H) x 1024 (V)
Video Output		CVBS: 1.0Vp-p / 75 ?
Lens
Digital Zoom		x8
Focal Length		2.8~12mm
Lens Type		Varifocal Auto Iris
Mechanical
Dimensions		145 x 108.8 mm (5.7 X 4.28 in)
Housing Material		Aluminum
Housing Type		Vandal Dome
Sensor Input/ Output		1 Alarm Output
Warranty		5 Years
Weight		1.65 lbs
Operational
3D DNR	3D Digital Noise Reduction	OFF / LOW / MIDDLE / HIGH
AGC	Auto Gain Control	0~20
AWB	Auto White Balance	ATW / AWB / PUSH / MANUAL
BLC	Backlight Compensation	OFF / ON
D/N	Day/ Night	AUTO/ DAY/ NIGHT
DPC- Dead Pixel Cancellation		OFF/ ON
DRC	Dynamic Range Compressor	OFF / Low / Middle / High
Gamma		0.45 ~ 0.65
HME	Highlight Masking Exposure	ON/OFF
Programmable Privacy Zones		OFF / ON (16 Programmable Zones)
Sharpness		0~10
Starlight™ (Super Low Light Technology)		X2-X64
WDR	Wide Dynamic Range
Environmental
Operating Humidity		Less than 90% (Non-Condensing)
Operating Temperature		-20°C ~ 60°C (-4°F ~ 140°F)
Power Consumption		DC12V: 3.3W, 275mA AC24V: 2.56W, 106mA
Storage Temperature		-29°C ~ 70°C (-4°F ~ 158°F)
Voltage		Dual (12VDC & 24VAC)
