STAR-LIGHT AHD™ 2.1MP/1080p Ultra Low-Profile Vandal Dome Camera with 3.6mm Lens

Share this Product!

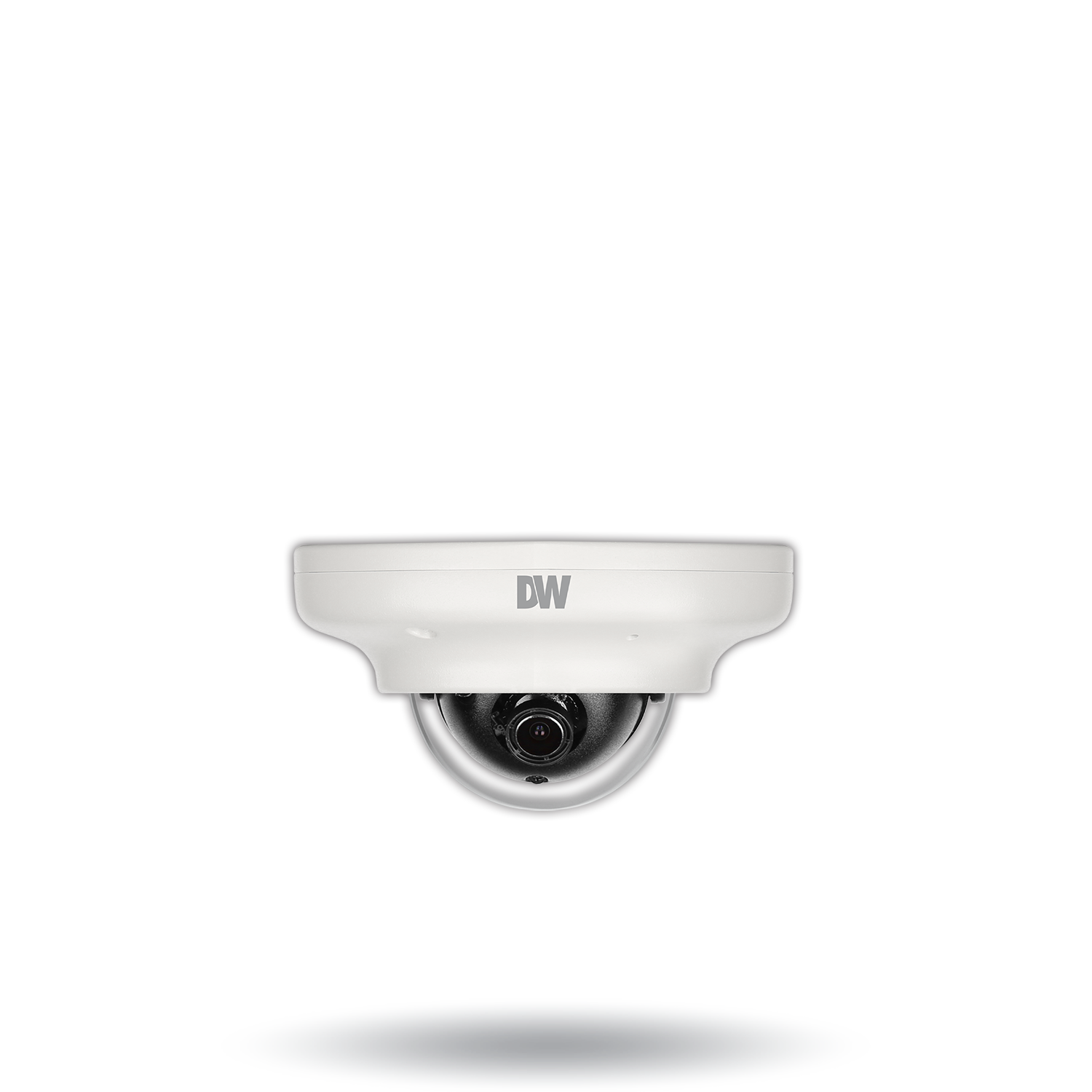

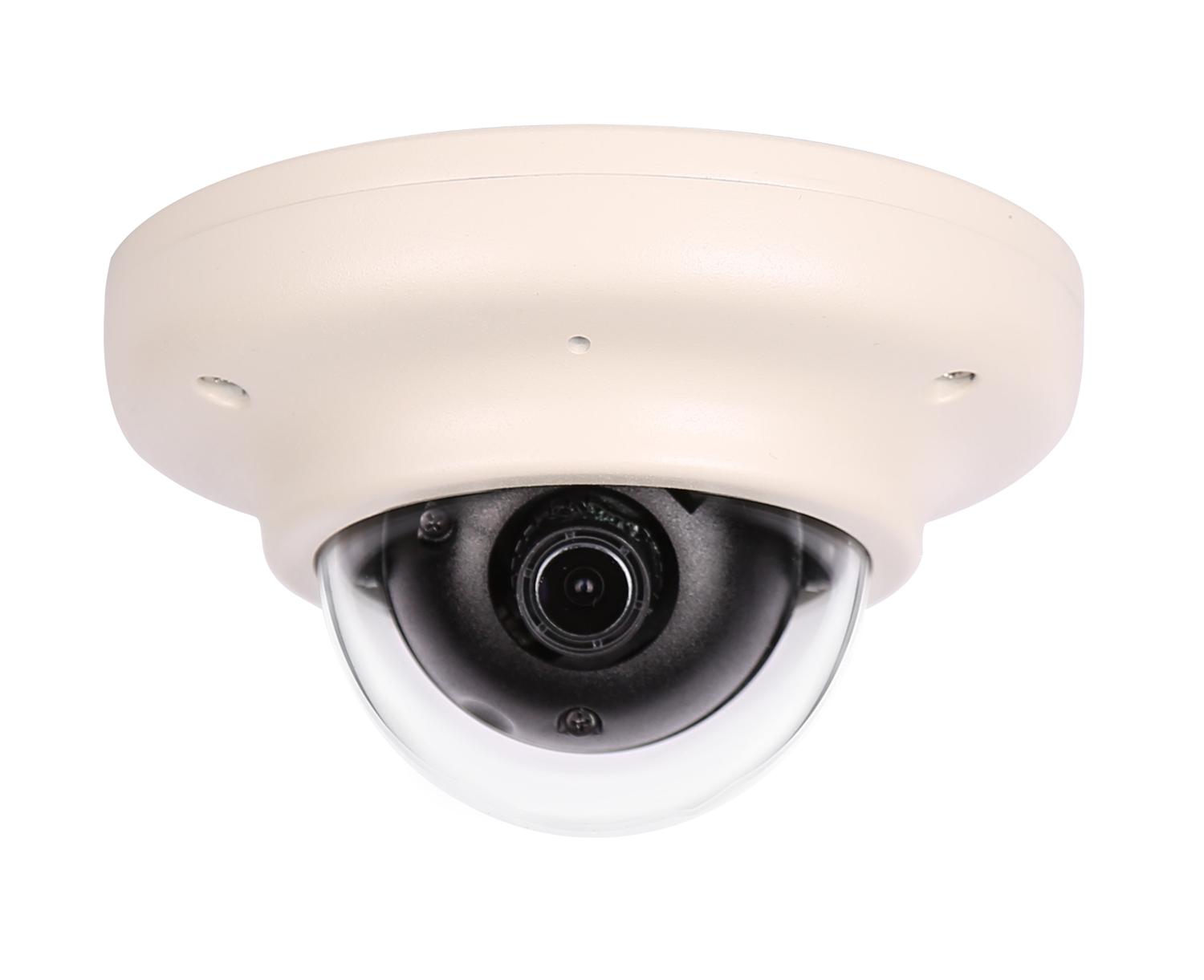

2.1MP/1080p Ultra Low-Profile Vandal Dome Camera with 3.6mm Lens

Model: DWC-V7753

Find a Reseller | Request a Demo | Contact Us

DISCONTINUED

Groundbreaking STAR-LIGHT AHD™ High Definition Cameras use existing coaxial cables to transmit crystal-clear detailed 1080p images. The cameras offer 2.1MP resolution along with powerful features such as Wide Dynamic Range (DWDR) and True Day/Night with Mechanical IR Cut Filter. The STAR-LIGHT AHD cameras are engineered to work with VMAX AHD DVRs, offering an easy upgrade from analog to high definition surveillance using existing infrastructure for a cost-effective, high resolution surveillance solution.

Important Note: The camera requires a DVR that supports HD over Coax protocols, like the VMAX A1.

Analog High Definition (AHD)

AHD Technology delivers clear HD video
at 1920 x 1080 Resolution.

Analog High Definition (AHD) HD over Coax Technology
STAR-LIGHT™ Super Low Light Technology
1/2.7” CMOS Sensor
1080p Resolution at 30fps
Digital Wide Dynamic Range (DWDR)
Fixed Lens 3.6mm
Smart DNR™ 3D Digital Noise Reduction
Highlight Masking Exposure (HME)
Secondary Video-BNC Output
Programmable Privacy Zones
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Auto White Balance (AWB)
IP67 Certified (Weather Resistant)
5 Year Warranty

Image Sensor		1/2.7” CMOS Sensor
Active Pixels		1920(H) x 1080(V)
Scanning System		Progressive scan
Frequency		60Hz/50Hz
Signal Technology		2.0 Megapixel AHD
Synchronization		Internal
Resolution		1920x1080 (1080p)
Minimum Scene Illuminationy		F2.0 (30IRE): 1.0Lux [Color]
S/N Ratio		55dB
Video Output		AHD 1080p30fps/720p60fps/720p30fps
LENS
Focal Length		3.6mm
Lens Type		Fixed
OPERATIONAL
Shutter Speed		1/30(25)-1/30,000
Backlight		Off/ On
STAR-LIGHT (Sense-up)		OFF, x2 -x32
Wide Dynamic Range (WDR)		Off/ On
Digital Noise Reduction		Off, Low, Middle, High
White Balance		Auto / Auto-Ex/ Preset / Manual
Day and Night		Day/ Night/ Auto
Mirror/ Flip		Yes
Auto Gain Control		Max 60dB
Motion Detection		Yes
Privacy Zones		4 Privacy Zones
Sharpness		0 ~ 10
Gamma		0.45 ~ 0.75
Digital Zoom		x1.0 ~ x16.0
ENVIRONMENTAL
Operating Temperature		-4°F ~ 122°F (-20°C ~ 50°C)
Operating Humidity		than 90% (Non-Condensing)
IP Rating		IP67 (Weather and Dust Resistant)
Other Certifications		FCC, CE, ROHS
ELECTRICAL
Power Requirements		DC 12V
Power Consumption		3.06W, 255mA
MECHANICAL
Material		Aluminum
Dimensions		105 x 60.7mm (4.13 x 2.38 in)
Weight		0.95lbs
