Home Products Blackjack Tower workstations, 4 simultaneous monitors

Share this Product!

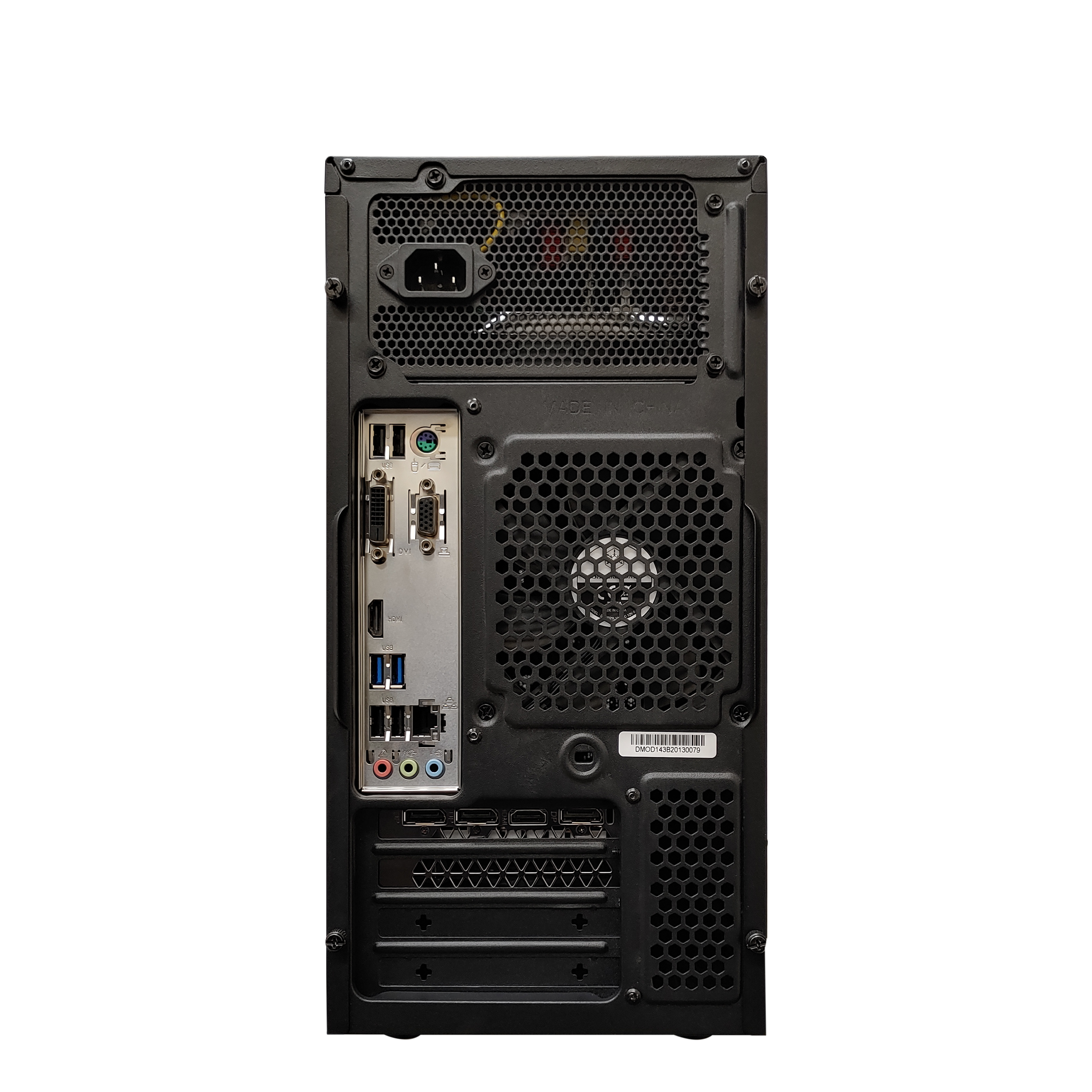

Blackjack Tower workstations, 4 simultaneous monitors
Model: DW-BJMTC7404T
Find a Reseller | Request a Demo | Contact Us

Blackjack® Tower™ monitoring workstations are reliable and high-performance solutions for viewing and monitoring multiple single-sensor and multi-sensor IP cameras of any resolution from a single location. The workstations are NDAA/TAA compliant and include Windows 10® OS on a separate SSD. Hardware features include an Intel® 9th generation processor and local true HD, DVI and DisplayPort outputs for up to four simultaneous monitor connections up to 4K resolution. The monitoring workstations come preloaded with DW Spectrum® client, are ONVIF conformant and come with a 5 year limited warranty.

NDAA TAA


  • DW-BJMTC7404T

DW Spectrum® IPVMS
DW Spectrum® IPVMS is an endlessly customizable IP Video Management platform that gives users the ability to create tailored network video solutions for any type of project, from the office or on in the field.
Multi-Monitors Support
Blackjack® monitoring workstations allow users to connect multiple monitors, up to four (4) separate outputs in a single station, increasing the monitoring capabilities and expanding the DW Spectrum® client to the next level.
Designed and commissioned in the U.S.A
All DW recorders, workstations and NAS devices are designed, assembled and inspected in our California facility. Each product undergoes multiple levels of quality control to guarantee the highest quality and performance.
ONVIF® Conformant
DW’s ONVIF conformant IP products allow you to bring our robust solutions to any surveillance system with other ONVIF components, creating a truly unique solution, to match your specific needs.
  • Supports all ONVIF conformant IP cameras
  • OS on SSD
  • Support for up to three (3) MEGApix® PANO™ multi-sensor cameras up to 48MP (DWC-PZV2M72T)
  • 1 x true HD, 3 x Display Port, up to 4 displays simultaneously (DW-BJMTC7404T)
  • 1x 1G network port
  • Windows 10® on separate SSD
  • Hosting DW Spectrum® for monitoring
  • No annual maintenance fees
  • Simple enterprise scalability
  • Auto device discovery
  • USB mouse and keyboard included
  • Designed, assembled and tested in the U.S.A.
  • NDAA/TAA compliant
  • 5 year limited warranty
MODELS
 DW-BJMTC5204T DW-BJMTC7404T
Form factor
Mid-size tower Mid-size tower
Operating system
Windows® 10 Windows® 10
OS on SSD 240GB SSD
CPU
9th generation Intel® i5® processor 9th generation Intel® i7® processor
Memory
16GB
 32GB
Ethernet port
1 x 1Gigabit Ethernet (RJ45)
Video-out
Outputs
1x true HD, 1x DVI, 1x Display Port, maximum any 2 ports simultaneously (any 2 ports) 1x true HD, 3x DisplayPort, maximum 4 displays simultaneously
Video card
Nvidia GTX1650 or comparable Nvidia RTX3060 or comparable
Max resolution 7680x4320
Preloaded VMS software
DW Spectrum® IPVMS client
Remote clients
Cross-platform - Windows®, Linux Ubuntu® and Mac®
Mobile apps
iOS® and Andriod®
DW Site Viewer
DW Spectrum App
Keyboard and mouse
Included
Power supply
400W** 500W*
Operating temperature (ambient room temperature)
41°F~104°F (5°C~40°C)
Operating humidity
20~90% RH
Dimension (WxDxH)
7.46” x 15.7” x 14.21” (189.52 x 398.8 x 631.02 mm)
Warranty
5 year limited

** A UPS is recommended

Part Number

Description

DW-BJMTC7404T
Blackjack Tower monitoring station, Intel i7 processor, 4 simultaneous monitors.
DW Spectrum IPVMS Licensing Options

Part Number

Description

DW-SPECTRUMLSC001
Single DW Spectrum® IPVMS License, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS004
Four (4) DW Spectrum® IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS010
Ten (10) DW Spectrum® IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS020
Twenty (20)  DW Spectrum® IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS050
Fifty (50)  DW Spectrum® IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS100
One Hundred (100)  DW Spectrum® IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPCP04LSC004
Single DW Spectrum® IPVMS License - allows up to 4-channel or recording when used with DW-CP04 and DW-CP16,  No Annual Renewal, No Upgrade Required.
DW-SPVWALL1X2Single DW Spectrum® IPVMS Video Wall License - 1 Operator, 2 Monitors,  No Annual Renewal, No Upgrade Required.
DW Spectrum® IPVMS
LEARN MORE
Blackjack® servers
LEARN MORE
DW Spectrum Mobile (for v4.0 and Higher)
DW Spectrum Mobile
DW Site Viewer™
DW Site Viewer™ for Apple TV
DWC-PVX20WATW, DWC-PPVX20WATW
MEGApix® Flex™ 20MP user-configurable multi-sensor vandal dome IP camera with 4x 2.8 ~ 8.0mm vari-focal lens modules with motorized zoom and auto-focus pre-loaded with IVA
DW-BJAiMTxxT
Blackjack® Ai Tower™ mid-size servers powered by DW Spectrum® IPVMS and IVA
DW-BJCUBExT-DL
Blackjack® CUBE DL
DW-BJMT31xxT
Blackjack Tower mid-size servers with Intel® Core™ i3 processor, UL listed
DW-BJMT51xxT
Blackjack Tower mid-size servers with Intel® Core™ i5 processor, UL listed
DW-BJMT71xxT
Blackjack Tower mid-size servers with Intel® Core™ i7 processor, UL listed
Title Type Size Download
Blackjack Brochure pdf 3.93 MB
DW-BJMTC CAD drawing dwg 0.33 MB
DW-BJMTC datasheet pdf 0.58 MB
DW-BJMTC quick setup guide pdf 3.38 MB
Title Type Release Notes Version Compatibility Size Download
DW Spectrum IPVMS Client v4.2.0.32842 Mac dmg v4.2.0.32842 121.98 MB
DW Spectrum IPVMS Client v4.2.0.32842 Windows x64 Bit exe v4.2.0.32842 129.20 MB
DW Spectrum IPVMS Client v5.0.0.35271 Windows x64 Bit exe v5.0.0.35271 146.55 MB
DW Spectrum IPVMS Full Software v4.2.0.32842 Windows x64 Bit exe v4.2.0.32842 185.34 MB
DW Spectrum IPVMS Full Software v5.0.0.35271 Windows x64 Bit exe v5.0.0.35271 193.07 MB
DW Spectrum IPVMS Server v4.2.0.32842 Windows x64 Bit exe v4.2.0.32842 94.23 MB
DW Spectrum IPVMS Server v5.0.0.35271 Windows x64 Bit exe v5.0.0.35271 93.99 MB
DW Spectrum IPVSM Paxton Plug-in v4.2.0.32842-Net2v5 exe v4.2.0.32842 1.24 MB
DW Spectrum IPVSM Paxton Plug-in v4.2.0.32842-Net2v6 exe v4.2.0.32842 1.27 MB
DW Spectrum IPVSM Paxton Plug-in v5.0.0.35271-Net2v5 exe v5.0.0.35271 1.24 MB
DW Spectrum IPVSM Paxton Plug-in v5.0.0.35271-Net2v6 exe v5.0.0.35271 1.28 MB
DW Witness Plugin for Windows v5.0.0.35271 dll v5.0.0.35271 0.09 MB
