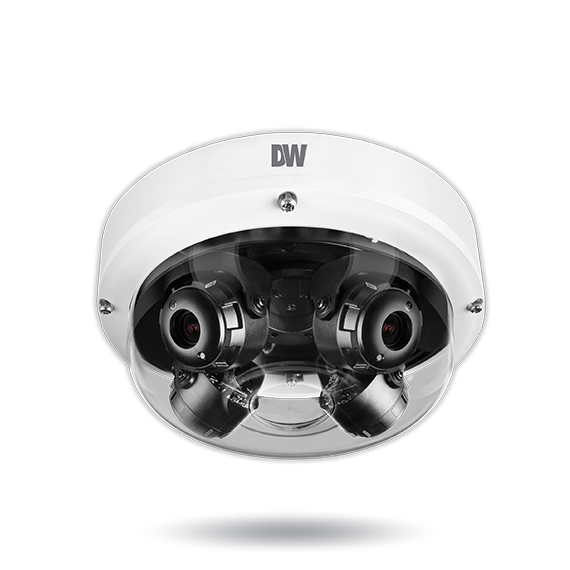

MEGApix® Flex™ 20MP user-configurable multi-sensor vandal dome IP camera with 4x 2.8 ~ 8.0mm vari-focal lens modules with motorized zoom and auto-focus pre-loaded with IVA

Share this Product!

20MP user-configurable multi-sensor vandal dome IP camera pre-loaded with IVA

Model: DWC-PVX20WATW, DWC-PPVX20WATW

Find a Reseller | Request a Demo | Contact Us

This IP camera powered by IVA is your gateway to powerful video analytics features. The camera is a 20MP NDAA-compliant multi-sensor configurable panoramic camera that reduces total system cost by providing four video streams at real-time 30fps with vari-focal lenses in one housing and installation. The MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced Video Content Analysis detection capabilities. The camera features Star-Light Plus™ color in near-total darkness technology and true WDR for quality video in any lighting condition. The four (4) lens modules can be placed in five (5) positions on a magnetic track. A mounting accessory is sold separately and is needed to complete the camera’s installation.

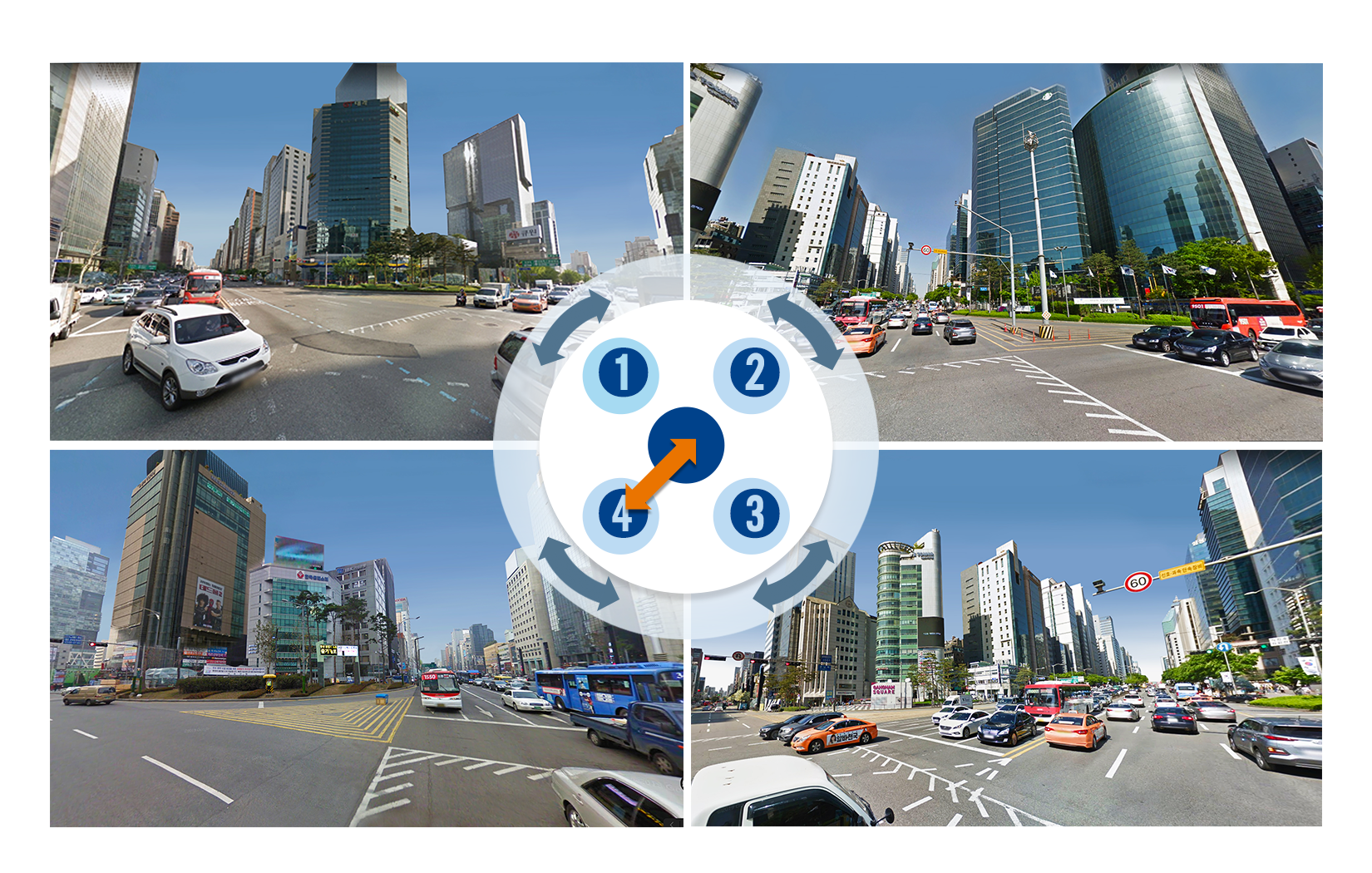

Versatile lens installation

A single DW Flex camera can replace multiple single-sensor cameras with great ROI. With multiple lens arrangements and positioning, the camera can enhance any application and cover any area needed with no blind spots.

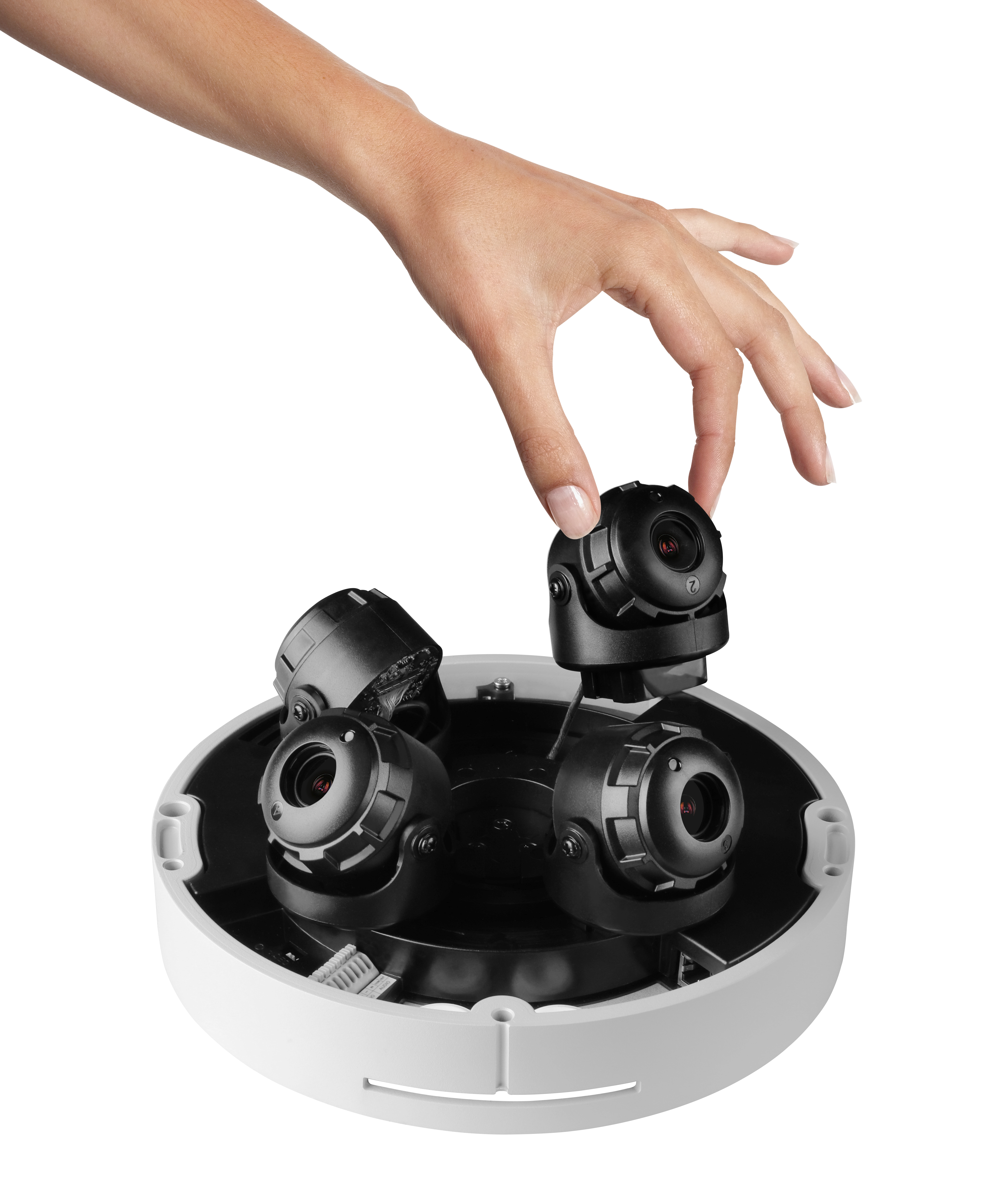

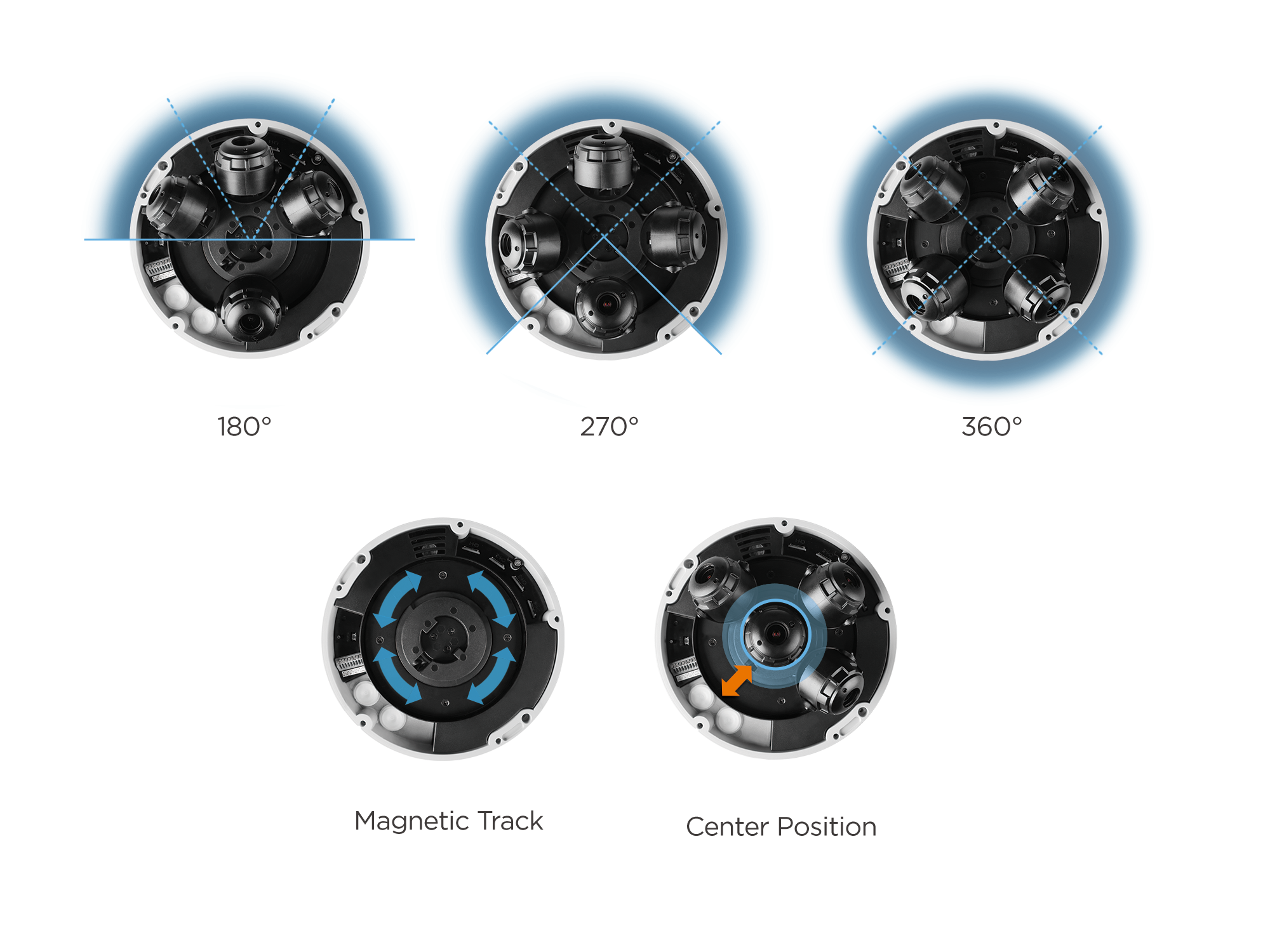

Magnetic track flexibility

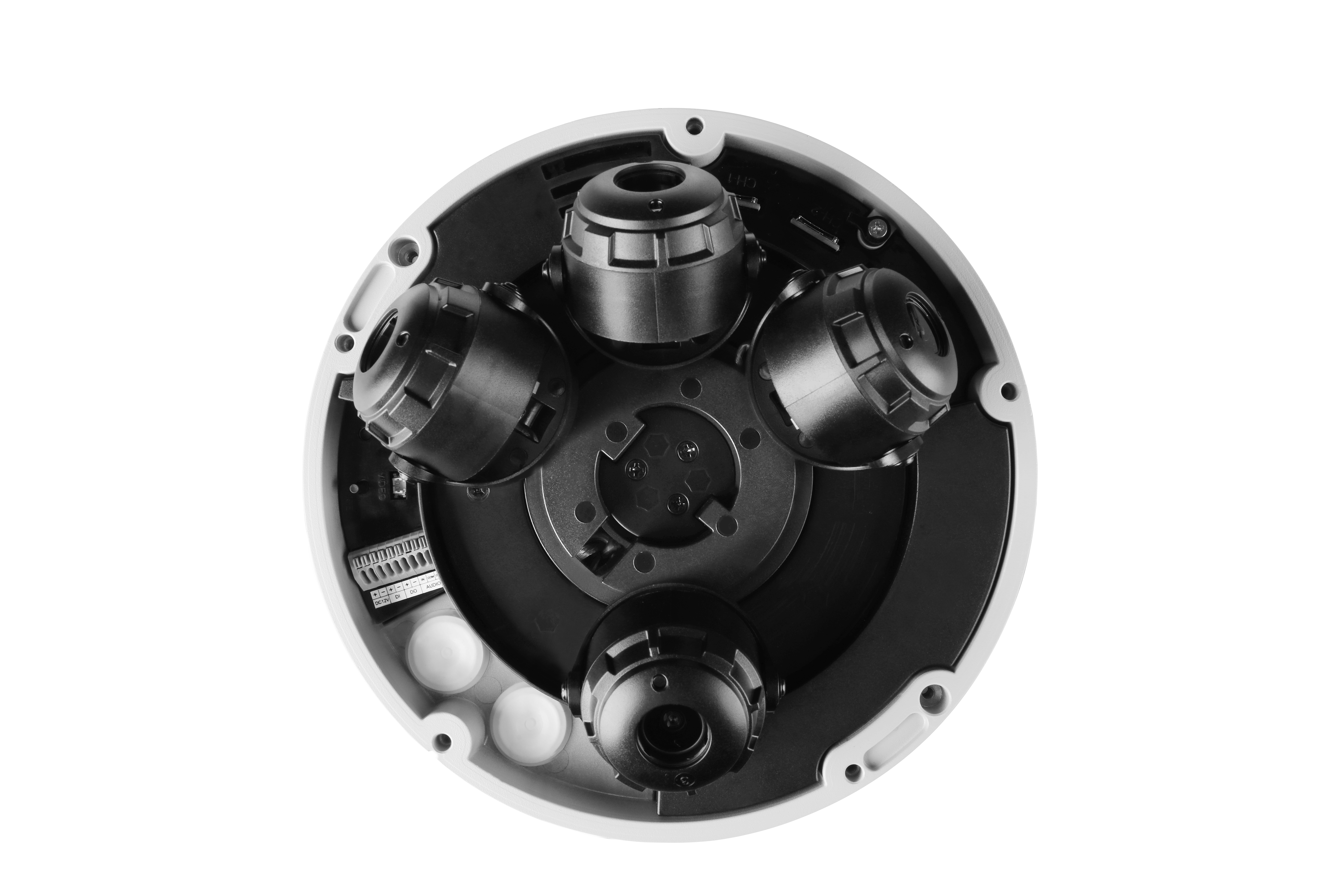

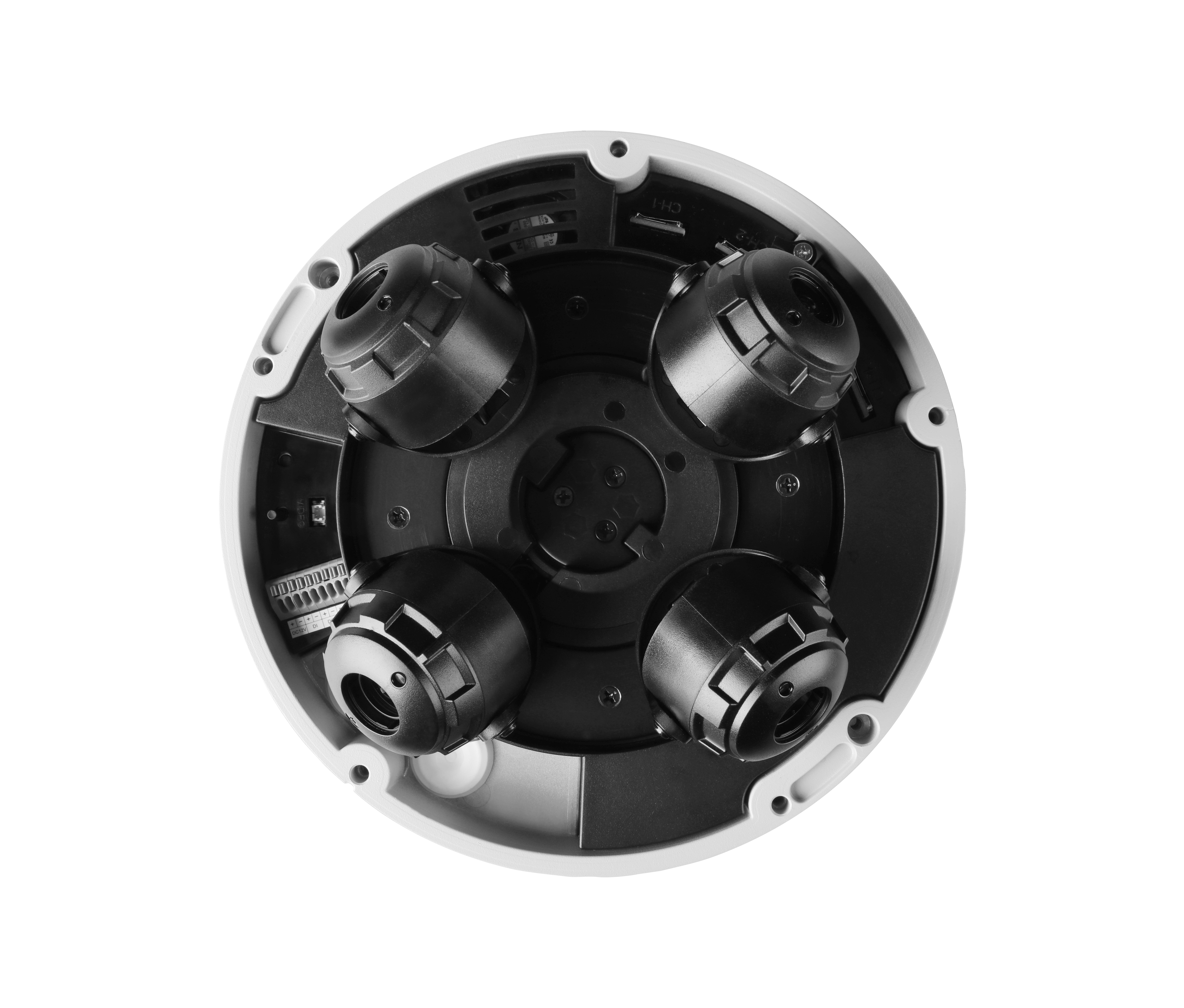

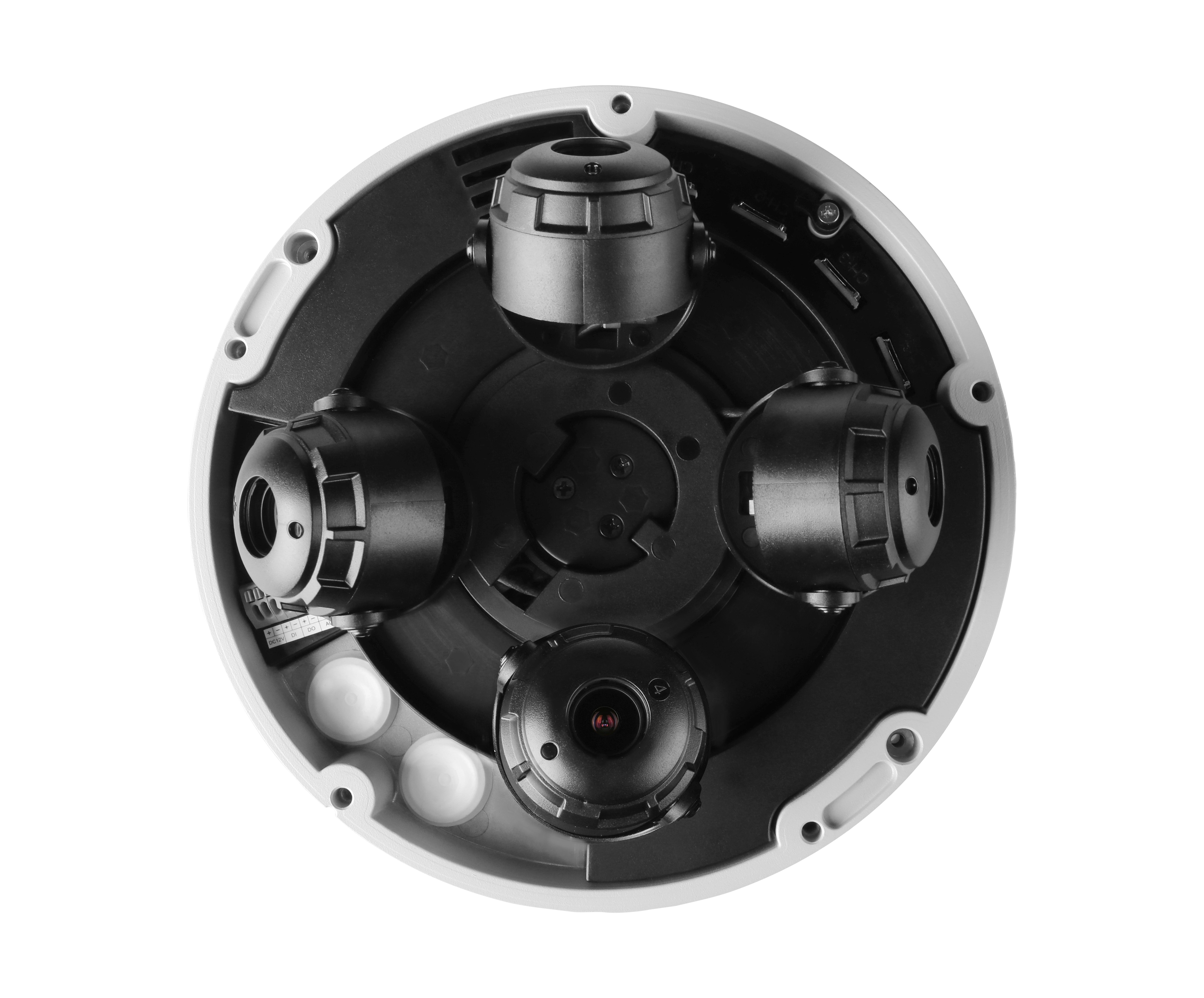

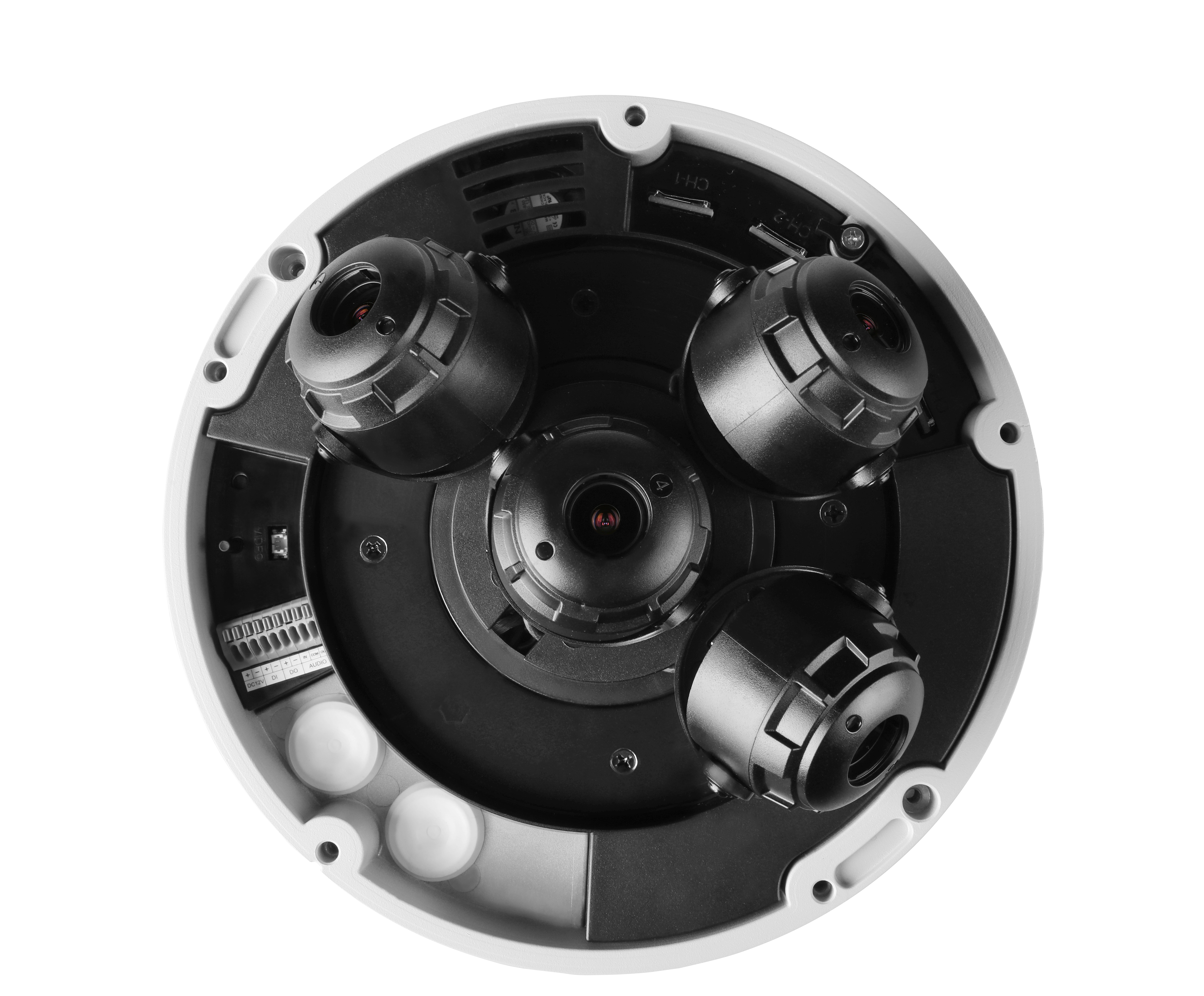

The camera's unique magnetic track allows four individual lens modules to be placed in almost any possible configuration. A fifth , vertical, top view position in the center of the camera offers complete coverage and field of view control.

4x vari-focal lenses with motorized zoom and auto-focus

Adjust the camera’s four (4) individual vari-focal lens modules to achieve the ideal field of view based on your unique needs.

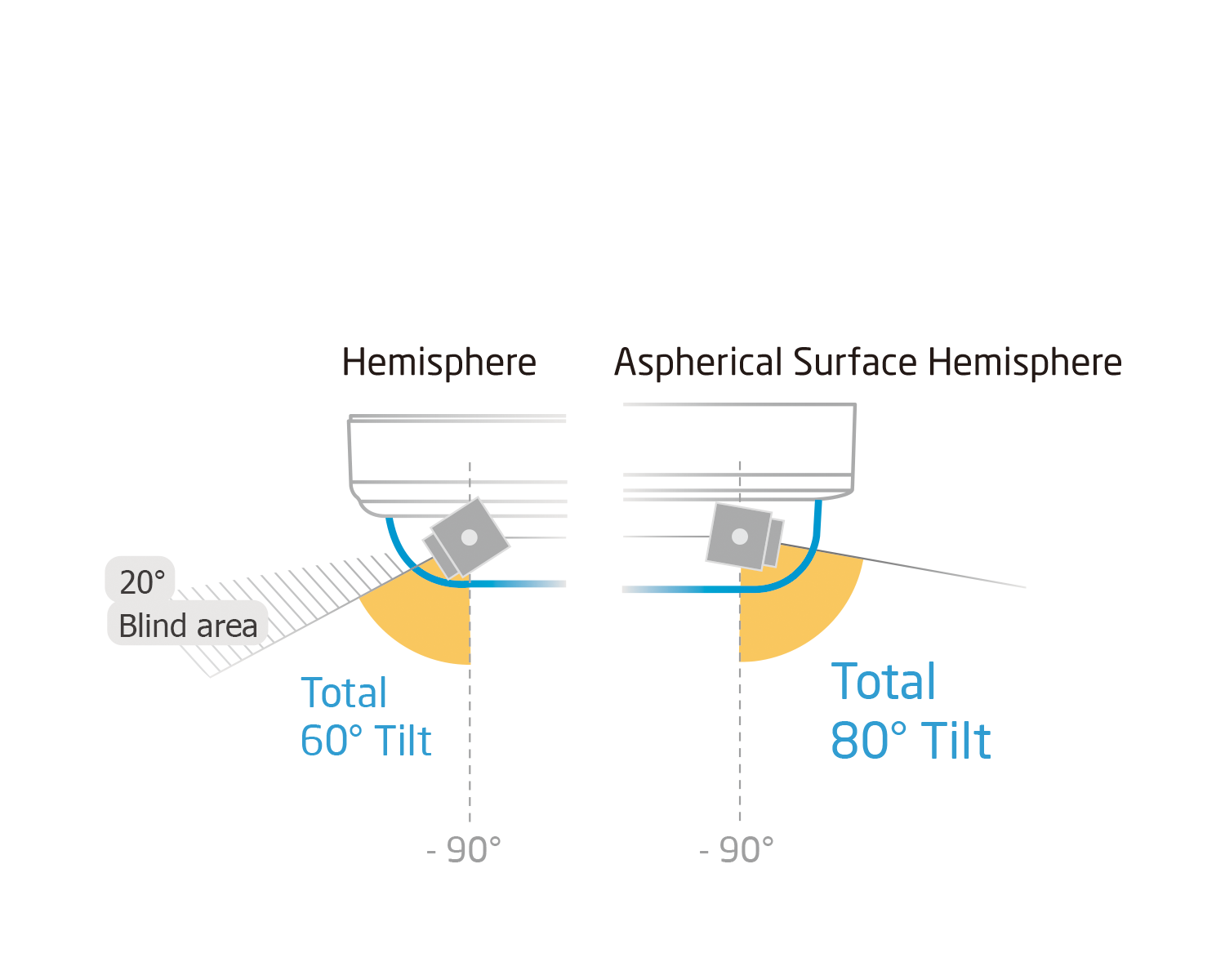

Wide tilting angle

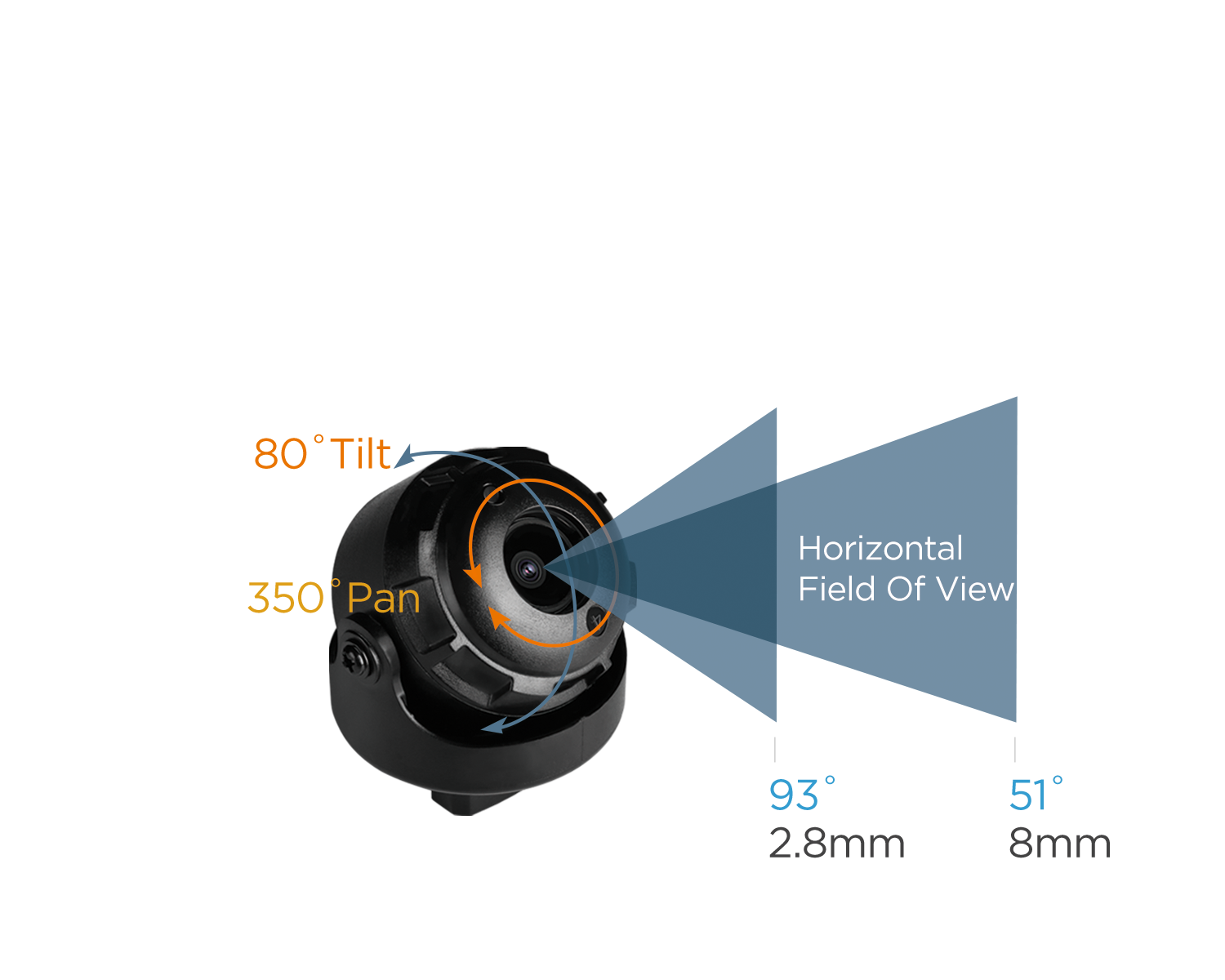

The camera modules' unique aspherical hemispheric surface allows users to tilt each module up to 80°, reducing blind spots in the camera's foreground.

Easy camaera installation

The camera includes a simple double-lock mechanism between the base of the camera and mounting accessory, making installation quicker, simpler and safer.

IVA Analytics

MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced video content analysis detection capabilities.

LEARN MORE

20MP (4x 5MP) 1/3" image sensors at real-time 30fps
Star-Light Plus™ color in near-total darkness technology
Intelligent Video Analytics (IVA pre-loaded models)
Extended Intelligent Video Analytics (IVA+ pre-loaded models)
Seamless integration and control of IVA rules with DW Spectrum® IPVMS
Reduce false alarms
Increase your recording storage with logic rules and smart recording
360° and 180° flexible panoramic view IP camera
4x 2.8~8.0mm vari-focal p-iris lens with motorized zoom and auto-focus
Four cameras in one installation
3-axis gimbal for wide range lens positioning
Flexible sensor positioning on a magnetic base
True wide dynamic range (WDR)
PoE injector included
Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
Two-way audio
Smart DNR™ 3D digital noise reduction
True day/night with mechanical IR cut filter
Auto gain control (AGC)
Auto white balance (AWB)
Motion detection
Micro SD/SDHC/SDXC class 10 card (card not included)
Alarm sensor input
Relay output
Web server built-in
ONVIF conformant, profile S
PoE class 5 and DC12V
NDAA compliant
IP67 dust-tight and waterproof to 3 feet
5 year warranty

Image sensor	4x 1/2.8" 5.14MP CMOS
Total pixels	4x 2592(H) x 1944(V)
Minimum scene illumination	0.05 lux (color) 0.1 lux (B/W)
S/N ratio	50dB
Maximum resolution	20MP (2592x1944 per channel)
LENS
Focal length	4x 2.8 ~ 8.0mm, F1.6
Lens type	Vari-focal p-iris lens with motorized zoom and auto-focus
Field of view (FoV)	4x 51° ~ 93°
I/O
Audio in / out	1 input (1.0Vms, 3K ohm) / 1 output
Audio compression	G.711
Alarm in/out	(1.0Vms, 3K ohm)
Event triggers	Motion detection, network loss, temperature critical, illegal login, schedule, sensor detection
OPERATIONAL
Intelligent Video Analytics	IVA license: intrusion, line crossing, counting line, loitering, enter, exit, tamper
Intelligent Video Analytics	IVA+ license: object removed, tailgating, direction, stopped, appear, disappear, object left
Shutter mode	Auto, manual, anti-flicker, slow shutter
Shutter speed	1/15 ~ 1/32000
Slow Shutter	1/2, 1/3, 1/5, 1/6, 1/7.5, 1/10
Auto gain control	Yes
Day / night	Auto, day (color), night (B/W)
Smart DNR™ 3D digital noise reduction	Yes
Wide dynamic range (WDR)	True WDR on, off
Wide dynamic range (WDR) dB	120dB
White balance	Auto
Mirror and flip	Yes
Privacy zones	16 programmable privacy masks
Alarm notifications	Notifications via e-mail, FTP, alarm output, SD card recording
Memory Slot	Micro SD/SDHC/SDXC class 10 card (card not included)
NETWORK
LAN	1000base-T (1Gbps)
Video compression type	H.265, H.264, MJPEG
Resolution	4x H.265: 2592x1944, 2560x1440, 1920x1080, 704x576, 704x480, 640x480, 640x360, 352x288, 352x240 4. H.264: 2592x1944 2560x1440 1920x1080 704x576 704x480 640x480 640x360 352x288 352x240 4x MJPEG: 1920x1080, 1280x720, 800x600, 768x432, 704x576, 704x480, 640x480, 640x360, 352x288, 352x240
Frame rate	Up to 30fps at all resolutions
Video bitrate	100Kbps ~ 10Mbps, multi-rate for preview and recording
Bitrate control	Multistreaming CBR/VBR at H.265 (controllable frame rate and bandwidth)
Streaming capability	Dual-stream at different rates and resolutions
IP	IPv4
Protocol	ONVIF, TCP/IP, UDP, autoIP, RTP (UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3 (MIB-2)
Security	HTTPS (TLS), IP filtering, 802.1x, Digest Authentication (ID/PW)
ONVIF conformance	Yes
Web viewer	OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®
Video management software	DW Spectrum® IPVMS
ENVIRONMENTAL
Operating temperature	-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity	10–90% RH (non–condensing)
IP rating	IP67-rated
Other certifications	FCC, CE, ROHS
ELECTRICAL
Power requirement	DC12V, PoE IEEE 802.3bt PoE+ class 5 (High power PoE injector included)
Power consumption	DC12V: max 28W PoE: max 31W
MECHANICAL
Material	Aluminum vandal housing, polycarbonate dome
Dimensions	8.26" x 3.62" Inch (210 x 92 mm)
Weight	4.18 lbs (1.9 kg)
Warranty	5 year warranty
