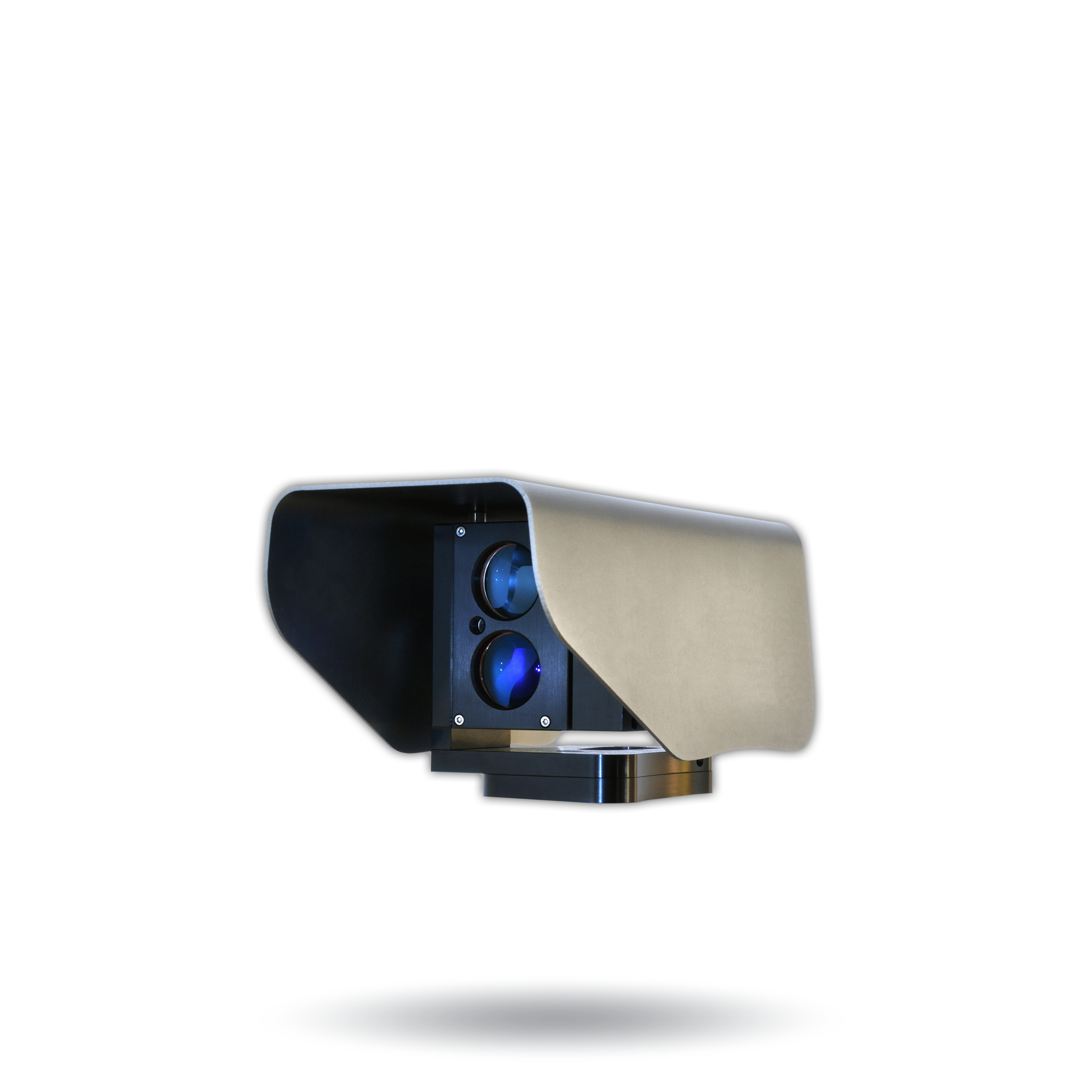

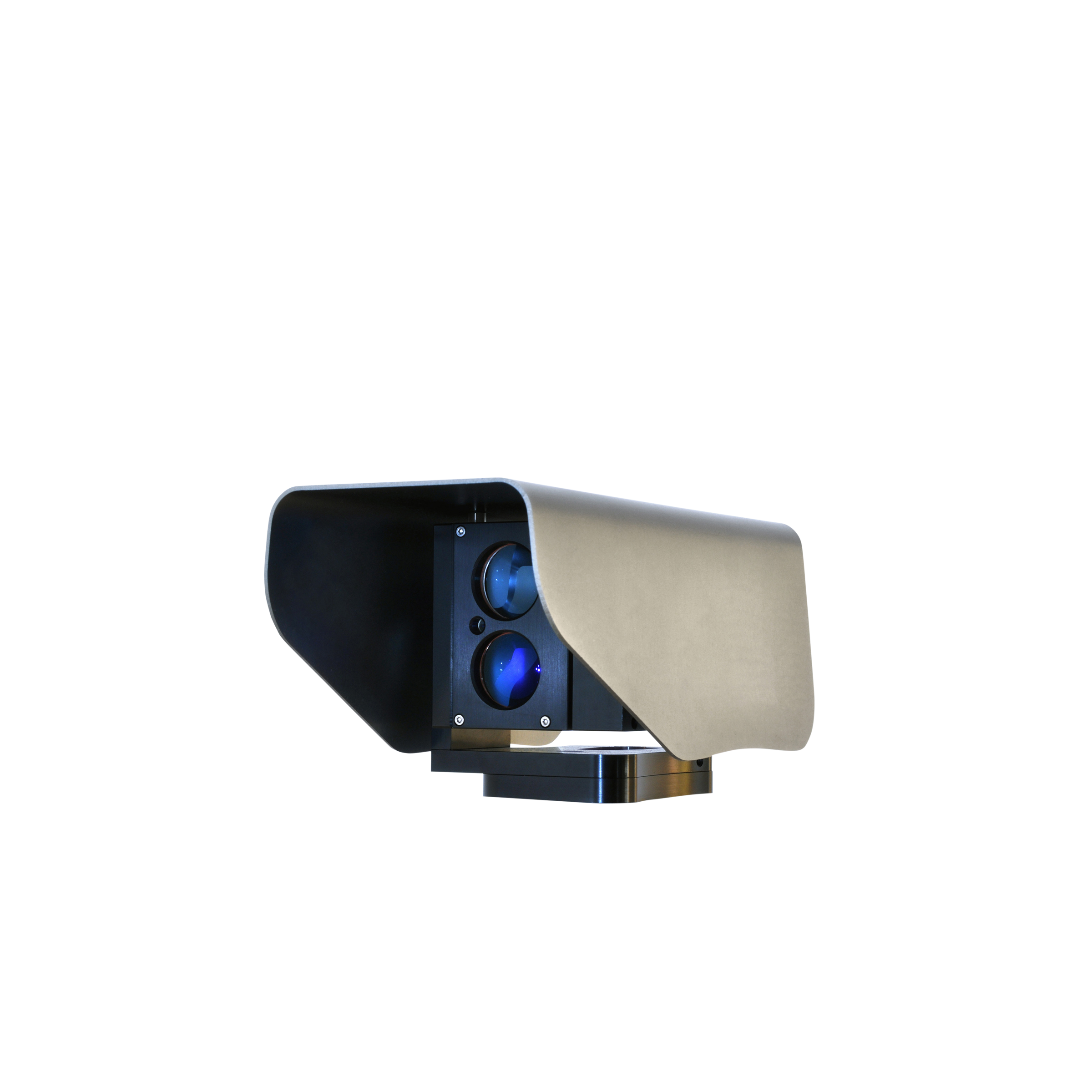

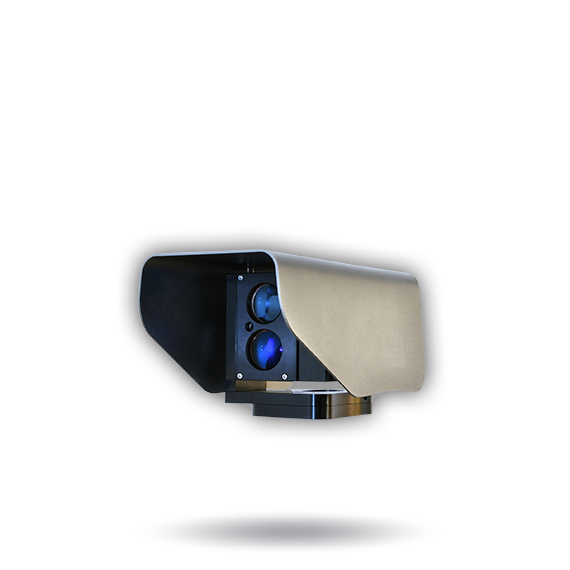

SiteWatch™ 1640ft (500m) Laser surveillance sensor

Share this Product!

Model: DW-DTLA500

Find a Reseller | Request a Demo | Contact Us

The DW-DTLA500 is a laser surveillance sensor that allows the user to monitor and locate intrusions for applications where physical fences are not desirable, possible or where enhanced security is required. The 1640ft (500m) sensor works without reflectors and reacts in fractions of a second.

The DW-DTLA500 SiteWatch™ sensor knows the exact position of an object and offers adaptive alarm settings. For example, the sensor can be set to react only to cars in a specific lane and alarm if an object has stopped or if a door opens, while ignoring all over activities.
Using PoE and IP communication, the SiteWatch™ detectors support direct integration with DW Spectrum^® IPVMS.

SiteWatch™ detectors and NightWatch™ illuminatorsDO

When the detectors detect motion, the illuminators can be programmed to turn on, and cameras can be activated to record. All devices can be controlled via DW Spectrum® IPVMS.

Amplify panoramic surveillance

Combine detectors and illuminators with MEGApix^® Pano™ multi-sensor and hemispheric fisheye cameras to create a formidable panoramic solution.

Motion detector and laser sensors for daytime monitoring

SiteWatch™ motion detectors offer a programmable beam range of up to 1640ft (500m), offering truly exceptional resistance to false alarms.

SiteWatch™ surveillance sensor
0 - 1640ft (500m) detection range
Exceptional resistance to false alarms
20 Fully adaptable alarm zones to meet any situation
IP alarms and relay output
Alarm notifications
905nm wavelength
Web Interface built-in
PoE class 2 and DC48V
NDAA/TAA compliant
IP66 environmental-rated dust-tight and water-resistant

Field of application	Outdoor surveillance and monitoring
Alarm zones	Up to 20 fully adaptable zones, each zone has individual alarm sensitivity settings and alarm actions.
Alarm actions	Network alarm, relay, easy direct integration with IP to VMS, enabling PTZ control, automatic video recording and object position.
Detection range	0 -01640ft (500m) NOTE: the sensor has a maximum detection range of up to 1640.42ft (500m). The recommended range for demanding applications is 984.25ft (300m) to ensure the detection of small objects such as people, even in difficult weather conditions.
Detection resolution	+/- 1dm
Update rate	250 Hz
Laser wavelength	905nm
Beam divergence	2.0 x 2.0 mRad
Alignment laser	Yes
Laser class	Class 2 laser product, eye-safe
Power supply	Power over Ethernet (48V DC) or 12 V DC
Power consumption	4W (PoE class 2)
Operating temperature	-22°F to +140°F (-30°C to +60°C)
Interface	Ethernet IEEE 802. 3af, TCP/IP,web browser used interface
Relay switch	Max 30V 200mA, NC and NO
Mounting	4 x M5 - Bosch compatible 2.87” x 1.61” (73 x 41mm) 4 x M5 - Axis compatible 1.57” x 2.44” (40 x 62mm) 2 x M6 - common standard 2.87” (73mm C-C) 5/8”-11 UNC (tripod mount)
IP rating	IP66 certified
Color	Shell: gray, sensor: black
Weight	5.29 lbs (2.4kg)
Warranty	1 year warranty
