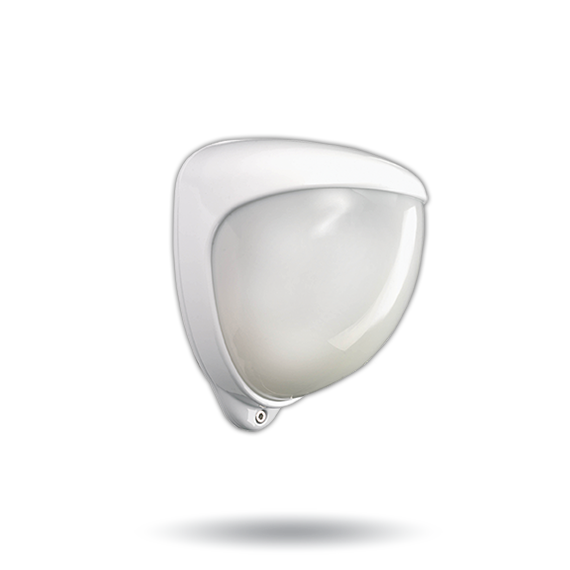

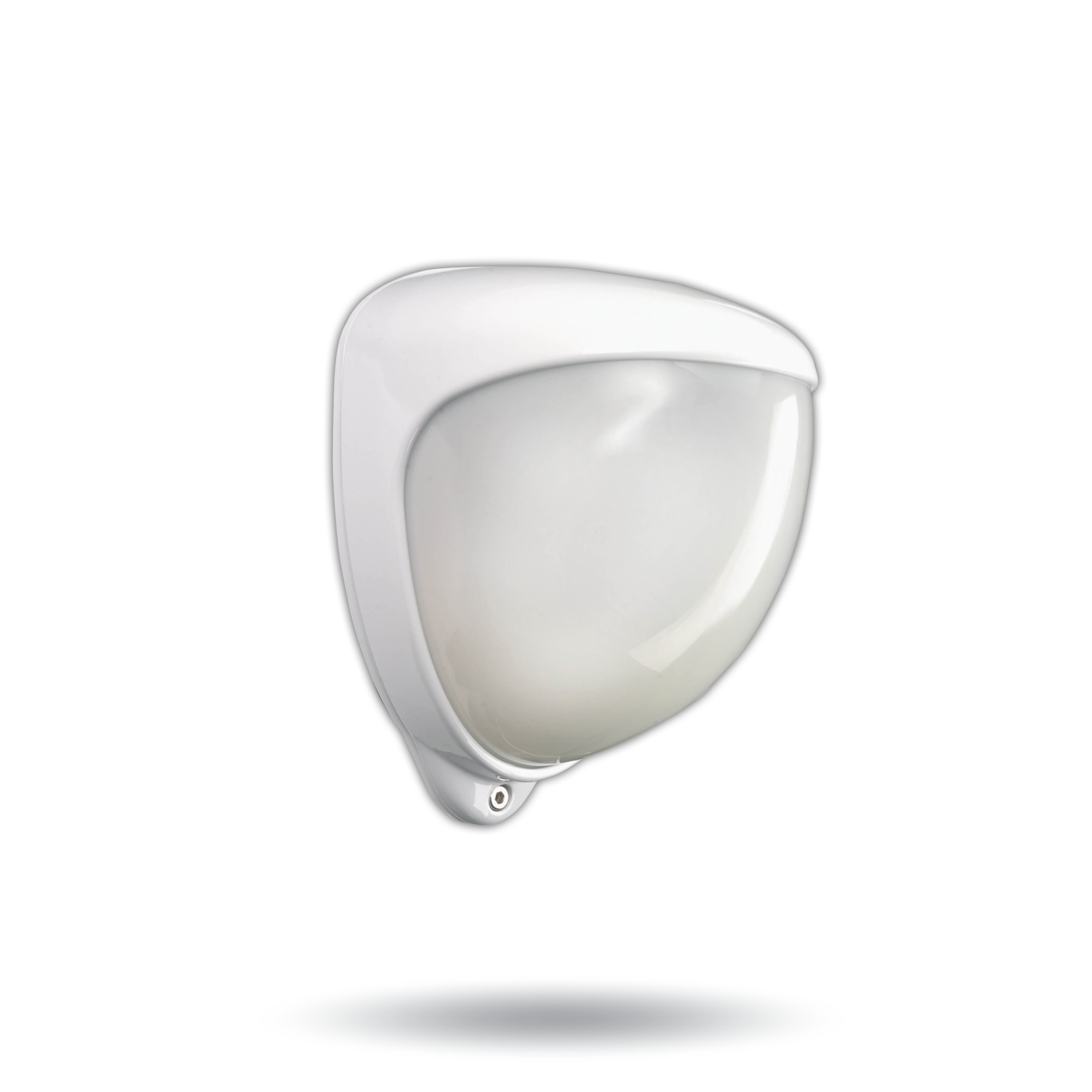

SiteWatch™ IP-enabled quad PIR 98.5ft (30m) volumetric motion detector

Share this Product!

Model: DW-DTMWIPW, DW-DTPIRIPW

Find a Reseller | Request a Demo | Contact Us

The SiteWatch™ detectors are quad-element passive infra-red (PIR), dual-tech external movement detector that combines advanced signal processing and unique optical systems. The detector’s quad PIR sensing module is equipped with two (2) volt-free and two (2) negative-switched outputs with a programmable beam range of up to 98.5ft (30m), avoiding boundary overspill and offering truly exceptional resistance to false alarms.

Using PoE and IP communication, the SiteWatch™ detectors support direct integration with DW Spectrum^® IPVMS.

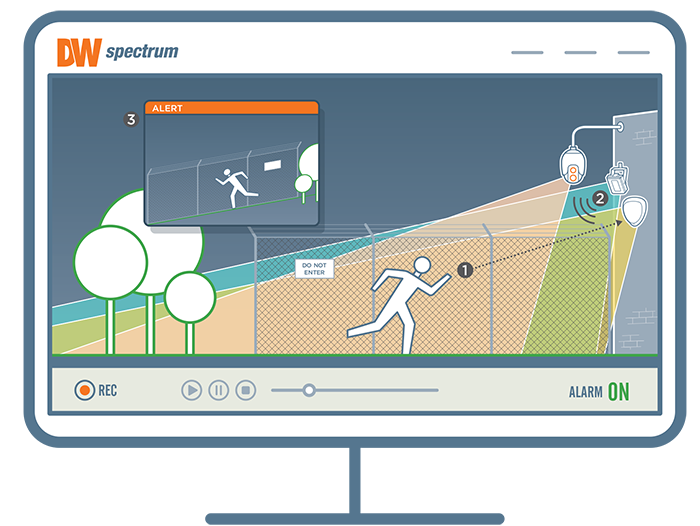

SiteWatch™ detectors and NightWatch™ illuminatorsDO

When the detectors detect motion, the illuminators can be programmed to turn on, and cameras can be activated to record. All devices can be controlled via DW Spectrum® IPVMS.

Amplify panoramic surveillance

Combine detectors and illuminators with MEGApix^® Pano™ multi-sensor and hemispheric fisheye cameras to create a formidable panoramic solution.

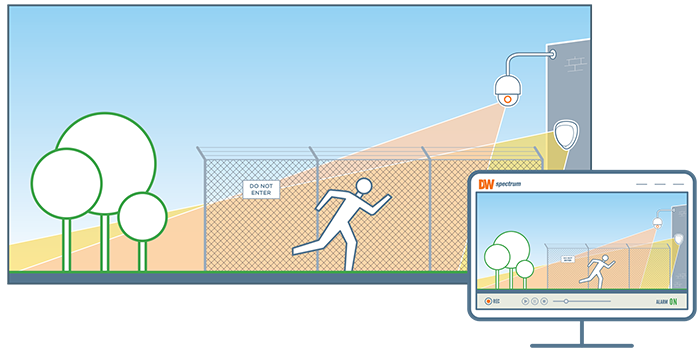

Motion detector and laser sensors for daytime monitoring

SiteWatch™ motion detectors offer a programmable beam range of up to 1640ft (500m), offering truly exceptional resistance to false alarms.

External movement detector
Quad-element PIR sensor (DW-DTPIRIPW)
PIR and microwave detection technologies (DW-DTMWIPW)
Two (2) volt-free outputs
Two (2) negative-switched outputs (DW-DTPIRIPW)
Programmable beam-range of up to 98.5ft (30m)
Exceptional resistance to false alarms
Advanced signal processing, quad-pyro and optical systems
Trigger lights and smart devices when movement is detected
10° - 70° detection angle
Direct integration with DW Spectrum^® IPVMS
Intruder notifications
Set up lux-level events to operate blinds and curtains
Environmental temperature monitoring to help manage internal air conditioning and heating
Web interface built-in
PoE class 1 and DC48V
NDAA/TAA compliant
IP65 environmental-rated dust-tight and water-protected

Specifications	DW-DTPIRIPW	DW-DTMWIPW
Detection range	Up to 98.5ft (30m) programmable
Coverage	10° - 70° detection angle, 98.5ft x 98.5ft (30m x 30m) max.
Walk test	Output test mode with LED indication
Operating temperature	-4°F to 131°F (-20°C to +55°C) conformally coated electronics for increased stability
Adjustment	180° pan + 90° tilt
Mounting height	Optimum 9.8ft (3m)
Indicator LEDs	1 x blue LED on alarm	1 x blue LED on alarm 1 x red (PIR) detection 1 x green microwave detection
Outputs	Two N/C volt free relay contacts. Web interface set up required.
Power input	Power over Ethernet (48V DC)
Power consumption	Max 3.8W, PoE class 1
Ethernet standard	Ethernet IEEE 802.3af, TCP/IP
Remote access	Web browser user interface. No software or installation needed
Microwave frequency	NA	10.525GHz
Warranty	2 year warranty
