IMAGE |
||
Image sensor |
2.1MP/1080p 1/2.7“ CMOS |
|
Total pixels |
1928 (H) x 1088 (V) |
|
Minimum scene illumination |
0.12 lux (color) |
|
0.0 lux (B&W) |
||
Video output |
Local video output CVBS 1.0V p-p (75?), 4:3 aspect ratio | |
LENS |
||
Focal length |
2.8-12mm, F1.4 | |
Lens type |
Motorized zoom auto-focus p-iris lens | |
Field of view (FoV) |
106° ~ 32° |
|
IR distance |
100ft range |
|
Optical zoom / digital zoom |
x4.2 optical zoom |
|
I/O |
||
Audio in / out |
1 input / 1 output |
|
Audio compression |
G.711 |
|
Alarm In/Out |
1 input / 1 output |
|
OPERATIONAL |
||
Shutter mode |
Auto, manual, anti-flicker, slow shutter |
|
Shutter speed |
1/30 ~ 1/8000 |
|
Slow Shutter |
1~1/5,1/7.5, 1/15 |
|
Auto gain control |
Auto |
|
Day / night |
Auto, day (color), night (B/W) |
|
Smart DNR™ 3D digital noise reduction |
0 ~ 11 |
|
Wide dynamic range (WDR) |
True WDR on, off |
|
Wide dynamic range (WDR) dB |
120dB |
|
Privacy zone |
16 programmable privacy masks |
|
Backlight Compensation (BLC) |
On / off / HSBLC |
|
Mirror & Flip |
Yes |
|
Alarm notifications |
Notifications via e-mail, FTP server or SD card recording |
|
Memory Slot |
Micro SD / SDHC / SDXC up to 128GB (card not Included) |
|
NETWORK |
||
LAN |
802.3 compliance 10/100 LAN |
|
Video compression type |
H.264, MJPEG |
|
Resolution |
H.264:
1080p/720p/VGA/D1/CIF
MJPEG:
1280 x 720/800 x 600/VGA/768 x 432/D1/CIF |
|
Frame rate |
Up to 30fps at all resolutions |
|
Video bitrate |
100Kbps ~ 10Mbps,
Multi-rate for preview and recording |
|
Bitrate control |
Multi-streaming CBR/VBR at H.264
(controllable frame rate and bandwidth) |
|
Streaming capability |
Dual-stream at different rates and resolutions |
|
IP |
IPv4 |
|
Protocol |
ONVIF, TCP/IP, UDP, autoIP, RTP(UDP/TCP),
RTSP, NTP, HTTP,HTTPS, SSL,
DNS, DDNS, DHCP, FTP, SMTP, ICMP,
SNMPv1/v2c/v3(MIB-2) |
|
Security |
HTTPS(TLS), IP filtering, 802.1x, digest authentication (ID/PW) |
|
ONVIF conformance |
Yes |
|
Web viewer |
OS: Windows®, Mac® OS, Linux® |
|
Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® |
||
Video management software |
DW Spectrum® IPVMS |
|
ENVIRONMENTAL |
||
Operating temperature |
-40°F ~ 122°F (-40°C ~ 50°C)
|
|
Operating humidity |
10–90% RH (non–condensing)
|
|
Other certifications |
CE, FCC, RoHS
|
|
ELECTRICAL |
||
Power requirement |
DC 12V, PoE (IEEE 802.3af Class 3). (adaptor not included)
|
|
Power consumption |
DC12V: max 6.9W
PoE: max 8.6W
|
|
MECHANICAL |
||
Material |
Snapit™ plastic housing, polycarbonate dome
|
|

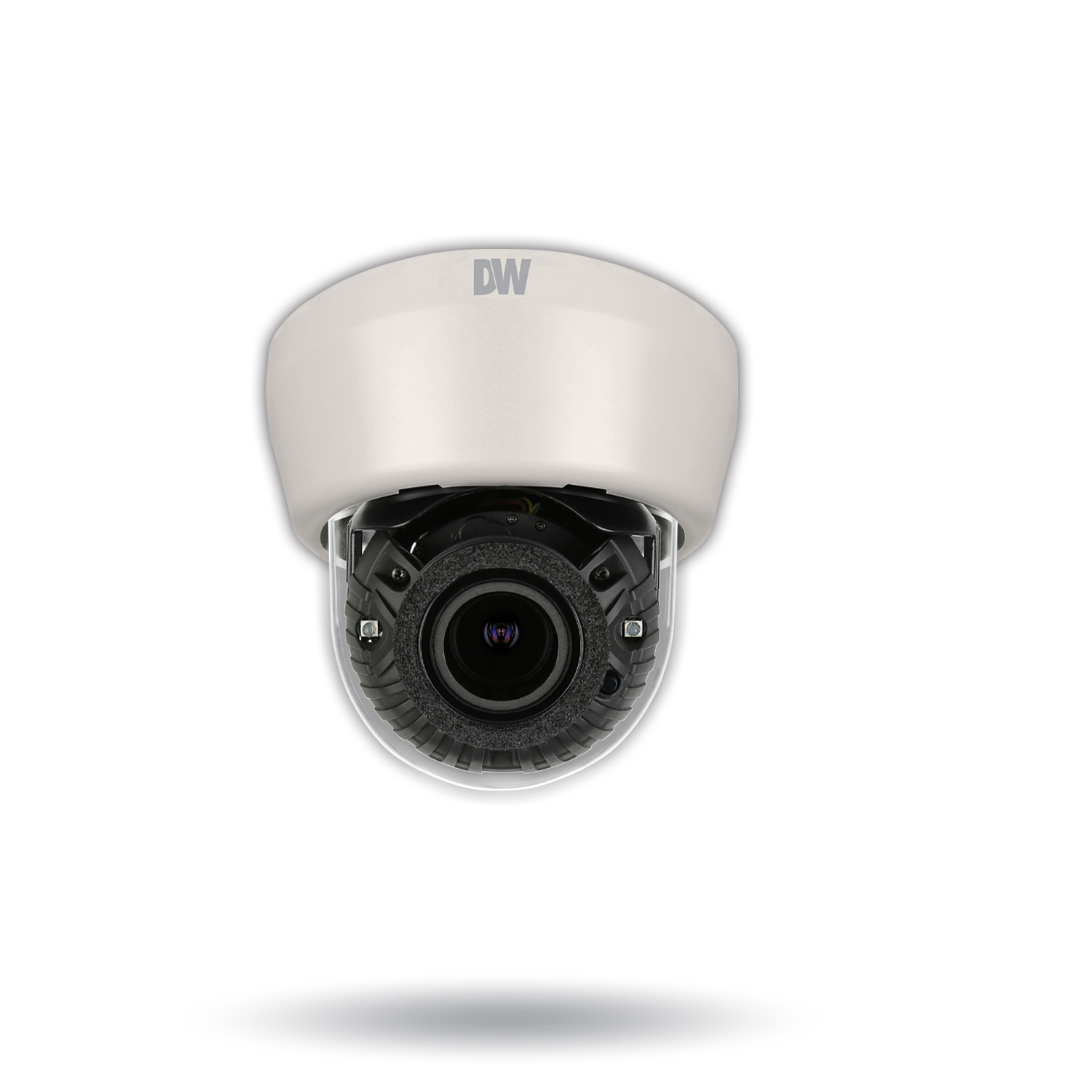

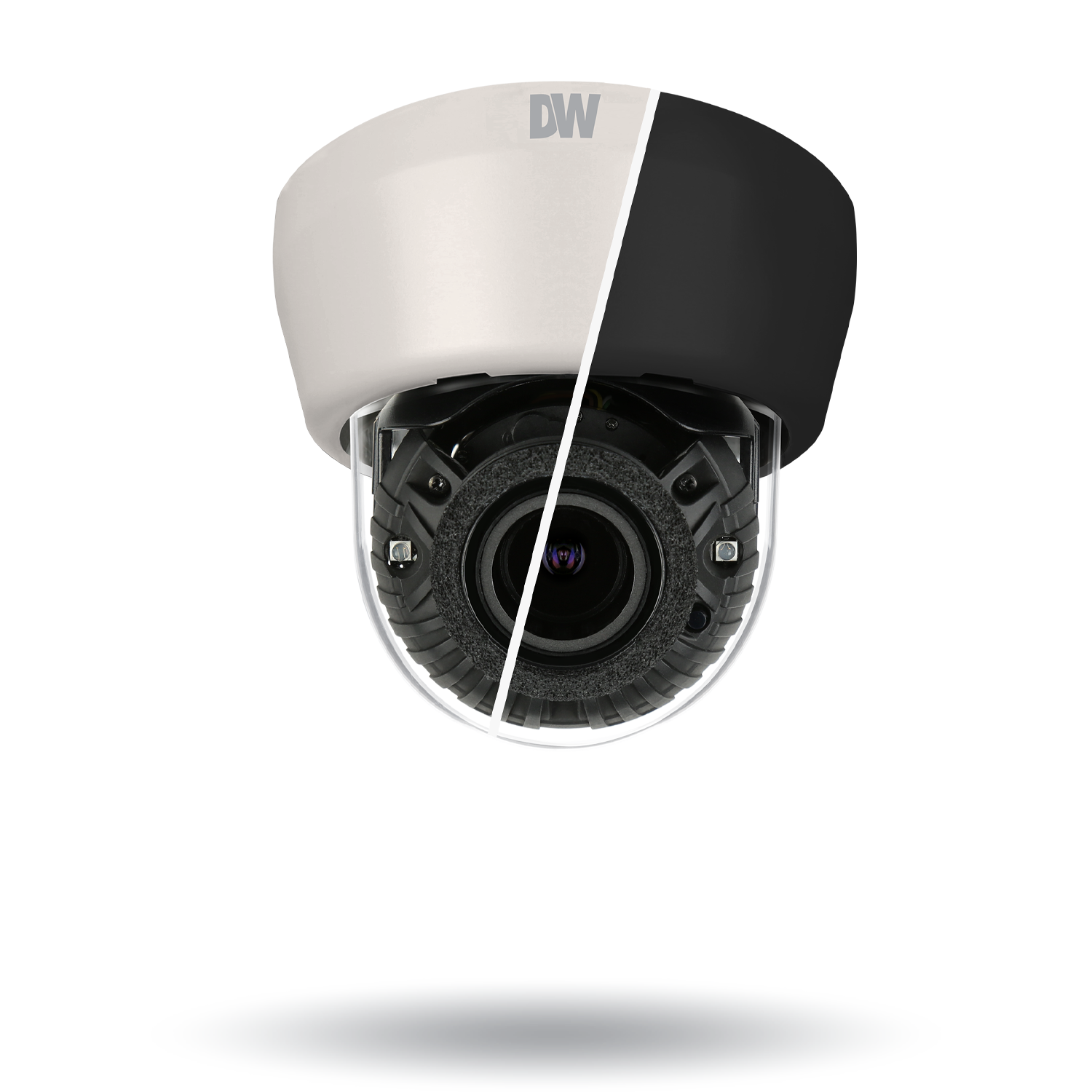

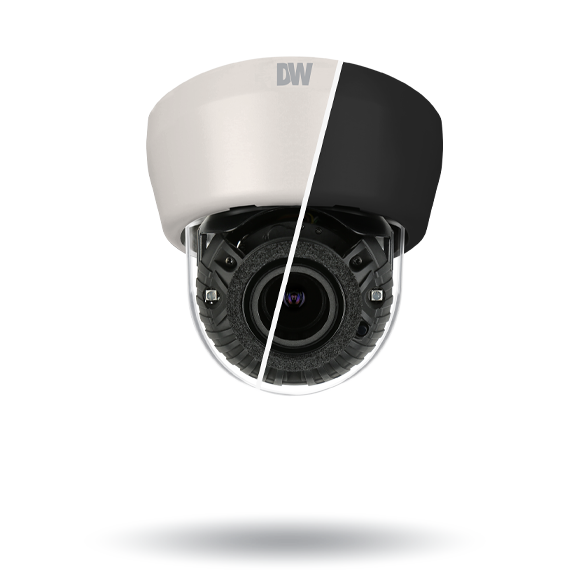

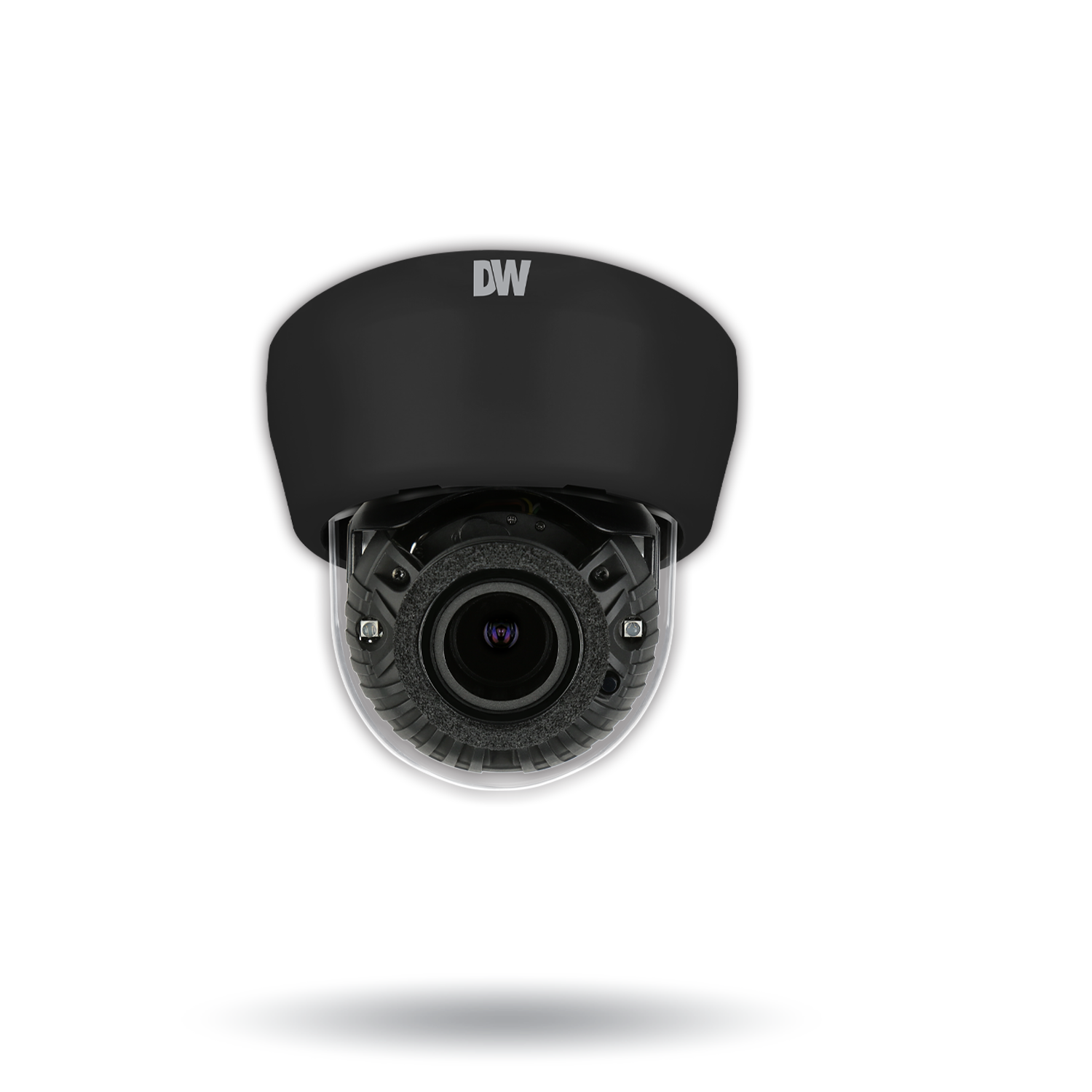

| Housing color | DWC-MD421TIR: ivory DWC-MD421TIRB: black |
|
Dimensions |
4.72" x 3.63" (120 x 92.4 mm)
|
|
Weight |
0.66 lbs (0.3kg) |
|
