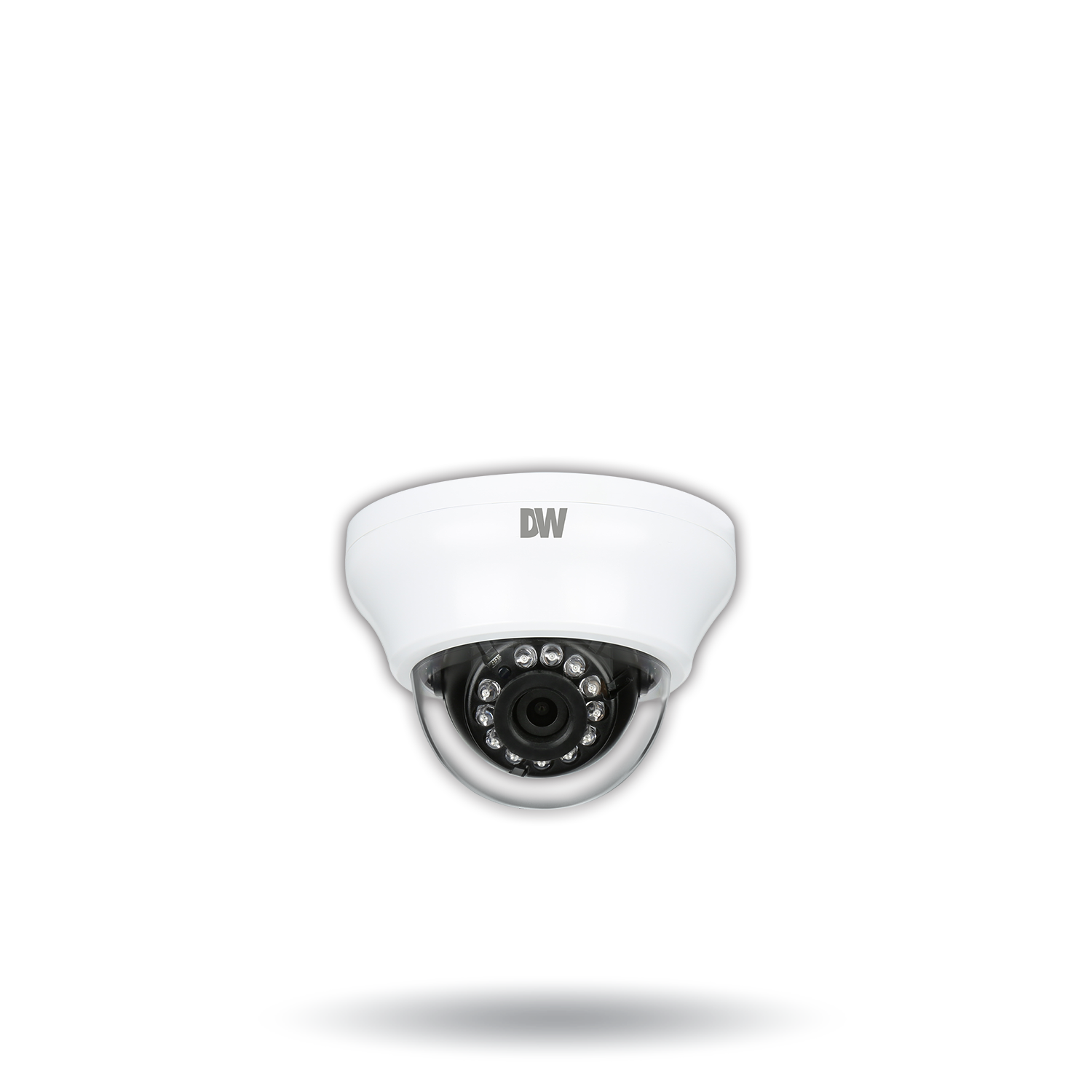

MEGApix® 2.1MP/1080p indoor dome IP camera with 4.0mm fixed lens and IR

Share this Product!

2.1MP/1080p indoor dome IP camera with 4.0mm fixed lens and IR

Model: DWC-MD72i4V

Find a Reseller | Request a Demo | Contact Us

MEGApix^® 2.1MP network cameras provide real-time 1080p High Definition video at 30fps. Advanced technologies include 30ft Smart IR™ and true Day/Night for clear images in challenging lighting conditions. A built-in Web-Server and user-friendly interface make these cameras easy to use. Power over Ethernet simplifies installation by providing both power and the network connection through a single cable. All cameras are ONVIF conformant, assuring their successful integration with other open platform video surveillance products. Housed in our attractive dome enclosure, these cameras provide the industry-leading benefits of MEGApix technology at an affordable price.

Smart IR™

Smart IR™ adjusts the image for IR cameras to prevent excessive illumination on objects that are in the front of the scene and offers a clear image in B/W without any loss of detail.

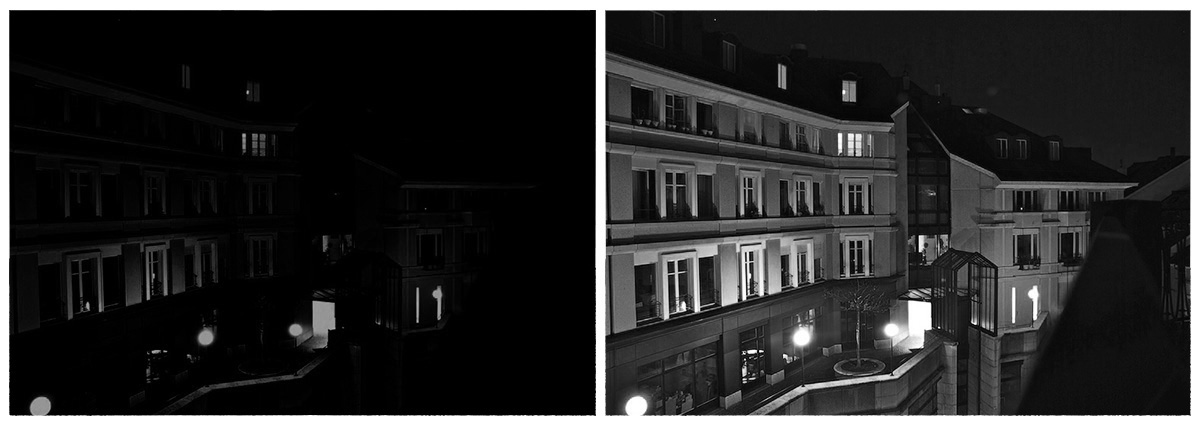

TDN [True Day/Night] with IR Cut Filter

During daylight, the IR cut filter allows visible light to pass through, reflecting the unwanted infrared light. In low light environments, where artificial or external light is not available, the cut filter is removed from in front of the lens, allowing the camera to capture the infrared light that given out from the infrared LEDs, to capture as much light as possible to produce brighter images.

2.1 Megapixel Image Sensor (1080p, 30fps)
Real-time 1080p 30fps High Definition
Dual Codecs (H.264, MJPEG) with Simultaneous Streaming
4.0mm Fixed Lens
Smart IR™ with Intelligent Camera Sync. 30ft Range
True Day/Night with Mechanical IR Cut Filter
Auto Gain Control (AGC)
Back Light Compensation (BLC)
Auto White Balance (AWB)
Motion Detection
Web Server Built-in
PoE and DC12V
ONVIF Compliant, Profile S
NDAA compliant
5 year warranty

Image Sensor		1/2.7“ 2.1M CMOS
Total Pixels		1930 x 1088
Minimum Scene Illumination		F2.0 (30IRE): 1.4 Lux [Color] F2.0 (30IRE): 0.00 Lux [B/W]
LENS
Focal Length		4.0mm Lens, F2.0
Lens Type		Fixed Lens
IR Distance		30ft Smart IR™
Angle of View		82°
OPERATIONAL
Shutter Mode		Auto
Shutter Speed		1/30(25)sec ~ 1/10,000sec
White Balance		Auto Indoor/Auto Outdoor/Push/Manual/Hold
Auto Gain Control		Max 64dB
Day and Night		Auto, Day, Night, Schedule
NETWORK
LAN		802.3 Compliance 10/100 base T LAN
Video Compression Type		H.264, MJPEG
Resolution		1080p / D1 / VGA / CIF / QVGA
Frame Rate		1-30fps
Streaming Capability		Multi Streaming CBR/VBR (Controllable frame rate and Bandwidth)
IP		IPv4, IPv6
Protocol		ONVIF, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, DNS, DDNS, DHCP
Maximum User Access		4 Users
ONVIF Conformance		ONVIF Profile S
Web Viewer		Browser: Internet Explorer, Google Chrome, Firefox OS: Windows 7
ENVIRONMENTAL
Operating Temperature		-10°C ~ 50°C (14°F ~ 122°F)
Operating Humidity		Less than 90% (Non-Condensing)
Other Certifications		FCC, CE, ROHS
ELECTRICAL
Power Requirements		DC 12V, POE IEEE 802.3af Class 2
Power Consumption		LED Off: 2.0W, 165mA LED On: 2.9W, 240mA
MECHANICAL
Material		Plastic
Dimensions		4.13 x 2.93 in (105 x 74.6mm)
Weight		0.55lbs (250g)

Blackjack

LEARN MORE

MEGApix PANO

LEARN MORE

MEGApix PTZ

LEARN MORE

MEGApix CaaS

LEARN MORE

VMAX IP

LEARN MORE

VMAX IP Plus

LEARN MORE

DW Spectrum

LEARN MORE

DWC-GPLT

Converter plate for electronic gang box - ivory

DWC-D1WMW

Wall mount bracket - white

Title	Type	Size	Download
Camera part numbering system		0.03 MB
DW Accessories Chart		0.05 MB
DWC- MD724V/DWC-MD72i4V Manual		3.51 MB
DWC-MD724V/DWC-MD72I4V Quick Start Guide		1.58 MB
DWC-MD72i4V Datasheet		0.48 MB

Title	Release Notes	Version	Compatibility	Size
DW IP Finder v4.4.14 for Linux OS	-	v4.4.14		47.86 MB
DW IP Finder v4.4.14 for Windows OS	-	v4.4.14		17.64 MB
MEGApix® 1080p Firmware v1.2.0_20180209	-	v1.2.0_20180209	MEGApix 1080p value cameras	5.09 MB
