Home Products MEGApix 2.1MP/1080p PTZ IP camera with 4.3~129mm vari-focal lens with motorized zoom and auto-focus and 30x optical zoom and IR

Share this Product!

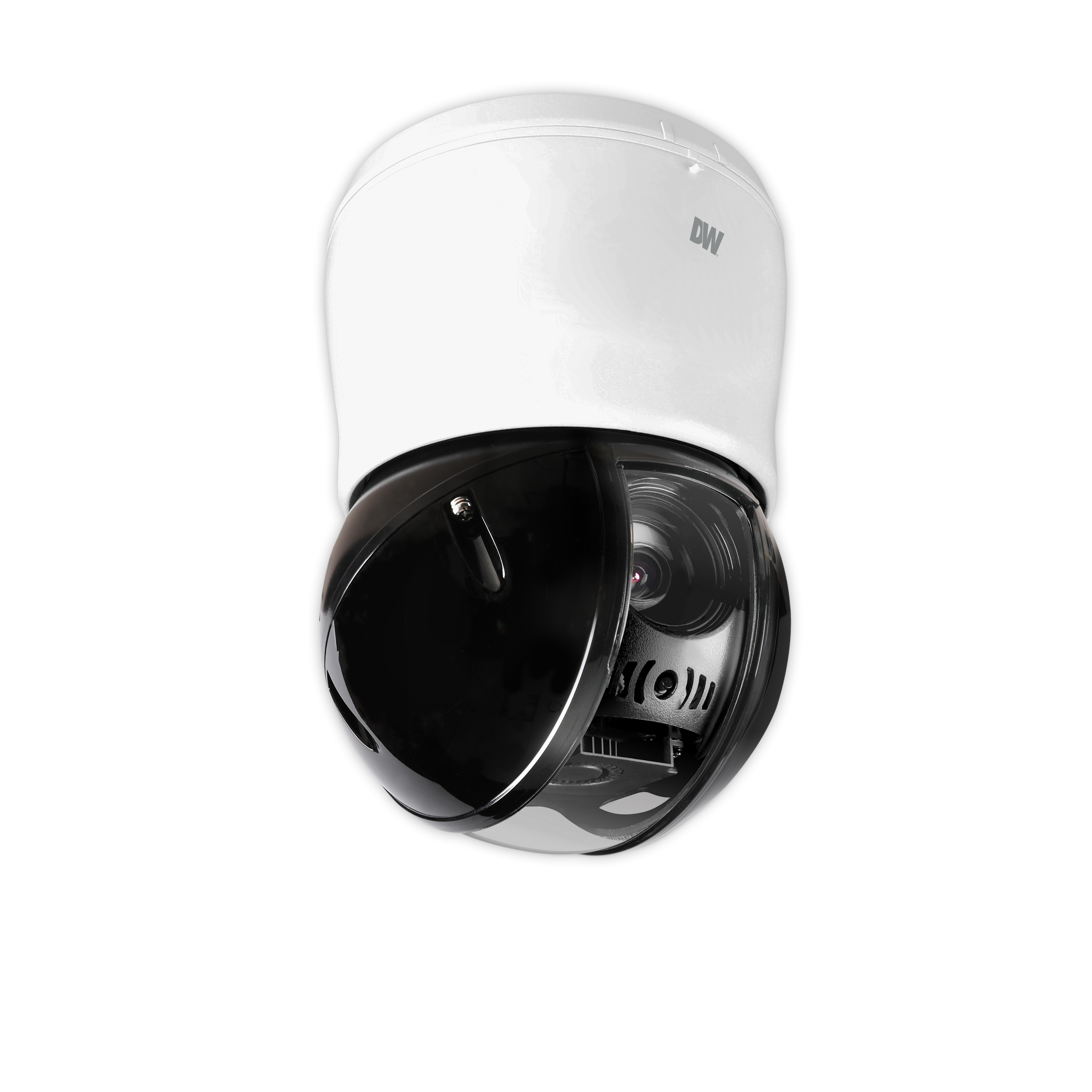

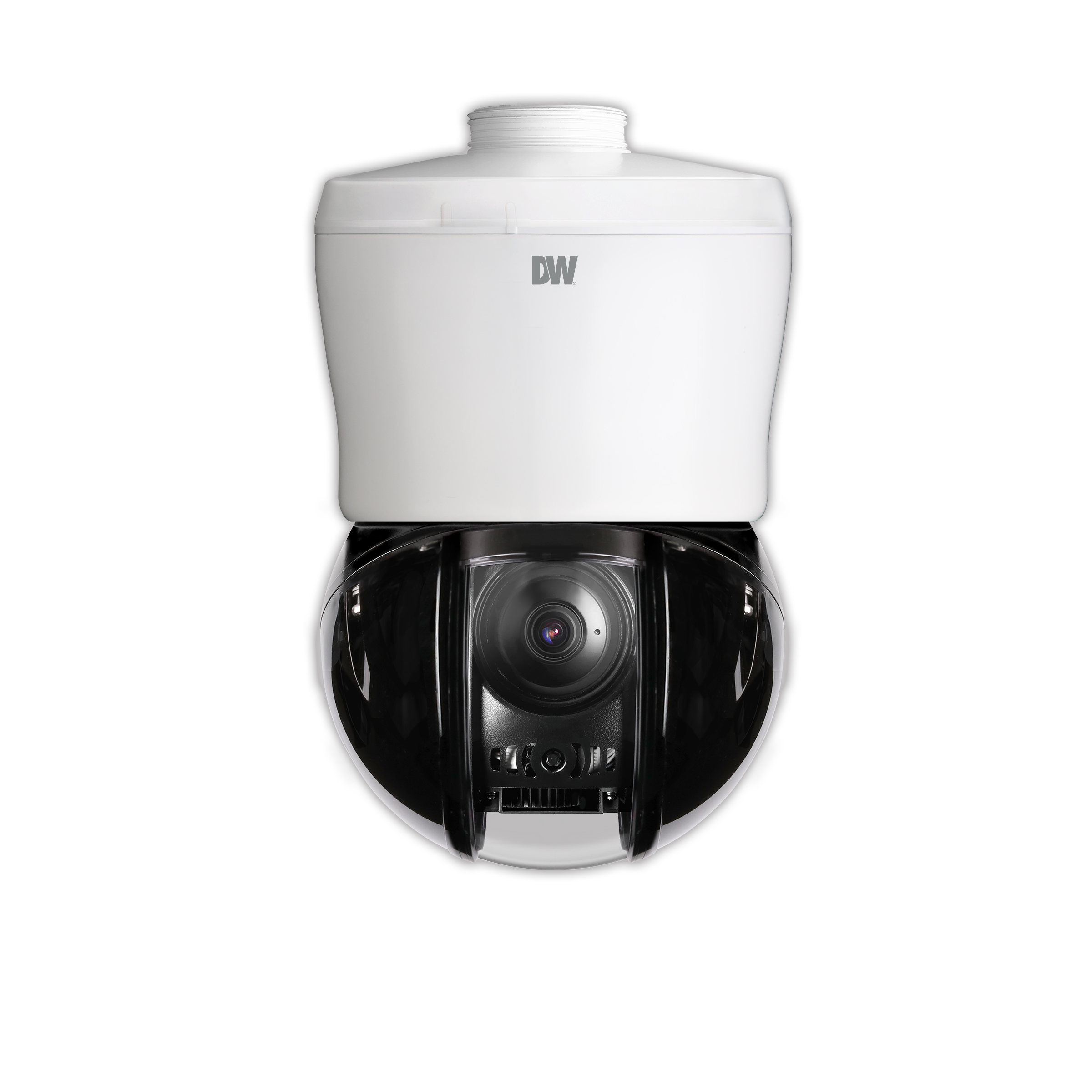

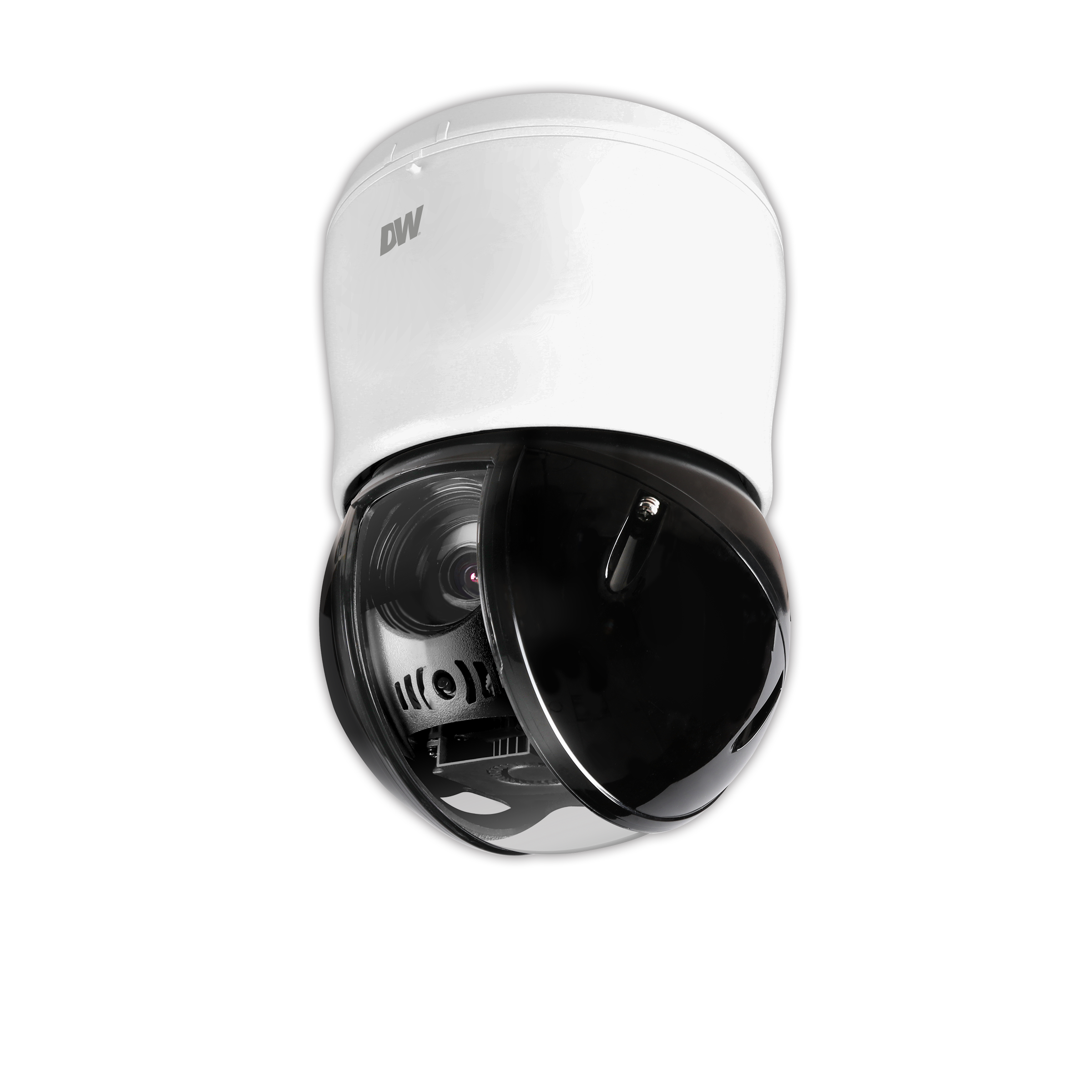

2.1MP/1080p PTZ IP camera with 30x optical zoom
Model: DWC-MPTZ230XTW
Find a Reseller | Request a Demo | Contact Us

This MEGApix® 30x PTZ camera is NDAA-compliant and delivers crystal-clear 2.1MP/1080p resolution at real-time 30fps. The camera features 30x optical zoom, Star-Light Plus™ color in near-total darkness technology, true WDR and Smart IR™ for quality video in any lighting condition, simultaneous H.265/H.264/MJPEG codec support. The IP66- and IK10-rated vandal PTZ housing requires a wall mount, ceiling mount or flush mount, sold separately, to complete the camera’s installation.

NDAA
  • DWC-MPTZ230XTW

30x Optical zoom
The optical zoom lens uses internal glass elements to bring an image up to 30x closer, allowing the magnified image to be recorded at full resolution.

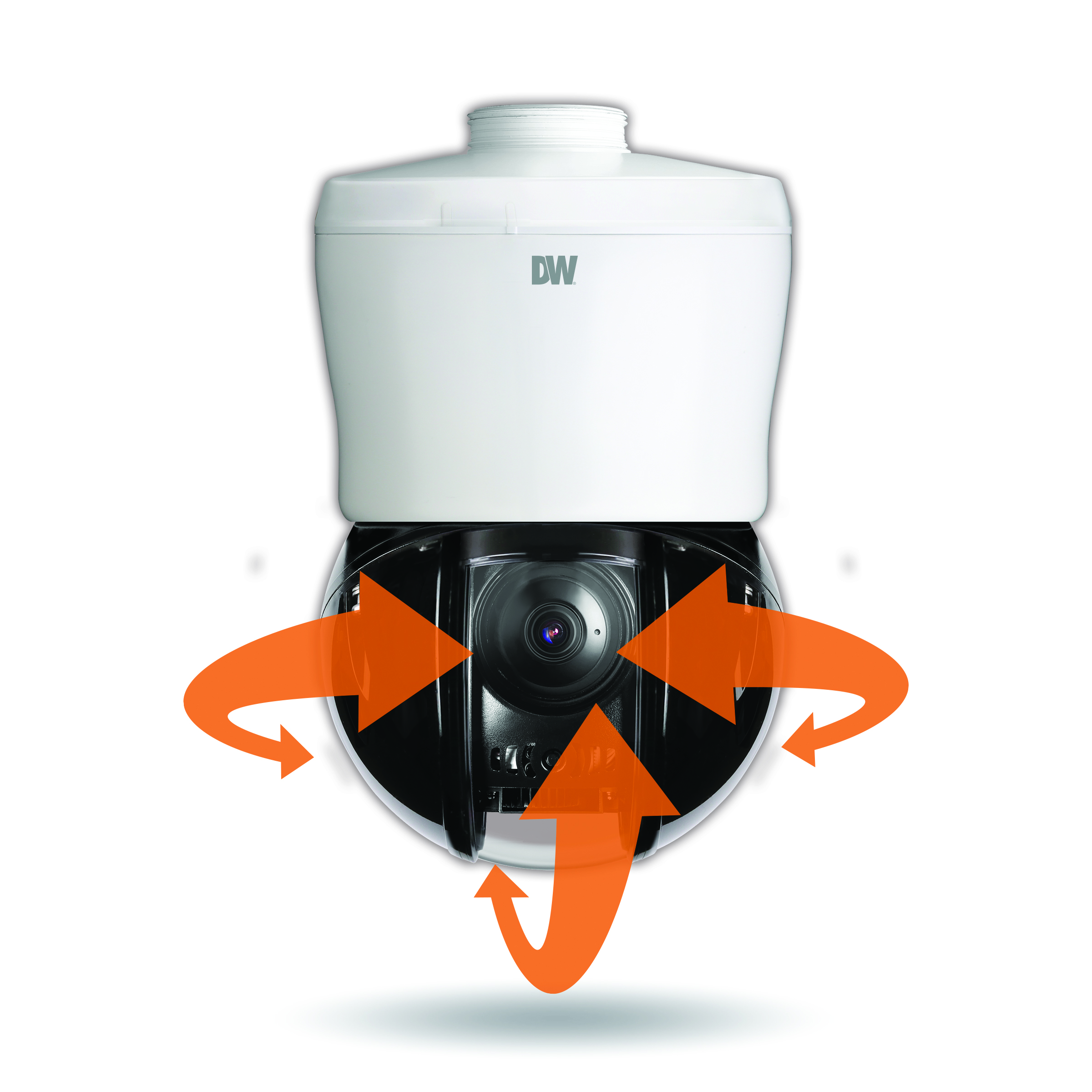

360 endless pan, tilt zoom IP cameras
PTZ cameras are used to monitor wide areas. DW's PTZ cameras can move in endless 360° panning and tilting at 360° per second speed, and -5° ~ 190° tilting capabilities. The camera offers situational awareness all around, allowing users to move quickly from one point of interest to another.

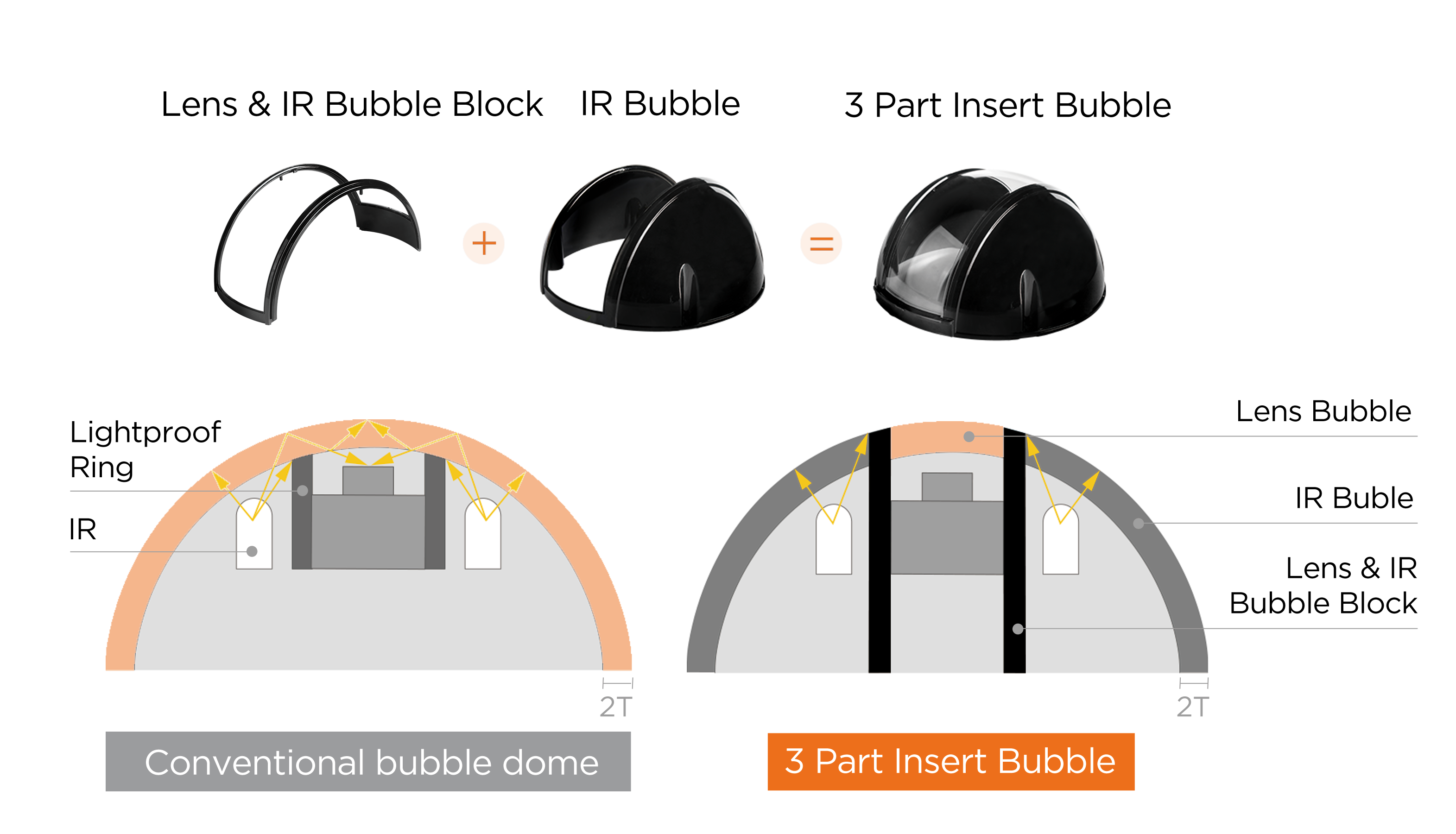

3-part insert bubble
DW’s unique 3-part insert bubble has a special lens and IR bubble block and a special black IR bubble, which act together to dramatically reduce IR reflections from entering the lens.
Remotely controlled 95° tilting
The camera’s unique bubble structure improves the camera’s tilting capabilities up to 95° tilting angle, covering any blind spots in the far background, with no image distortion.

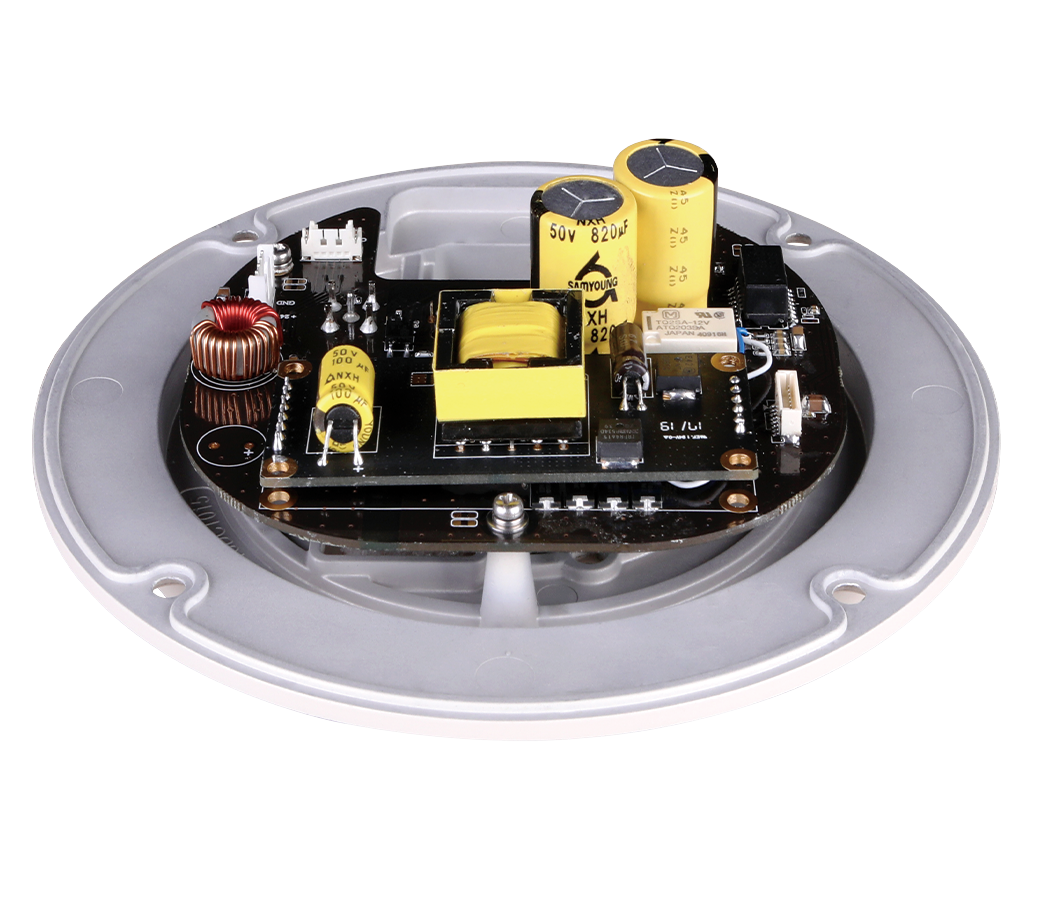

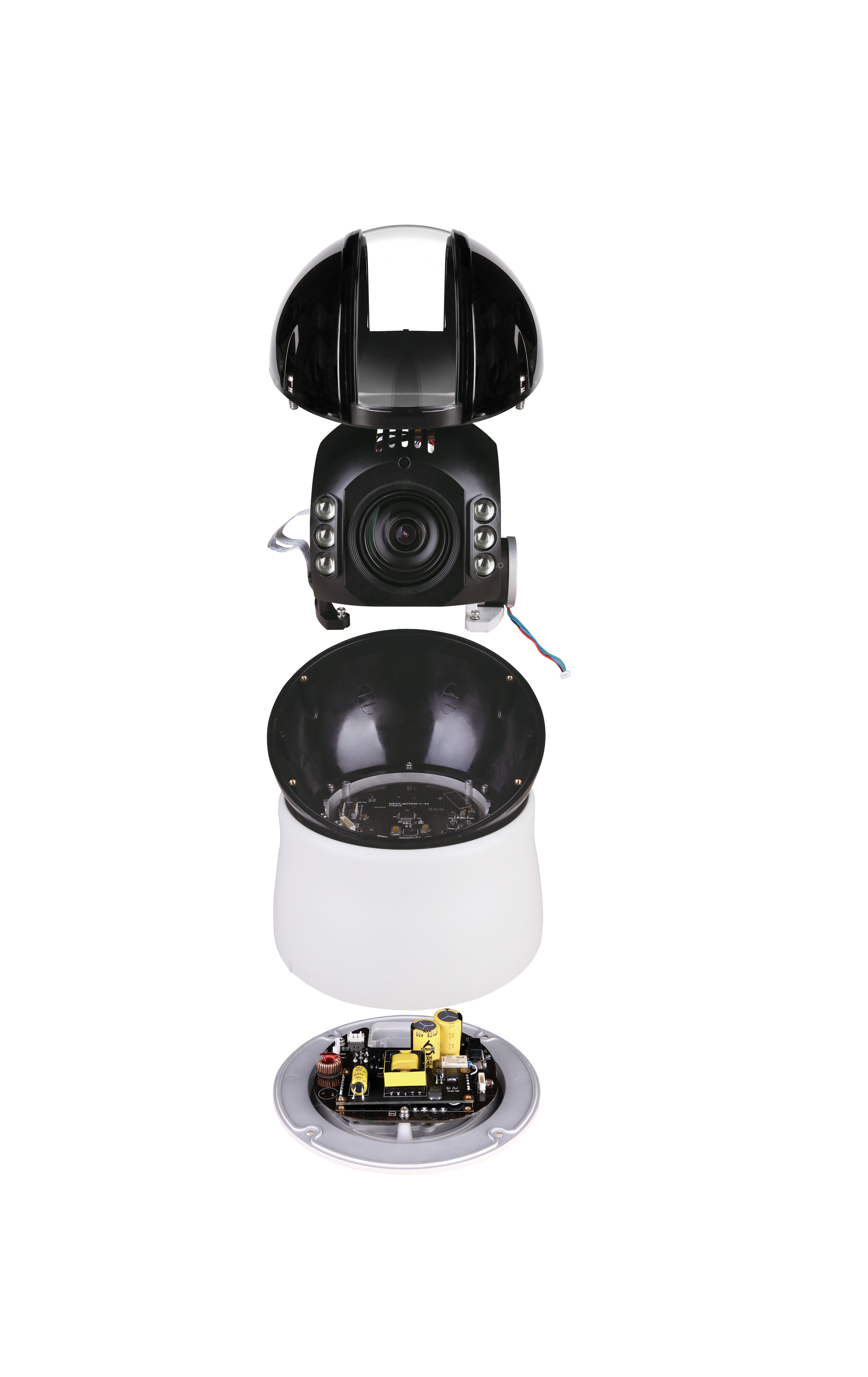

Compact size
With a re-imagined board at the base of the camera, you can capture the power of a pan, tilt and zoom camera in a small and light housing that can be installed both indoors and outside.
Smart IR™
Smart IR™ adjusts the image for IR cameras to prevent excessive illumination on objects that are in the front of the scene and offers a clear image in B/W without any loss of detail.
  • 2.1MP/1080p 1/3” image sensor at real-time 30fps
  • Star-Light Plus™ color in near-total darkness technology
  • 4.3~129mm motorized zoom PTZ lens
  • 30x optical zoom
  • True wide dynamic range (WDR)
  • Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
  • Smart DNR™ 3D digital noise reduction
  • True day/night with mechanical IR cut filter
  • Digital Image Stabilizer (DIS)
  • Programmable privacy zones
  • Backlight Compensation (BLC)
  • Auto white balance (AWB)
  • Motion detection
  • Two-way audio
  • Pan 0~360° endless, 360° per second pan speed
  • Vector drive technology – pan/tilt motion in the shortest path
  • 255 preset positions
  • 10 tours
  • Micro SD/SDHC/SDXC class 10 card slot (card not included)
  • Alarm sensor input
  • Relay output
  • Web server built-in
  • PoE injector included
  • PoE class5, DC24V and AC24V
  • ONVIF conformant, profile S
  • NDAA compliant
  • IP66 environmental-rated dust-tight and water-resistant
  • IK 10-rated impact-resistant

Image sensor
2.1MP/1080p 1/3” CMOS sensor
Total pixels
1981 (H) x 1288 (V)
Minimum scene illumination
0.05 lux (color)
0.0 lux (B/W)
Video output
1 CVBS 1.0V p-p (75ohm)

LENS
Focal length
4.3~129mm, F1.6~F4.7
Lens type
Vari-focal lens with motorized zoom and auto-focus
IR distance
200ft range
Angle of view
65.1° ~ 2.34°
Optical zoom
30x optical zoom

I/O
Audio input / output
1 input / 1 output
Audio compression
G.711
Alarm input/ output
1 input / 1 output
Event triggers Motion alarm, network disconnect, temperature anomaly

OPERATIONAL
Shutter mode
Auto, manual, slow shutter
Shutter speed
1/8 ~ 1/30,000 second.
Slow shutter
x2, x4
Backlight
Yes
De-fog
Yes
Wide dynamic range (WDR)
True WDR, off, low, middle, high
Wide dynamic range (WDR) dB
120dB
Digital image stabilizer (DIS)
Yes
Smart DNR™ 3D digital noise reduction
3D DNR
White balance
Auto
Day and night
Auto, day (color), night (B/W)
Mirror / flip
Yes
Privacy zones
16 programmable privacy masks
Motion detection 4 programmable motion zones
Memory slot Micro SD/SDHC/SDXC card (not included).
Event buffering Pre-event: 1seconds ~ 5 seconds
Post-event: 240seconds
Alarm notifications
Notifications via e-mail, FTP server, alarm output activation or SD card recording.

PTZ FUNCTION
Pan range
360° endless
Pan speed
Max. 360°/sec. (preset)
Tilt range
-5°~190°
Tilt speed
Max. 360°/sec. (preset)
Preset
255
Tour
10
Home function
Yes (parking action)

NETWORK
LAN
RJ-45 (10/100Base-T)
Video compression type
H.265 (main profile), H.264 (baseline, main, high profile), MJPEG
Resolution
 H.265: 2.1MP/1080p, 720p, VGA, D1, CIF
H.264: 2.1MP/1080p, 720p, VGA, D1, CIF
MJPEG: 1280x720, 800x600, VGA, 768x432, D1, CIF
Video bitrate
100Kbps ~ 10Mbps, multi-rate for preview and recording
Frame rate
Up to 30fps at all resolutions
Streaming capability
Dual-stream at different rates and resolutions
Bitrate control Multi-streaming CVBR/VBR at H.265, H.264 (controllable framerate and bandwidth)
IP
IPv4, IPv6
Protocol
TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB-2), ONVIF
Security
HTTPS (TLS), IP filtering, 802.1x, digest authentication (ID/PW)
ONVIF conformance
Yes
Web viewer
OS: Windows®, MAC® OS, Linux®
Browser: Internet Explorer®

ENVIRONMENTAL
Operating temperature
-4°F ~ 122°F (-20°C ~ 50°C )
Operating humidity
10–90% RH (non–condensing)
IP rating
IP66-rated
IK rating IK-10 impact-resistant
Other certifications
CE, FCC, RoHS

ELECTRICAL
Power requirement
PoE IEEE 802.3bt class5 (PoE injector included), DC24V, AC24V
Power consumption
DC24V: 40W, 1666mA
AC24V: 35W, 1485mA
PoE: 42W, 1750mA

MECHANICAL
Material
Aluminum PTZ, polycarbonate dome
Dimensions
5.9” x 9.13” (150 x 232mm)
Weight
6.17 lb (2.8kg)
