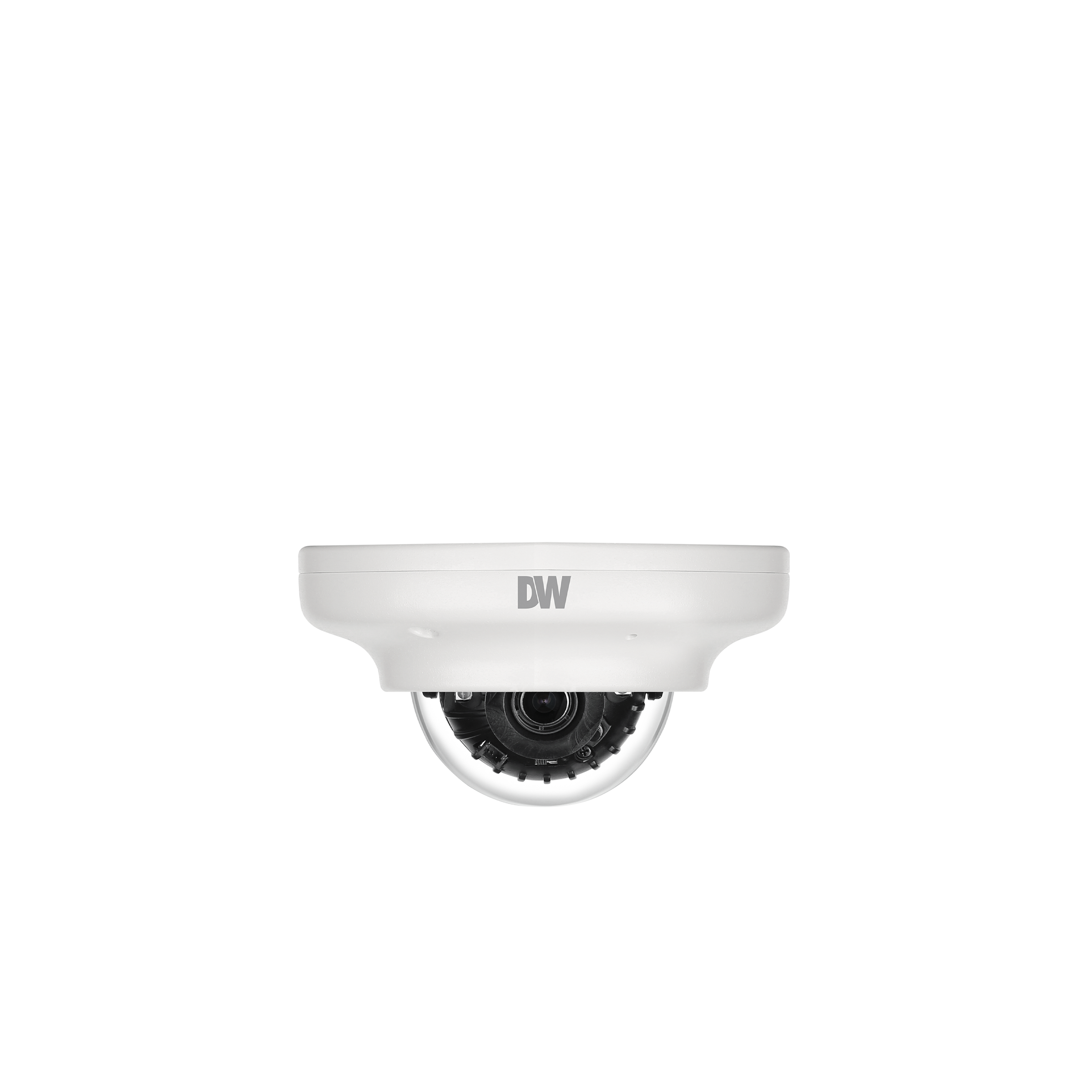

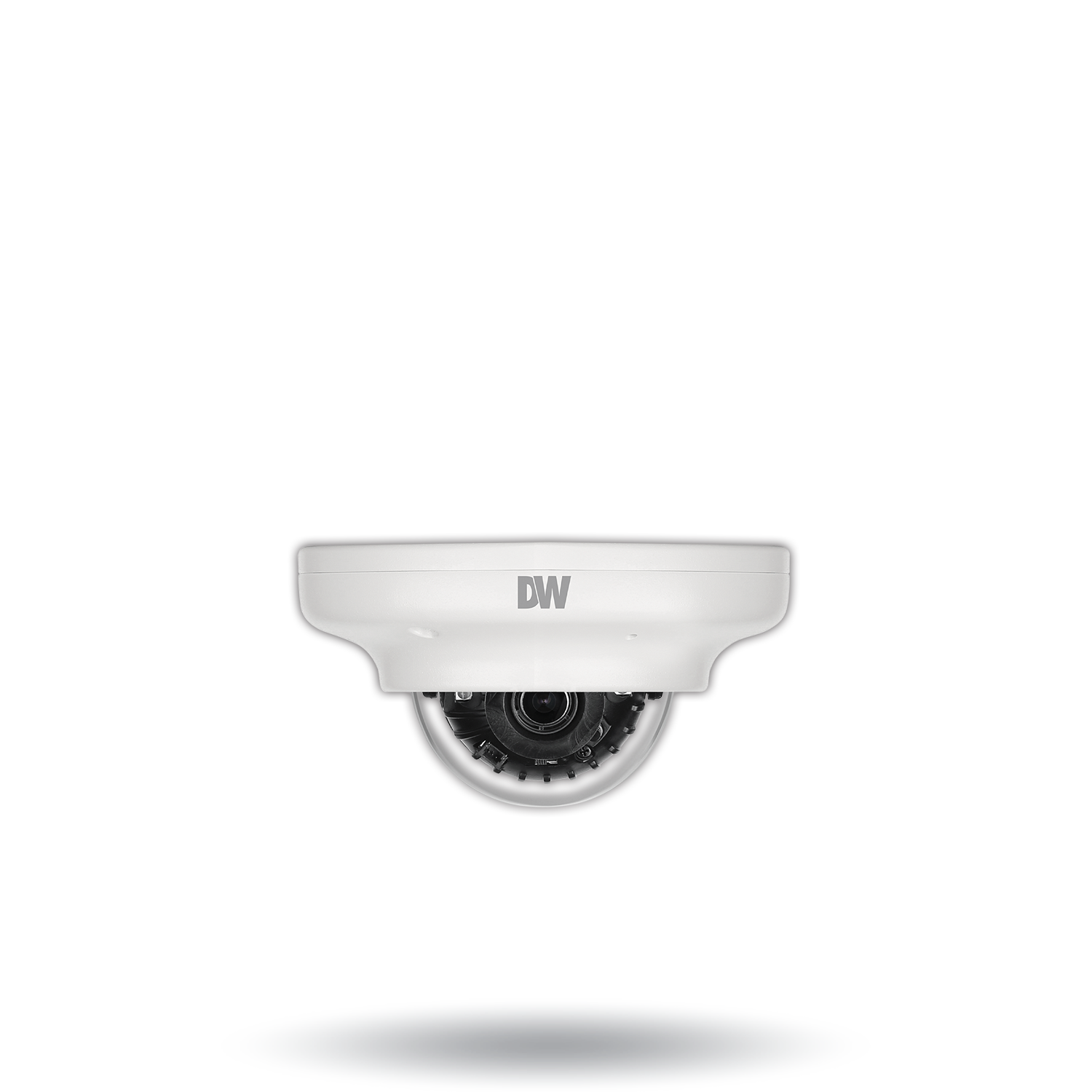

MEGApix® 4MP ultra low-profile vandal dome IP camera with 2.8mm, 4.0mm and 6.0mm fixed lenses and IR

Share this Product!

4MP ultra low-profile vandal dome IP camera with 2.8mm, 4.0mm and 6.0mm fixed lenses and IR

Model: DWC-MV74Wi28, DWC-MV74Wi4, DWC-MV74Wi6

Find a Reseller | Request a Demo | Contact Us

DISCONTINUED

This MEGApix^® IP camera provides 4 megapixel resolution at real-time 30fps. It includes a 2.8mm, 4.0mm and 6.0mm fixed lens options with image enhancement features such as 120db True WDR, Smart IR™ and Smart DNR™, all in an IP66-rated, IK10 impact-resistant vandal housing. All MEGApix^® cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.

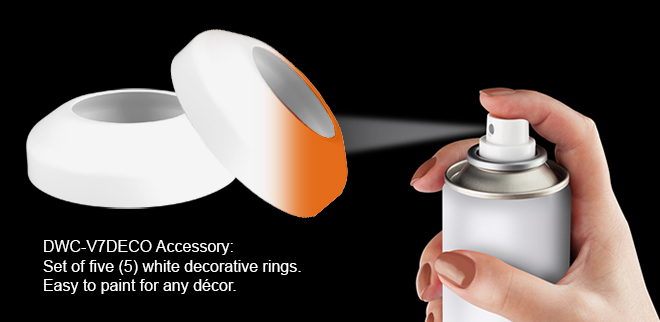

DWC-V7DECO Accessory: Set of five (5) white decorative rings for our MEGApix^® and Star-Light Plus™ cameras in ultra-low-profile V7 housings (DWC-xV7xxxx) make it easy to customize the look of the cameras for specific applications. Simply paint the rings to match your décor.

Ultra Low-Profile Vandal Dome Housing

The micro dome cameras are small and discrete, ideal for high-end applications where the cameras integrate into the overall design. HD video surveillance in a small and sleek design allows for discrete installations.

True Wide Dynamic Range (WDR)

Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.

Smart IR™

Smart IR™ adjusts the image for IR cameras to prevent excessive illumination on objects that are in the front of the scene and offers a clear image in B/W without any loss of detail.

Decorative rings

Customize your ultra low-profile vandal domes with decorative rings. The DWC-V7DECO set of five (5) white rings can be painted to match your décor.

4MP 1/3” image sensor at real-time 30fps
DWC-MV74Wi28: 2.8mm fixed lens
DWC-MV74Wi4: 4.0mm fixed lens
DWC-MV74Wi6: 60.mm fixed lens
True Wide Dynamic Range (WDR)
Dual codecs (H.264, MJPEG) with simultaneous dual-stream
50' Smart IR™ with intelligent camera sync
Extreme low-profile vandal camera
Smart DNR™ 3D digital noise reduction
True day/night with mechanical IR cut filter
Programmable privacy zones
Dynamic range compression (DRC)
Auto gain control (AGC)
Backlight compensation (BLC)
Auto white balance (AWB)
Motion detection
Micro SD/SDHC/SDXC class 10 card slot (card not included)
Web server built-in
PoE class 3 and DC12V
Waterproof cabling
ONVIF conformant, profile S
NDAA/TAA compliant
IP66 environmental-rated dust-tight and water-resistant
IK 10-rated impact-resistant
5 year warranty

Image sensor	4MP 1/3” CMOS
Total pixels	2688 (H) x 1520 (V)
Minimum scene illumination	0.41 lux (color)
Minimum scene illumination	0.0 lux (B/W)
Video output	Local video output CVBS 1.0V p-p (75 ?), 4:3 aspect ratio
LENS
Focal length	DWC-MV72Wi28: 2.8mm, F2.0 DWC-MV72Wi4: 4.0mm, F2.0 DWC-MV72Wi6: 6.0mm, F2.0
Lens type	Fixed lens
Field of view (FoV)	DWC-MV74Wi28: 90° DWC-MV74Wi4: 81° DWC-MV74Wi6: 51°
IR distance	50ft Range
OPERATIONAL
Shutter mode	Auto, manual, anti-flicker, slow shutter
Shutter speed	1/30~1/32000
Slow shutter	1~1/5,1/7.5, 1/10
Auto gain control	Auto
Day / night	Auto, day (color), night (B/W)
Smart DNR™ 3D digital noise reduction	0~11
Wide dynamic range (WDR)	True WDR off, WDR2x, WDR3x
Wide dynamic range (WDR) dB	120dB
Privacy zone	4 programmable privacy masks
Alarm notifications	Notifications via e-mail, FTP server or SD card recording
Memory slot	Micro SD / SDHC / SDXC (card not included)
NETWORK
LAN	802.3 compliance 10/100 LAN
Video compression type	H.264, MJPEG
Resolution	H.264: 1440p/1080p/720p/VGA/D1/CIF MJPEG: 1280x720/800x600/VGA/768x432/D1/CIF
Frame rate	Up to 30fps at all resolutions
Video bitrate	100Kbps ~ 10Mbps, multi-rate for preview and recording
Bitrate control	Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth)
Streaming capability	Dual-stream at different rates and resolutions
IP	IPv4
Protocol	Zero config(Auto IP), ONVIF, TCP/IP, UDP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3(MIB-2)
Security	HTTPS(TLS), IP filtering, 802.1x, digest authentication(ID/PW)
ONVIF conformance	Yes
Web viewer	OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®
Video management software	DW Spectrum® IPVMS
ENVIRONMENTAL
Operating temperature	-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity	10–90% RH (non–condensing)
IP rating	IP66-rated
IK rating	IK10-rated impact resistant
Other certifications	CE, FCC, RoHS
ELECTRICAL
Power requirement	DC12V, PoE IEEE 802.3af Class 3 (adaptor not Included)
Power consumption	DC12V: Max 5.6W PoE: Max 7.4W
MECHANICAL
Material	Aluminum vandal housing, polycarbonate dome
Dimensions	4.13" x 2.4" (105 x 61mm)
Weight	0.88lbs (0.4kg)

DWC-V7CM

Ceiling mount bracket for V7 outdoor dome cameras

DWC-GPLT

Converter plate for electronic gang box - ivory

DWC-V1CNM

Corner mount bracket for outdoor dome cameras

DWC-V7DECO

Decorative rings for V7 ultra low-profile vandal dome cameras

DWC-V7JUNC

Junction box for V7 outdoor dome cameras

DWC-V7WM

Wall mount bracket for V7 outdoor dome cameras

Title	Type	Size	Download
Camera part numbering system		0.03 MB
DW Accessories Chart		0.05 MB
DWC-MV74Wi series datasheet		0.43 MB
DWC-MV74Wi Series Quick Start Guide		1.63 MB
DWC-MV74Wi Series User Manual		8.52 MB
DWC-MV74Wi28 AE specifications		0.09 MB
DWC-MV74Wi4 AE specifications		0.09 MB
DWC-MV74Wi6 AE specifications		0.09 MB
DWC-MV74Wi28 CAD Drawing		0.20 MB
DWC-MV74Wi4 CAD Drawing		0.20 MB
DWC-MV74Wi6 CAD Drawing		0.20 MB

Title	Release Notes	Version	Compatibility	Size
DW IP Finder v4.4.14 for Linux OS	-	v4.4.14		47.86 MB
DW IP Finder v4.4.14 for Windows OS	-	v4.4.14		17.64 MB
MEGApix 4MP Firmware vA2.1.2-20180619	-	vA2.1.2-20180619	MEGApix 4MP IP cameras	0.00 MB
