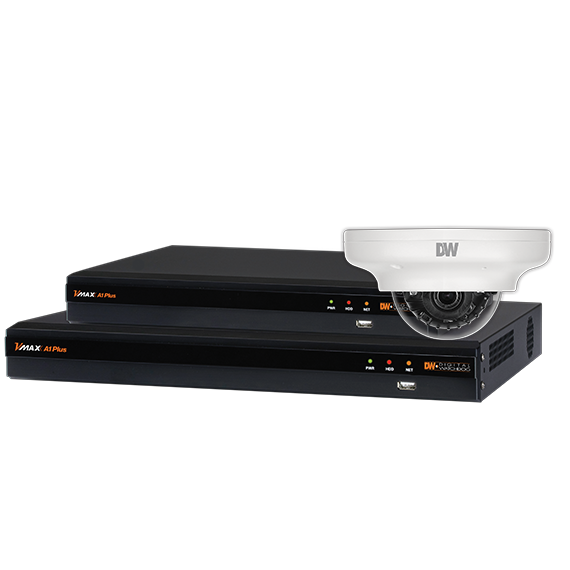

VMAX A1 Plus with vandal dome UHDoC cameras kits
Model: DW-VABUN, DW-VA1P4, DW-VA1P8, DW-VA1P16, DWC-V7253WTIR

The VMAX® A1 Plus™ DVRs support HD-Analog and HD-TVI signals up to 5MP, and CVBS up to 960H. Available with 4-, 8-, or 16 channels ports, the DVRs come with 1TB, 2TB or 3TB storage and a 5 year limited warranty.
The Star-Light Plus™ ultra low-profile vandal dome IP cameras deliver crystal-clear images at 2.1MP/1080p and real-time 30fps in an IP66-rated, IK-10 impact-resistant housing with 2.8mm fixed lens.

Learn more about the VMAX A1 Plus DVRs here. Learn more about the 2.1MP/1080p Star-Light Plus ultra low-profile vandal dome camera here.

Designed and commissioned in the U.S.A
All DW recorders, workstations and NAS devices are designed, assembled and inspected in our California facility. Each product undergoes multiple levels of quality control to guarantee the highest quality and performance.
PathFinder™
Easy and secure peer-to-peer remote connection without opening ports.
Learn More.
C3™ CMS
C3™ CMS takes video management to the next level. You are in complete command to control all your video surveillance systems in one intuitive interface. Easy-to-program alerts let you take action in real-time and manage the health of your devices.

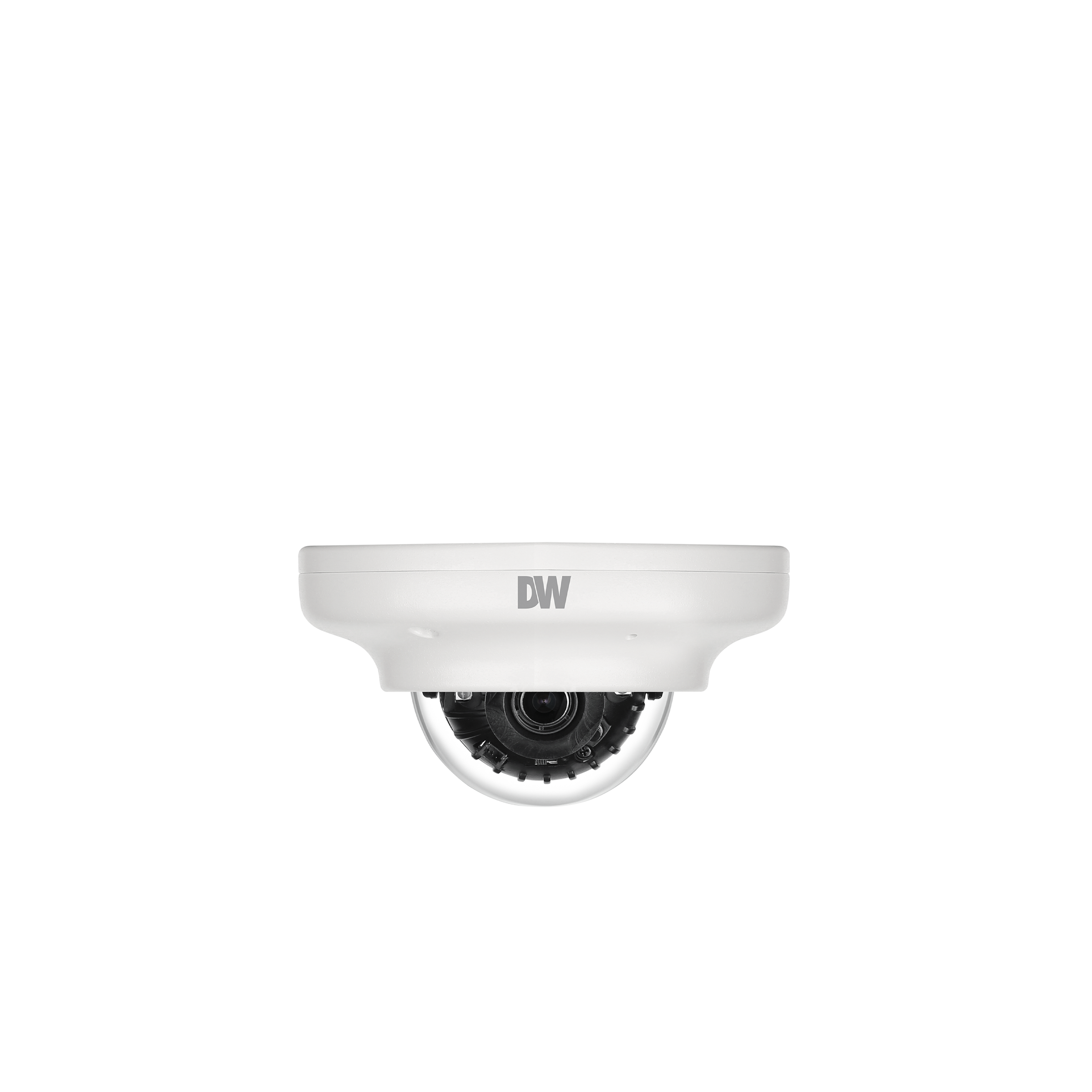

Ultra Low-Profile Vandal Dome Housing
The micro dome cameras are small and discrete, ideal for high-end applications where the cameras integrate into the overall design. HD video surveillance in a small and sleek design allows for discrete installations.
VMAX® A1 Plus™ UHDoC DVR
  • Kits w/ 1TB, 2TB and 3TB of storage capacity.
  • Supports CVBS and UHDoC.
  • Record/manage single-sensor cameras up to 5MP.
Star-Light Plus™ 2.1MP/1080p UHDoC cameras
  •  Kits w/ 4, 6, or 12 ultra low-profile vandal dome cameras with 3.6mm fixed lens.
  • True WDR, Smart IR™, HD-Analog, HD-TVI, HD-CVI and CVBS outputs.

Model #

Storage Size

DW-VA16BUN2 3TB VMAX A1 Plus DVR P/N: DW-VA1P163T - Qty. 1
2.1MP/1080p ultra low-profile vandal dome camera, 3.6mm fixed lens P/N: DWC-V7253WTIR - Qty. 12
DW-VA16BUN1 2TB VMAX A1 Plus DVR P/N: DW-VA1P162T - Qty. 1
2.1MP/1080p ultra low-profile vandal dome camera, 3.6mm fixed lens P/N: DWC-V7253WTIR - Qty. 12
DW-VA8BUN1 2TB VMAX A1 Plus DVR P/N: DW-VA1P82T - Qty. 1
2.1MP/1080p ultra low-profile vandal dome camera, 3.6mm fixed lens P/N: DWC-V7253WTIR - Qty. 6
DW-VA4BUN1 1TB VMAX IA1 P Plus DVR P/N: DW-VA1P41T - Qty. 1
2.1MP/1080p ultra low-profile vandal dome camera, 3.6mm fixed lens P/N: DWC-V7253WTIR - Qty. 4

Standard DW CPP discounts are available to CPP partners only, enroll now! No additional discounts apply.
Title Type Size Download
DW-VA1P16xT AE specifications docx 0.06 MB
DW-VA1P16xT CAD drawings dwg 3.96 MB
DW-VA1P16xT data sheet pdf 0.79 MB
DW-VA1P4xT AE specifications docx 0.06 MB
DW-VA1P4xT CAD drawings dwg 3.95 MB
DW-VA1P4xT data sheet pdf 0.77 MB
DW-VA1P8xT AE specifications docx 0.06 MB
DW-VA1P8xT CAD drawings dwg 3.99 MB
DW-VA1P8xT data sheet pdf 0.78 MB
DWC-V7253WTIR AE specifications doc 0.08 MB
DWC-V7253WTIR datasheet pdf 0.69 MB
DWC-V7253WTIR Manual pdf 1.30 MB
DWC-V7253WTIR quick setup guide pdf 1.62 MB
VMAX A1 Plus quick setup guide pdf 1.12 MB
VMAX A1 Plus user manual pdf 5.42 MB
DWC-V7253WTIR CAD Drawing dwg 0.20 MB
Title Type Release Notes Version Compatibility Size Download
VMAX A1 Plus calculator zip - 8.73 MB
